1. Product name and model index introduction:
1.1. Product name and model: (HUATEC GROUP HXRF-350)

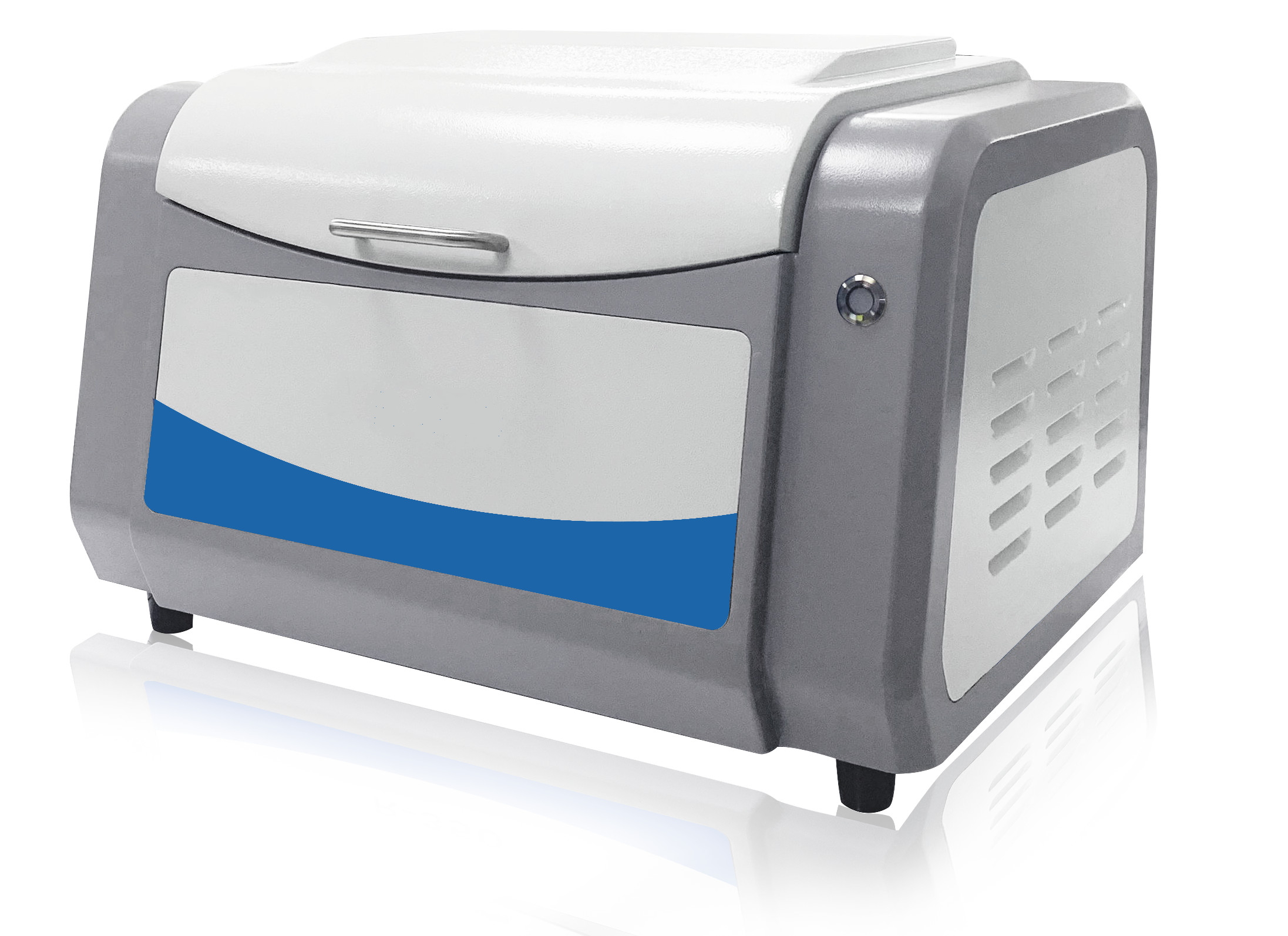

Energy dispersive X-ray fluorescence spectrometer model HXRF-350
1.2. Manufacturer: HUATEC GROUP Corporation
1.5. Working conditions:
Working temperature: 15-30 ℃
Relative humidity: 40% ～ 50%
Power supply: AC: 220 V ± 5V
1.6. Technical performance and index:
1.6.1. The range of elemental analysis ranges from sulfur (S) to uranium (U);
1.6.2. The analysis range of element content is 1 PPm to 99.99%;
1.6.3. Measuring time: 100-300 seconds;
1.6.4. Hazharmful elements (Cd / Pb / Cr / Hg / Br) up to 1PPM;
1.6.5. At the same time, you can analyze dozens of more elements, five layers of plating
1.6.6. The analytical detection limit was up to 2ppm, and plating analysis allowed 0.005um thickness samples
1.6.7 Power supply: AC 220V±5V; (It is recommended to configure AC purification and regulated power supply.)
1.6.8 Plating thickness is generally within 30 m (each material varies)
1.6.9 Any many selectable analysis and identification models.
1.6.10 Mutual-independent matrix effect correction model.
1.6.11 Multivariate nonlinear recovery program
1.6.12 Multiple measurements can repeat up to 0.1%
1.6.13 Long-term working stability can reach 0.1%
1.6.14. Temperature adaptation range is 15℃ to 30℃;
1.6.15. Energy resolution is 144 ± 5 electronic volts;
1.7. Product features
1.7.1 HXRF-350 is specially designed for ROHS, EN71, plating thickness, element analysis, etc.
1.7.2 break the traditional straight line design of the instrument and adopt the integral design of streamline body to make the instrument fashionable and generous.
1.7.3 it adopts the latest Si PIN detector in the United States, with electric refrigeration instead of liquid nitrogen refrigeration, small volume, accurate data analysis and low maintenance cost.
1.7.4 self developed SES signal processing system is adopted to effectively improve the measurement sensitivity and make the measurement more accurate.
1.7.5 one button automatic test, easier to use, more convenient, more user-friendly.
1.7.6 seven kinds of optical path correction and collimation systems are automatically switched according to different samples.
1.7.7 multipleanti radiation leakage design, radiation protection level belongs to the highest level of similar products.
1.7.8 the advanced integrated heat dissipation design greatly improves the heat dissipation performance of the whole machine and ensures the operation safety of the core components.
1.7.9 the unique movement temperature control technology ensures the safe and reliable operation of X-ray source, effectively prolongs its service life and reduces the use cost.
1.7.10 multiple instrument accessories protection system, and the whole process monitoring can be carried out through software, making the instrument work more stable and safer.
1.7.11 RoHS special test software, standard window design, friendly interface, easy to operate.
1.7.12 this machine adopts USB2.0 interface, which effectively ensures the accurate, high-speed and effective transmission of data.
2. Main configuration of instrument hardware
2.1 Si PIN electro cooled semiconductor detector: (latest detector)
2.1.1. Si PIN electro cooled semiconductor detector; Resolution: 149 ± 5 ev
2.1.2. Amplifying circuit module: detect the sample characteristic X-ray; Further amplify the information collected by detection.
2.2 X-ray excitation device:
2.2.1. Maximum filament current output: 1mA;
2.2.2. It belongs to semi loss type, 50W, air cooling.
2.3 high voltage launcher:
2.3.1. Maximum output voltage: 50kV;
2.3.2. Minimum 5kV controllable regulation
2.3.3. Built in voltage overload protection
2.4 multichannel analyzer:
2.4.1. Convert the collected analog signal into digital signal, and provide the processing results to the upper computer software.
2.4.2. Maximum road number: 4096;
2.4.3 signal enhancement processing
2.5 optical filter module
2.5.1 reduce the interference in the process of X-ray transmission, and ensure the accuracy of the signal received by the detector.
2.5.2 integrate the collimator with the filter;
2.6 collimator automatic switching module
2.6.1 there are up to 8 choices, with caliber of 8, 6, 4, 3, 2, 1, 0.5 and 0.2 respectively.
2.7 filter automatic switching module
2.7.1 free selection and switching of six filters.
2.8 automatic selection module of working curve
2.9.1 automatic selection of working curve, abandoning manual selection, avoiding manual operation error, and realizing automation and intelligence
The interpretation is more perfect, making the operation more humane and more convenient.
3. Special software HUATEC GROUP-FP
4.1.1 software introduction
It is specially developed for RoHS detection. The collected spectral signals are processed, calculated, and the measurement results are reported and displayed.
4.1.2 function introduction
Specifically deal with the six elements Cd, Pb, Hg, Br, Cr and Cl involved in the six substances in the EU ROHS directive. The measurement time is 100-300 seconds
Simple and intuitive operation interface, easy to use, no need for professionals to operate
