Product introduction

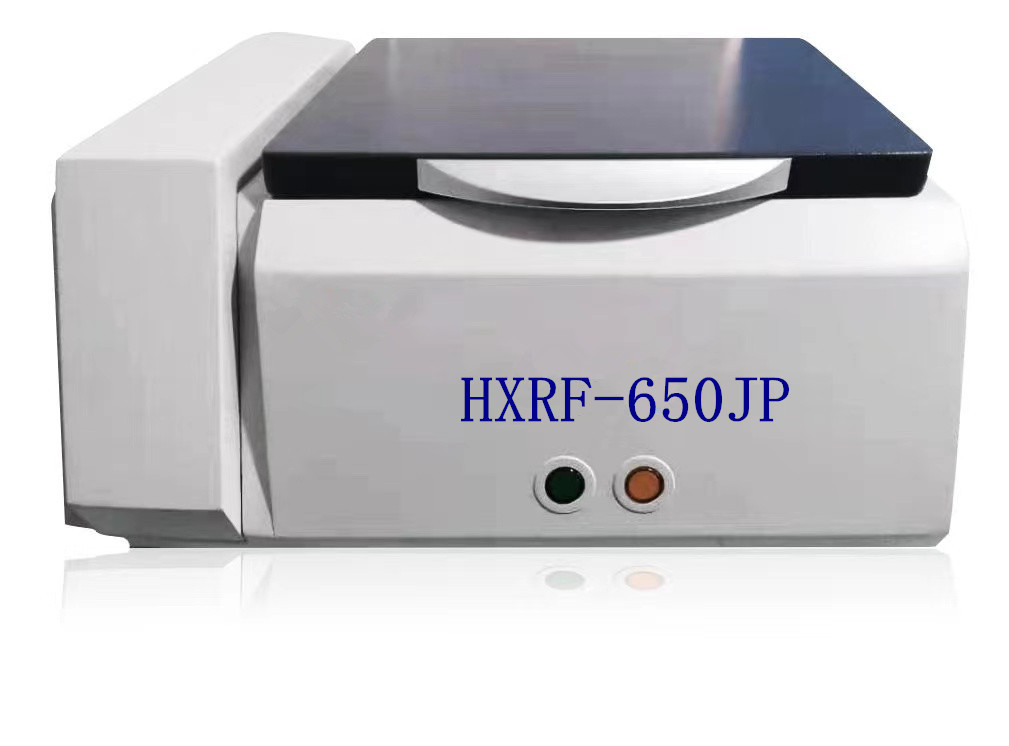

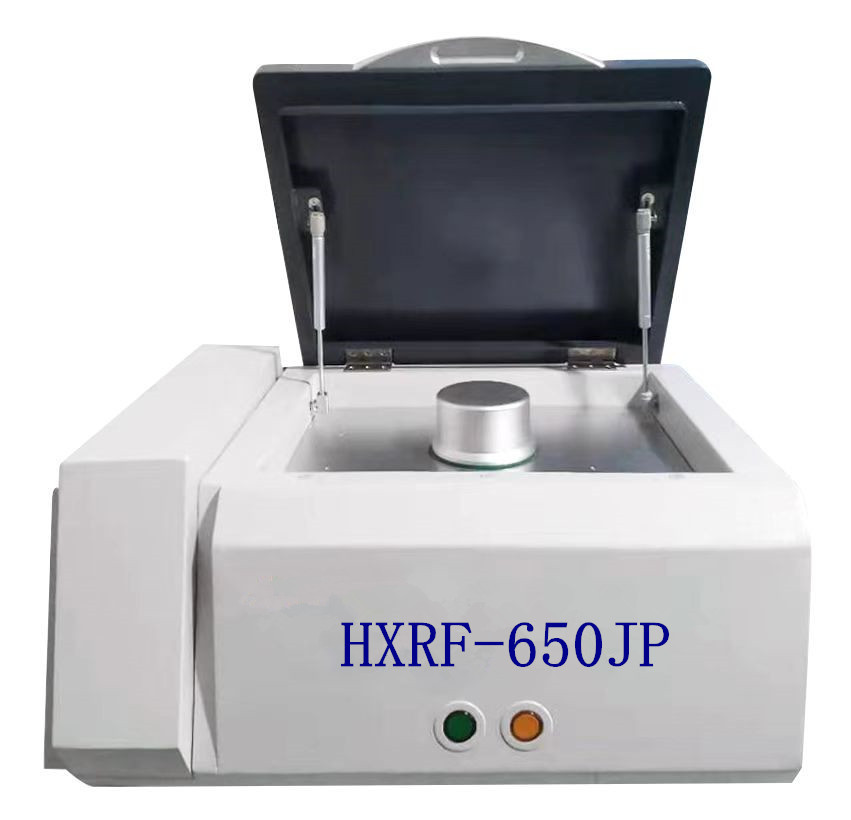

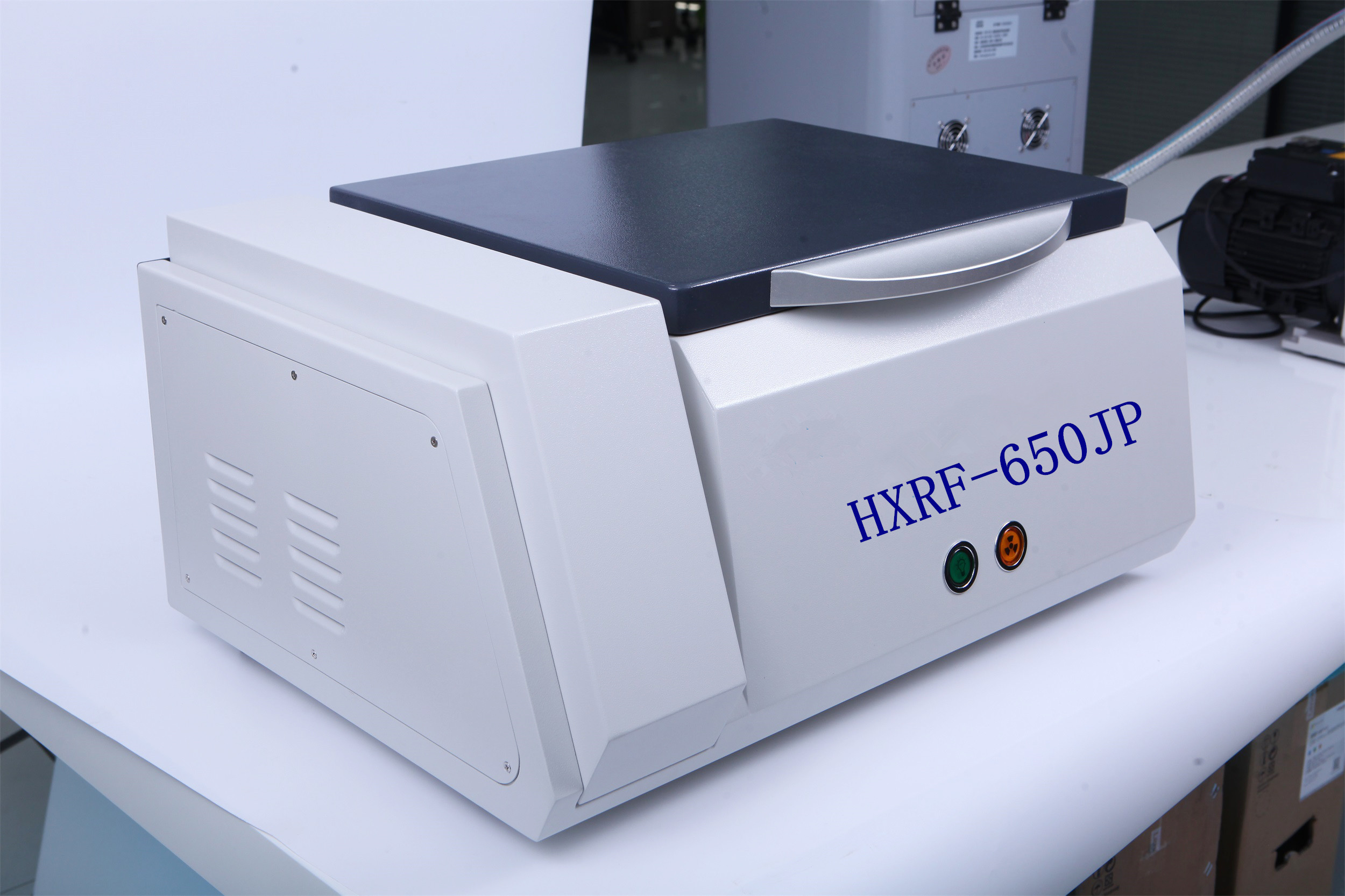

HXRF-650JP type X-ray fluorescence analyzer is a high-end analytical instrument designed for non-ferrous metals, ferrous metals, mineral processing and smelting, and geological industries.
Technical specification
Range of measured elements: from sodium (Na) to uranium (U)
Measuring concentration range: ppm -- 99.99% (different elements, different analysis range)
Measurement object state: powder, solid, liquid
Element analysis capability: Dozens of elements from sodium (Na) to uranium (U) can be measured at one time
Best resolution: 129eV±5eV
Best analysis accuracy: RSD≤0.1% (national standard sample)
Analysis time: Single test time is adjustable
Refrigeration mode: electric refrigeration, without any consumables
Large sample cavity size: 400mm x 340mm x 80mm
Vacuum sample chamber size: φ100mm×h75mm
Appearance Size: 700mmx510 mmx336mm
Working power supply: AC 220V ±5V, 50Hz
Working environment: indoor temperature 15 ~ 30℃; Relative humidity ≤80% (no condensation)
Machine weight: 56KG
Performance characteristics
Analysis efficiency: High speed, high precision and high efficiency. The self-developed analysis software can simultaneously complete the synchronous and accurate analysis of dozens of elements from 11 sodium (Na) to 92 uranium (U) within 1-120 seconds
Functional advantages:
1. Appearance design: generous and beautiful, durable, multiple safety protection mode.
2. Collimating filter system: collimating + multi-combination filter, software automatic switch, meet a variety of test applications.
3. SES signal processing system (digital multi-channel) independently developed is adopted to effectively improve the peak back to back ratio and make the measurement more accurate.
4. Multi-dimensional heat dissipation system: Optimize the integrated heat dissipation design to improve the heat dissipation performance of the whole machine and ensure the operation safety of the X-ray source
5. Radiation safety system: multiple anti-radiation leakage design, radiation protection level belongs to the highest of similar products
6. Vacuum system: Select the vacuum system, optimize the test environment, improve the analysis accuracy of magnesium, aluminum, silicon, phosphorus, sulfur and other light elements
7. Unique movement temperature monitoring technology ensures the safe and reliable operation of the ray source, effectively prolongs its service life and reduces the use cost
Hardware advantage: The whole set of core components is imported
1. Detector: The original Amptek silicon drift SDD probe from the United States, with the lowest resolution of 129eV±5eV, excellent energy linearity and energy resolution, peak-to-back ratio.
2. X-ray tube: maximum power 50W, tube voltage 5-50KV, tube current 0-1000uA; Long life X-ray tube.
3. High voltage power supply: maximum power 50 W, voltage 0-50 KV, current 0-1000uA. 8-hour stability ≤0.05%.
4. Signal processor: Adopt imported signal processor, adapt to high resolution and high count rate, self-tuning magnification, the maximum number: 4096.
Software advantage: Chinese version of X-ray fluorescence analysis software jointly developed by Danaher and our company, which integrates empirical coefficient method, theoretical α coefficient method, linear fitting, quadratic curve, strength correction, content correction and other analysis methods to fully ensure the accuracy of test data.
Instrument configuration
System standard configuration:
1. Digital multi-channel SDD detector
2. X-ray sources
3. High voltage power supply
4. Sex to noise ratio electronic circuit system
5. Optical path enhancement system
6. 8 collimation +5 filter
7. Digital multichannel analyzer

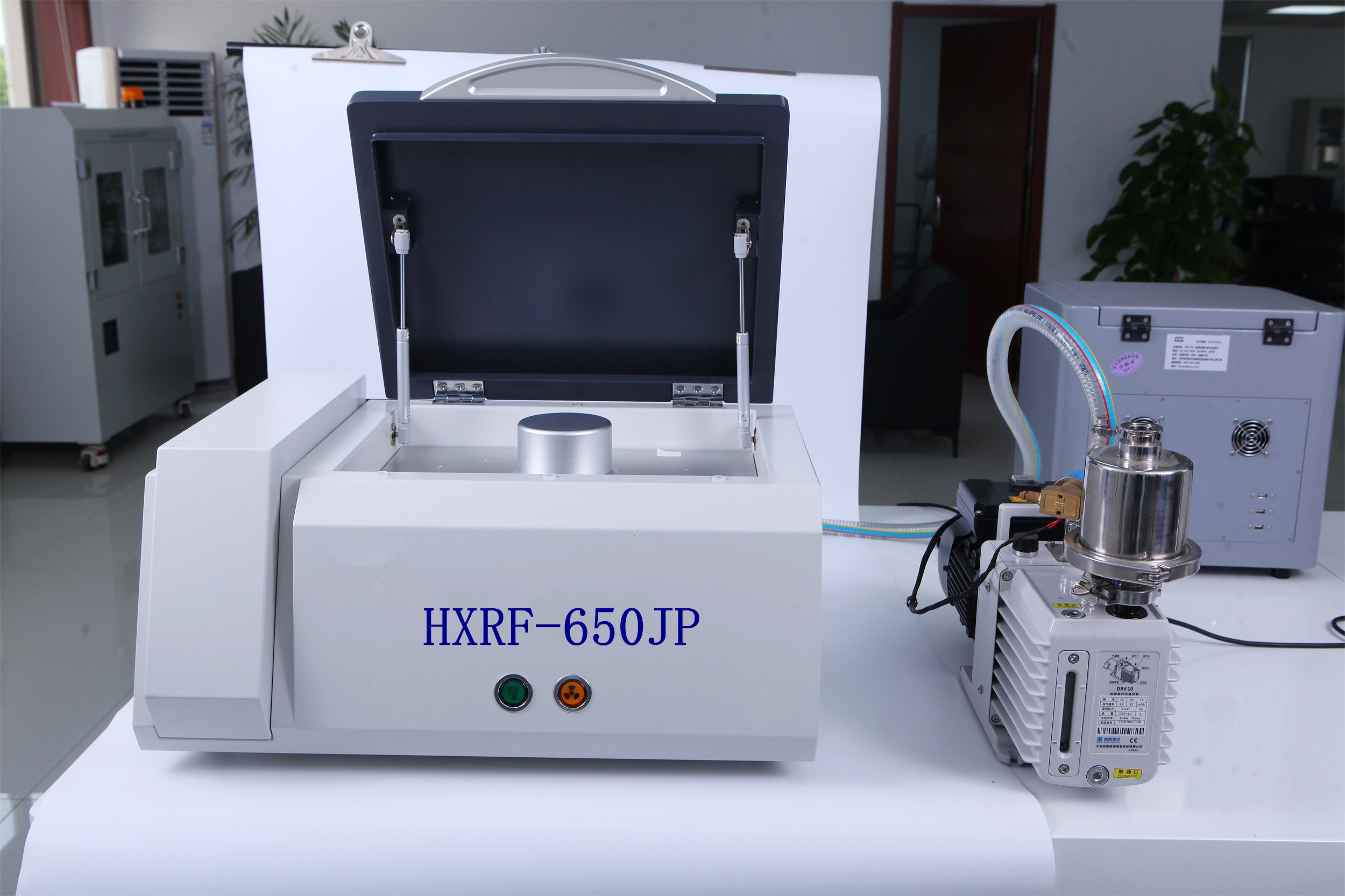

8. Vacuum pumping system
9. Branded inkjet printers
10. Branded computers
11. X fluorescence full element analysis software
12. Sample cup and fuse
13. Regulated power supply for spectrum (optional)
System selection:
1. Special Grinding machine for spectrum (optional)
2. Spectroscopic Fusion Machine (Optional)
3. Special Powder Making machine for Spectrum (optional)
4. Platinum Crucible for melting sample (optional)
5. Special Tablet press for spectrometer (optional)
Product application
HXRF-650JP spectrometer can analyze the following samples and elements (oxides) :
Sample type | Element category |
Sinter/pellet ore | TFe,Si,Ca,Mg,Al,Mn,Ti,P,S,K,V Etc. |
Blast furnace slag/converter slag | TFe,Si,Ca,Mg,Al,Mn,Ti,P,S,K,V Etc. |
Refining slag | Al,Ca,Si,Mg,Fe,Ti Etc. |
Premelted slag | Ca,Mg,Al,Si,Fe,P,S Etc. |
Calcium aluminate | Si,Al,Fe,Ca,Mg Etc. |
Calcium ferrite | Fe,Al,Ca,Si,S,P Etc. |
Manganese-rich slag | Mn,Fe,P,S,Si,Al,Ca Etc. |
Iron concentrate powder/iron ore | TFe,Si,Ca,Mg,Al,Mn,Ti,P,S,K,V Etc. |
Hematite/magnetite | TFe,K,Na,S,P,Al,Si,Mg,Ca,Mn,Zn,Cu,Ti Etc. |
Lead-zinc ore | Pb,Zn,Ag,Cu,Sn,Fe,S,Cd,Mo,As Etc. |
Manganese ore | Mn,Si,P,S,Al,Ti,K,Zn,Ca,Mg Etc. |
titanite | Ti,Mn,Fe,Si,P,S,Al,K,Zn,Ca,V,Cu,Mg Etc. |
Copper mine | Mn,Fe,S,Cu,Pb,As,Au,Cd,Zn,Ag,Mg Etc. |
chromite | Fe,P,S,Al,Cr,Ca,Mg,Si Etc. |
refractory |
High silica clay Si,Al,Fe,Ca,Mg,K,Na,S,P Etc. High alumina alumina Al,Fe,Ti,Na,K,Mn,Ca,Mg,Si,P Etc. High magnesia magnesia Mg,Ca,Si,Al,Fe Etc. |
corundum |
White corundum Al,Na,Si,Ca,Fe Etc. Brown corundum Al,Si,Ti,Fe Etc. Black corundum Al,Si,Ti,Fe Etc. Chromic corundum Al,Na,Cr,Fe Etc. Zirconium corundum Zr,Si,Al,Na,Fe,Ti,Ca,Mg,K Etc. |
Cement raw/clinker | Si,Al,Fe,Ca,Mg,K,Na, S,Cl- Etc. |
limestone | S,P,Al,Si,Fe,Ti,Mn,Sr,Ca,Mg Etc. |
dolomite | S,P,Al,Si,K,Na,Fe,Ti,Mn,Sr,Ca,Mg Etc. |
wollastonite | Si,Ca,Fe,Al,Ti,Mg Etc. |
serpentine | Mg,Si,K,Na,Ca,Fe,Ti,Mn,Al,S,P Etc. |
mullite | Al,Si,Fe,Ti,Ca,Mg,K,Na Etc. |
Magnesia alumina spinel | Al,Mg,Ca,Si,Na,Fe Etc. |
fluorite | Ca,P,S,Si,Al,Fe,Mg,Ti,Mn,K,Na Etc. |
Coal gangue | Si,Al,Fe,Ca,Mg,Ti,P,V Etc. |
Quartz sand | Zr,Si,Fe,P,S ,Al,Ti Etc. |
rutile | Ti,S ,P ,Fe,Nb,Ta,Cr,Sn Etc. |
garnet | Ca,Mg,Fe,Mn,Al,Cr Etc. |
Pig iron | Si,Mn,P,S,Ti,Cr,V Etc. |
High manganese pig iron | Fe,Mn,P,S,Si,Cr Etc. |
Ferrosilicon alloy | Al,Si,Ca,Na,Mg,P,S,Fe,Cr,Mn,Cu,Ba Etc. |
Silicon manganese alloy | Mn,P,S,Si Etc. |
Silico-zirconium alloy | Si,Ca,Al,Ba,ZR,Mn Etc. |
Barium calcium | Si,Al,Ba,Ca Etc. |
Barium silicon calcium/calcium silicon/barium silicon | Si,Ba,Ca,Ba ,Fe Etc. |
Nickel iron | Ni,Mn,Si,Cu,Co,Cr,V,S,P Etc. |
Iron vanadium | V,Mn,Si,P,S Etc. |
ferrochrome | Cr,Si,P,S,V,Fe,Mn,Ti Etc. |
ferromanganese | Mn,Si,P,S,Cr,Ni,V,Fe Etc. |
Iron niobium | Nb,Al,Si,S,P Etc. |
Smelting lead | Pb,Sb,Sn,Bi,Fe,Si,Ca,S Etc. |
Electrolytic manganese | Mn,S,P Etc. |
Tin slag | Sn,Fe,Si,Ca Etc. |
Vanadium slag | V,Mn,Cr,Ti,Ca,Si Etc. |
glass | Si,Al,Fe,Ca,Mg,K,Na Etc. |
Fly ash (thermal power Plant) | Si,Al,Fe,Ca,Ti,Mg,K,Na,S,Mn Etc. |
Spheroidizing agent (rare earth magnesium silicon alloy) | Mg,RE,Si,Ca,Al Etc. |
inoculant | Si,Ba,Ca,Al Etc. |
Creep agent | Mg ,Re ,Ca ,Si ,Al Etc. |
Covering agent | Ca ,Si,Mg,Al,Fe Etc. |
Tube mould powder | Si,Ca,Al,Ba,ZR,Mn Etc. |
Slag remover | Ca ,Si,Al Etc. |
Sintered flux | Si,Ti,Ca,Mg ,Al,Mn,S,P Etc. |
Brazing powder | Ti,Zr,Ni,Cu,Ag,Zn,Sn,Si,Mn,Ni,Cr,P Etc. |
alumina | Si,Fe,Ca,Mg Etc. |
Industrial silicon | Al,Ca,Fe,Ti,Mn,Ni Etc. |
SCR denitration catalyst | Ca,Na,K,As,W,V Etc. |
Heavy metals in soil | Pb,As,Cd,Hg,Cu,Ni,Zn,Cr Etc. |
