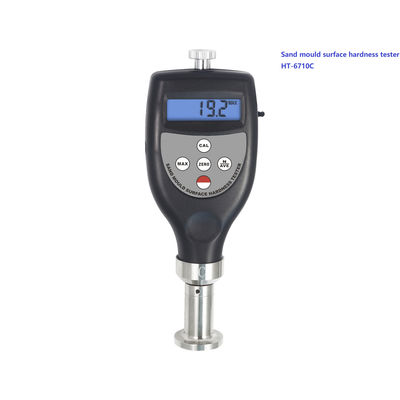

DIN 53505, ISO 868, ISO 7619 Pressure 180g Digital High Pressure Mould Wet Mould Surface Hardness Tester HT-6710C
General Application
The High Pressure Sand Mould Surface Hardness Tester is used to measure the surface hardness of the sand mould/core of the wet mold and provide technical parameters for the formulation of the molding process.
Features
* HT-6710C meets standards of DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215.
* The surface hardness of sand mold is divided into three types: A, B and C, The common model is type B, among them:
Type A model HT-6710A: Suitable for the surface hardness test of fine sand mold/core in manual or mechanical low and medium pressure molding.
Type B model HT-6710B: Suitable for the surface hardness test of fine and coarse sand mold/core in manual or mechanical low and medium pressure molding.
Type C model HT-6710C: Suitable for the surface hardness test of sand mold in high pressure molding.
* The unit of type C hardness tester for sand mold surface is (g/mm2), but it is customary to use hardness H(A/B/C) instead of unit. Because their values are related and consistent, the corresponding hardness value is also large when the unit value is large (g/mm2).
* Average calculate function included.
* Peak value deposit function included.
* Under-voltage alarm function included.
* Use USB data output to connect with PC.
* Provide Bluetooth data output choice.
Selection Guide
Specifications
| Model/Type | HT-6710A | HT-6710B | HT-6710C |
| Stroke | 2.50mm | 2.50mm | 2.50mm |
| Load | 237g | 980g | 1500g |
| Pressure Load | 90g | 50g | 180g |
| Shape and size of indenter | Spherical R2.50 | Spherical R12.70 | Spherical R1.20 |
| Unit | HA | HB | HC |
| Display | 4 digits, 10mm LCD | ||
| Parameters | Tested Result / Mean Value / Max. Value | ||
| Display Range | 0H~100H(A/B/C) | ||
| Testing Range | 10H~90H(A/B/C) | ||
| Accuracy | ≤±1H(A/B/C) | ||
| Resolution | 0.1H(A/B/C) | ||
| Battery Indicator | Low Battery Indicator | ||
| Auto Switch Off | √ | ||
| Operating | Temperature: 0~40°C Humidity: <80%RH | ||
| Power Supply | 2x1.5V AAA (UM-4) Battery | ||
| Dimensions | 162mmx65mmx28mm | ||
| Weight | 170g | ||
| Standard Accessories | Main Unit HT-6710C | ||
| Carrying Case | |||
| Operation manual and calibration certificate | |||
| Optional Accessories | USB Data Cable with Software | ||
| Bluetooth Data Adapter with Software | |||
