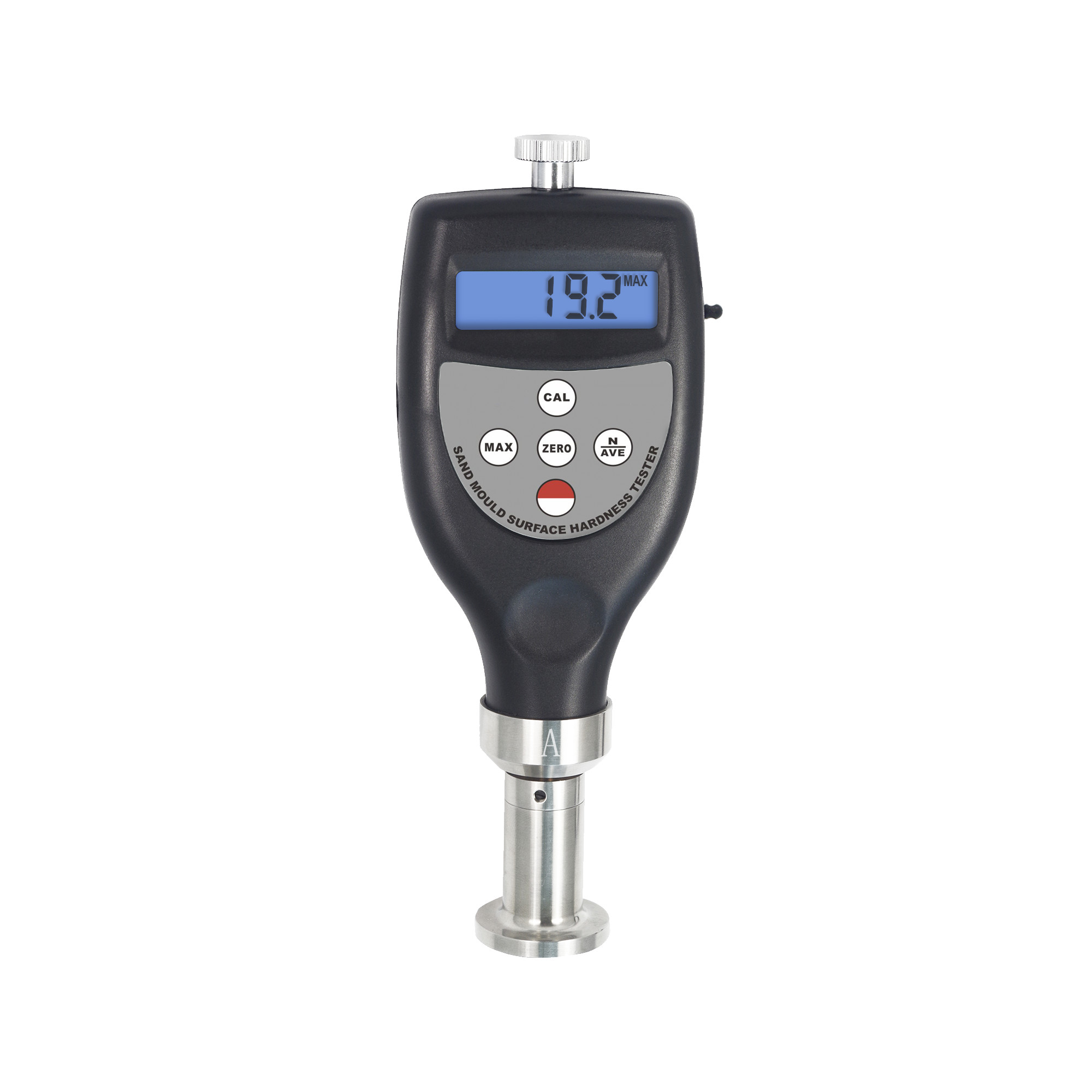

DIN 53505, ISO 868, ISO 7619 Digital Sand Mould Wet Mould Surface Hardness Tester HT-6710A
Application
The Sand Mould Surface Hardness Tester is used to measure the surface hardness of the sand mould/core of the wet mold and provide technical parameters for the formulation of the molding process.
Features
* It meets standards of DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215.
* The surface hardness of sand mold is divided into three types: A, B and C, The common model is type B, among them:
Type A: Suitable for the surface hardness test of fine sand mold/core in manual or mechanical low and medium pressure molding.
Type B: Suitable for the surface hardness test of fine and coarse sand mold/core in manual or mechanical low and medium pressure molding.
Type C: Suitable for the surface hardness test of sand mold in high pressure molding.
* The unit of type B hardness tester for sand mold surface is (g/mm2), but it is customary to use hardness H(A/B/C) instead of unit. Because their values are related and consistent, the corresponding hardness value is also large when the unit value is large (g/mm2).
* With average calculate function.
* Peak value deposit function.
* Under-voltage alarm function.
* Use USB data output to connect with PC.
* Provide Bluetooth data output choice.

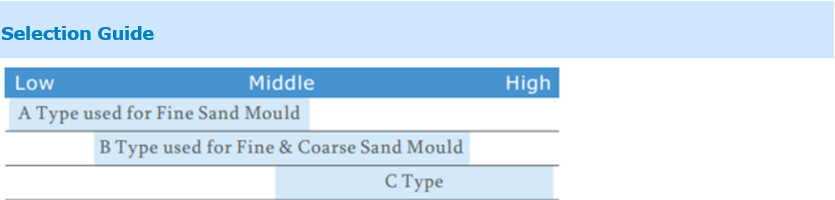

Selection Guide
Specifications
Model | HT-6710A | HT-6710B | HT-6710C |
Stroke | 2.50mm | 2.50mm | 2.50mm |
Load | 237g | 980g | 1500g |
Pressure Load | 90g | 50g | 180g |
Shape and size of indenter | Spherical R2.50 | Spherical R12.70 | Spherical R1.20 |
Unit | HA | HB | HC |
Display | 4 digits, 10mm LCD | ||
Parameters | Tested Result / Mean Value / Max. Value | ||
Display Range | 0H~100H(A/B/C) | ||
Testing Range | 10H~90H(A/B/C) | ||
Accuracy | ≤±1H(A/B/C) | ||
Resolution | 0.1H(A/B/C) | ||
Battery Indicator | Low Battery Indicator | ||
Auto Switch Off | √ | ||
Operating | Temperature: 0~40°C Humidity: <80%RH | ||
Power Supply | 2x1.5V AAA (UM-4) Battery | ||
Dimensions | 162mmx65mmx28mm | ||
Weight | 170g | ||
Standard Accessories | Main Unit HT-6710A | ||
Carrying Case (B04) | |||
Operation manual and calibration certificate | |||
Optional Accessories | USB Data Cable with Software | ||
Bluetooth Data Adapter with Software |
