B5 AS2083/2005 BS2704/1978/1983 Penetrant Testing Chrome Plating Dye Panels
B5 AS2083/2005 BS2704/1978/1983 Penetrant Testing Chrome Plating Dye Panels
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: Type B5
High Light:

chrome plating penetrant testing


penetrant testing dye panels

Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Material: Stainless Steel With Chrome Plating
Color: Silver
Name: Type II Test Specimen
Standards: ISO 3452-3:2013(E)
Product Name: Dye Penetrant Inspection
Standard: JIS Z 2343-3:2001
Stanard: GB/T18851.3
Product Description

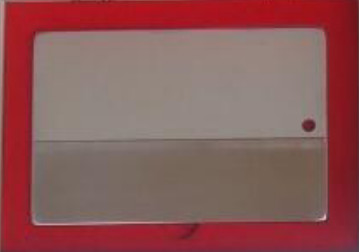

B5 AS2083/2005, BS2704/1978/1983 Chrome Plating Dye Penetrant Test Panels


Material: Stainless steel with chrome plating




All linear dimensions to the requirements of AS2083/2005, BS2704/1978/1983, where applicable. Heat treatment to the requirements of GB/T6394/2002. where practicable tolerances to (+/-0.1mm) unless otherwise stated.
Material: Test Report according to ISO 10474-3.1.B,JIS G 0415-3.1.B
Depth 100µm
Width (target value) 0.5µm

Treated to 920 degrees C for 30 minutes, water quenched, 650 degrees C for 3 hours, air cooled.


Traceability Calibration standards used are traceable to international standards

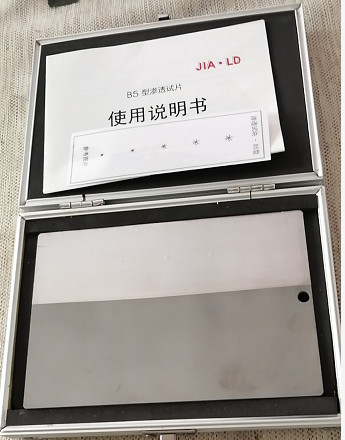

Standard delivery:

B5 dye penetration block 1 set

Calibration certificate 1 pc

Case 1 pc
