0918 Potable Surface Finish Digital Surface Profile Gauge Surface Surface Roughness Machine

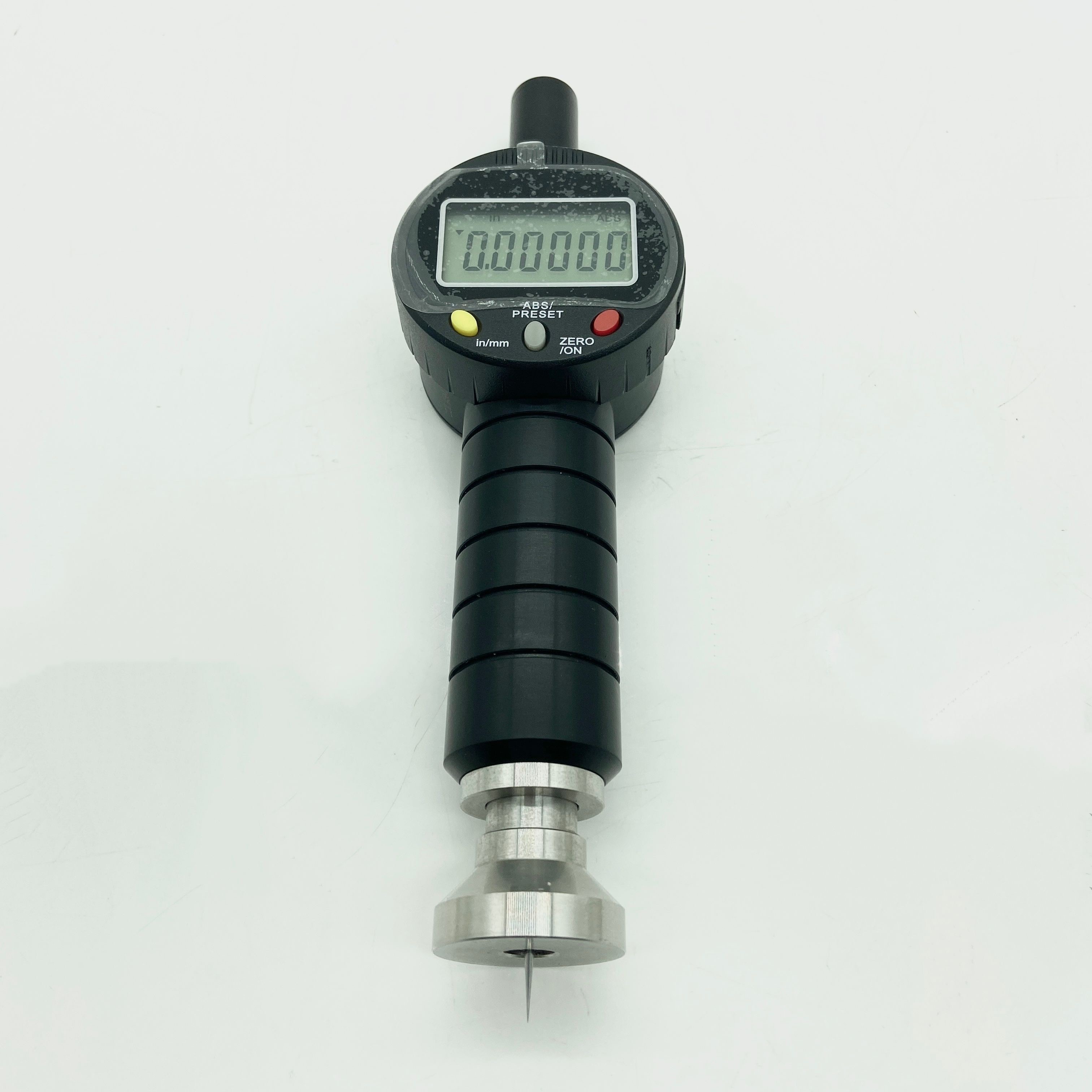

The SRT-5240 digital metric/imperial surface profile, or roughness, needle gauge is a low cost option for surface profile measurement.
The Digital Surface Profile Gauge can directly measure the height of the peak valley bottom of the surface, the surface profile and the pits.
With only a small measuring area, it can accurately and quickly measure the peak and valley values of clean and rough surfaces
It is applicable to users in the industries with surface roughness requirements such as shot blasting, printing, painting and anti-corrosion industries.
Conform to the international authoritative general standard ISO8503-5.
First, use the glass zero plate to calibrate the zero point, then place the foot on the surface to be measured, then the probe can measure the height from the wave crest to the wave trough, and finally take the average value, which is the roughness value of the surface to be measured.
|Measuring range||Surface profile and pits|
|range||0～2000um(Maximum adjustable to 6500um)|
|unit||Metric/English system interchange|
|Testing needle diameter||0.2mm|
|Testing needle length||8.2mm|

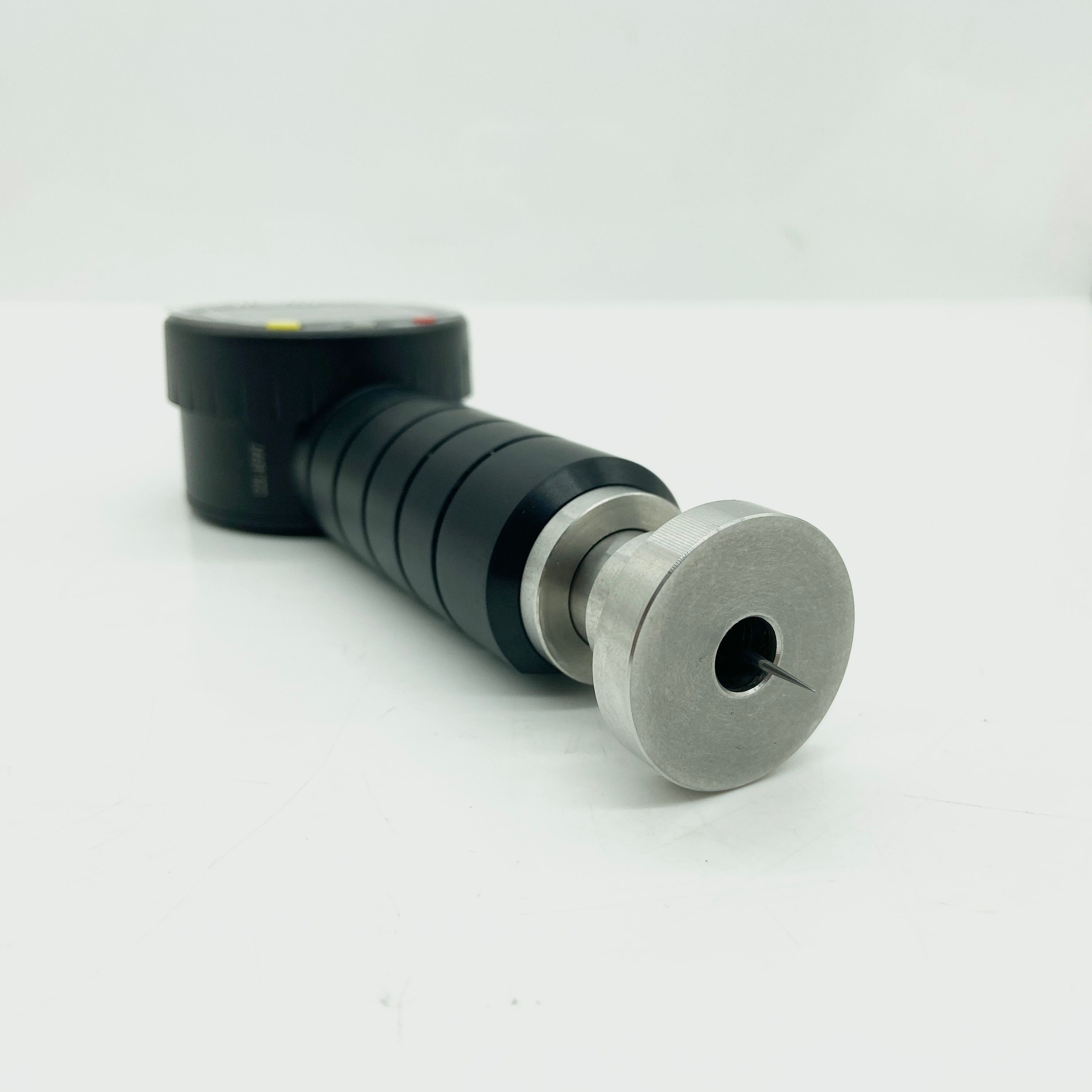

|Base contacting surface diameter||30mm|
|Base contacting surface inner hole diameter||9mm|
|Host machine||1||Calibration sheet||1|
|Instrument packing box||1||instructions||1|
|Warranty card||1||HUATEC Calibration certification||1|
