Film Drying Ndt Equipment Hdl-360 Adjustable Speed
1
MOQ
Film Drying Ndt Equipment Hdl-360 Adjustable Speed
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: HUATEC
Certification: ISO CE
Model Number: HDL-360
High Light:

film drying ndt equipment

,

adjustable speed ndt equipment

,

film drying ndt machine

Payment & Shipping Terms
Packaging Details: in carton
Payment Terms: T/T, Western Union
Supply Ability: 500
Specifications
Delivery Width: 360mm
Running Time: 710mm/min (running Time: 40 Seconds)
Dry Weight: 8 X 350mm (4 * 14), 270 Pieces Per Hour
Power: 200-240V 50/60Hz 5A
Water Consumption: 2 L/min During Film Operation
Volume: 560mmX480mx545 (length X Width X Height)
Weight: Net Weight 21Kg, Gross Weight: 26Kg (including Packing).
Film Development Speed: 40-240s Adjustable
Dry Tablet Quantity: 80X360mm (4 "X14") Film 450 Sheets Per Hour (dry Film Speed 40s)
Product Description

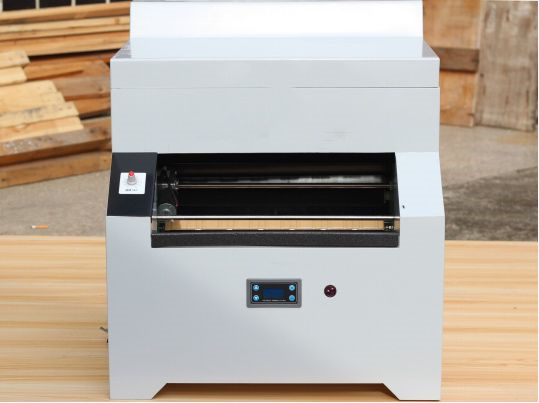

360mm Width Chip Induction PTC Heating Element NDT Film Drying Equipment HDL-360





Technical parameters and specifications

● Drying process: → → Water washing → → Drying → →

● Film development speed: 40-240s adjustable

● Sheet feeding width: 360mm

● Moving speed: 710mm/min (running time: 40 seconds)

● Dry tablet quantity: 80X360mm (4 "X14") film 450 sheets per hour (dry film speed 40s)

● Power supply: 200-240V. 50/60Hz 5A

● Water consumption: 2 l/min during film operation

● Volume: 560mmX480mx545 (length x width x height)

● Add the function of chip induction

● Improved air duct, higher drying efficiency

● Roller shaft: DuPont foamed uranium is used to ensure that it will not harden within 5 years

● Shell: engineering PVC plastic

● Heating element: PTC heating element

● Temperature control mode: constant temperature control with solid-state relay



Optional parts: water washing circulating device, which aims at no tap water, poor water quality or frequent water stoppage at the use site
