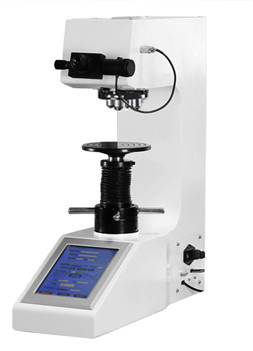

Three Objective Lens Vickers Hardness Machine Automatic Turret With Digital Touch Screen

1pcs
MOQ
Three Objective Lens Vickers Hardness Machine Automatic Turret With Digital Touch Screen
Features Gallery Product Description Request A Quote
Features
Specifications
Screen: 8 Inch Touch Screen Interface
Auto Turret: Indenter And The Objective Lens Automatically Switch To Each Other
Memory: Saved In EXCEL Format On USB Disk
Test Force: 0.3Kgf (2.94N) To 100Kgf(980N)
Meet Standard: GBT4340.1, GBT4340.2, ASTM_E92
Hardness Test Range: 8~2900HV
Test Force Application Method: Automatic (loading, Preserving, Unloading)
Test Microscope Magnification: 50X, 100X, 200X, 400X
Maximum Allowable Specimen Height: 180mm
Distance From Head To Wall: 160mm
Size: 580*190*700mm
Weight: About 55 Kg
Power Supply: AC220V + 5%, 50 To 60 Hz
Product Name: Vicker Hardness Tester
Objective Lens: Any Three Objective Lenses In 5X, 10X, 20X, Or 40X
Highlight:

three objective lens vickers hardness machine

,

automatic turret vickers hardness machine

,

touch screen micro hardness testing machine
Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HV-10MDX-Q
Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 5 days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Product Description

Three Objective Lens Automatic Turret Digital Touch Screen Vickers Testing Machine


  1. Product introduction

The series of three objective automatic turret digital touch screen Vickers hardness tester is a:

  • Any three of the 5X, 10X, 20X, and 40X objective lenses are installed simultaneously
  • Maximum 11 levels of test force, force value is optional
  • Automatic turret
  • Hardness value automatic display
  • 8 inch touch screen interface, easy to operate
  1. Main features
  1. At the same time, any three objective lenses in 5X, 10X, 20X and 40X are installed to ensure that the indentation of different sizes can meet the standard size in the field of view. At the same time, a wide range of sample profile scanning can be carried out with low magnification.
  2. All the three objective lenses can realize the measurement function
  3. Level 11 test force, to meet all the test forces in the range of the standard
  4. 8 inch touch screen interface, easy to operate;
  5. During the test, the pressure head and the objective lens automatically switch to each other, and the automatic positioning of the test point is accurate.
  6. It can be calibrated according to the standard hardness block or length scale, and the hardness can be modified automatically according to the high, middle and low hardness values, and the hardness values are more accurate.
  7. Various hardness values are converted to each other;
  8. All test parameters and results are stored on USB flash disk in Excel format, which is convenient for data processing and test report output.
  9. Test setting parameters are protected by password;
  10. Light source using LED lamp, long life, no need to replace the bulb;
  11. Built-in camera, clearer image (optional);
  12. Chinese, English and other languages for choice;
  13. With RS-232 interface, on-line with computer (optional)




  1. Technical parameters
ModelHV-10MDX-QHV-30MDX-QHV-50MDX-QHV-100MDX-Q
Test force0.3Kgf (2.94N), 0.5Kgf (4.90N), 1.0 Kgf(9.8N), 2.0Kgf(19.6N), 2.5Kgf(24.5N), 3.0Kgf(29.4N), 5.0Kgf(49.0N), 10.0Kgf(98.0N)0.5KGF (4.90N), 1.0KGF (9.8N), 2.0KGF (19.6N), 2.5KGF (24.5N), 3.0KGF (29.4N), 5.0KGF (49.0N), 10.0KGF (98.0N), 15.0KGF (147N), 20.0KGF (196N), 30.0KGF (294N)(optional 0.3KGF)

1.0 Kgf(9.8N), 2.0Kgf(19.6N), 2.5Kgf(24.5N), 3.0Kgf(29.4N), 5.0Kgf(49.0N), 10.0Kgf(98.0N), 15.0Kgf(147N), 20.0Kgf(196N), 30.0 Kgf(294N), 40.0Kgf(392N), 50.0Kgf(490N)

(optional 0.5kgf)

2.0kgf (19.6N), 3.0kgf (29.4N), 5.0kgf (49.0N), 10.0kgf (98.0N), 20.0kgf (196N), 30.0kgf (294N), 50.0kgf (490N), 60Kgf(588N), 80Kgf(784N), 100Kgf(980N)

(Force value can be customized)

Meet standardGBT4340.1, GBT4340.2, ASTM_E92
Conversion of hardness valueAccording to GB1172-99 and ASTM standards
Accuracy

JJG260-91, JIS B 7725, JIS B 7734, GB/ T3430.2-99

ASTM E-384, ISO 6507-2, ISO4546

Loading wayAutomatically load/hold/unload
Automatic turret system

Automatic, manual

Object - indenter - objective switch rotation automatically
The automatic turret provides a quick and simple sequence of operations without the need to manually rotate the tower to achieve automatic switching of the objective and indenter. The center of the objective lens and the center of the indenter have high precision and the error is less than 1 micron, which ensures the accurate pressure positioning of the sample and the center position of the objective lens can be adjusted.

Minimum test unit0.01 μm
Data outputLCD display readout, save to U disk in Excel format directly
Conversion scaleHRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
Hardness test range8~2900HV
Test force application methodAutomatic (loading, holding, unloading)
Measurement of the eyepieceElectronic 10x (15X optional)
objectiveAny three objective lenses in 5X, 10X, 20X, or 40X
Test microscope magnification50X, 100X, 200X, 400X
Test force dwell time1~99s
Maximum allowable specimen height180mm
Distance from indenter to wall160mm
Size580*190*700mm
WeightAbout 55 kg
Power supplyAC220V ± 5%, 50 to 60 hz




  1. Operation interface

Operation interface:

Three Objective Lens Vickers Hardness Machine Automatic Turret With Digital Touch Screen 0Three Objective Lens Vickers Hardness Machine Automatic Turret With Digital Touch Screen 1Three Objective Lens Vickers Hardness Machine Automatic Turret With Digital Touch Screen 2

Standard accessories

ItemQuantityItemQuantity
DHV-1000-10X micrometer eyepiece1Large, medium and V-shaped test benchEach 1
Vickers hardness block2Spare fuse (2A)2
Power cable1Dust cover1
U disk1Touch pen1
Hexagon socket wrench (2.5mm)1Adjust the foot level4
Product certificate, warranty card1Instructions1









Optional Accessories:

ItemItem
All kinds of hardness blocksvaries value









HUATEC Production line for hardness testers
Three Objective Lens Vickers Hardness Machine Automatic Turret With Digital Touch Screen 3
