Non Destructive Uci Portable Ultrasonic Hardness Tester For Metals

1pcs
MOQ
Non Destructive Uci Portable Ultrasonic Hardness Tester For Metals
Features Gallery Product Description Request A Quote
Features
Specifications
Color: Gray
Principle: UCI Method (Ultrasonic Contact Impedance)
Standard: JBT 9377-2010、ASTM A1038-2005
Calibration: Slef Calibration
Memory: 50 Sets Of Data Storage -- The Data Includes Time Information
Load Force: 5N/10N/20N/50N/98N
Indenter: 136°Vickers Diamond Indenter
Testing Range: HB: 85-650;HV 80-1599; HRC 20-70;HRB: 41-100; HRA: 61-85.6 HS: 34.2-97.3;Mpa: 255-2180N/mm
Hardness Scale: HV、HB、HRC, HLD
Product Name: Ultrasonic Hardness Tester
Warranty: 12 Months
Display: 3.5 Inches Large LCD Screen With 320×480 Color Graphics Dot Matrix
Test Angle: 360° Test Without Correction
High Light:

non destructive portable ultrasonic hardness tester

,

uci portable ultrasonic hardness tester

,

ultrasonic portable hardness tester for metal

Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HUH-6M
Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Product Description

Non Destructive UCI Portable Ultrasonic Hardness Tester Portable Hardness Tester For Metals



General introduction:

There are many types of hardness testing methods,commonly used methods include HB, HRC, HV, HL, etc. But all these methods have boundness. The test force of HB and HRC is strong, so the indentation is big, and the damage to the surface is obvious. HV is tested by optical method, which needs very professional and technical personnel to operate, and cannot directly test large workpiece. And our ultrasonic hardness tester HUH-6M uses ultrasonic contact impedance method to compare and test patterns, this new method brings advantages of high precision, fast speed, portable, easy operation, etc.



UCI method (Ultrasonic Contact Impedance)

In order to solve the problems of workbench Vickers hardness tester (Long test time; Bulky and heavy; Not suitable for test on site and test large workpiece; Huge technical demand for the operators), in 1961, Ultrasonic Contact Impedance, a hardness testing method was developed by Dr. Claus Kleesattel, and the hardness tester designed by UCI method is called Ultrasonic Hardness Tester.

UCI method uses a spring to generate the test force required for Vickers hardness test, test force is applied to the user's workpiece by means of a resonating rod which is inlaid with a 136 ° diamond regular pyramid indenter, the diamond indenter forms a Vickers diamond indentation on the workpiece. The diagonal length of the indentation corresponds to Vickers hardness, and the diagonal length also corresponds to the frequency change of the resonating rod, so the hardness of the workpiece can be known from the frequency change of the resonating rod.



Application:

  • Hardness test of flange edge and gear root stamping parts, mold, thin plate, face-hardened gear tooth, gear groove and taper part
  • Hardness test of axle and thin-wall pipes and vessels
  • Hardness test of wheels and turbine rotors
  • Hardness test of bit edge
  • Hardness test of welding parts
  • Measure the depth of deep hole with certain aperture, concave and convex mark with large radians, and irregular plane
  • Hardness test of most ferrous and nonferrous metals and their alloys in industrial production



Working principle:

ultrasonic contact impedance method



Functional characteristics

  • New appearance design, innovative sculpt, convenient to hold and good craft.

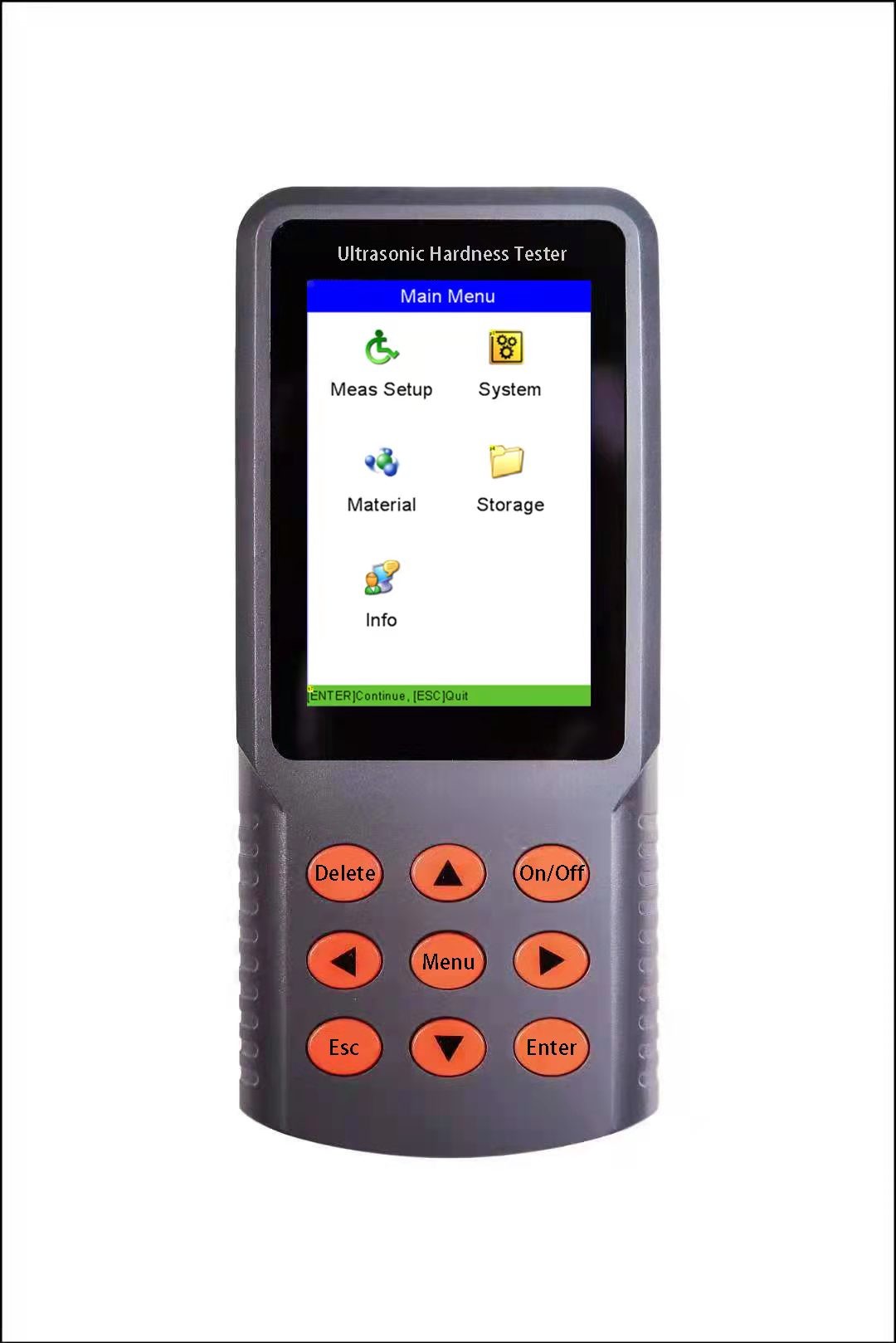

  • 3.5 inches large LCD screen with 320×480 color graphics dot matrix, beautiful font and graphics, rich information and clear display.
  • Full English display, menu-type operation, few keys, simple and convenient to operate.
  • For materials with different elastic modulus, only a simple point calibration is required to adapt to the new material.
  • Provide multi-point calibration function for any hardness standard. For materials without conversion table, users only need to prepare 2 to 10 test samples with different hardness to directly calibrate the hardness (Hardness standard is arbitrary, as long as these 2 to 10 samples have the same standard).

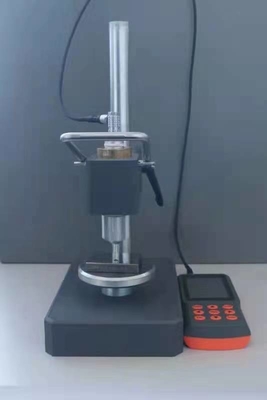

  • High accuracy -- ±3 %HV, ± 3%HB, ± 1.5HR (using test stand), according with the test error standard of GB/T-34205, JJF1436 and JB/T9377.
  • Tiny test indentation - smaller than a Leeb hardness tester and requires a high-power microscope to see.
  • High test speed -- output test results within 2S.
  • Easy to test on assembly line -- compare with Leeb hardness tester.
  • 50 sets of data storage -- the data includes time information.
  • 360° test without correction.

Technical parameters:

Model HUH-6M
Standard DIN50159-1-2008; ASTM-A1038-2005; JB/T 9377-2010; JJG-654-2013; GBT34205-2017
Range HV50-1599, HRC20-76, HB76-618, HRB41-100, HRB41-100, HRA61-85.6, Mpa255-2180
Test Error HRC: ± 2HRC; HB: ± 3%HB; HV: ± 3%HV
Maximum allowable relative error Hardness of standard test block Maximum allowable relative error of hardness tester %
HV10 HV5 HV2 HV1 HV0.8 HV0.3 HV0.1
<250HV 4 4 4 4 4 5 5
250HV-500HV 4 4 4 4 4 6 6
>500HV-800HV 4 4 5 5 5 7 7
>800HV 4 4 6 6 6 8 8
Probe test force 2kgf(optional 0.5kgf, 1kgf, 5kgf, 10kgf)
Working temperature -20℃~50℃
  • Working humidity
<=85%



Probe parameters:

Probe 0.5kgf manual probe 1kgf manual probe 2kgf manual probe 5kgf manual probe 10kgf manual probe
Accessory Optional accessory Optional accessory Standard accessory Optional accessory Optional accessory
Test force 5N 10N 20N 50N 98N
Diameter 22mm 22mm 22mm 22mm 22mm
Length 150mm 150mm 150mm 150mm 150mm
Resonant rod diameter 2.4mm 2.4mm 2.4mm 2.4mm 2.4mm
Maximum roughness of test surface Ra<3.2um Ra<3.2um Ra<5um Ra<10um Ra<15um
Minimum workpiece weight 0.3kg 0.3kg 0.3kg 0.3kg 0.3kg
Minimum workpiece thickness 2mm 2mm 2mm 2mm 2mm

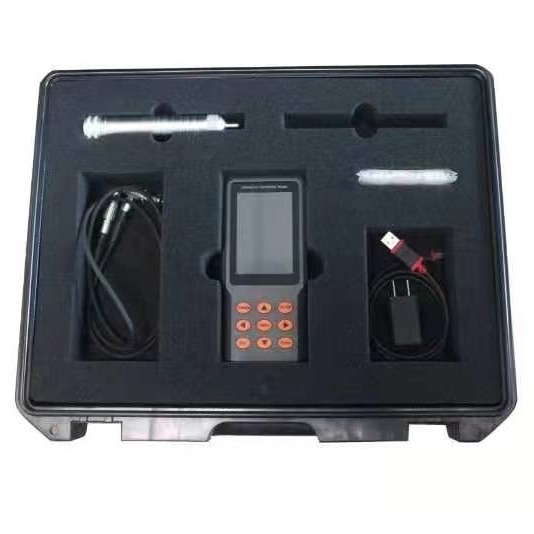

Standard Delivery:Main unit, Probe (2kgf), Probe cable, 5V ac power adapter, Custom-made carrying case, Standard test block

Optional Accessories:Probe (optional 0.5kgf, 1kgf, 5kgf, 10kgf)
