120dB 2000Hz Frequency 20MHz DAC AVG DGS AWS B Scan Auto Calibration APP Ultrasonic Metal Detector
Top features
★ User friendly operation such as calibration, making curves, etc.
★ All curve tools included: DAC, AVG, TCG AWS, etc.
★ Pulse repeatition frequency: 10-2000Hz precise adjust, high speed scan, no miss out.
★ High signal to noise ratio, clear and stable echo, anti-noise design, perfect for tough working conditions.
★ 12-digit AD, high speed sampling leads to better echo diagram with all details. Sensitive and can detect even tiny flaws.
★ Customer can use probe frequency 20M .

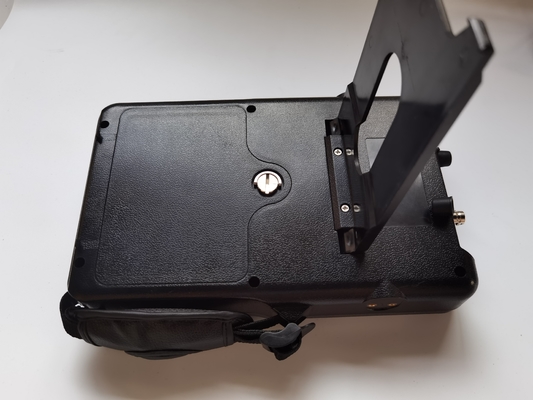

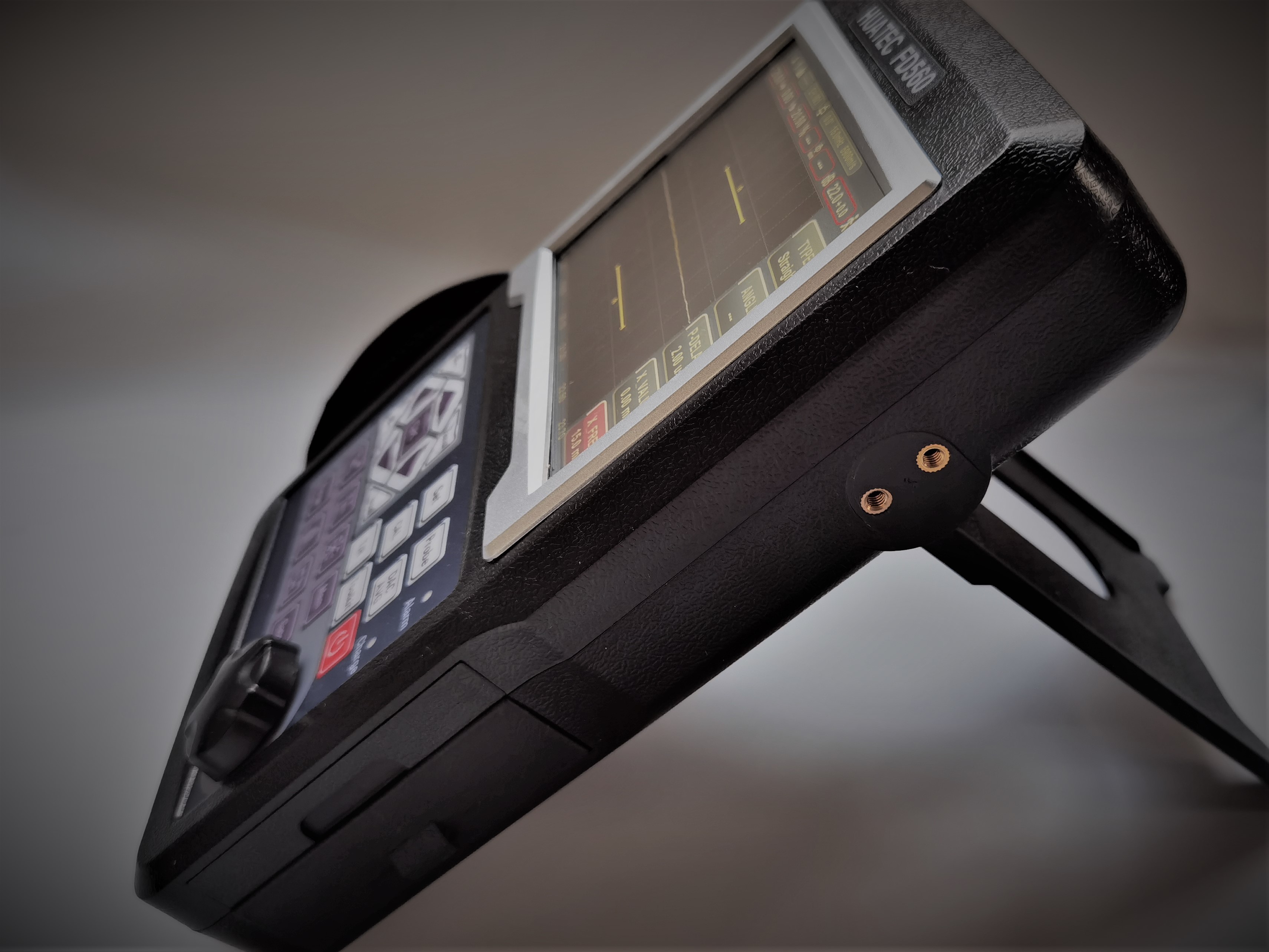

★ IP65 protection standard. protective rubber casing. damping support makes it stands in any angle.
★ Battery works continuouly 15 hours after one charge.

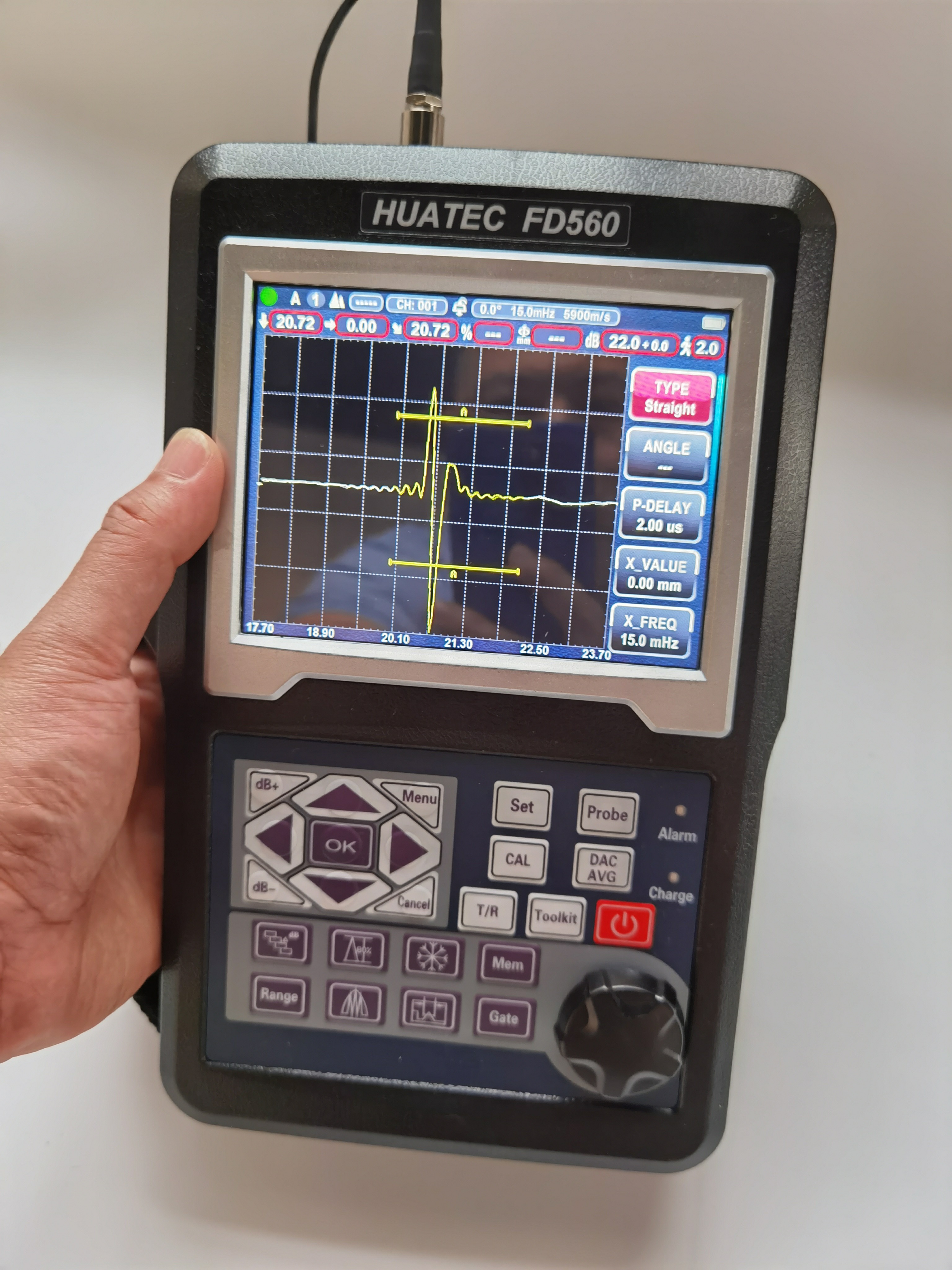

Main interface
Testing Report

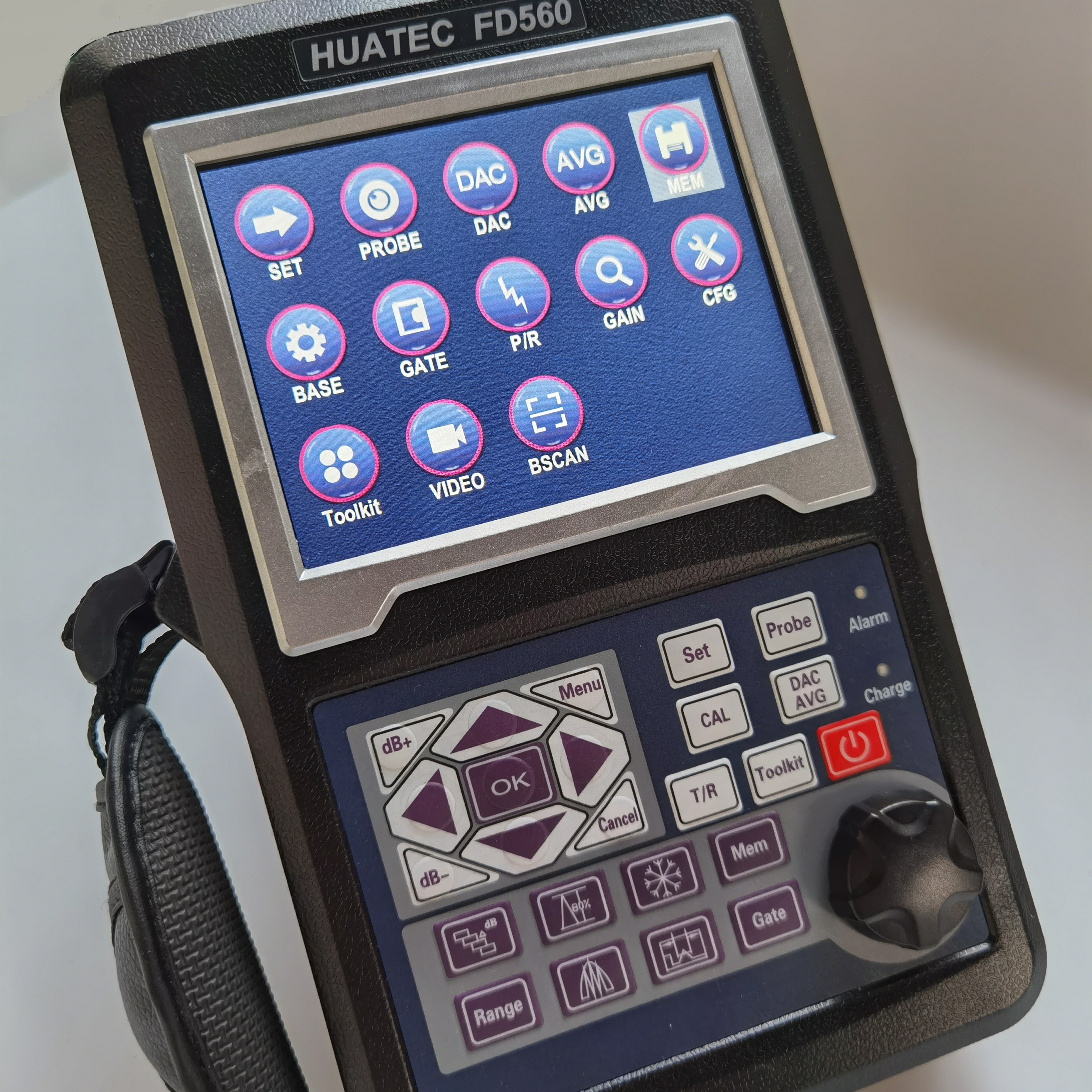

Menu
Making DAC
Coded echo
Standards optional
AVG SET
Color Bscan (optional)
Report list APP software (optional)
Specifications
Testing Range:0-10000 mm ,at steel velocity
Material Velocity Range:100～20000 m/s
Pulse Repetition Frequency:10-2000Hz
Dynamic Range:≥38dB
Linearity: Horizontal: +/-0.2%, Vertical: 2.0%(Horizontal:+/-0.2% FSW Vertical: 0.25% FSH )
Resolving Power:>40dB (5P14)
Sensitivity Leavings:>68dB
Reject (suppression): 0 to 80% full screen height
500 independence setup, any criterion can be input freely, we can work in the scene without test block；
Large Memory: 1000 A graph
Testing Modes: Pulse echo, dual element and thru-transmission
Probes Optional Types: Single Straight, Single Angle, Dual Straight, Dual Angle,Through,Creeping,Surface
Gate Monitors: Two independent gates controllable over entire sweep range
Display Units: Inch or millimeter
Power Requirements: AC Mains 100-240 VAC, 50-60 Hz
Display Delay: -20 to 3400 µs
Probe Delay/Zero Offset : 0 to 99.99µs
Battery:Internal rechargeable Li-ion battery pack rated 7.2V at 8000 mAh
Battery Working Time:15 hours nominal operating time depending on display brightness
Battery Charging Time:4 hours typical recharge time
Size:H×W×D(mm):250×165×55 (mm)
Weight :1.2kg
Operating Temperature: -10℃ to 50℃
Storage Temperature: -30℃ to 50℃
Pulse Energy: 70V,100V,200V, 300V, 400V, 500V selectable
Rectification: Positive half wave, negative half wave, full wave, RF System
Bandwidth (amplifier bandpass ): 0.2 to 25 MHz
Gate Monitors: Two independent gates controllable over entire sweep range
Sensitivity: 120 dB max in selectable resolution 0.1, 1.0, 2.0, 6.0 dB.

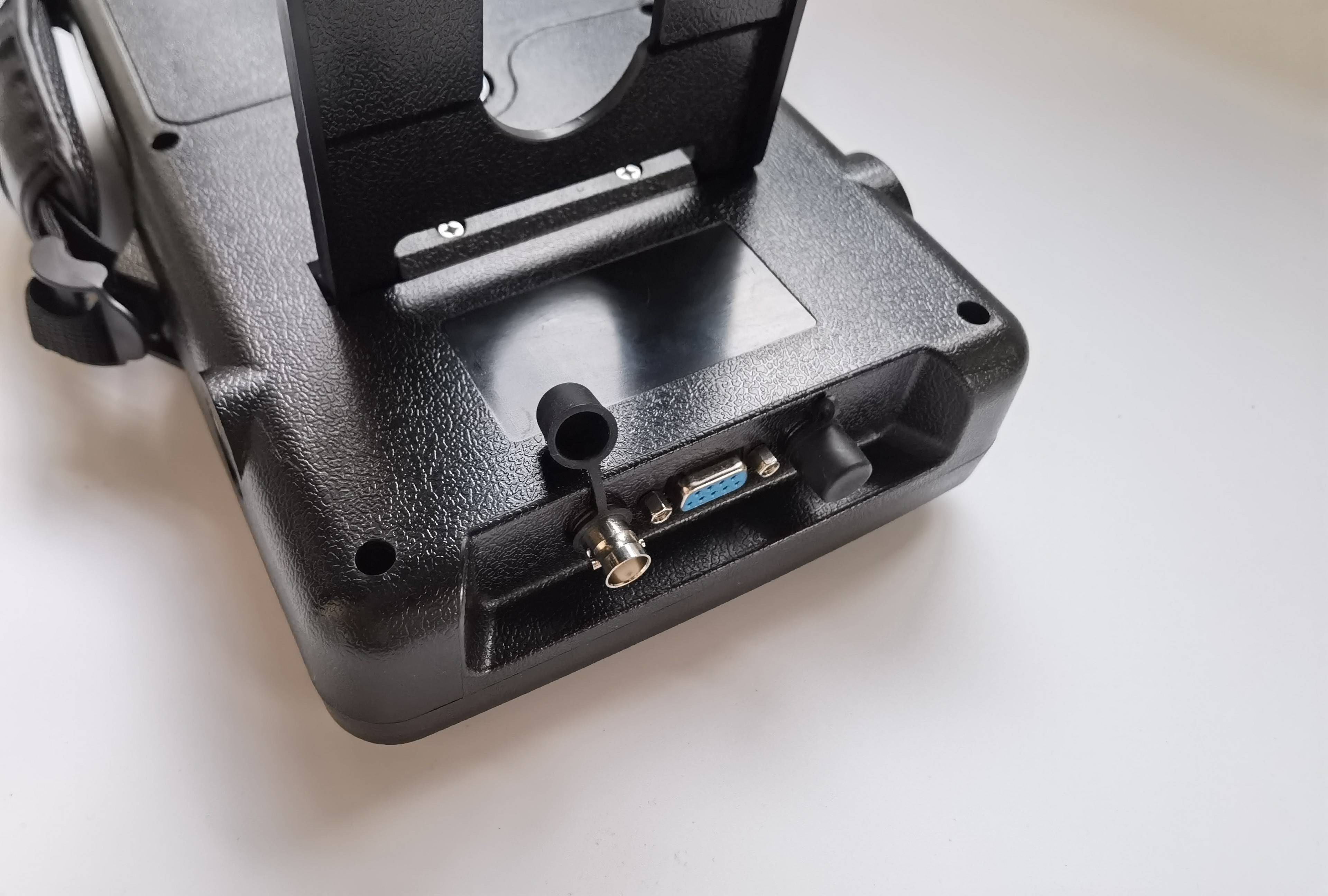

Transducer Connections: BNC or LEMO optional
Functions
Automaticly display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,ф)
Flaw sizing: Automatic flaw sizing using AVG or DAC/TCG, speeds reporting of defect acceptance or rejection
Automatic calibration of transducer: Zero-point, Angles, Front edge and material Velocity . ( V2 block and two holes )
Easy to make and use DAC/TCG and AVG to evaluate the echo, the curve can be modified and compensated
Connecting U-Disk memory,the unit can get unlimited memory
15 international standards built in the unit
Blue tooth connection to mobile device to generate and print detection reports on-site. AWS D1.1
Curved Surface Correction feature
Can test crack height
Magnify gate:spreading of the gate range over the entire screen width
Auto-gain function
Envelope: Simultaneous display of live A-scan at 70 Hz update rate and envelope of A-scan display
Peak Hold: Compare frozen peak waveforms to live A-Scans to easily interpret test results
Scan Freeze function:Display freeze holds waveform and sound path data
Alarm:Beep and LED light alarm
Real Time Clock
Fill echo
Capture mark
Echo color within the Gate
Standard Package
Portable Ultrasonic Flaw Detector FD560 1pc
Straight Beam Transducer (2.5 MHz, Φ20) 1pc
Angle Beam Transducer (4 MHz, 8 mm×9 mm, 60°) 1pc
Connect Cable for the transducer (BNC-LEMO 00,or optional LEMO 01-LEMO 00) 1pc
Rechargeable Li-Ion Battery Package, 8 amp hour 1pc
Power supply/charger unit 1pc
Operating Manual in English 1pc
Optional Accessories
Straight probe (5MHZ-ф20)
Straight probe (2.5MHZ-ф20)
Straight probe (2.25MHZ-ф20)
Straight probe (1MHZ-ф20)
Angle probe (4MHZ-45degree, 8*9mm)
Angle probe (4MHZ-60degree, 8*9mm)
Angle probe (4MHZ-70degree, 8*9mm)
Angle probe (4MHZ-80degree, 8*9mm)
Angle probe (2MHZ-45degree, 8*9mm)
Angle probe (2MHZ-60degree, 8*9mm)
Angle probe (2MHZ-70degree, 8*9mm)
Angle probe (2MHZ-80degree, 8*9mm)
Probe T/R (5MHz-ф20mm, focus 15mm)
Probe T/R (2.5MHz-ф20mm, focus 15mm)
Connection cable to probe (BNC-BNC)
Connection cable to probe (BNC-Lemo 00)
Connection cable to probe (Lemo 01-BNC)
Connection cable to probe (Lemo 01-Lemo 00)
Lithium ion battery
Power adapter (4A/9V)
Power Cable
Leather case
Test block V1
Test block V2
Test blocks DAC, ASME etc.
App Software
Strap
Blue tooth
