APP 120dB 2000Hz Frequency 20MHz DAC AVG DGS AWS B Scan Auto Calibration Ultrasound Flaw Detectordt Equipment
Top features
★ User friendly dialog interactive helps operations like Calibration, making curves, etc.
★ All tools you need: DAC, AVG, TCG AWS, etc.
★ Pulse Repeatition Frequency: 10-2000Hz precise adjust, high speed scan, no miss out.
★ High Signal to noise ratio, clear and stable echo, anti-noise design, perfect for tough working conditions.
★ 12-digit AD, high speed sampling leads to better echo diagram with all details. Sensitive and can detect even tiny flaws.
★ Can use probe frequency 20M perfectly .

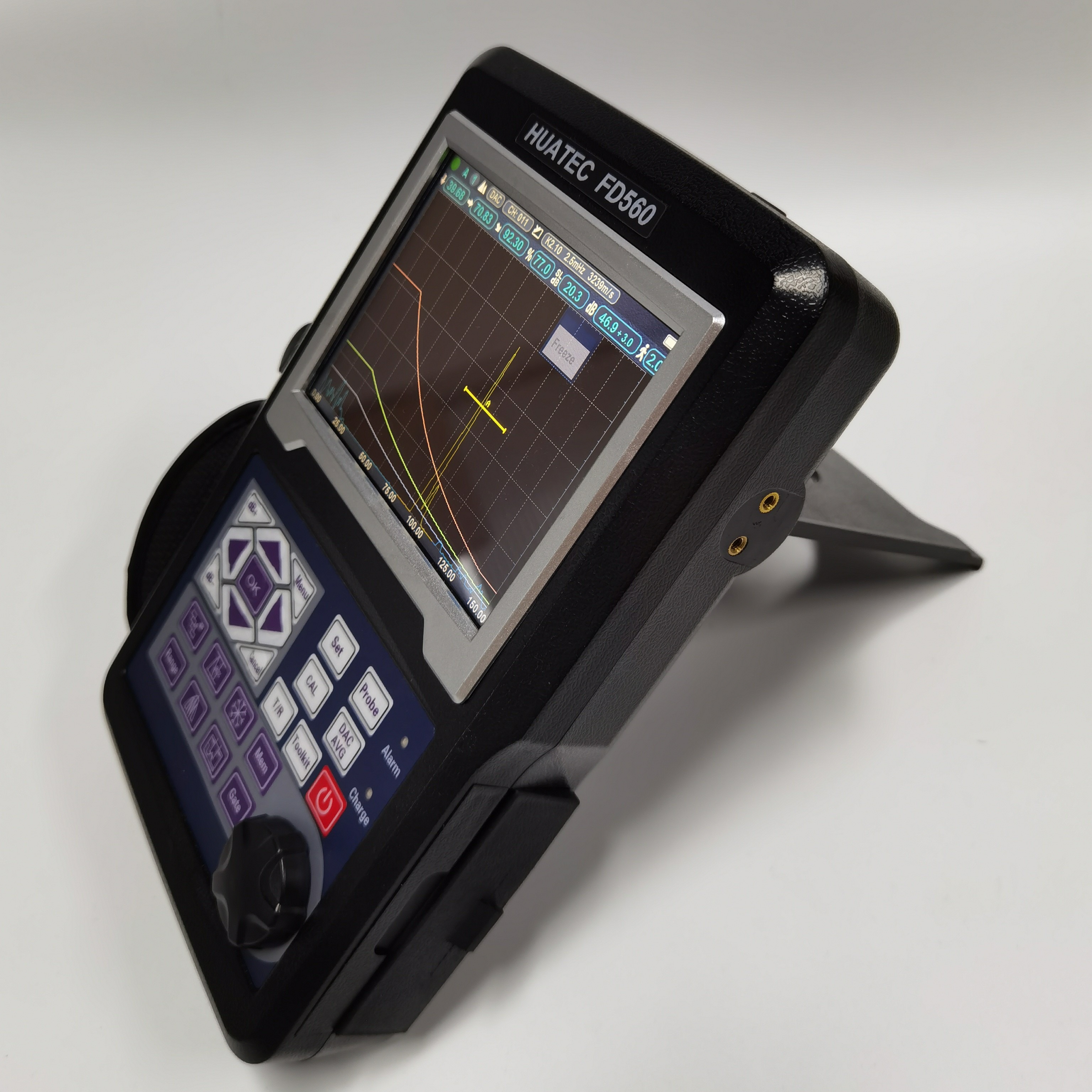

★ IP65 standard. Protective rubber casing. Damping support makes it stands in any angle.
★ Battery lasts 15 hours for one charge.
Main interface
Testing Report
Menu
Making DAC
Coded echo
Standards optional
AVG SET
Color Bscan (optional)
Report list APP software (optional)
Specifications
Range:0-10000 mm ,at steel velocity
Material Velocity:100～20000 m/s
Pulse Repetition Frequency:10-2000Hz
Dynamic range:≥38dB
Linearity: Horizontal: +/-0.2%, Vertical: 2.0%(Horizontal:+/-0.2% FSW Vertical: 0.25% FSH )
Resolving Power:>40dB (5P14)
Sensitivity Leavings:>68dB
Reject (suppression): 0 to 80% full screen height
500 independence setup, any criterion can be input freely, we can work in the scene without test block；
Big memory of 1000 A graph
Test Modes: Pulse echo, dual element and thru-transmission
Probe Types: Single Straight, Single Angle, Dual Straight, Dual Angle,Through,Creeping,Surface
Gate Monitors: Two independent gates controllable over entire sweep range
Units: Inch or millimeter
Power Requirements: AC Mains 100-240 VAC, 50-60 Hz
Display Delay: -20 to 3400 µs
Probe Delay/Zero Offset : 0 to 99.99µs
Internal rechargeable Li-ion battery pack rated 7.2V at 8000 mAh
15 hours nominal operating time depending on display brightness
4 hours typical recharge time
H×W×D(mm):250×165×55 (mm)
Weight :1.2kg
Operating Temperature: -10℃ to 50℃
Storage Temperature: -30℃ to 50℃
Pulse Energy: 70V,100V,200V, 300V, 400V, 500V selectable
Rectification: Positive half wave, negative half wave, full wave, RF System
Bandwidth (amplifier bandpass ): 0.2 to 25 MHz
Gate Monitors: Two independent gates controllable over entire sweep range
Sensitivity: 120 dB max in selectable resolution 0.1, 1.0, 2.0, 6.0 dB.
Transducer Connections: BNC or LEMO
Functions
Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,ф)
Flaw sizing: Automatic flaw sizing using AVG or DAC/TCG, speeds reporting of defect acceptance or rejection
Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity . ( V2 and two hole )
Convenient to make and use DAC/TCG and AVG to evaluate the echo, the curve can be modified and compensated
Connecting U-Disk,the unit can get unlimited memory
There are 15 standards of in the unit
Blue tooth connection to mobile device to generate and print detection reports on-site. AWS D1.1
Curved Surface Correction feature
Crack Height Measure function
Magnify gate:spreading of the gate range over the entire screen width
Auto-gain function
Envelope: Simultaneous display of live A-scan at 70 Hz update rate and envelope of A-scan
display
Peak Hold: Compare frozen peak waveforms to live A-Scans to easily interpret test results
Scan Freeze:Display freeze holds waveform and sound path data
Alarm:Beep and LED
Real Time Clock
Fill echo
Capture mark
Echo color within the Gate
Standard Package

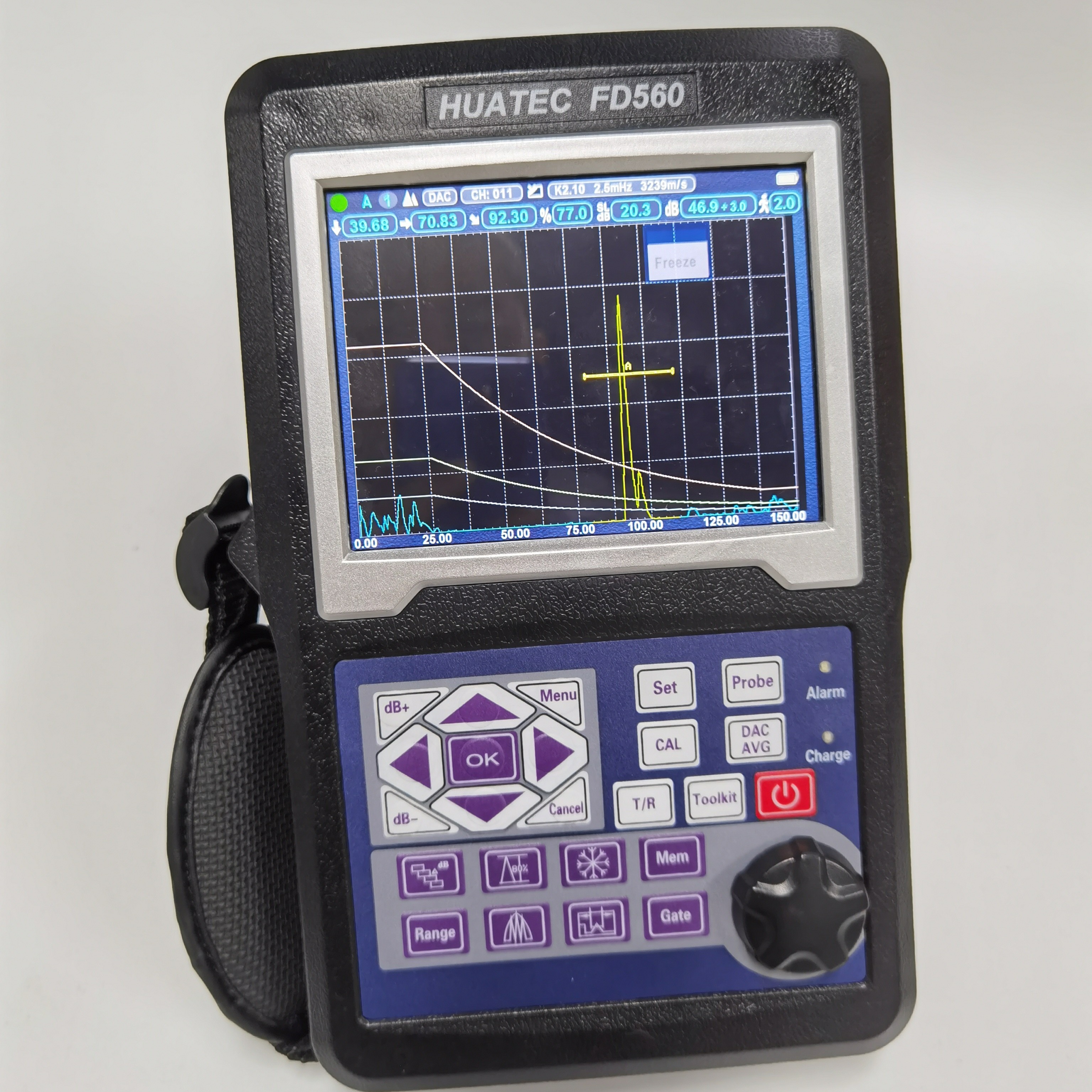

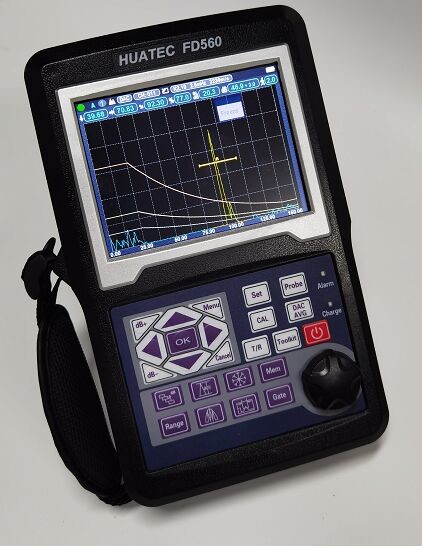

Portable Ultrasonic Flaw Detector FD560 1
Straight Beam Transducer (2.5 MHz, Φ20) 1
Angle Beam Transducer (4 MHz, 8 mm×9 mm, 60°) 1
Connect Cable for the transducer (BNC-LEMO 00,or optional LEMO 01-LEMO 00) 1
Rechargeable Li-Ion Battery Package, 8 amp hour 1
Power supply/charger unit 1
Operating Manual in English 1
Optional Accessories
Straight probe (5MHZ-ф20)
Straight probe (2.5MHZ-ф20)
Straight probe (2.25MHZ-ф20)
Straight probe (1MHZ-ф20)
Angle probe (4MHZ-45degree, 8*9mm)
Angle probe (4MHZ-60degree, 8*9mm)
Angle probe (4MHZ-70degree, 8*9mm)
Angle probe (4MHZ-80degree, 8*9mm)
Angle probe (2MHZ-45degree, 8*9mm)
Angle probe (2MHZ-60degree, 8*9mm)
Angle probe (2MHZ-70degree, 8*9mm)
Angle probe (2MHZ-80degree, 8*9mm)
Probe T/R (5MHz-ф20mm, focus 15mm)
Probe T/R (2.5MHz-ф20mm, focus 15mm)
Connection cable to probe (BNC-BNC)
Connection cable to probe (BNC-Lemo 00)
Connection cable to probe (Lemo 01-BNC)
Connection cable to probe (Lemo 01-Lemo 00)
Lithium ion battery
Power adapter (4A/9V)
Power Cable
Leather case
Test block V1
Test block V2
Test blocks DAC, ASME etc.
App Software
Strap
Blue tooth
