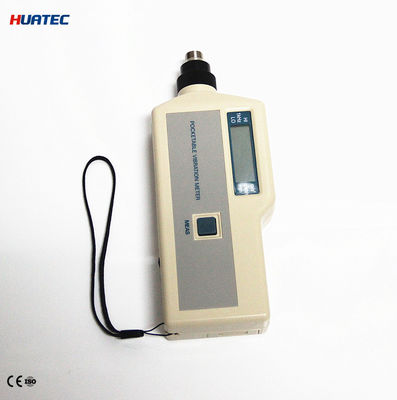

Digital Display 9V 5HZ - 10KHz Low Frequency Pocket Vibration Meter HG-6500BL
1pcs
MOQ
Digital Display 9V 5HZ - 10KHz Low Frequency Pocket Vibration Meter HG-6500BL
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HG-6500BL
High Light:

portable vibration meter

,

digital vibration meter

Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Specifications
Low Frequency: 5HZ - 10KHz
Sensor: One Rotary Shear Accelerometer
Measuring Range: Acceleration 0.1 ~ 199.9m/s2 (single Peak) (5 Or 10 ~ 1KHz; 1K ~ 10KHz) Speed ​​of 0.1 ~ 199.9mm / S (RMS) (5 Or 10 ~ 1KHz) Displacement Of 0.001 ~ 1.999mm (peak) (5 Or 10 ~ 1KHz)
Meter Size: 185mm × 68mm × 30mm
Product Name: Pocket Vibration Meter
Product Description

Digital Display 9V 5HZ - 10KHz Low Frequency Pocket Vibration Meter HG-6500BL



Description:

Vibrimeter, also known as seismograph vibration analyzer or pen, is designed by using the piezoelectric effect of quartz crystal and artificially polarized ceramic (PZT). It is widely used in machinery manufacturing, electric power, metallurgy vehicles and other fields.


In order to realize the modernization of equipment management, the factory should actively carry out advanced equipment management methods and adopt equipment maintenance technology based on equipment condition monitoring. Equipment condition monitoring and fault diagnosis are the premise of equipment preventive maintenance. Especially heavy industry enterprises, work continuity and high safety and reliability requirements, through the condition monitoring.



HG-6500BL Low frequency pocket vibration instrument, mainly used in machinery and equipment vibration displacement, velocity (intensity) and the acceleration, temperature parameters of the measurement instrument in the bearing housing using the measured data, the control of international standard ISO2372 , Or the use of enterprises, the standard machine, you can determine the equipment (fans, pumps, compressors, motors, etc.) in which the current state (well, pay attention or dangerous, etc.).



Principle of vibration measurement:
Vibrimeter, also known as seismograph vibration analyzer or pen, is designed by using the piezoelectric effect of quartz crystal and artificially polarized ceramic (PZT). When quartz crystals or artificially polarized ceramics are subjected to mechanical stress, their surfaces generate electric charges. Using piezoelectric acceleration sensor, the vibration signal is converted into electrical signal, through processing and analysis of the input signal, vibration acceleration, speed, displacement value is displayed, and the corresponding measurement value can be printed out by printer. The technical performance of the instrument is in line with the international standard ISO2954 and the Chinese national standard GB/T13824, for vibration intensity measurement instrument, sine excitation method vibration standard requirements. It is widely used in machinery manufacturing, electric power, metallurgy vehicles and other fields.

Function:
Vibrometer is used to measure the vibration of equipment, mainly refers to the vibration of rotating equipment and reciprocating equipment. Intelligent vibration meter can get spectrum, envelope and so on. A wireless vigrometer like this can store the measurement results indefinitely for pre-maintenance, and judge whether the equipment is in good condition by the value of these vibrations, as well as the vibration spectrum, vibration waveform and trend.


Specifications:
Sensors:  one rotary shear accelerometer
              Split charge amplifier built-in shear accelerometer
Range:    Acceleration 0.1 ~ 199.9m/s2 (single peak) (5 or 10 ~ 1KHz; 1K ~ 10KHz)
                  Speed ​​of 0.1 ~ 199.9mm / s (RMS) (5 or 10 ~ 1KHz)
                 Displacement of 0.001 ~ 1.999mm (peak) (5 or 10 ~ 1KHz)

Accuracy: 5% ± 2 vibration words
Display:  LCD display three and a half
Maintain the characteristics: measurement value is automatically maintained, automatic shutdown delay
Signal Output: AC 2V peak (full scale and the load is greater than 10K ohms)
Power: 9V laminated battery 1 can be used continuously 25 hours
Size: 185mm × 68mm × 30mm
Weight: 200g



Model

Low frequency and temperature

Function

Frequency range

HG-6500AN

Standard (I)

Acceleration, Velocity, Displacement

10Hz ~ 10KHz

HG-6500AL

Low frequency (I)

Acceleration, Velocity, Displacement

5Hz ~ 10KHz

HG-6500ANC

Vibration and temperature(I)

Acceleration, Velocity, Displacement, Temperature

10Hz ~ 10KHz

HG-6500ALC

Low frequency and temperature(I)

Acceleration, Velocity, Displacement, Temperature

5Hz ~ 10KHz

HG-6500BN

Standard

Acceleration, Velocity, Displacement

10Hz ~ 10KHz

HG-6500BL

Low frequency

Acceleration, Velocity, Displacement

5Hz ~ 10KHz

HG-6500BNC

Vibration and temperature

Acceleration, Velocity, Displacement, Temperature

10Hz ~ 10KHz

HG-6500BLC

Low frequency and temperature

Acceleration, Velocity, Displacement, Temperature

5Hz ~ 10KHz
