Vacuum Packing High Contrast Ndt X Ray Film Type D7 Industry Radiographic

10pcs
MOQ
Vacuum Packing High Contrast Ndt X Ray Film Type D7 Industry Radiographic
Features Gallery Product Description Request A Quote
Features
Specifications
Package: Vacuum Packing
Size: 80x300,70x300,100x40,100x200mm Etc
Each Box: 100pcs
Average Gradient: 5.2
Sensibility: 10-12
Class EN 584-1: C5
Product Name: Industry X Ray Film
High Light:

flaw detector ndt x ray film

,

high contrast ndt x ray film

,

type d7 x ray film

Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: Radiation film T7
Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 5000000pcs per month
Product Description

Vacuum Packing High Contrast X-Ray Flaw Detector , Type D7 Industry Radiographic Film

General Characteristics:
Type D7 industry radiographic film is a fine grain, high contrast, high radiation sensitive, high definition radiographic film made by using novel emulation technology. Designed for direct exposure or with lead screens. For exposure with lead screens using either X-ray or gamma rays.
The D7 radiographic film consider two fundamental factors of the nondestructive control (NC) - quality of the image and stability of properties.

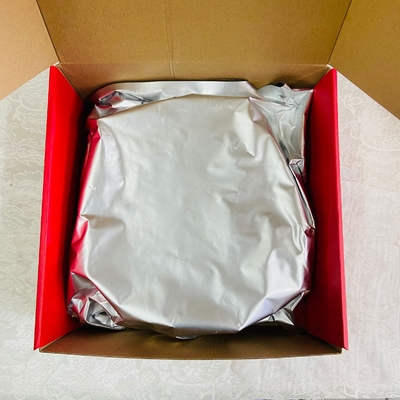

Vacuum Packing High Contrast Ndt X Ray Film Type D7 Industry Radiographic 0

Applications :
This film is suitable for different NDT applications such as: medium thickness heavy metals and alloys, fairly thick light metals and alloys, and also suitable for NDT of heavy metal parts having thick section when exposed with high-energy radiation. The film is especially suited to high temperature automatic processing. This product is compatible with international norms.

  • Welding and casting
  • Defense industry
  • Aerospace and aircraft industry
  • Composite materials
  • Multiple film techniques

Specifications


Short technical characteristics

 TYPE

Average gradient

Sensibility

Class EN 584-1

Existence of a special protective layer

 D7

5.2

10-12

C5

+




Relative factors of an exposition

 TYPE

100 kv
(1)

200 kv
(2)

iridium 192
(3)

cobalt 60
(4)

Linear accelerator 8 MB
(5)

contrast
(*)

 D7

1.0

1.0

1.0

1.0

1.0

5.4



Quality of the image and classes of films



New

Old

TYPE

CEN
EN 584-1

ASTM
E 1815-96

ISO
11699-1

JIS
K7627

ISO
5579

DIN
54-117

RCC-M

BS
2600

D7

C5

II

T3

T3

GIII

G3

4

B

Our film is packaging with bare film on carboard to prevent exposure. This film can be cut to any length and loaded with or without lead screens in reloadable cassettes in the darkroom.  The film has same performance to AFGA D7.


Film production line

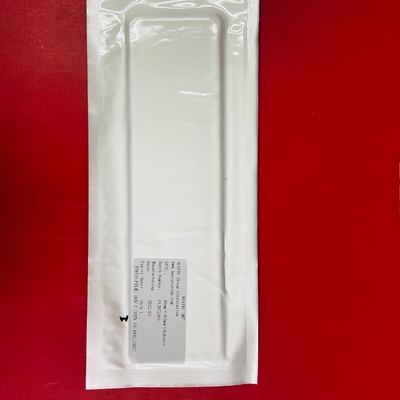

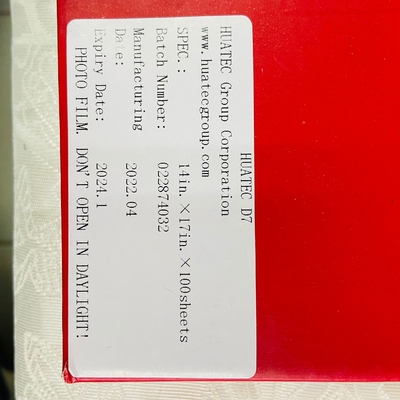

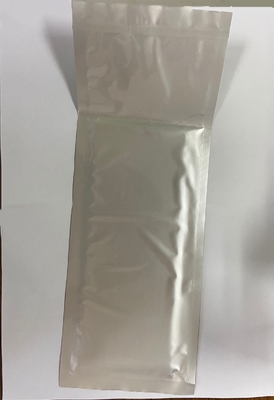

Vacuum Packing High Contrast Ndt X Ray Film Type D7 Industry Radiographic 1Vacuum Packing High Contrast Ndt X Ray Film Type D7 Industry Radiographic 2Vacuum Packing High Contrast Ndt X Ray Film Type D7 Industry Radiographic 3
