Color Lcd Rechargeable Battery Portable Hardness Testers For Metal

1pcs
MOQ
Color Lcd Rechargeable Battery Portable Hardness Testers For Metal
Features Gallery Product Description Request A Quote
Features
Specifications
Hardness Scale: HL, HB, HRB, HRC, HRA, HV, HS
Data Memory: 48~600 Groups (impact Times: 32~1)
Measuring Range: HLD(170~960)
Standard Impact Device: Impact Device D
Optional Impact Devices: DC/D+15/G/C/DL
Power: This Leeb Hardness Tester Is An Innovative Design Testing Instrument Based On Leeb Hardness Principle, On The Existing Data Table, The Following Materials Added More Scale. CWT, ST Material Add HRA, HB . For D Impact Device C. ALUM Material Add HV.
Operating Temperature: 0~40℃
Overall Dimensions: 152×84×34mm (main Unit)
Weight: 0.3kg (main Unit)
Product Name: Portable Hardness Tester For Metals
Supporting Rings: Support Rings For Shaped Materials
LCD: Color LCD
High Light:

lcd portable hardness testers for metal

,

rechargeable portable hardness testers for metal

,

lcd hand held metal hardness tester

Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: RHL60
Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Product Description

Color LCD Rechargeable Batt Handheld Metal Hardness Testeing Portable Hardness Testers For Metal

Normal Material can be tested by Hardness tester RHL60:

Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), copper and tin alloy, copper (bronze), forged steel.



Extra hardness scales can be tested:by Hardness tester RHL60

CWT, ST material add HRA, HB for D impact device

C. ALUM material add HV. for D impact device

C. ALUM material add HV. for C impact device



New developed function of user defined material, which realize special material measurement, widely expand the application range of Leeb hardness testing

added 3 materials for the roller hardness tester(optional): cast steel roller, forged steel roller, cast iron roller



Hardness tester RHL60 application

Can test hardness of the installed machinery and permanently assembled parts

Can test hardness of die cavity of molds

Can test hardness of heavy work piece

Hardness testing for failure analysis of pressure of steam generator and other parts.

Can test hardness of work piece in confined spaces

Can test hardness of bearing and other parts.

Can test hardness of usage when original hardness testing data report are request

Can test hardness of metal material distinction in warehouse

Can test hardness for quick inspection of multiple measuring area in wide range of large work piece.

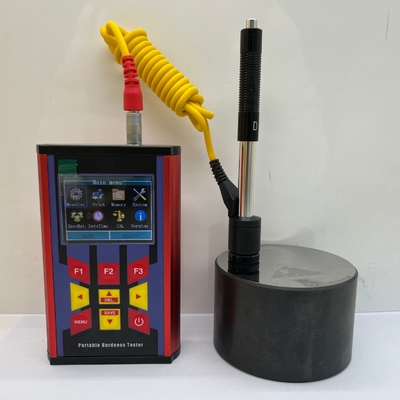

Color Lcd Rechargeable Battery Portable Hardness Testers For Metal 0 Technical Parameters for Hardness tester RHL60

Testing Range

HLD(170~960), HRC(17.9~69.5), HB(19~683), HV(80~1042), HS(30.6~102.6), HRA(59.1~88),

HRB(13.5~101.7)

Testing Direction 360°
Hardness Scales HL, HB, HRB, HRC, HRA, HV, HS
Testing result on display HL value and the corresponding value of selected hardness scale.
Testing Materials Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), copper and tin alloy, copper (bronze), forged steel. added 3 materials for the roller hardness tester(optional): cast steel roller, forged steel roller, cast iron roller
User defined material 5 kind. With setting guide
Display 320x240 true color TFT screen
Indication Error ±6HLD (D impact device)
To identify probe automatically, or by manual.
Data Memory Max 600 groups (relative to impact times 1~32 adjustable)
Power supply Rechargeable li-battery, 3.7v
charger 5V/1000mA, charging time 2.5~4.5
Communication port USB2.0
Size 130x83x32mm
Weight 0.6kg
Working Condition

working temperature: -20°C~55°C

storage temperature: -20°C~75°C

relative humidity: ≤90%

The surrounding environment requires no vibration, no strong magnetic field, no corrosive medium and no serious dust







































































Main features

  • DISPLAY shows 2 scales : the hardness scale of Leeb and the other corresponding scale.
  • This hardness tester can test many kinds of metal materials with high precision.Accord with standard JB/T 9378-2001 in [Technical conditions of Leeb hardness tester].
  • Dedicated circuit design, probe hot plug support.
  • Seven impact devices are available for special application; Support plug and play. it can automatically identif impact device and can set by manual as well. No need calibration when probe changes.
  • Ten commonly used material of hardness scale(HL, HB, HRB, HRC, HRA, HV, HS) parallel conversion.
  • Added 3 materials for the roller hardness tester(optional): cast steel roller, forged steel roller, cast iron roller: cast steel roller, forged steel roller, cast iron roller. it can take quick measurement for roller.
  • Five (1-5)user's materials can be defined for hardness testing of special materials. Theoretically, this tester tests all metal materials.
  • Built in lithium ion battery; up to 50 hours continuous work; with auto sleep, auto power off, power-saving features.
  • Adopt 320X240 true color large TFT display.
  • Windows menu. Support 6 language freely switch. User friendly features, easy to operate.
  • the Brightness of LCD allows adjustable, it improves visibility in dark environments.
  • Material of 'steel' is added; HB values can be read out directly when D/DC impact device is used to measure “steel” work piece.
  • USB port. Convenient communication with PC to exchange data and set parameter.
  • Large memory up to 600 group hardness data( impact times:32~1), it include: the last testing value, average value, testing date, impact direction impact times, material, hardness scale, etc
  • it can automatically alarm when values are out of pre-set range, which is convenient for the requirements of batch measurements.
  • Metal case, anti-electromagnetic interference, shock resistant.
  • There are remaining charge indicator, charging hint.
  • Features calibration function.
  • Software of PC can be installed according to the requirements of user, the function will be more powerful to satisfy the more strict demands of quality control and management.
  • Add user defined material.

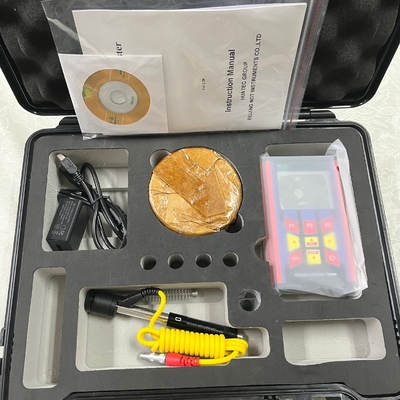

Standard Delivery



ITEM QTY
Main unit 1 PC
Standard D Impact Device 1 PC
Standard Calibration Block 1 PC
Standard Support Ring 1 PC
Brush 1 PC
USB Cable, charger 1 PC
PC Software 1 PC
User Manual 1 PC
Instrument Case 1 PC
Warranty 2 Years





























OPTIOANL CONFIGURATION

hardness testing for roller, mini printer, shaped support ring



No.

Type of impact

device

hardness value of standard Leeb

hardness block

Error of displayed

value

Repeatability of displayed value
1 D

760±30HLD

530±40HLD

±6 HLD

±10 HLD

6 HLD

10 HLD

2 DC

760±30HLDC

530±40HLDC

±6 HLDC

±10 HLDC

6 HLD

10 HLD

3 DL

878±30HLDL

736±40HLDL

±12 HLDL 12 HLDL
4 D+15

766±30HLD+15

544±40HLD+15

±12 HLD+15 12 HLD+15
5 G

590±40HLG

500±40HLG

±12 HLG 12 HLG
6 E

725±30HLE

508±40HLE

±12 HLE 12 HLE
7 C

822±30HLC

590±40HLC

±12 HLC 12 HLC











































 RELATED OPTIONAL ITEMS

Type of Impact Device DC(D)/DL D+15 C G E

Impacting energy

Mass of impact body

11mJ

5.5g/7.2g

11mJ

7.8g

2.7mJ

3.0g

90mJ

20.0g

11mJ

5.5g

Test tip hardness:

Dia. Test tip:

Material of test tip:

1600HV

3mm

Tungsten carbide

1600HV

3mm

Tungsten carbide

1600HV

3mm

Tungsten carbide

1600HV

5mm

Tungsten carbide

5000HV

3mm

synthetic diamond

Impact device diameter:

Impact device length:

Impact device weight:

20mm

86(147)/205mm

50g

20mm

162mm

80g

20mm

141mm

75g

30mm

254mm

250g

20mm

155mm

80g

Max. hardness of sample 940HV 940HV 1000HV 650HB 1200HV
Mean roughness value of sample surface Ra: 1.6μm 1.6μm 0.4μm 6.3μm 1.6μm

Min. weight of sample:

Measure directly with stand

Need coupling tightly

>5kg

2~5kg

0.05~2kg

>5kg

2~5kg

0.05~2kg

>1.5kg

0.5~1.5kg

0.02~0.5kg

>15kg

5~15kg

0.5~5kg

>5kg

2~5kg

0.05~2kg

Min. thickness of sample Coupling tightly:

Min. layer thickness for surface hardening:



5mm



≥0.8mm



5mm



≥0.8mm



1mm



≥0.2mm



10mm



≥1.2mm



5mm



≥0.8mm



Size of tip indentation
Hardness 300HV

Indentation diameter:

Depth of indentation:



0.54mm



24μm



0.54mm



24μm



0.38mm



12μm



1.03mm



53μm



0.54mm



24μm

Hardness 600HV

Indentation diameter:



Depth of indentation



0.54mm



17μm



0.54mm



17μm



0.32mm



8μm



0.90mm



41μm



0.54mm



17μm

Hardness 800HV

Indentation diameter:



Depth of indentation



0.35mm



10μm



0.35mm



10μm



0.35mm



7μm



--



--



0.35mm



10μm

Application

DC type used to measuring hole or inside face of cylinder,

DL type used to measuring elongated narrow slot or hole,

D type for routine measurements.

Suitable for measuring surface of the trench or concave. Suitable for measuring thin workpiece and harden surface. Suitable for heavy or rough castings and forgings. Suitable high hardness material.

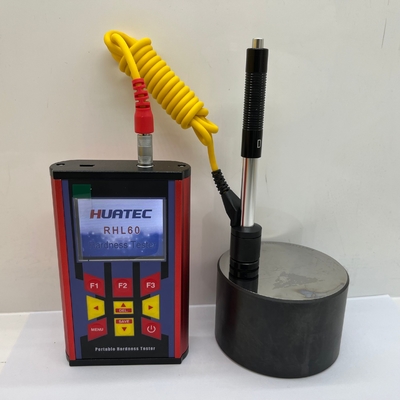

Color Lcd Rechargeable Battery Portable Hardness Testers For Metal 1Color Lcd Rechargeable Battery Portable Hardness Testers For Metal 2


Testing range see table 1 and table 2.
Table 1
Material
Hardness method
Impact device
D/DC
D+15
C
G
E
DL
Steel and cast steel
HRC
17.9~68.5
19.3~67.9
20.0~69.5

22.4~70.7
20.6~68.2
HRB
59.6~99.6


47.7~99.9

37.0~99.9
HRA
59.1~85.8



61.7~88.0

HB
127~651
80~638
80~683
90~646
83~663
81~646
HV
83~976
80~937
80~996

84~1042
80~950
HS
32.2~99.5
33.3~99.3
31.8~102.1

35.8~102.6
30.6~96.8
Hammered steel
HB
143~650





Cold work tool steel
HRC
20.4~67.1
19.8~68.2
20.7~68.2

22.6~70.2

HV
80~898
80~935
100~941

82~1009

Stainless steel
HRB
46.5~101.7





HB
85~655





HV
85~802





Gray cast iron
HRC






HB
93~334


92~326


HV






Nodular cast  iron
HRC






HB
131~387


127~364


HV






Cast aluminum
alloys
HB
19~164

23~210
32~168


HRB
23.8~84.6

22.7~85.0
23.8~85.5


Brass(copper-zinc alloys)
HB
40~173





HRB
13.5~95.3





Bronze (copper-aluminum/copper-tin alloys)
HB
60~290





Wrought copper
alloys
HB
45~315






Table 2
No.
Material
HLD
Strength σb(Mpa)
1
Mild steel
350~522
374~780
2
High-carbon steel
500~710
737~1670
3
Cr steel
500~730
707~1829
4
Cr-V steel
500~750
704~1980
5
Cr-Ni steel
500~750
763~2007
6
Cr-Mo steel
500~738
721~1875
7
Cr-Ni-Mo steel
540~738
844~1933
8
Cr-Mn-Si steel
500~750
755~1993
9
Super strength steel
630~800
1180~2652
10
Stainless steel
500~710
703~1676

Color Lcd Rechargeable Battery Portable Hardness Testers For Metal 3Color Lcd Rechargeable Battery Portable Hardness Testers For Metal 4Color Lcd Rechargeable Battery Portable Hardness Testers For Metal 5Color Lcd Rechargeable Battery Portable Hardness Testers For Metal 6Color Lcd Rechargeable Battery Portable Hardness Testers For Metal 7Color Lcd Rechargeable Battery Portable Hardness Testers For Metal 8Color Lcd Rechargeable Battery Portable Hardness Testers For Metal 9

Function:
On-line measuring management
Various function keys of data test, store, read, delete, clear, print, input and output to excel etc.
PC Software sample

Key words:Hardness Tester, Leeb Hardness Tester, Portable Hardness Tester, Portable Hand Held Leebs Metal Hardness Testers, Portable, Hardness Testers, hardness testing equipment, hardness testing machine, ndt, non destructive testing, ndt testing, impact device, Leebs, ASTM Standards, HRC, HRB, HRA, HB, HV, HS, HLD, hardness values, DIN 53505, ASTM D2240, ISO 7619
