Iso2372 Handheld Vibration Meters Piezoelectric Vibration Sensor Acceleration Velocity Displacement Hg-6500bn

1pcs
MOQ
Iso2372 Handheld Vibration Meters Piezoelectric Vibration Sensor Acceleration Velocity Displacement Hg-6500bn
Features Gallery Product Description Request A Quote
Features
Specifications
Sensor: Shear Type Acceleration Sensor
RMS Testing: True RMS
Vibration Measurement Range: Displacement: 0.001 To 1.999mm (peak - Peak), Speed: 0.1 To 199.9mm / S (RMS), Acceleration: 0.1 ~ 199.9m/s2 (peak)
Frequency Range: 10Hz ~ 10KHz
High Light:

iso2372 handheld vibration meters

,

piezoelectric vibration sensor handheld vibration meters

,

acceleration velocity displacement handheld vibration tester

Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HG-6500BN
Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Product Description

ISO2372 Piezoelectric Vibration Sensor Acceleration Velocity Displacement Vibration Meters Handheld HG-6500BN



Description:

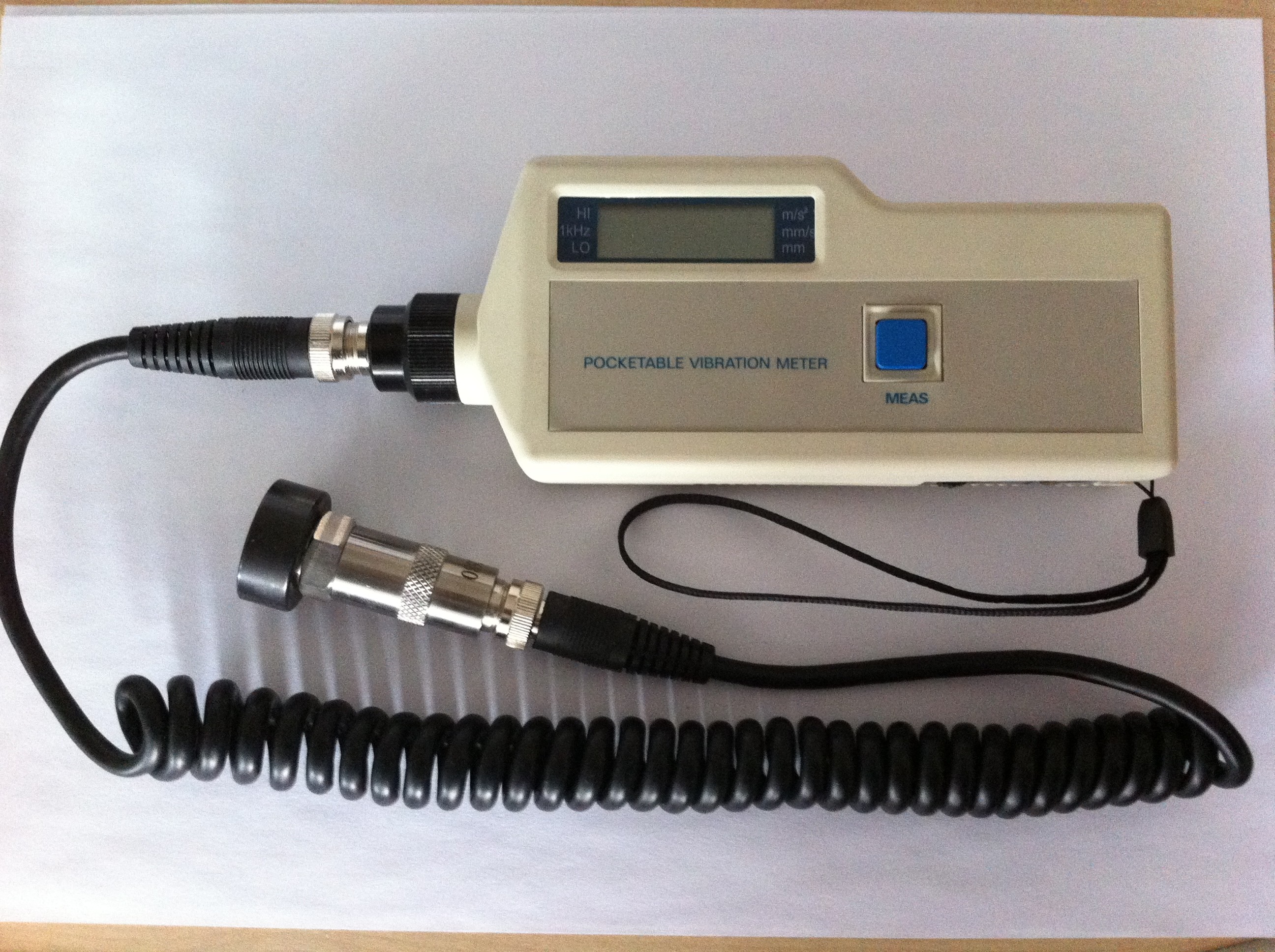

HG-6500BN Pocket vibration (temperature) instrument with separate shear accelerometer, mainly used in machinery and equipment vibration displacement, velocity (intensity) and the acceleration measurement.

In the bearing housing using the measured data, or the use of enterprises, the standard machine, you can determine the equipment (fans, pumps, compressors, motors, etc.) in which the current state (well, pay attention or dangerous, etc.).



Specifications
Sensors:  one rotary shear accelerometer
Measuring Range:

                  Acceleration 0.1 ~ 199.9m/s2 (single peak) (5 or 10 ~ 1KHz; 1K ~ 10KHz)
                  Speed ​​of 0.1 ~ 199.9mm / s (RMS) (5 or 10 ~ 1KHz)
                  Displacement of 0.001 ~ 1.999mm (peak) (5 or 10 ~ 1KHz)

 Accuracy: 5% ± 2 vibration words
Display:  LCD display three and a half
Maintain the characteristics: measurement value is automatically maintained

Power off: Automaticly shutdown
Signal Output: AC 2V peak (full scale and the load is greater than 10K ohms)
Power: 9V laminated battery 1 can be used continuously 25 hours
Body volume: 185mm × 68mm × 30mm
Weight: 200g



HG-6500 series model guide:

Model

Low frequency and temperature

Function

Frequency range

HG-6500AN

Standard (I)

Acceleration, Velocity, Displacement

10Hz ~ 10KHz

HG-6500AL

Low frequency (I)

Acceleration, Velocity, Displacement

5Hz ~ 10KHz

HG-6500ANC

Vibration and temperature(I)

Acceleration, Velocity, Displacement, Temperature

10Hz ~ 10KHz

HG-6500ALC

Low frequency and temperature(I)

Acceleration, Velocity, Displacement, Temperature

5Hz ~ 10KHz

HG-6500BN

Standard

Acceleration, Velocity, Displacement

10Hz ~ 10KHz

HG-6500BL

Low frequency

Acceleration, Velocity, Displacement

5Hz ~ 10KHz

HG-6500BNC

Vibration and temperature

Acceleration, Velocity, Displacement, Temperature

10Hz ~ 10KHz

HG-6500BLC

Low frequency and temperature

Acceleration, Velocity, Displacement, Temperature

5Hz ~ 10KHz
