Super Light 1.5mm Focus Spot Portable X Ray Flaw Detector Machine For Welding XXG-2505CX
1pcs
MOQ
Super Light 1.5mm Focus Spot Portable X Ray Flaw Detector Machine For Welding XXG-2505CX
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: XXG-2505CX
Output voltage: 130-250kv
High Light:

super light x ray flaw detector

,

portable x ray flaw detector

,

led portable x ray flaw detector

Payment & Shipping Terms
Packaging Details: Standard export plywood package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Specifications
Output: 130-250KV
Input: 2.5KW
Focus Spot: 1.5*1.5
Max Penetration: 40mm
Material: Steel
Radiation Angle: 40±5°
Usage: Industrial X-Ray Testing,weld Testing,Industrial X Ray Testing Machine
Power Supply: AC220V±10%,50HZ
Application: Industrial X-Ray Testing,welding Seam Detecting
Warranty: 12 Months
Exposure Time: 5 Minutes
Controller Size: 320*270*180mm 8kgs Weight
Generator Size: 220*220*550mm
Generator Weight: 17.4kgs
X Ray Tube: Ceramic
Product Description

17.4kg Super Light 1.5mm Focus Spot Portable X-Ray Machine For Welding XXG-2505CX



Main introduction:

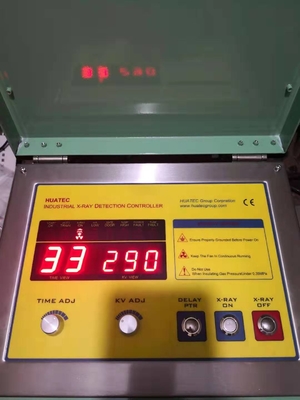

The controller adopts a new type of control structure; it can be applicable to various X-ray generators with various parameters. The controller provides a friendly human machine interface, including unique LED status indications, industrial stepless knobs for adjusting parameters, with clear display and fast adjustment speed. It adopts modular structure, with high reliability, and it is easy for disassembly and maintenance. The full automatic training mode with automatic voltage reduction function when generator discharging can effectively protect the life of X-ray tube. Besides, it offers accurate fault detection, easy for usage and maintenance.



Main usage:
The HUATEC Flaw detector products have been widely used for nondestructive testing in spaceflight industry, welding engineering industry, shipbuilding industry, boiler pipe industry, petrochemical engineering industry, aircraft manufacturing, maintenance industry, automotive industry, defense industries, etc.



The controller includes the following features:

  • Industry-leading expert intelligent X-ray control system, high anti-interference.
  • Modular main circuit structure, air duct heat dissipation design, high reliability for continuous operation.
  • Industrial stepless knobs for time and kilovolt regulation, which is fast, convenient and reliable.
  • Chopper control of start-up speed, adaptive different X-ray generators.
  • Unique soft-start and slow turn-off voltage control function for advantageously protecting X-ray generators.
  • The pioneering automatic training mode provides automatic voltage reduction protection during generator discharging, with automatic time follow-up.
  • The casing side is equipped with working state indicators, which is convenient for long-distance observation.
  • Equipped with safety door interlocking input terminal, it can be connected to the safety door control to ensure personnel safety.
  • The exposure time delay can be settable.
  • It is convenient to disassembling the cooling fan for regular cleaning, ensuring the long-term stability of the controller.
  • The upper cover adopts internal buckling mode, which is convenient and reliable, and can be located at any opening angle.
  • The controller casing is equipped with rubber shock-absorption guards, suitable for outdoor work.
  • The exposure time can be recorded accumulatively, which is convenient for users to understand the exposure conditions.
  • No need to open the cover, the specific combination button operation can realize the selection of X-ray generator model.

Technical specifications:

(1) Pipe voltage range: directional 250kV

(2) Tube current range: 5mA

(3) Focus size: ≤1.5*1.5

(4) Maximum penetration (Fe) : ≥40mm

(5) Cooling mode: air cooling

(6) Type of ray tube: cermet tube

(7) controller display mode:; Digital display. KV/T

(8) Other parameters:

A. Intelligent automatic test function

B. Automatic over-voltage, over-current, under-voltage, under-current and over-temperature alarm function of the ray tube

C. Pause the function. (Exposure or training can continue after suspension)

D. Precise timing function

(9) Use of environmental conditions

Ambient temperature range: -15 ° to +50°

Ambient humidity: ≤90%

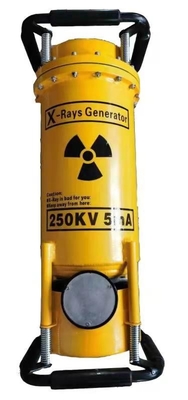

(10) Generator size: 220*220*550mm weight: 17.4kg

(Normal model: 240*240*600mm Weight: 24.4kg

Control machine size: 320*270*180mm weight: 8KG



Standard Delivery

Directional glass X-ray tube 1 Pcs
Generator 1 Set
High voltage joins cable 1 Pcs 25 Meters
Controller 1 Set
Power cable 1 Pcs 10 Meters
Grounding cable 1 Pcs 5 Meters
Accessories 1 Set
(Including: alarm lamp,1 Pcs; lead letter, 1 box; Film dark cassettes 5 pcs; intensifying screen 5 pcs; Wire penetrameter (IQI) 1 set; fuse1 pc)



Super Light 1.5mm Focus Spot Portable X Ray Flaw Detector Machine For Welding XXG-2505CX 0
