10.5kg X Ray Welding Machine 1.0mm Small Focus Ultra High Definition HMT-K2

1pcs
MOQ
10.5kg X Ray Welding Machine 1.0mm Small Focus Ultra High Definition HMT-K2
Features Gallery Product Description Request A Quote
Features
Specifications
Output: 130-250KV
Input: 2.5KW
Focus Spot: 1.0*1.0
Max Penetration: 40mm
Material: Steel
Radiation Angle: 40±5°
Usage: Industrial X-Ray Testing,weld Testing,Industrial X Ray Testing Machine
Power Supply: AC220V±10%,50HZ
Application: Industrial X-Ray Testing,welding Seam Detecting
Warranty: 12 Months
Exposure Time: 5 Minutes
Controller Size: 320*270*180mm 8kgs Weight
Generator Size: φ150*510
Generator Weight: 10.5kgs
X Ray Tube: Ceramic
Product Name: X Ray Welding Machine
High Light:

huatec x ray welding machine

,

1.0mm focus x ray welding machine

,

high definition welding x ray machine

Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HMT-K2
Output voltage: 130-250kv
Payment & Shipping Terms
Packaging Details: Standard export plywood package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Product Description

10.5kg Super Light 1.0mm Small Focus Ultra High Definition X Ray Welding Machine HMT-K2



Main usage:
The HUATEC Flaw detector products have been widely used for nondestructive testing in spaceflight industry, welding engineering industry, shipbuilding industry, boiler pipe industry, petrochemical engineering industry, aircraft manufacturing, maintenance industry, automotive industry, defense industries, etc.



Main technical parameters

(The industry is relatively small in size and light in weight)



Can be used with portable DR imaging board, suitable for working at high altitude, small space.



Product Features:

1. Miniaturization

2. Small focus

3. FBT adopts nanometer materials for stability, excellent design, long working life

4. Research and development of injection technology for FBT application;solved the string, non - impact resistance

5. Better penetration

6. Good product stability

7. Smaller focus, sharper image 1.0 small focus, ultra high definition



Parameters:

Model HMT-K2
Input voltage kV 130-250
Power kW 2.5
Focus size 1.0*1.0
Radiation Angle 40º±5
Penetration mm 40
Weight KG 10.5
Size mm φ150*510
Focal distance from the ground mm 100





Working Principle

This machine is composed of intelligent controller-ray generator, power cable and connecting cable.

1.The controller will consist of the following sections:

Front Panel: LED display, status and failure indicator, touch keyboards (see the introduction of control panel)

Side Panel: power cable socket and connecting cable socket, power switch,key switch, fuse socket, warning lamp and wire connecting terminal of door-machine interlock.

Internal Circuit: power circuit, rectifying circuit, filter circuit, inverter circuit, control circuit and other circuited.

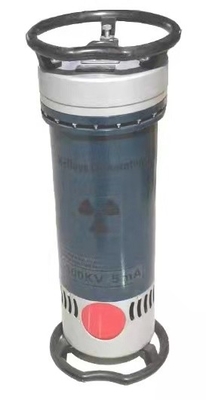

2.The x-ray generator will consist of the following sections:

X-ray tube, High voltage transformer, Temperature relay, Gas pressure gauge and Cooling fan etc.

3.The schematic diagram of the complete machine:



Standard Delivery

Directional glass X-ray tube 1 Pcs
Generator 1 Set
High voltage joins cable 1 Pcs 25 Meters
Controller 1 Set
Power cable 1 Pcs 10 Meters
Grounding cable 1 Pcs 5 Meters
Accessories 1 Set
(Including: alarm lamp,1 Pcs; lead letter, 1 box; Film dark cassettes 5 pcs; intensifying screen 5 pcs; Wire penetrameter (IQI) 1 set; fuse1 pc)



10.5kg X Ray Welding Machine 1.0mm Small Focus Ultra High Definition HMT-K2 0
 10.5kg X Ray Welding Machine 1.0mm Small Focus Ultra High Definition HMT-K2 110.5kg X Ray Welding Machine 1.0mm Small Focus Ultra High Definition HMT-K2 210.5kg X Ray Welding Machine 1.0mm Small Focus Ultra High Definition HMT-K2 3
