30mm Diameter 500w Huatec Metallographic Inlay Machine

1pcs
MOQ
30mm Diameter 500w Huatec Metallographic Inlay Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Sample Pressing Diameter: Φ 22、 Φ 30、 Φ Three Specifications Of 45mm (one Standard Configuration, Optional When Ordering)
Temperature Control Range: 0-300 ℃
Timing Range: 0-30min
Overall Power: ≤ 800W
Input Power: Single Phase AC 220 V, 50 Hz
Overall Dimension: 400mm × 290mm × 400mm
Net Weight: 33kgs
High Light:

30mm diameter metallographic inlay machine

,

500w metallographic inlay machine

,

huatec metallographic inlay machine

Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HSM-1
Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 3days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Product Description

30mm Diameter 500W Metallographic Inlaying Machine For Micro Vickers Hardness Testing Machine



1. Introduction



This machine is used for inlaying tiny, hard to handle or irregular metallographic and lithofacies samples before grinding and polishing. After inlaying, it is easy to grind and polish the sample. At the same time, it is also helpful to observe the material structure under the metallographic microscope; Test the hardness of the sample on the hardness tester.



1.1 working principle



The machine is mainly composed of cylinder liner, heating sleeve, upper cover plate, upper mold, lower mold, screw rod, bevel gear, hand wheel, spring, limit switch, temperature controller, timer and other parts.



1, It is used for hand wheel, and its force makes the lower die move upward through bevel gear, screw rod and other parts;



2, The inlay material is extruded and filled, and then the spring is extruded by the force;



3, When the spring is pressed to the position of the limit switch, the pressure maintaining indicator light is on;



4, After the mosaic material is heated, the spring moves, and the pressure holding indicator light goes out. At this time, it is necessary to continue to shake the hand wheel for several times until the pressure holding time meets the requirements.



5, Reverse the hand wheel to release the pressure, open the upper cover plate, shake the hand wheel and take out the sample.



The inlay material of this machine is limited to thermosetting materials. The pressing temperature of different thermosetting materials can be adjusted and determined according to the materials.



1.2 reference temperature and heating time:

Thermosetting materials heating temperature heating time
Dianyufen (white) 135℃ 15min
Bakelite powder (black) 135-160℃ 15min



2. Main technical specifications



Sample pressing diameter: Φ 22, Φ 30, Φ Three specifications of 45mm (one standard configuration, optional when ordering)

Temperature control range: 0-300 ℃

Net weight: 33kg

Timing range: 0-30min

Overall power: ≤ 800W

Input power: single phase AC 220 V, 50 Hz

Overall dimension: 400mm × 290mm × 400mm



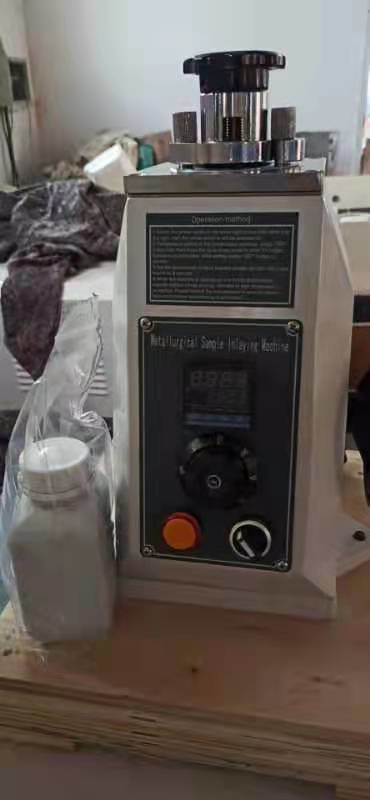

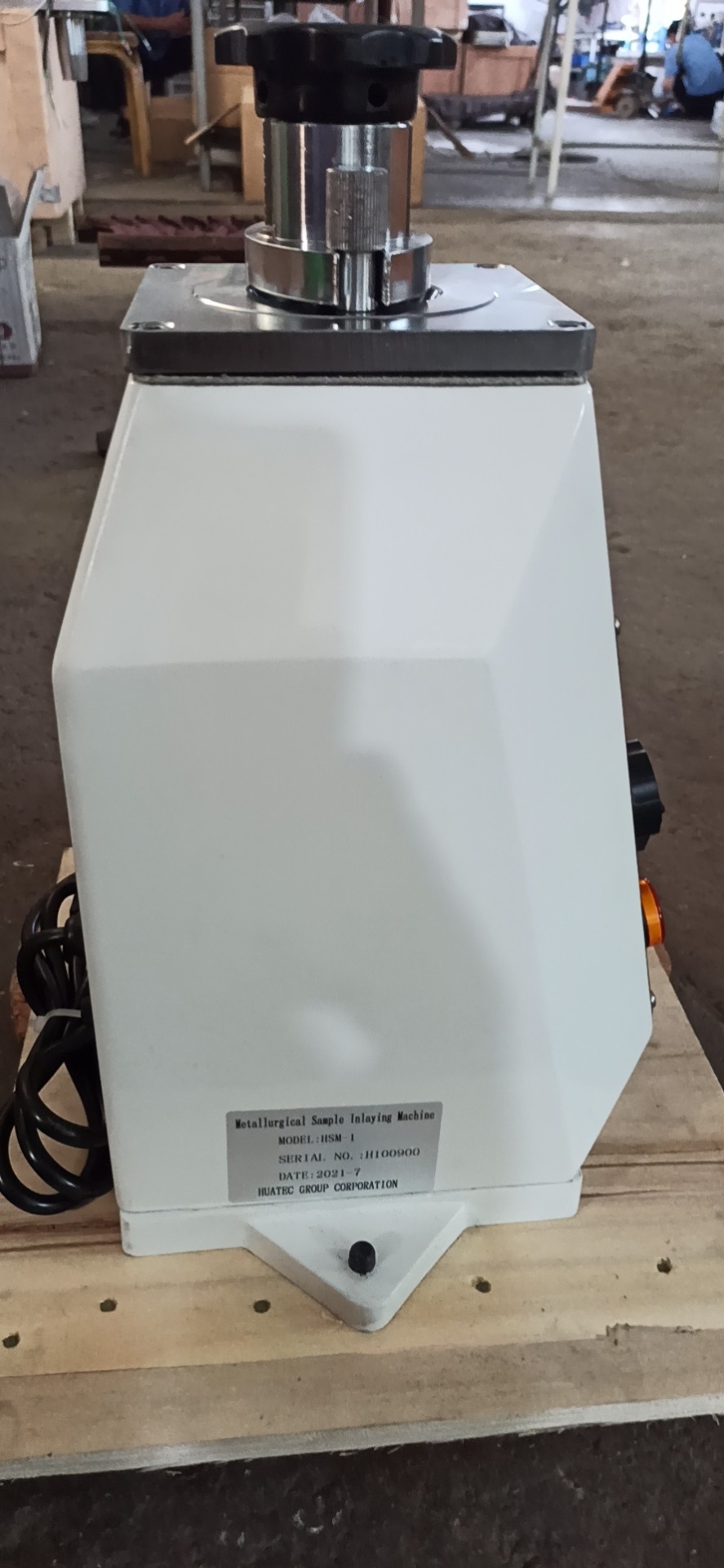

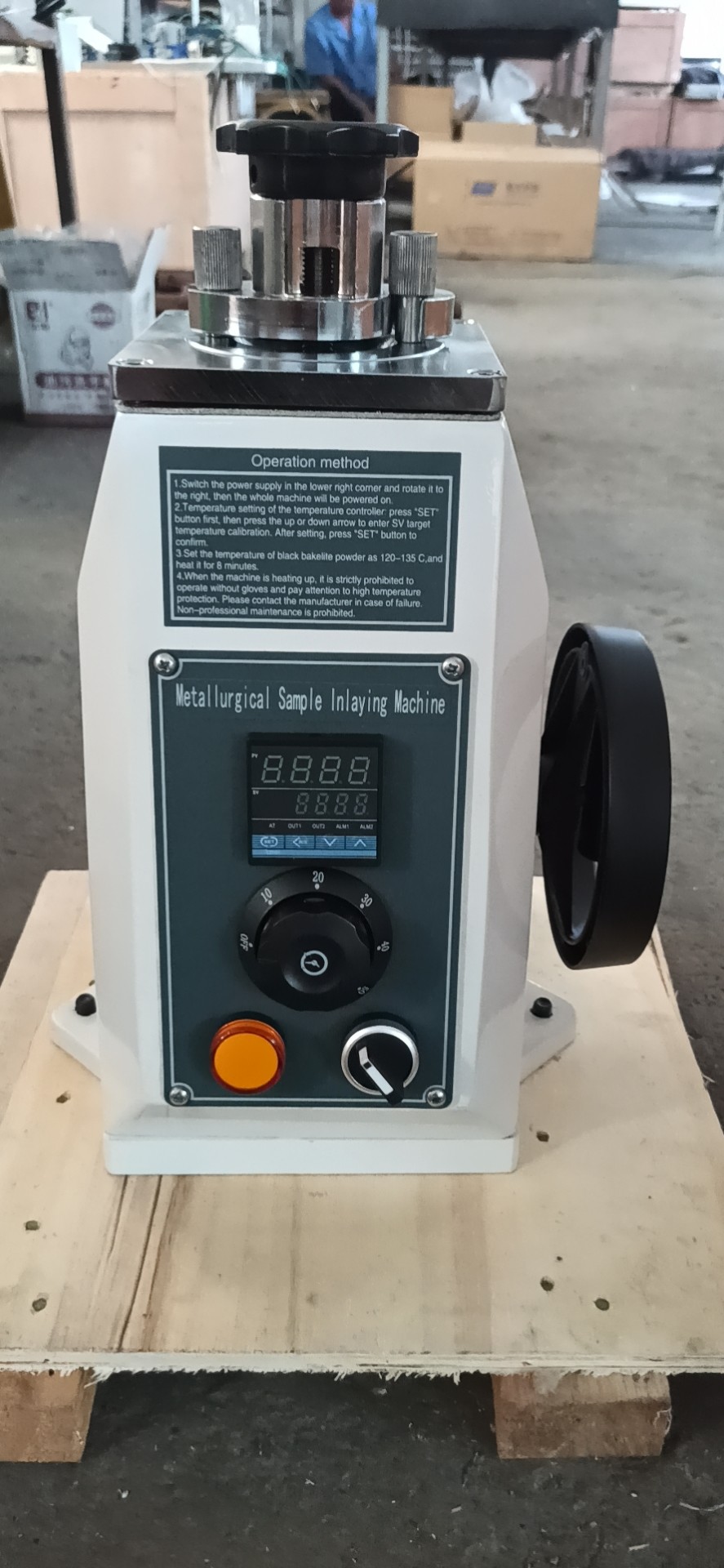

30mm Diameter 500w Huatec Metallographic Inlay Machine 0



3. Installation precautions



3.1 the equipment must have good grounding and adopt single-phase three pole standard power socket.



3.2 the equipment shall be installed on the stable and vibration free working table with the ambient temperature of 10 ℃ - 30 ℃; The relative humidity is less than 85%, and there is no corrosive gas and conductive dust around.



3.3 there is a certain temperature on the upper cover plate and the top of the equipment. Pay attention to burns during use!



3.4 install the upper hand wheel and wipe the antirust oil on the upper and lower moulds.



3.5 it is normal that there will be a small amount of smoke during the first heating.
