Barcol Impressor Bluetooth Portable Hardness Tester For Aluminum

1pcs
MOQ
Barcol Impressor Bluetooth Portable Hardness Tester For Aluminum
Features Gallery Product Description Request A Quote
Features
Specifications
Hardness Scale: HS,HV,HB
Range: 0~100HBa, Amount To 25~150HBW
Key Words: Portable Hardness Tester For Aluminum
Resolution: 0.1HBa
Maximum Hold: Included
Power Supply: 2 X 1.5 V AAA (UM-4) Battery
Weight: 390g
High Light:

bluetooth barcol impressor hardness tester

,

bluetooth portable hardness tester for aluminum

,

huatec portable hardness tester for aluminum

Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HBA-120
Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Product Description

Aluminium Hardness Tester Barcol Impressor Portable Hardness Tester For Aluminum HBA-110



Application:

The model is mainly used for hardness testing in aluminum processing industry, testing hardness of pure aluminum, soft aluminum, thick aluminum alloy, aluminum strip, aluminum rod, aluminum castings, aluminum forgings and aluminum alloy products. Also, it can be used for hardness testing of fiberglass industry.



Features:

* Digital display indentation hardness tester which is the latest design and development of our company.

* It is characterized in that provided with a balance positioning, a digital display of hardness value, and a non disassembly calibration and adjusting.

* It is with good stability, convenient calibration, and high accuracy of detection.

* HBA-120 has small size, portable. single hand operation, easy to use. It can be used in any occasion as long as the hand can reach.

* Big and wide test range: can test from very soft pure aluminum to a particularly hard aluminum alloy. Effective test range equivalent to the Brinell hardness of 25~150HB.

* No need to be supported. Just test on one side of the sample with the hardness tester, no need to be supported. It is suitable for the test of large and extra thick workpiece.

* Maximum hold function, recording the maximum hardness value during measurements.

* Can test hardness value of Barcol Hardness, Brinell Hardness (HB), Vickers Hardness (HV), Webster Hardness (HW), Rockwell Hardness (HRB/HRE/HRF/HRH).

* With the function of calculating the average value, can calculate the average value of the 29 sets of data at most.

* Provide Bluetooth data output choice.



Technical parameters

Model HBA-120
Range 0~100HBa, Amount to 25~150HBW
Resolution 0.1HBa
Indication Error 81~88HBa ±1HBa
42~48HBa ±2Hba
Repeatability Error 81~88HBa ±1.5HBa
42~48HBa ±2.5HBa
Brinell Hardness testing
Vickers Hardness testing
Webster Hardness testing
Rockwell hardness testing
Maximum Hold
Average Calculation
Operating Condition Temperature: 0~50°C
Humidity: <80%RH
Power Supply 2 x 1.5 V AAA (UM-4) Battery
Weight 390g (Not Including Batteries)



Standard Accessories:

1. Main Unit HBA-120 2. 2 Pins

3. 2 Standard Blocks 4. Pin Length Calibration Block

5. Screw Driver 6. Spanner

7. Carrying Case 8. Operation Manual

Optional Accessories:

  1. Bluetooth data output with software

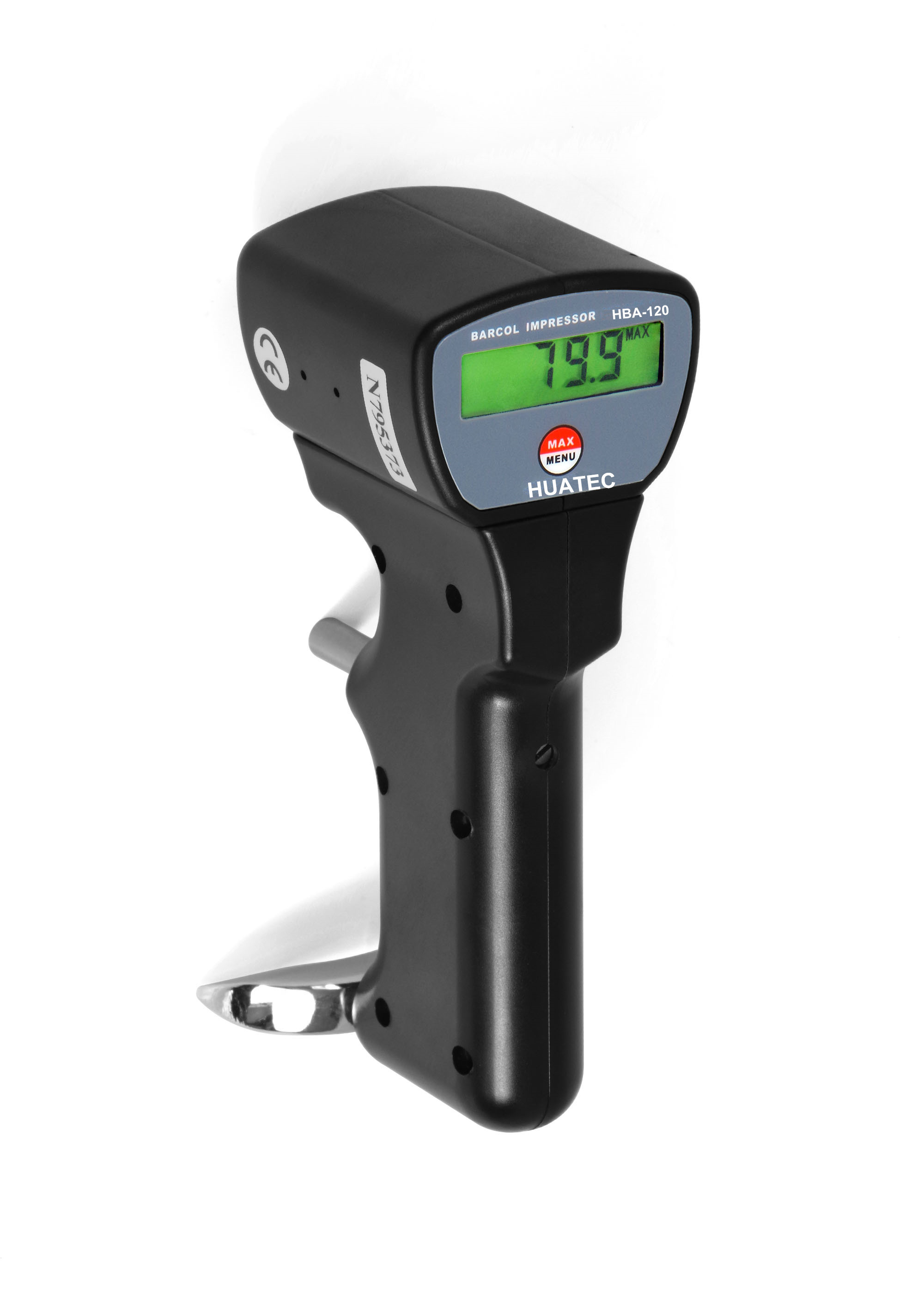

Barcol Impressor Bluetooth Portable Hardness Tester For Aluminum 0

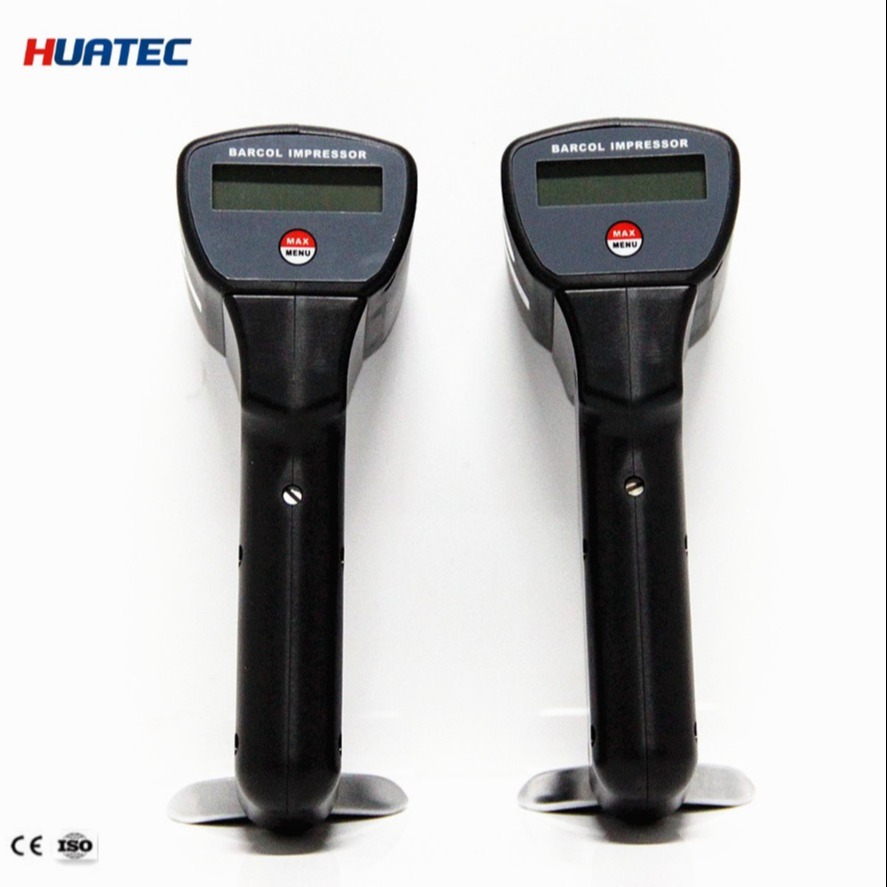

Barcol Impressor Bluetooth Portable Hardness Tester For Aluminum 1

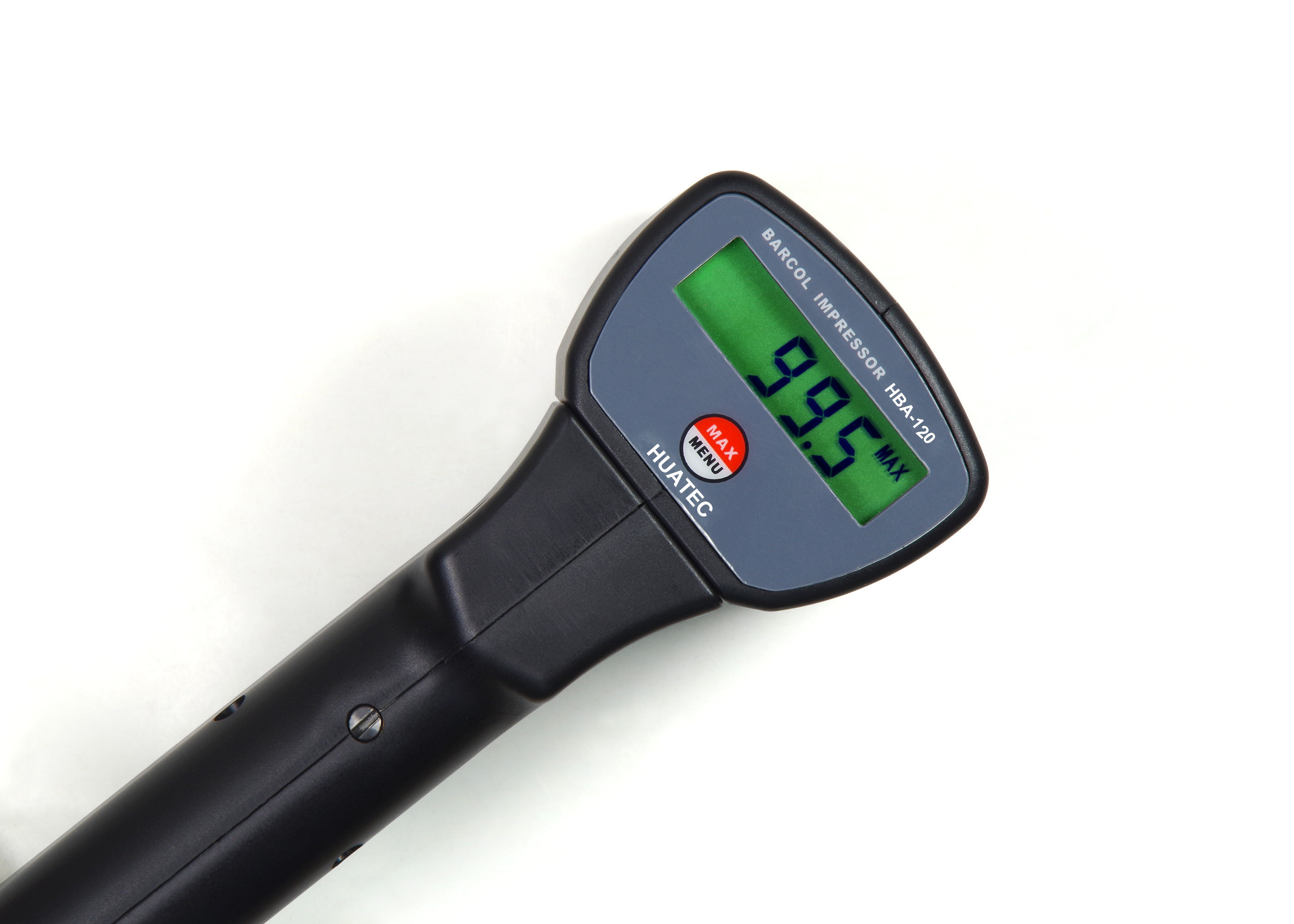

Barcol Impressor Bluetooth Portable Hardness Tester For Aluminum 2

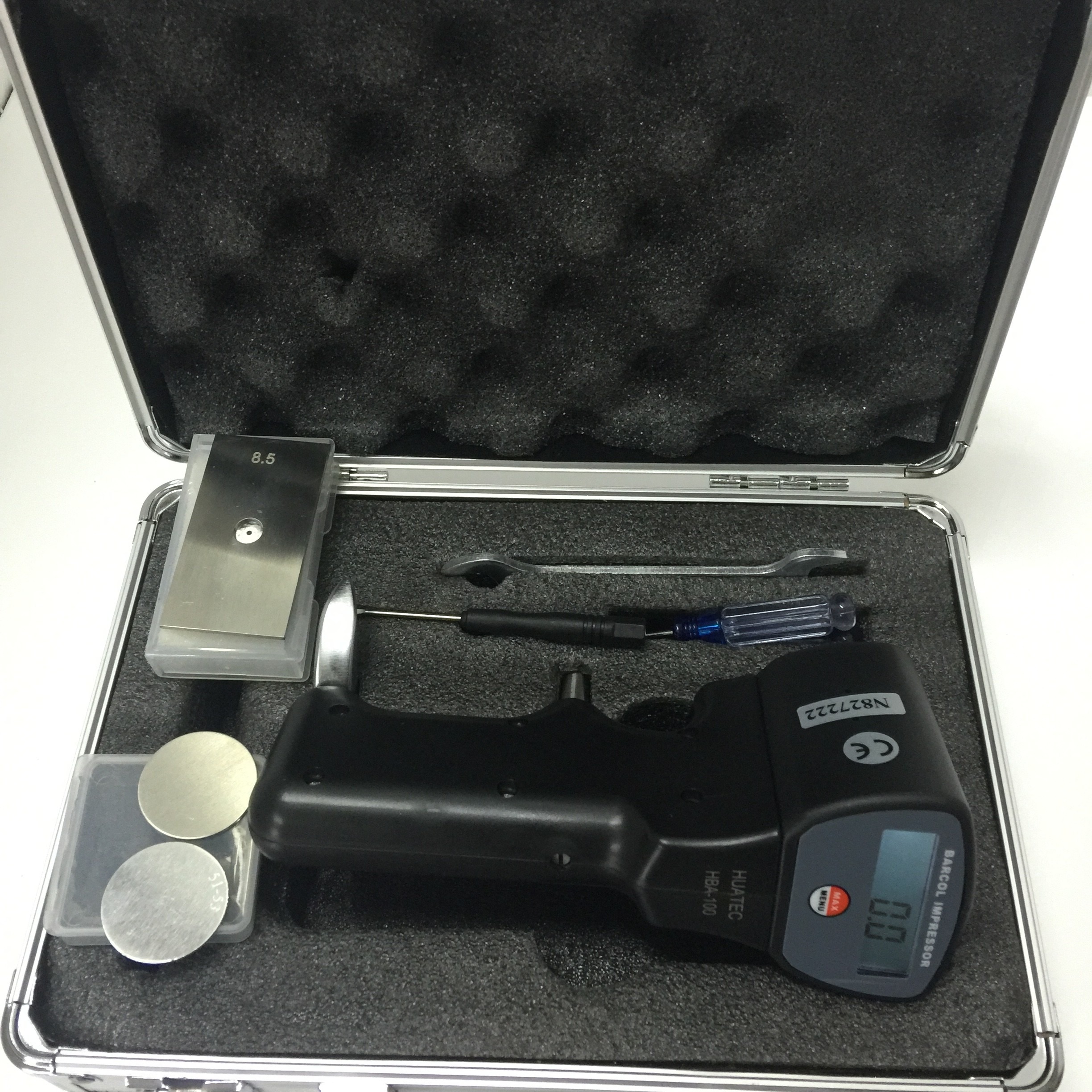

Standard Accessories :

1. Main Unit HBA-120

2. 2 Pins

3. 2 Standard Blocks

4. Pin Length Calibration Block

5. Screw Driver

6. Spanner

7. Carrying Case

8. Operation Manual



Optional Accessories:

  1. Bluetooth data output with software
