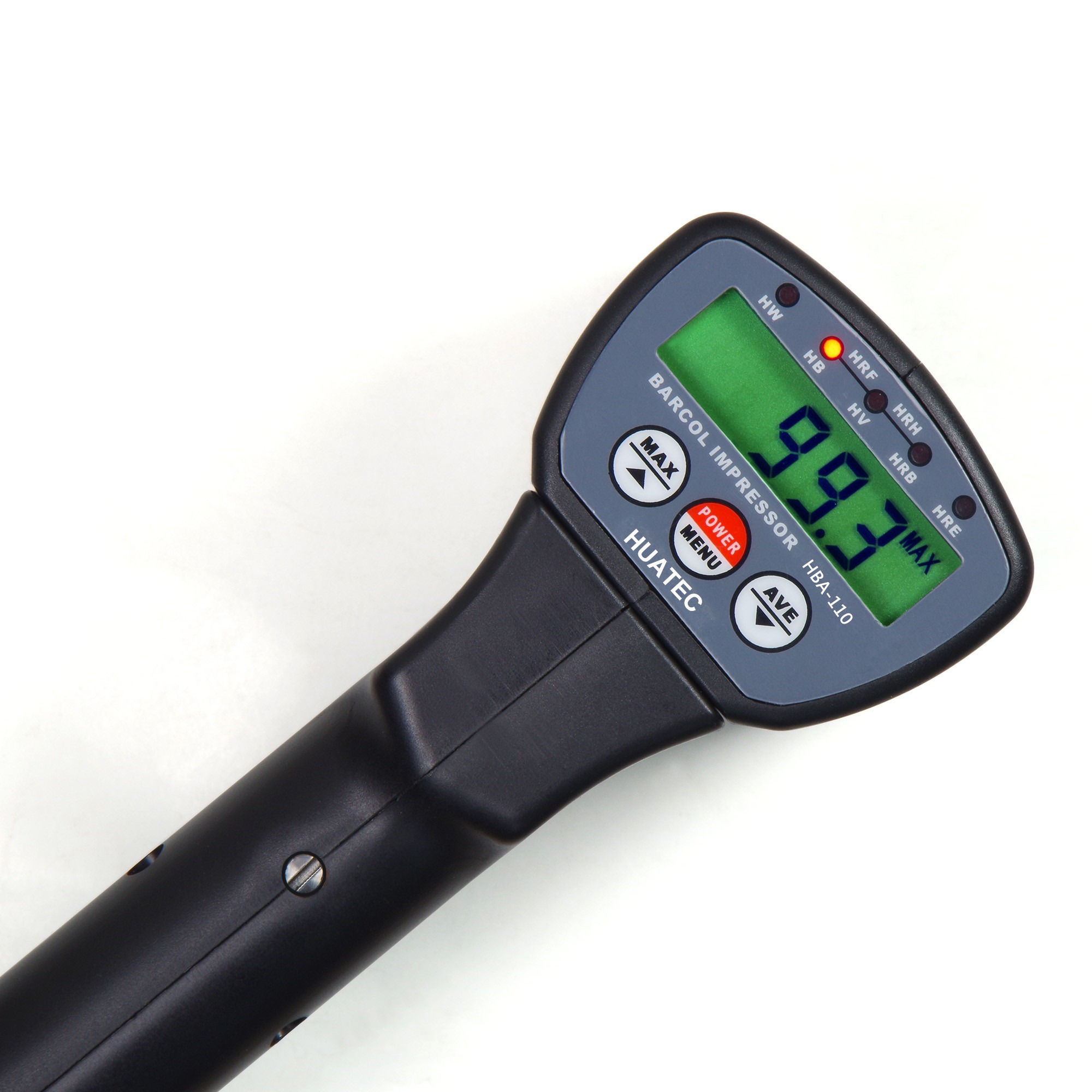

Bluetooth Aluminium Barcol Impressor Hardness Tester Um-4 Battery HBA-110

1pcs
MOQ
Bluetooth Aluminium Barcol Impressor Hardness Tester Um-4 Battery HBA-110
Features Gallery Product Description Request A Quote
Features
Specifications
Hardness Scale: HS,HV,HB
Range: 0~100HBa, Amount To 25~150HBW
Key Words: Portable Hardness Tester For Aluminum
Resolution: 0.1HBa
Maximum Hold: Included
Power Supply: 2 X 1.5 V AAA (UM-4) Battery
Weight: 390g
High Light:

bluetooth aluminium hardness tester

,

barcol impressor hardness tester bluetooth

,

um-4 battery barcol impressor hardness tester

Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HBA-110
Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Product Description

Aluminium Hardness Tester Barcol Impressor Portable Hardness Tester For Aluminum HBA-110



Application:

It is mainly used in aluminum processing industry, testing pure aluminum, soft aluminum, thick aluminum alloy, aluminum strip, aluminum rod, aluminum castings, aluminum forgings and aluminum alloy products. Also, it can be used for glass steel industry.



Features:
* It is characterized in that provided with a balance positioning, a digital display of hardness value, and a non disassembly calibration and adjusting.* A digital indentation hardness tester which is the latest design and development of our company.

* It is with good stability, convenient calibration, and high accuracy of detection.

* Small in size, portable. single hand operation, easy to use. Can be used in any occasion as long as the hand can reach.

* Wide test range can test from very soft pure aluminum to a particularly hard aluminum alloy. effective test range equivalent to the Brinell Hardness of 25~150HB.

* No need to be supported. Just test on one side of the sample with the hardness tester, no need to be supported. It is suitable for the test of large and extra thick workpiece.

* With the maximum hold function, recording the maximum hardness value during measurements.

* Can be used for measuring Barcol Hardness, other hardness value can be calculated out by the experimental curve. Such as Brinell Hardness (HB), Vickers Hardness (HV), Webster Hardness (HW), Rockwell Hardness (HRB/HRE/HRF/HRH).

* Provide Bluetooth data output choice.



Specifications

Model HBA-110
Range 0~100HBa, Amount to 25~150HBW
Resolution 0.1HBa
Indication Error 81~88HBa ±1HBa
42~48HBa ±2Hba
Repeatability Error 81~88HBa ±1.5HBa
42~48HBa ±2.5HBa
Maximum Hold
Operating Condition Temperature: 0~50°C
Humidity: <80%RH
Power Supply 2 x 1.5 V AAA (UM-4) Battery
Weight 390g (Not Including Batteries)



Bluetooth Aluminium Barcol Impressor Hardness Tester Um-4 Battery HBA-110 0

Bluetooth Aluminium Barcol Impressor Hardness Tester Um-4 Battery HBA-110 1

Bluetooth Aluminium Barcol Impressor Hardness Tester Um-4 Battery HBA-110 2

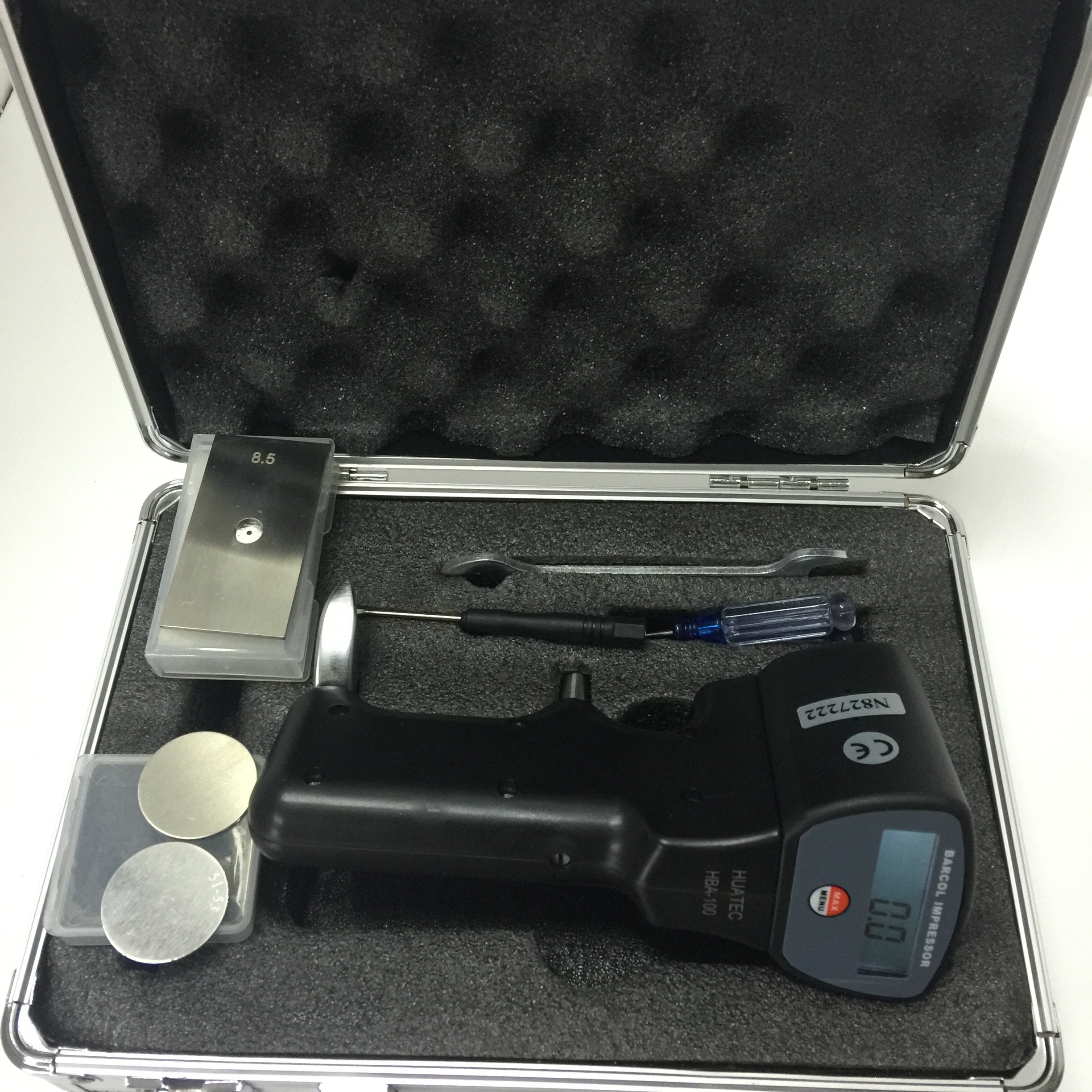

Standard Accessories :

1. Main Unit HBA-110

2. 2 Pins

3. 2 Standard Blocks

4. Pin Length Calibration Block

5. Screw Driver

6. Spanner

7. Carrying Case

8. Operation Manual



Optional Accessories:

  1. Bluetooth data output with software
