Low Frequency Handheld Vibration Monitor 1Hz-10kHz Vibration Displacement HGS-908L
1pcs
MOQ
Low Frequency Handheld Vibration Monitor 1Hz-10kHz Vibration Displacement HGS-908L
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HGS-908L
High Light:

low frequency handheld vibration monitor

,

1hz handheld vibration monitor

,

10khz vibration meter

Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Specifications
Display: 3 1/2 LCD Digital Display, Sampling Per Second
Holding Function: Included
True RMS Measurement: Included
Amplitude Ranges: Displacement 19.99 Mm Eq. Peak-peak Velocity 199.9 Mm/s True RMS Acceleration 199.9 M/s2 Eq. Peak High Frequency Acceleration: 199.9 M/s2 (or 20 G) Eq. Peak
Frequency Response & Accuracy: Displacement: 4~200Hz(5%); 2.5~500Hz(10%); 1~1000Hz(3dB) Velocity: 4~1000Hz(5%); 2.5~1000Hz(10%); 1~2000Hz(3dB) Acceleration: 4~1000Hz(5%); 2.5~5000Hz(10%); 1~10000Hz(3dB) High Frequency Acceleration: 1000-5000Hz 10%; 5kHz~
Battery: 9V 6F22/Rechargeable, 25/10 Hours Of Continuous Operation
Transducer: Accelerometer With Handheld Probe And/or Magnetic Mount
Size: 13x6x2.3 Cm
Weight: 250g
Product Name: Vibration Testers
Product Description

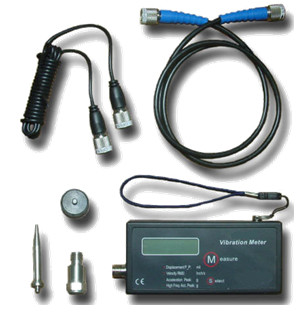

Low Frequency 1Hz-10kHz Vibration Displacement Handheld Vibration Monitor HGS-908L



Features:

Measuring vibration for low rotation speed machine such as Hydro Turbine, Wind Turbine, Rotary Kiln & Building
Small size, transducer included,

• Battery powered, external accelerometer

One button control both power and measurement. Very easy to use.
3 1/2 LCD digital display, sampling per second.
Holding function.
Automatic power off.
True RMS measurement.
• Optional Intrinsically safe version

Main application:
Suitable for monitoring machinery vibration caused by imbalance, misalignment, gear & bearing faults and construction vibration


Specifications:

Amplitude Ranges:

Displacement 19.99 mm Eq. peak-peak

Velocity 199.9 mm/s true RMS

Acceleration 199.9 m/s2 Eq. Peak

High Frequency Acceleration: 199.9 m/s2 (or 20 g) Eq. Peak

Temperature range: 0 - 50°C
Frequency response & Accuracy:

           Displacement: 4~200Hz(±5%); 2.5~500Hz(±10%); 1~1000Hz(3dB)

           Velocity: 4~1000Hz(±5%); 2.5~1000Hz(±10%); 1~2000Hz(3dB)

           Acceleration: 4~1000Hz(±5%); 2.5~5000Hz(±10%); 1~10000Hz(3dB)

           High Frequency Acceleration: 1000-5000Hz ±10%; 5kHz~10kHz(3dB)

Battery: 9V 6F22/Rechargeable, 25/10 hours of continuous operation.
Pickup: Accelerometer with handheld probe and/or magnetic mount
Dimensions: 13x6x2.3 cm; Weight: 250 g
Optional Intrinsically safe version
