Center Load 6 Samples Metallographic Polishing Machine Double Disc Full Automatic Grinding

1pcs
MOQ
Center Load 6 Samples Metallographic Polishing Machine Double Disc Full Automatic Grinding
Features Gallery Product Description Request A Quote
Features
Specifications
PLC Control: PLC Independently Controls The Grinding Disc And Sample Disc
Working Mode: Full Automatic Mode
Operation: Touch Screen
Interface: English Interface
Working Disc Diameter: Standard 254mm With Magnetic Transfer Disk System
Rotate Speed: 100-1000 RPM Steering Positive And Negative Rotation Can Be Switched
Grinding Head Speed: 0-100r/min
Size: 760 X 470 X 700 And 760 X 730 X 700mm
Net Weight: 90kgs/120kgs
Name: Auto Metallographic Grinding And Polishing Machine
High Light:

6 samples metallographic polishing machine

,

center load metallographic polishing machine

,

touchscreen metallographic grinding and polishing machine

Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HPA-1000X HPA-2000X
Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 5days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Product Description

HUATEC Center Load 6 Samples Double Disc Full Automatic Metallographic Grinding Disc Polishing Machine



HPA-1000X & HPA-2000X Full-automatic metallographic grinding and polishing machine (central pressure)



Product features

  • In the way of central loading force, six samples are fixed at one time to complete the grinding and polishing process to ensure the complete plane of each sample
  • Independently control all grinding and polishing parameters, such as rotation speed, grinding and polishing time, rotation direction and water valve closing;
  • Touch screen interface: Convenient setting of grinding and polishing parameters, intuitive state display, simple operation;
  • Loading force can be adjusted during operation, flexible and convenient.
  • Through the use of solenoid valve to control the water on and off.
  • Easily replace the magnetic anti-stick disk, you can complete the rough, fine grinding and coarse, fine polishing of all kinds of samples, one plate is equivalent to N plates.
  • High precision, smooth operation, low noise.

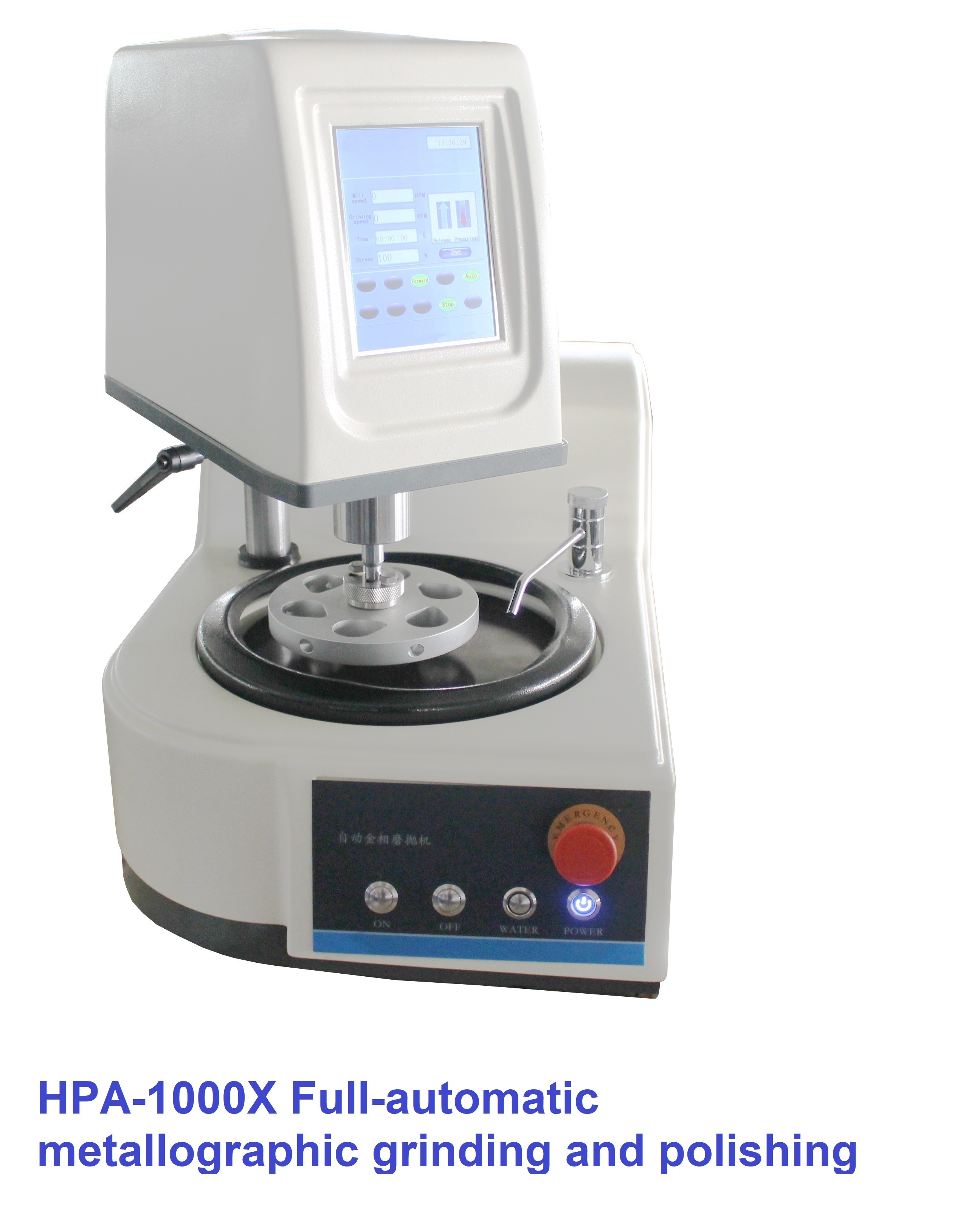

Center Load 6 Samples Metallographic Polishing Machine Double Disc Full Automatic Grinding 0



                                                                 Single plate

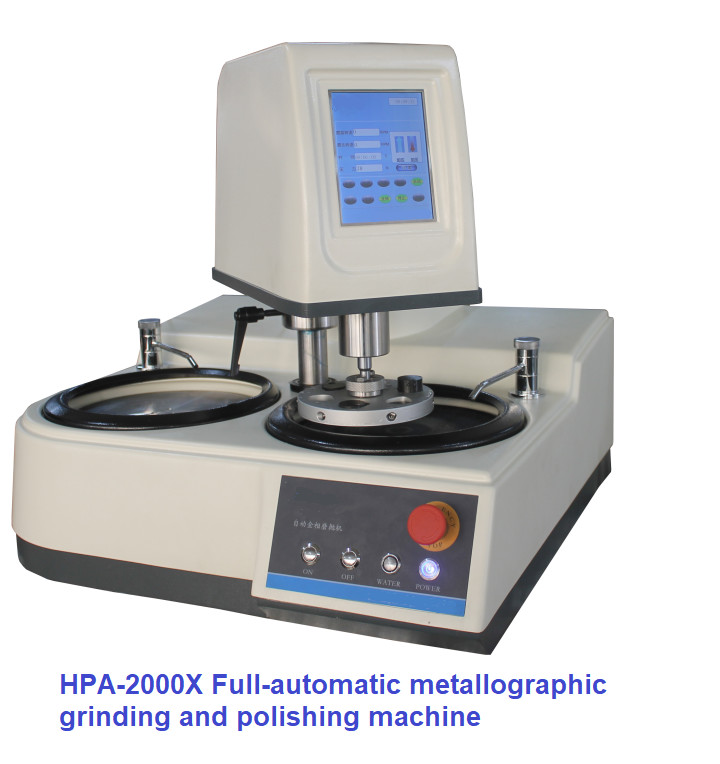

 Center Load 6 Samples Metallographic Polishing Machine Double Disc Full Automatic Grinding 1

                                                  double disc


Technical parameters

specifications HPA-1000X HPA-2000X
station Single plate Double disk
Working disk diameter Standard 254mm with magnetic transfer disk system
Working disk speed 100-1000 RPM steering positive and negative rotation can be switched
Grinding head speed 0-100r/min
Sample preparation time range 0-9999s
Loading range 30-200N
Loading mode Center load
Sample gripper Standard 30mm six (optional 40-50mm four, the rest can be customized)
The power supply AC220V, 50 hz
The motor power 0.75 Kw
Overall dimension (length * width * height) 760 x 470 x 700 760 x 730 x 700
The weight  90kg 120kg




Annex to the standard (this list is for reference, the type or quantity of annex shall be subject to the contract)

Item Quantity single/double Item Quantity single/double
Waterproof circle 1/2 Sandpaper with adhesive (250) 320# 10
holder 1 Sandpaper with adhesive (250) 1000# 10
Inner hexagon wrench 4mm 1 Velvet with back glue polishing cloth (250) 1
5mm inner hexagon wrench 1 Anti-stick disc (250mm) 1/2
The feed line 8 mm 1 Magnetic working disk (250mm) 1/2
Drain the 25 mm 1 hook 1
Power transfer connection 1 Quick twist joint SNZ08-04 1
Data transfer connection 1 Hose hoops 18 to 32 1
Teflon tape 1 Triangle valve 1
Diamond suspension polishing liquid 6 micron 200ml 1 bottle Rubber pad with strainer 1
Polishing lubricating coolant blue 200ml 1 bottle filter screen (60 mesh, double layer) 4
stylus 1 Install the machine 1
Technical documents: 1. User Manual 2. Product qualification certificate



Optional accessories

GSC250A

Metallographic sandpaper 100 pieces/packet

Abrasive: black silicon carbide

Size: P80# 120# 180 # 320 # 600 # 800 # 1000 # 1200 # 1500 # 2000 #

Size: 250 mm Φ water resistant

With a stick back, the sandpaper can be fixed directly on the working table

MAGNOMET

Anti-sticking disc 5 pieces/box diameter: 250 mm Φ

Special anti-stick coating is used on the surface. Sandpaper or polishing cloth with back glue can be pasted on the plate. It is easy to replace and no residual glue is left. Can be used again and again.

The disc is directly used on the magnetic disc of BUEHLER or STRUERS;

Alternative BUEHLER company MagnoMet and MagnoPad

FT250A

Metallographic polishing fabric 10 pieces/bale

Velvet (long hair)/canvas (short hairs)/cloth (short hairs)/silk (no villi) Φ 250 mm

Stick back: The fabric can be fixed directly on the working table

DSU

Diamond suspension grinding and polishing liquid 500ml/ bottle

Diamonds are suspended in a liquid, dripped into it by a spray bottle or automatically, and are evenly distributed

Particle size: 0.25, 0.5, 1, 1.5, 2.5, 3, 3.5, 5, 6, 7, 9, 10, 14, 15, 20, 28, 40 microns, suitable for a variety of materials
