Diamond Head 5000 Hv Hardness Ball Tip Impact Device Surface Hardness Tester For Steel

1pcs
MOQ
Diamond Head 5000 Hv Hardness Ball Tip Impact Device Surface Hardness Tester For Steel
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Metal
Color: Blue
Steel And Cast Steel: 90~646HB
Impact Energy: 90mJ
Name: Impact Device G
Ball Tip Diameter: 3mm
Ball Tip Material: Diamond
Impact Device Diameter: 20mm
Impact Devide Length: 155mm
Ra Request For Work Piece: 1.6μm
High Light:

diamond head surface hardness tester

,

5000hv surface hardness tester

,

surface hardness tester HUATEC

Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: Impact Device E
Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 5000pcs per month
Product Description

Diamond Head 5000HV Hardness Ball Tip Impact Device E Very Hard Surface Hardness Tester For Steel



Application:

Measurement hardness of hard surface metal parts.



All type of impact devices

Material

Method

Impact device

D/DC

D+15

C

G

E

DL

Steel and cast steel



HRC

20~68.5

19.3~67.9

20.0~69.5



22.4~70.7

20.6~68.2

HRB

38.4~99.6





47.7~99.9



37.0~99.9

HRA

59.1~85.8







61.7~88.0



HB

127~651

80~638

80~683

90~646

83~663

81~646

HV

83~976

80~937

80~996



84~1042

80~950

HS

32.2~99.5

33.3~99.3

31.8~102.1



35.8~102.6

30.6~96.8

Cold work

tool steel

HRC

20.4~67.1

19.8~68.2

20.7~68.2



22.6~70.2



HV

80~898

80~935

100~941



82~1009



Stainless steel



HRB

46.5~101.7











HB

85~655











HV

85~802











Grey cast iron



HRC













HB

93~334





92~326





HV













Nodular cast iron

HRC













HB

131~387





127~364





HV













Cast aluminium alloys

HB

19~164



23~210

32~168





HRB

23.8~84.6



22.7~85.0

23.8~85.5





BRASS(copper-zinc alloys)



HB

40~173











HRB

13.5~95.3











BRONZE(copper-aluminium/tin alloys)

HB

60~290











Wrought copper alloys

HB

45~315











Available type of impact device



DC: Test hole or hollow cylindrical



D+15:

Test groove or reentrant surface



C:Test small, light,   thin parts and surface of hardened layer



G:

Test large, thick, heavy and rough surface steel

E: Test super high hardness material

DL: Test slender narrow groove or hole





































Testing conditions:

Type of impact device

DC(D)/DL

D+15

C

G

E

Impacting energy

Mass of impact body

11mJ

5.5g/7.2g

11mJ

7.8g

2.7mJ

3.0g

90mJ

20.0g

11mJ

5.5g

Test tip hardness:

Dia. Test tip:

Material of test tip:

1600HV

3mm

Tungsten carbide

1600HV

3mm

Tungsten carbide

1600HV

3mm

Tungsten carbide

1600HV

5mm

Tungsten carbide

5000HV

3mm

synthetic diamond

Impact device diameter:

Impact device length:

Impact device weight:

20mm

86(147)/ 75mm 50g

20mm

162mm

80g

20mm

141mm

75g

30mm

254mm

250g

20mm

155mm

80g

Max. hardness of sample

940HV

940HV

1000HV

650HB

1200HV

Mean roughness value of sample surface Ra:

1.6μm

1.6μm

0.4μm

6.3μm

1.6μm

Min. weight of sample:

Measure directly

Need support firmly

Need coupling tightly



>5kg

2~5kg

0.05~2kg



>5kg

2~5kg

0.05~2kg



>1.5kg

0.5~1.5kg

0.02~0.5kg



>15kg

5~15kg

0.5~5kg



>5kg

2~5kg

0.05~2kg

Min. thickness of sample Coupling tightly

Min. layer thickness for surface hardening



5mm



≥0.8mm



5mm



≥0.8mm



1mm



≥0.2mm



10mm



≥1.2mm



5mm



≥0.8mm



Size of tip indentation



Hardness 300HV

Indentation diameter

Depth of indentation

0.54mm



24μm

0.54mm



24μm

0.38mm



12μm

1.03mm



53μm

0.54mm



24μm

Hardness 600HV

Indentation diameter

Depth of indentation

0.54mm



17μm

0.54mm



17μm

0.32mm



8μm

0.90mm



41μm

0.54mm



17μm

Hardness 800HV

Indentation diameter

Depth of indentation

0.35mm



10μm

0.35mm



10μm

0.35mm



7μm

--



--

0.35mm



10μm

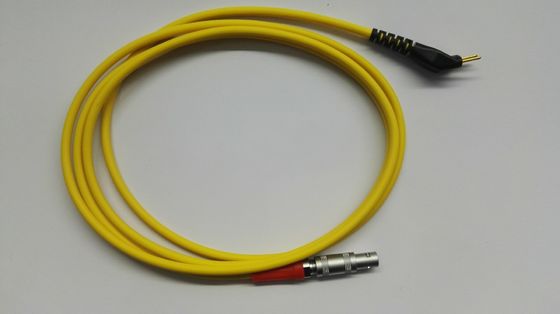

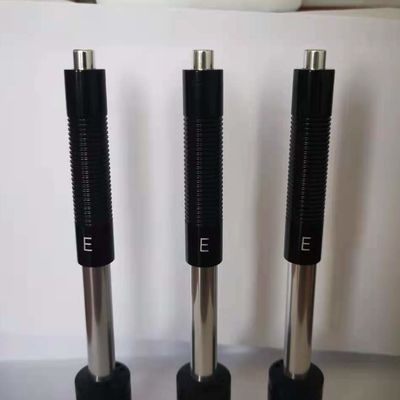

Below are pictures for all impact devices of metal hardness tester:

Diamond Head 5000 Hv Hardness Ball Tip Impact Device Surface Hardness Tester For Steel 0
