DC distance ultrasonic Calibration Blocks Ultrasonic calibration blocks ultrasonic calibration blocks uk

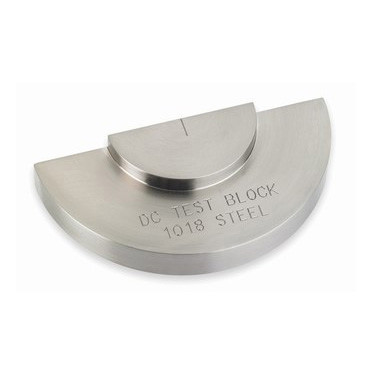

DC calibration block
DC distance calibration block, American petroleum institute standard block, belongs to the API inspection standard block series and engraved block machine series, model with API - 1 # block 1 slot hole, slot hole 1, 2 to the API - 9 # 1 slot hole, block, 2 slot 1 hole, including DC distance calibration block, SC type sensitivity calibration, block, DSC distance and sensitivity calibration block also belong to this standard

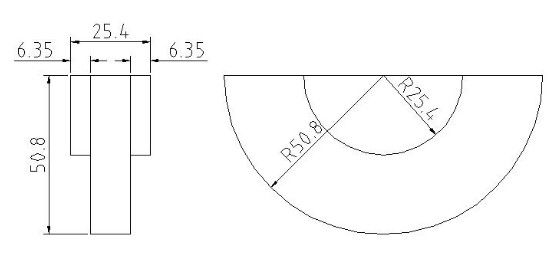

AWS-type block used for shear wave distance calibration. Contains a 1.0” radius overlaying a 2.0” radius on a 180︒segment.In accordance with ASTM E164 and BRR/AWS X-1 specifications.
Dimensions: 2.0”radius section is 0.2”thick,1.0” radius section si 1.0” thick.
Metric version available also.
Material: carbon steel 1018, stainless steel 304/316, duplex stainless steel 2205,aluminum 7075
Mark: OEM can be done
HUATEC Group offer all kinds ultrasonic calibration block
