Auto Calibration Portable Huatec Digital Ultrasonic Flaw Detector

Auto Calibration Portable Huatec Digital Ultrasonic Flaw Detector
Features Gallery Product Description Request A Quote
Display: 7 Inch TFT Color Screen,800*480 Resolution
Operation Mode: Button, Rotary, Touch Screen
Battery: Lithium Ion Battery
Working Time: ≥8 Hours
SD Card: PSD Card(16G)
Dimension: 245*155*55mm
Calibration: Auto Calibration Function With Any Blocks
Curves: DAC, AVG, And TCG Curves
Material: IP65 ABS Plastic Case
Weight: 1.18kg(included Battery)
Name: Ultrasonic Flaw Detector
High Light:

Portable Digital Ultrasonic Flaw Detector


Huatec Digital Ultrasonic Flaw Detector


Huatec Portable Ultrasonic Flaw Detector

Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: FD580
Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Product Description

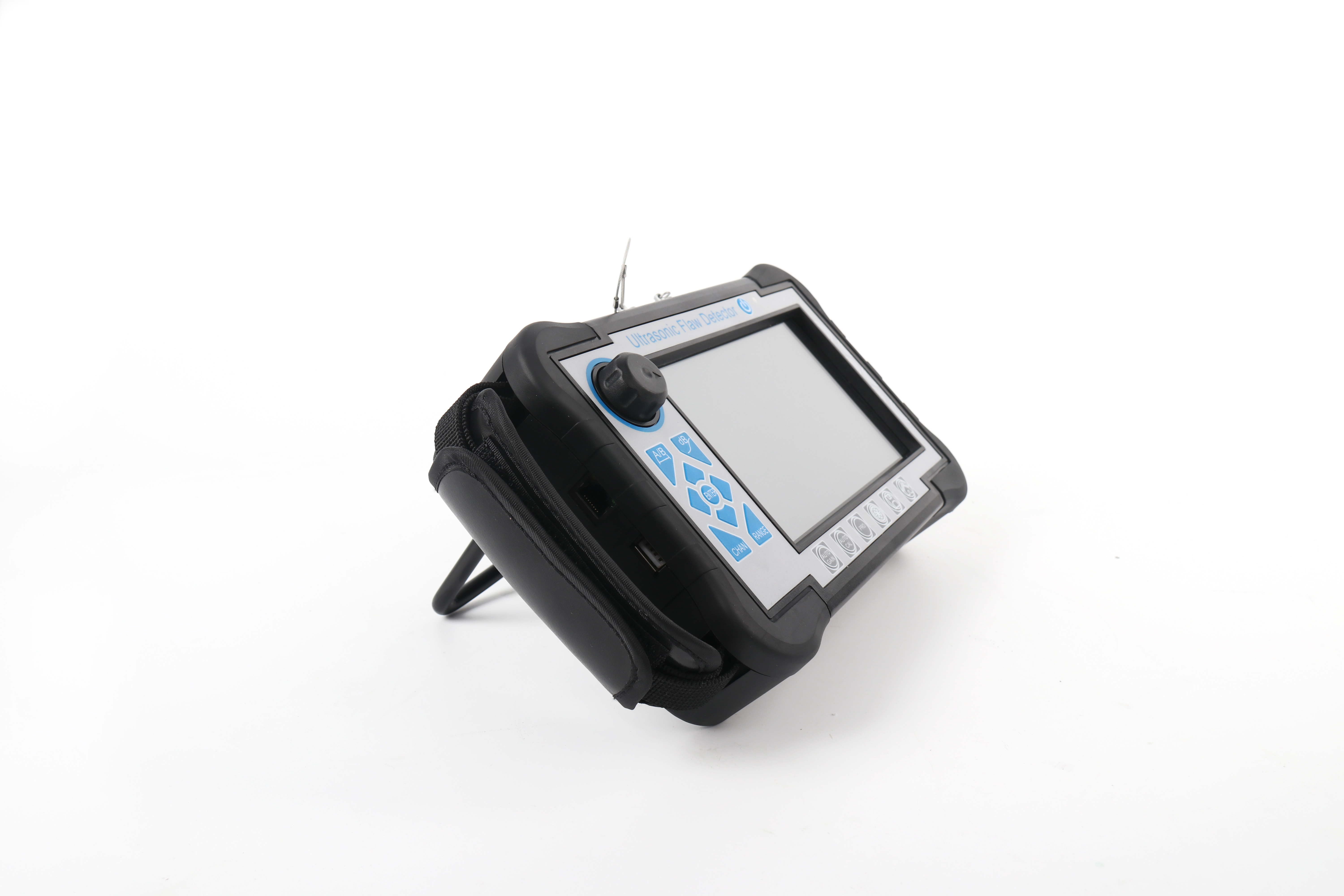

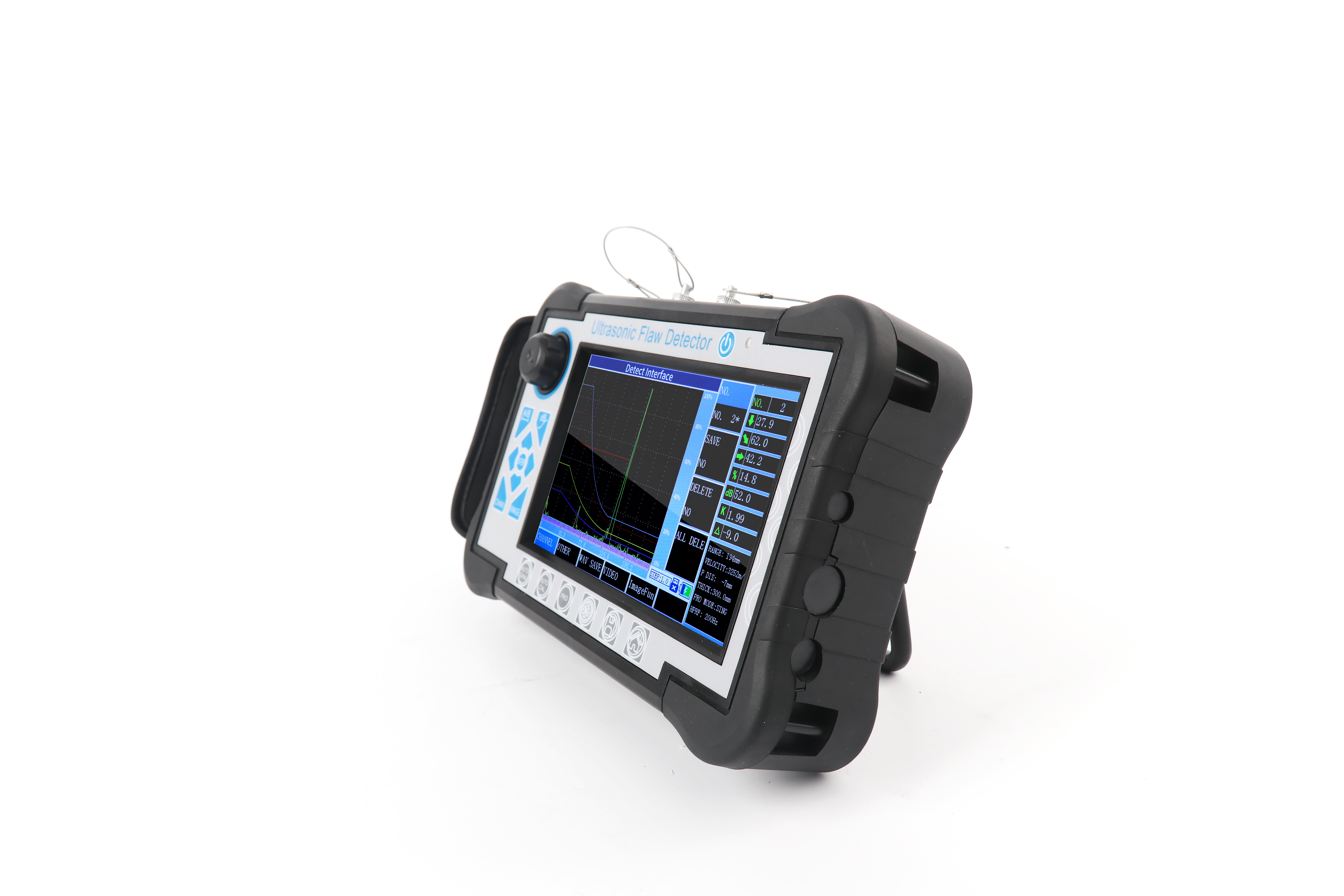

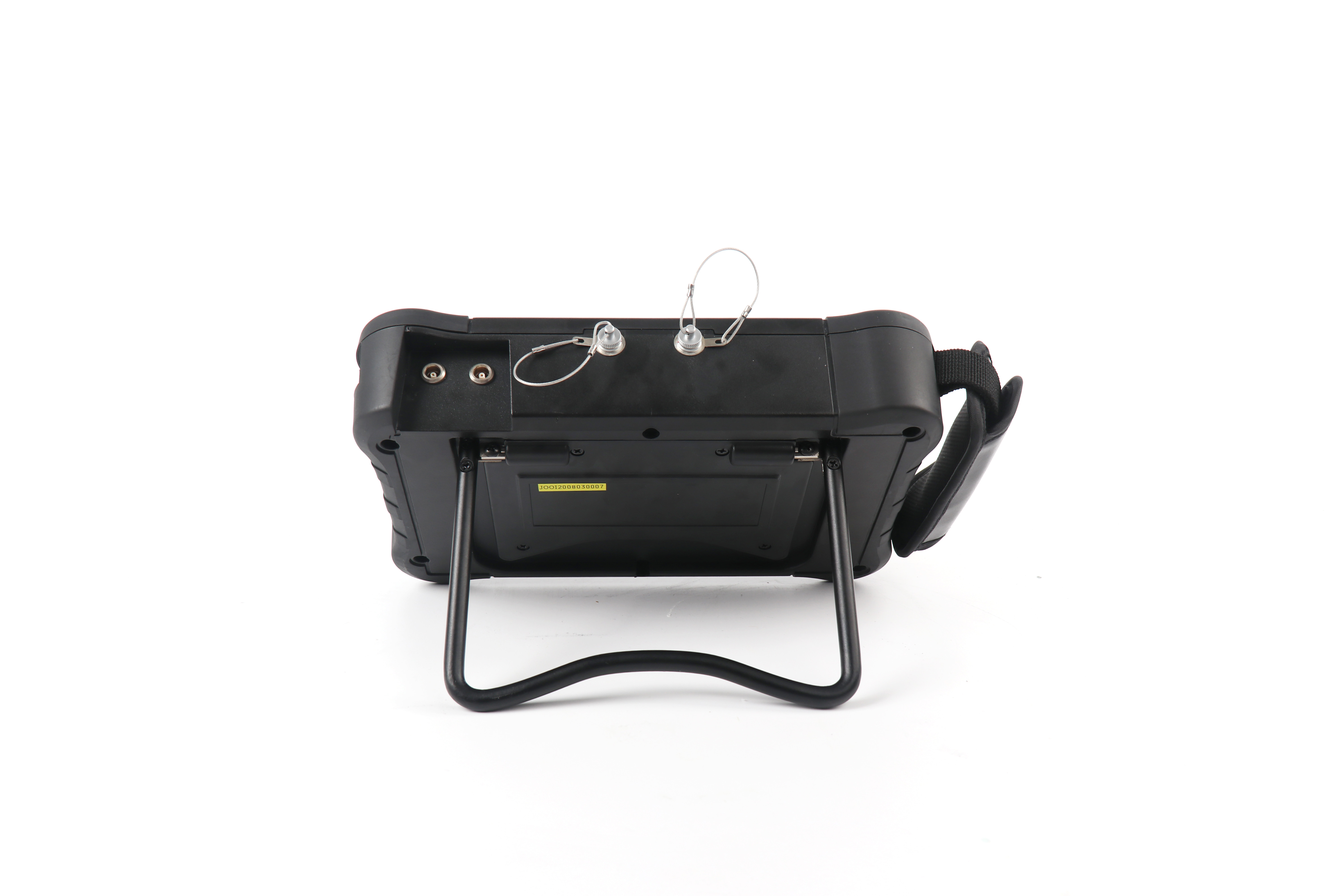

Auto Calibration Function TFT Color Touch Screen Portable Ultrasonic Flaw Detector FD580




Our full range of portable ultrasonic flaw detectors (UT) provides unmatched capabilities for locating discontinuities and other flaws. A wide range of software options is available for enhanced flaw detector inspection. We offer a wide range of measurement features and application-specific options for flaw detection applications that include the location and sizing of hidden cracks, voids, disbands, and similar discontinuities in welds, forgings, turbines, and other structural components.



Key features

●High-precision quantification and positioning to meet the requirements of near and far distance detection

●The near-field blind zone is small, can meet the detecting requirements for small-diameter and thin-walled pipe.

●Auto calibration function:one-button auto calibration,easy to operate, automatic test probe “P Delay”,”K value”,”X value” and the velocity

●Automatic display the defect echo position(Depth:d, Horizontal:p,Distance:s, Amplitude,dB,ф )

●Switch three scales freely(Depth:d, Horizontal:p,Distance:s)

●Auto gain, peak envelope, peak memory functions, which can improve the detection efficiency.

●Automatically record the flaw detection process and dynamic playback

●φ value calculation:Forging flaw detection by straight probe, can find the highest wave to conversion φ value automatically

●500 independent channels(can be expandable), which can input and store the detection standards of any industries freely, do not need to carry the standard blocks for on-site inspection.

●Store, playback 500 A-scan waves and data freely

● The DAC, AVG, and TCG curves (depth compensation) are automatically generated and can be segmented. The sampling points are unrestricted and can be corrected and compensated.

●14 built-in inspection standards

●Free to enter any industry standards

●Pulse width and strength can adjustable

●B scan and B color scan function;

●Can communicate with the computer, and export WORD. File, also the detection report

●IP65 ABS plastic case, sturdy and durable,water-proof and dust-proof, and excellent anti-interference ability

●Use (wireless) communication software to analyze data print reports, etc;

●260,000-color true color screen, is suitable for working environment under strong light or low light

●High performance lithium battery, can work continuously for 8-10 hours

●Real-time clock recording: real-time flaw detection date, time tracking record, and storage

●Power-down protection, storage data can not lost

●Flaw detection parameters can be automatically tested or preset

●Digital reject, does not affect gain and linearity

●Gain compensation: Db attenuation can be corrected for surface roughness, curved surfaces, long-range flaw detection of thick work-pieces, etc.


●Can operate the flaw detector by software at the PC, achieving the goal of computer-controlled flaw detector to detecting


Technical info

Display 7 inch TFT color screen,800*480 resolution
Operation mode Button, Rotary, Touch Screen
Power supply Lithium Ion Battery
Battery capacity 5.0Ah
Power voltage 12V
Power quantity 1
Working time ≥8 hours
Adapter input DC100~240V 50Hz/60Hz
Adapter output AC 12V
Adapter power 36W
Data storage SD card(16G)
Alarm 1
Working Temperature -10℃~45℃
Storage Temperature -20℃~60℃
IP Grade IP65
Dimension 245*155*55mm
Weight 1.18kg(included battery)
Conventional UT Model
Probe Connector type LEMO 00
Channel Type Single channel
Channel Num 500 group(able to be scaled)
Pulse Type Negative sharp wave
Transmit Voltage 50~350V,step in 50V
Damping 560Ω
Gain 0~110dB,step:0.5/2/6/12dB
Gain Fine Adjustment -4~+4
Surface compensation All Gain Range
Working Frequency 0.5~20MHz;

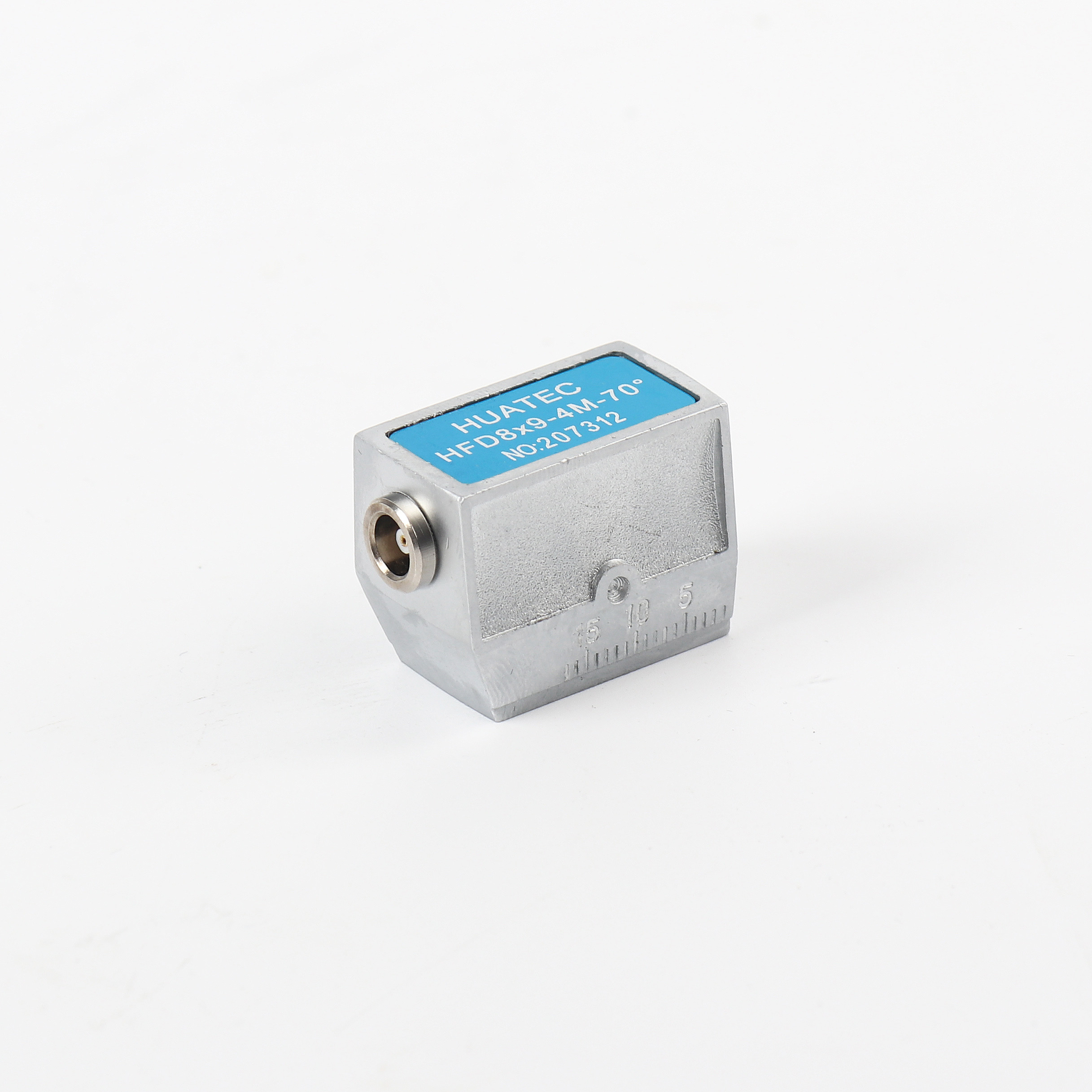

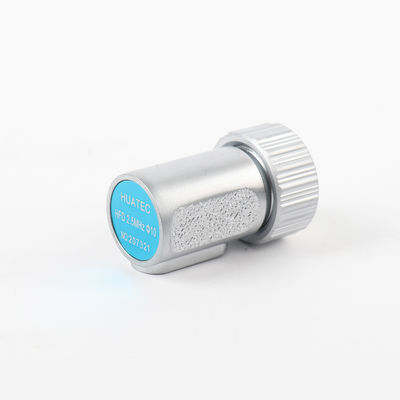

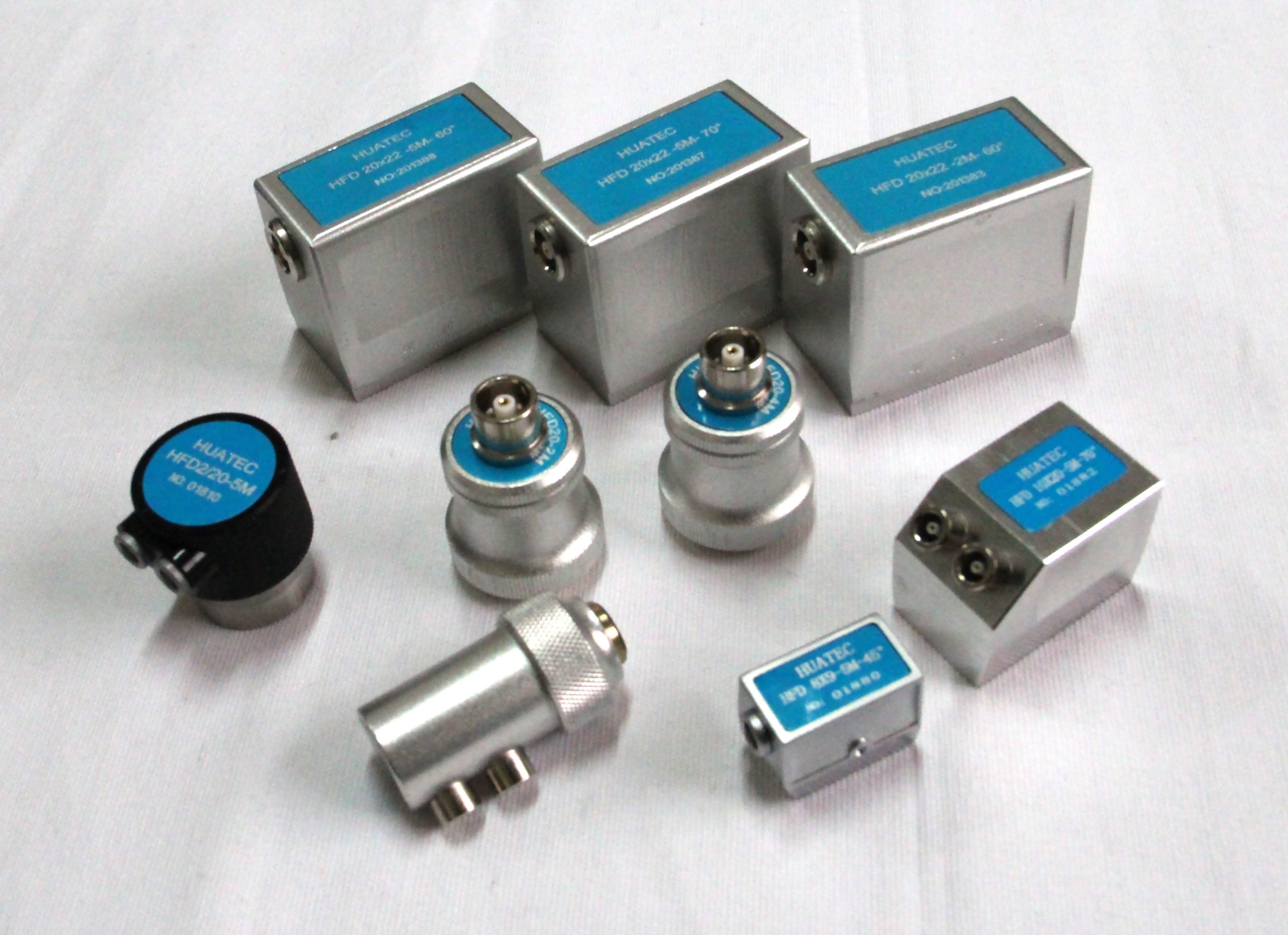

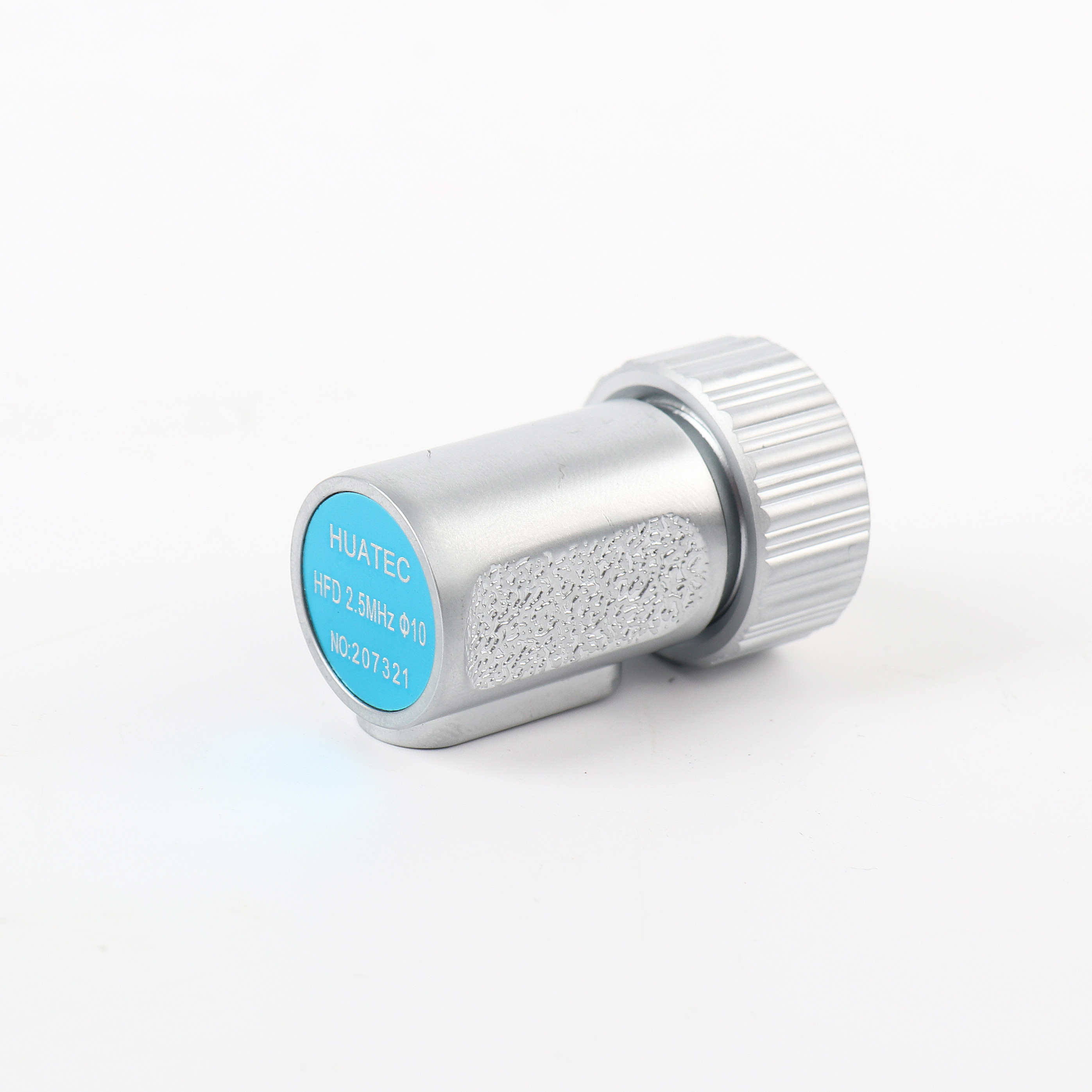

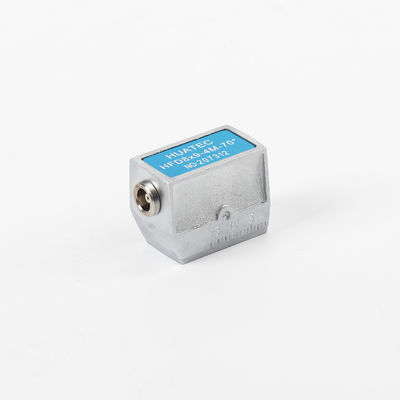

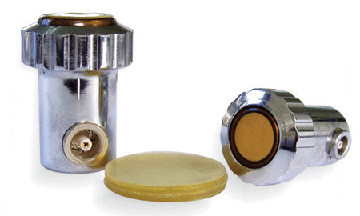

Probe Type Single,Dual, Through, Immersion type

Three optional:


Detection Mode Negative/Positive/Two-way/RF
Reject 0~80%,step 1%
Testing Range 0~15000mm,Minimum display range:15mm(in steel)
Material Velocity 100~20000m/s
Pulse displacement -10~1000mm
P DELAY 0~200us
X-VAL 0~100mm
Guide Weld, Sheet, Forging inspection
Testing Point Peak/X-val/J val

Gate:Amplitude,Amplitude dB value,Range,Horizontal distance,Vertical distance,The difference value between A and B Gate

Cursor:2 cross cursors, can test the horizontal and vertical distance, and the distance between cursors(under B scan function)

Gate Gate start:all range
Gate width:all range
Gate level:10~90%,step:1%
Curve DAC, maximum six curves, meet to NB/T 47013,GB/T 11345,GB/T 29712, and other standards
TCG, maximum six curves
Other functions Full screen, cursor switch(range/Height/Horizon), single/continuous auto gain(10~100%, step 10%), echo compare,echo full, peak envelope,peak memory,fast scan,outside mode,screenshot
Peak freeze/Crack depth/Gate expansion//curved surface modification/ B scan/Flat weld simulation//video
Alarm Sound and light alarm
Sensitivity Leavings ≥65dB(200mm—Φ2FH,2.5PΦ20)
Horizontal linearity error ≤0.3%
Vertical linearity error ≤3%
Amplitude linearity error ≤±2%
Attenuator accuracy 20dB ±1 dB
Dynamic range ≥32dB
Distant resolution ≥26dB
Noise Level <40×10-9 V/
