ASTM 50Kg HUATEC Micro Vickers Hardness Tester

ASTM 50Kg HUATEC Micro Vickers Hardness Tester
Features Gallery Product Description Request A Quote
Load Force: 1, 5, 10, 30, 50Kg
Used For: Micro Hardness And Vickers Hardness
Indentation Measurement: By Auto Or Manua
Digital Camera: 1280*1080 Pixels, 1/2-inch, USB 2.0
Standard: ASTM Standard
Name: ASTM 50Kg HUATEC Micro Vickers Hardness Tester
High Light:

huatec hardness tester


50Kg micro vickers hardness tester


ASTM micro vickers hardness tester

Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HVS-M-A
Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Product Description


Vickers Software Digital Vickers Hardness Tester Vickers Hardness Test Equipment Digital Hardness Testing Machine




HVS-M-A Vickers Hardness Measuring System

  1. This system can match a variety of Vickers hardness tester to upgrade stand-alone hardness tester or computer measuring system.
  2. This measuring system can be integrated with the hardness tester HV-1MD; computer-controlled for auto turret and brightness adjustment etc.
  3. Suitable for micro and Vickers hardness tester, the maximum test force can be 1, 5, 10, 30, 50Kg.

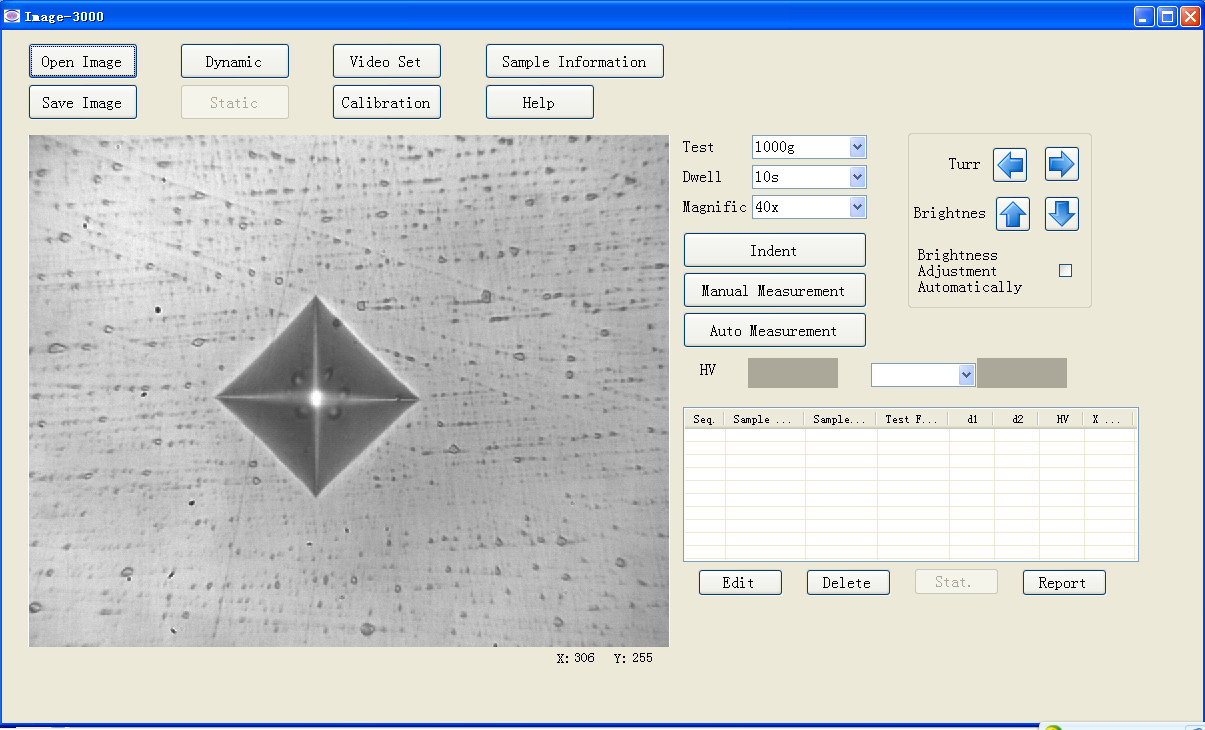

  4. Image with high resolution and indentation measurement by auto or manual;
  5. Digital X-axis value, and automatically enter the program automatically generates the deep layer of hardness distribution curve (option);
  6. Calibration using micrometer or hardness block, can be calibrated automatically;
  7. Hardness converted to other hardness scales according to ASTM standard.
  8. Statistics for hardness values and alarm for hardness values out of range;
  9. Easy to install, use laptops instead of desktop computers;
  10. Interface is simple and easy to use without training;
  11. Test reports can be customized; all testing data can be saved for long time and easy for historical inquiry.
  12. Digital camera with 1280*1080 pixels, 1/2-inch, USB 2.0

Optional Accessories

  1. Digital X-Y Stage 1pc

Digital accuracy of X & Y axis: 1μm.

The position of X axis can enter into the hardness measuring program directly, and the program can automatically calculate hardness along depth distribution curve and effective hardened layer depth.

  1. Lenovo Computer 1pc
