High Voltage Holiday Detector Holiday Test Equipment Pin Hole Detector HD-120M
With memory of 99 leak points during inspection
Functions and application

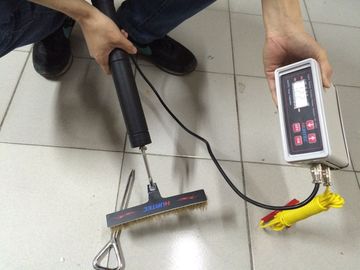

On-Line Holiday Detector HD-120M is special testing equipment used to detect oil and gas pipelines, cables, enamel, metal tank, hull and other protective coatings flaws. It is professional and practical equipment.
Applications
1,oil and gas Anticorrosive factory, pipelining company, construction departments and qualitative inspect branch.
2,also use to gas company and water company pipeline inspecting
3,Shipbuilding, petrochemical plant, factory, machinery plant, enamel factory and bridge engineering anticorrosion-layer inspecting.
4,Pipeline transportation company anticorrosion-layer inspecting
Special Features
1,Microelectronic integrated high voltage generator, to overcome the electrostatic
2,Full keyboard operation, Improve performance
3,Automatic switch for High voltage and source voltage
4,Power on self test function
5,protective function when mistakenly entered
6,pinhole automatic counting
7,High voltage output can Continuous adjustment, auto-save the high voltage value
8,Display the actual test voltage, Ensure the safety of the coating
9,Three different poles to adapt different test
10,Modular structure, three-proofing design, long service life and reliability
11.Have memory of 99 leak points during inspection
Technical parameters
1,Measuring range:0.03-10.mm(Epoxy coal tar pitch,Petroleum asphalt medium)
2,Output high voltage:0.5-35KV
3,Display:digital display
4,High voltage control system:digital governor
5,220V AC power supply
6,Consumption:＜5w
7,Alarm delay:1-2s
8,High voltage probe:high pressure generator (import)

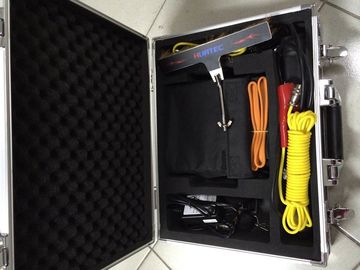

9,Packing:Aluminum box
10,Main dimension:165mm×155mm× 68mm
11,Weight:1kg
Keypad menu
Standard accessories
| Name | No. | Quantity | Picture |

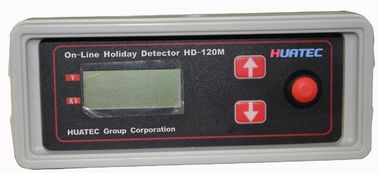

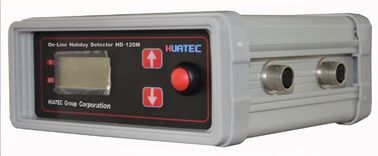

| Host HD-120 | 1 | |
|

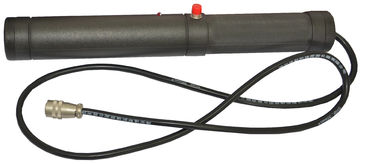

| High voltage gun | 1 | |
|

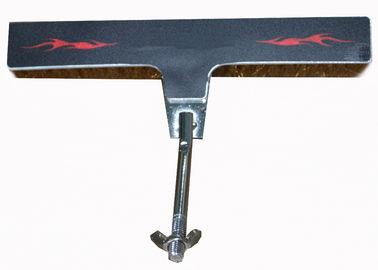

| The brush plate | 1 | |
|
| 220V power line | 1 | |
|
| long cable | 1 | |
|
| Short connecting line | 1 | |
|
| Connecting magnet | 1 | |
|
| earth rod | 2 | |
|
| high pressure gloves | 1 | |
|
| Manual | 1 | ||
| Certificate | 1 |
