Wire Rope Ultrasonic Weld Inspection / Ndt Ultrasonic Testing Equipment

China Wire Rope Ultrasonic Weld Inspection / Ndt Ultrasonic Testing Equipment supplier
Wire Rope Ultrasonic Weld Inspection / Ndt Ultrasonic Testing Equipment supplier Wire Rope Ultrasonic Weld Inspection / Ndt Ultrasonic Testing Equipment supplier Wire Rope Ultrasonic Weld Inspection / Ndt Ultrasonic Testing Equipment supplier Wire Rope Ultrasonic Weld Inspection / Ndt Ultrasonic Testing Equipment supplier

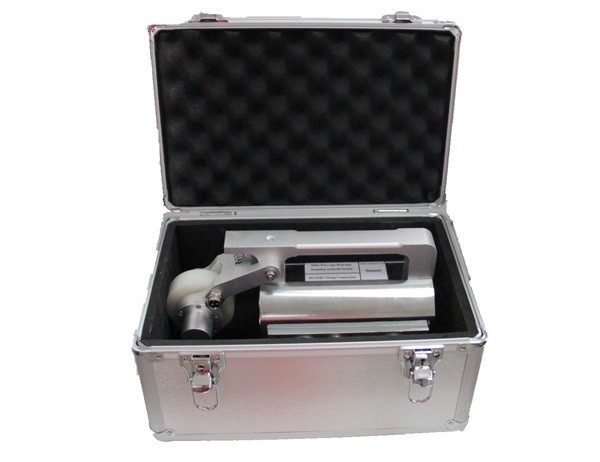

Large Image :  Wire Rope Ultrasonic Weld Inspection / Ndt Ultrasonic Testing Equipment

Product Details:

Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HRD-100

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Product Name: WRT Wire Rope Flaw Detector For Ndt Testing Inspection: Inspection Of Mining Ropes, Aerial Ropeways (mostly Ropes Of Chairlifts And Gondola Lifts), Guy (suspension) Ropes
Application: Wire Rope Internal And External Detection Humidity: 20%~95%RH

WRT Magnetic Rope Detector Steel Rope Wire Rope Internal External Flaw Detector HRD-100







1. Specifications

Standards: GB/T21837-2008, ASTM E1571-2001 (Standard specification for electromagnetic examination of ferromagnetic steel wire rope), GB/T5972-2006/ISO 4309:90, GB8918—2006

Detecting range:Φ1.5—300 mm (choose different sensor)
Relative velocity between sensor and wire rope:0.0—6.0 m/s Best choice:0.3—1.5 m/s
Best gap between guide sleeve and wire rope: 2—6 mm,allowed gap:0—15mm

Output file type: Word files output

Alarm: Sound and light alarm
Broken wire rope location(LF)detection
Qualitative judgement accuracy: 99.99%
Quantitative assessment
Repeatability error of Sensitivity: ±0.055%
Display error: ±0.2%
Error of location detection,(L): ±0.2%
Power:5V computer power supply
WEIGHT OF SENSOR: < 10kg (Regular sensor)

Environment temp.-10℃~40℃

Air pressure:86~106Kpa

Relativity humidity:≤85%





The windows system of wire rope computer detector is the GB system renewal product which based on the DOS software theory and the real time display alarm guiding ideology utilizes Visual Basic6.0 the programming language foundation, carries on the compilation to become.

This system hardware part uses the domestic and foreign advanced magnetic sensor and the independent research and development sampling module unifies, through RS232 (or USB) main line driving, directly storage data in computer.

This system software part is in the wavelet transformation analysis foundation, in utilizing Visual Basic 6.0 programming language foundation, carries on the compilation to become. Achieve the functions such as data acquisition and control, data analysis, data display, data storage and so on. Increase the visible characteristic in the DOS software function, and by its unique tendency continuously to track the way, may continuously, the dynamic observed data signal and its the change situation, and the real time display obtained result and sends out the alarm; Software increased the automatic evaluation function; In the partial flaw demonstrated on increased cross section and the total sectional area percentage; Software and Windows are completely compatible, suits to user's inertia operation, uses the Word files form production examination report.

This system software may compatible wire rope computer detector DOS software sampling data format, and can analysis processing to it.

The windows system took an independent operating procedure and the safe examination system, can conveniently be suitable for each kind of modern computer, and completes a series of examinations procedure.



2. Systems Demand



2.1 Computers Hardware Disposition Demand:

Processor: Above Celeron 1.5GHZ
Memory: 128MB
Hard disk: 10G
Connection: RS232 or USB
Monitor: Above VGA



2.2 Software Environment Demand:

  • This system supports the Windows XP, Windows 7, Linux etc operating system;
  • Need install Microsoft office word platform.



2.3 System Disposition

Magnetic sensor (including distance locator) A group
HUATEC HRD-100 real-time alarm apparatus One
Signal connection line One
RS232 transmission line (or USB to RS232 transformation line) One
windows special-purpose software package One
Computer One



Wire Rope Ultrasonic Weld Inspection / Ndt Ultrasonic Testing Equipment



Wire Rope Ultrasonic Weld Inspection / Ndt Ultrasonic Testing Equipment



3. Sensor introduction

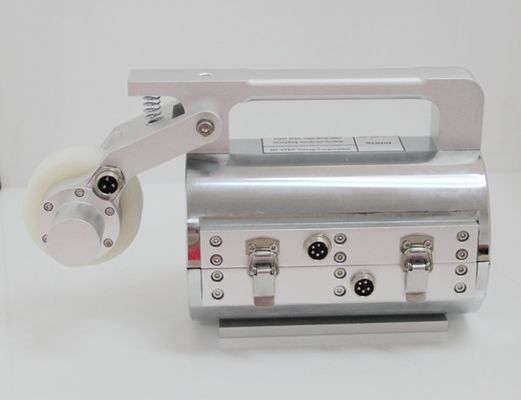

Magnetic sensor: The sensor is composed by displacement locator (Leading wheel, encoder), the magnetization installation and the sampling organization. After the system activated, the wire rope and it has the relative movement, then it can gather the signal.

Displacement locator: Leading wheel rotated a circle, the photoelectric encoder sends out the sampling instruction pulse, realizing equal space sampling.

Magnetization installation: When the wire rope and it has the relative movement, completes to the wire rope axial magnetization.

Sampling organization: When the wire rope and the sensor have the relative movement, the Hall element composed the sampling channel will transform the wire rope magnetic flux leakage change condition into the simulation voltage signal.



4. HUATEC real-time alarm apparatus

The HUATEC real-time alarm apparatus is a portable multi-purpose data acquisition, through the RS232 transmission line to send and save the converted data signal to the computer, make use of the computer CPU formidable function on-line and real-time processing analysis, according to the equivalent threshold value which will set in advance sends out the real-time alarm. One group to give the sensor power supply lithium battery group, the output is 5V. There is an addition charge port to be possible to supply the charge and the power switch.



Wire Rope Ultrasonic Weld Inspection / Ndt Ultrasonic Testing Equipment

Picture 2 Signal Sampling Wiring Diagram





5. Software introduction



Wire Rope Ultrasonic Weld Inspection / Ndt Ultrasonic Testing Equipment

Picture 3 Main Functions Items



Wire Rope Ultrasonic Weld Inspection / Ndt Ultrasonic Testing Equipment

Picture 8 Parameter Settings





  • Wire Rope Ultrasonic Weld Inspection / Ndt Ultrasonic Testing Equipment



Wire Rope Ultrasonic Weld Inspection / Ndt Ultrasonic Testing Equipment

                        Picture 13 Deterioration Analysis Interface Picture





Wire Rope Ultrasonic Weld Inspection / Ndt Ultrasonic Testing Equipment

                                       Picture 14 Data Selection File Window

.



6. Sensor option

Sensor Diameter of wire rope Best detection range
HUATEC-F5 5mm 2~5mm
HUATEC-F10 10mm 5~10mm
HUATEC-F15 15mm 8~15mm
HUATEC-F20 20mm 10~20mm
HUATEC-F25 25mm 15~25mm
HUATEC-F30 30mm 20~30mm
HUATEC-F35 35mm 15~35mm
HUATEC-F40 40mm 30~40mm
HUATEC-S45 45mm 35~45mm
Other sensor can be customized production

Wire Rope Ultrasonic Weld Inspection / Ndt Ultrasonic Testing Equipment
