Wire Penetrometer, Wire Penetrameter, Penetrameter, Penetrometer Image Quality Indicator IQI

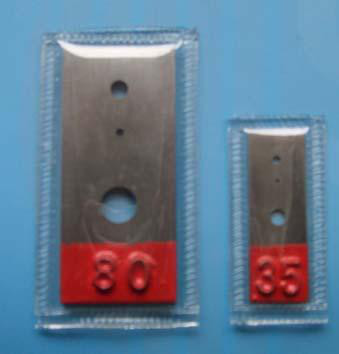

ASTM SE 1025 Plate Penetrameters are normally used to conform with
the American Inspection Standards. They are rectangular plates, 2% in
thichness of the specimen and of material radiographically similar to the
specimen. Each plate has three holes drilled equal in diameter to 1X, 2X,
and 4X the plate penetrameter thickness. The minimum thickness of
Plate type penetrameter is 0.010’’. For Penetrameters greater than
0.180’’, these are supplied in disc form, the outside diameter is 4X, with 2
holes 1X & 2X the thickness of the Penetrameter.
The chart below gives Plate Penetrameter Identification and thickness
and a guide as to which penetrameter to use for each material thickness.
