Handheld Alloy Analyzer / Alloy Identification PMI SI-PIN Detector HXRF-120DP

Handheld Alloy Analyzer / Alloy Identification PMI SI-PIN Detector HXRF-120DP
Features Gallery Product Description Request A Quote
Alloy Elements: Al, Ba, Sb, Sn, In, Cd, Pd, Ag, Mo, Nb, Zr, Bi, Pb, Hg, Br, Se, Au, W, Pt, Zn, Cu, Ta, Hf, Ni, Co, Fe, Mn, Cr, V, Ti
Detector: SI-PIN X-ray Detector
Display: Industrial Resistive Touch Screen With Screen Size Of 4.3"
Data Processing: 8 G High-capacity Data Storage Card,Storage Up To More Than 40000 Testing Data And Spectrogram
File: Data Can Be Exported Via EXCEL Or PDF
Operation System: Mobile Windows CE System
Power Source: 110V-240V/ AC,50/60Hz。Battery Charger 110V-240V/ AC,50/60Hz
Bluetooth: Yes
Name: Handheld Alloy Analyzer
High Light:

x ray inspection equipment


industrial x ray machine

Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HXRF-120DP
Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 7 days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 100pcs per month
Product Description

HUATEC Handheld Alloy Analyzer Alloy Material Identification (PMI) Si-PIN Detector HXRF-120DP

Application Features

  1. Excellent Performance

HXRF-120DP shows element symbols in both English. With high precision, high testing speed and comparable results to even that of laboratory equipment, HXRF-120DP displays alloy grade and elements percentage content (up to three decimals) and ppm content in an apparent way.

  1. One-touch operation

HXRF-120DP test lasts only a few seconds and identification of alloy grades takes only 1 or 2 seconds. This facilitates operation by non-technical users.

  1. Nondestructive testing (NDT)

HXRF-120DP test does not damage or have any adverse effect on the use of samples. No damage is foreseen in the entire test process.

  1. Analysis software

Analysis software is a professional analysis software which enables the users to easily configure passwords, customize analysis reports attached with company LOGO HUATEC and implement remote control of machine; users can edit alloy grade library, add their own grade number or define their own company's alloy brands; the software also allows automatic calibration of instrument and diagnosis of problems in a remote way; the software can be updated via Internet.


1.Scrap metal recycling and sorting

Scrap metal recycling, reuse, and on-site analysis and sorting. HXRF-120DP offers a rapid and reliable identification of the scrap metals when scrap metals are transacted between buyers and sellers. HXRF-120DP delivers quantitative element analysis of iron alloy, copper alloy, aluminum alloy, copper-iron alloy,lead-tin alloy, mixed alloys, etc, and rapid identification and sorting of these alloys on the site.


2.Application fields, safety and standards

HXRF-120DP is suitable for alloy material identification (PMI) for incoming inspection;material inventory management;re-inspection of construction materials in petrochemical construction, metal smelting, pressure vessel, power plant, petrochemical industry, fine chemical, pharmaceutical, aerospace and other industries to avoid serious safety accidents resulting from mixed or unqualified materials. HXRF-120DP is in compliance with ANTM standard, China National Standard (GB), UNS, electric industry standard (DL), API, JIS, GMP, TSG, Mechanical Industry standard (JB), etc.


3.Quality Control, Quality Assurance (QC/QA) and Error-proofing(PKKA - YOKE)

In metal processing and manufacturing industry, quality control and quality assurance (QC/QA) and error proofing (PKKA - YOKE) of materials (raw materials), semi-finished products and finished products is indispensable. Use of mixed or unqualified materials will bring losses to the company. This is true to companies ranging from small metal processing plants to large aircraft manufacturers.


4.Data Processing and Enterprise Resource Planning (ERP)

Data can be transferred via USB, WIFI and Bluetooth and stored in excel, pdf or other formats. Users can customize the reports by adding their company logos, addresses, test results, spectrum and others (such as product description, origin of goods and batch number); i-cloud data storage service is optional. Data can transport to Enterprise Resource Planning (ERP) system.


Application fields

  • Nondestructive, rapid and accurate analysis of alloy elements and alloy grade identification on the site
  • Metal identification /scrap metal sorting
  • QA/QC management in metal production, processing, casting, etc
  • Medicine and biological medicine
  • Identification of positive materials, oil refining and petrochemical industry
  • Thermal power plant, hydroelectric power station, nuclear power plant
  • Accurate element analysis of raw material and PMI identification so as to meet production needs and ensure security of equipment and materials used in the process.


Super-FP algorithm is capable of detecting accurate metal element content and identify material without switching mode !


HXRF-120DP hand-held alloy analyzer (XRF) is a powerful weapon in material identification (PMI) in production of high temperature and high pressure boiler, container, pipe, etc; metal identification in iron and steel metallurgy, nonferrous metals, aerospace, weapons, submarine vessels, etc; metal material identification in engineering installation and construction projects in areas of the petrochemical refining, fine chemical, pharmaceutical, power plant, aerospace, etc to ensure equipment and material acceptance meet the project specified requirements; scrap metal recycling industry.


HXRF-120DP is applicable to quality control, material classification, alloy identification, accident investigation, etc, which tackles the fundamental difficult problem of raw material analysis. As an innovation of many modern technologies, it is a great helping hand in these applications. Users can personalize the analyzing system according to their own needs.


Technical parameters and specifications

Handheld elements Analyzer Technical Parameter
1 Weight 1.4Kg
2 Measurement 300mm x 90mm x 220mm
3 Environmental Temperature -20℃~+ 50℃
4 Display Rotatable VGA colorful Touch screen Monitor with high resolution and Chinese operation interface.
5 Configuration Design Ergonomically designed configuration, Integrated Design of processor and instrument, water-proof and dust-proof
6 Excitation Source X-Ray Tube, Au (Ag,W,Ta,Pb)target, Maximum Voltage 50kv, Maximum Current 40uA.
7 Detector High-Performance, High-Sensitivity, High-Resolution Si - Pin X-ray detector
8 Analysis Range Plastic Mode (optional):Cd, Pb, Hg, Cr, Br, Cl ,Ba, Sb, Sn, Bi, Pb, Br, Se, As, Hg, Au, Zn, Cu, Ni, Fe, Cr, V, Ti.
Electronic metal mode:Al, Ba, Sb, Sn, In, Cd, Pd, Ag, Mo, Nb, Zr, Bi, Pb, Hg, Br, Se, Au, W, Pt, Zn, Cu, Ta, Hf, Ni, Co, Fe, Mn, Cr, V, Ti
9 Detection Algorithm

Fundamental Parameter (FP) method:The analysis ranges for all elements vary from Limit of Detection to 100%.

1. Easy to use. 2. Avoidance of wrong judgment. 3. Wide adaptability for all kinds of samples.

10 Operation System Mobile Windows CE system
11 Filters Six Filters are installed in the instrument which can be selected automatically according to the testing modes.
12 Calibration Built-in standard piece, the calibration can be done anytime any where without issues about loss or pollution of standard sample.
13 Cooling Mode Peltier Semiconductor Cooling the refrigeration temperature - 35
14 Electric Source

Two rechargeable Lithium Batteries, can be used continuously for 6-8 hours.

Power supply from rechargeable Lithium battery or alternating current adapter

110V-240V/ AC,50/60Hz.Battery charger 110V-240V/ AC,50/60Hz.

15 System Electronic Component

Intel 400MHz StrongArm


16 Operation

1. Controlled by Analysis trigger.

2. Customer can set analysis time freely.

17 Instrument Extending Customer can set up testing curve by themselves
18 Testing and Display

Qualitative and Quantitative analysis of the components and Result Display.

Spectrogram Display.

Automatic display for double sigma error of the Testing Data.

19 Data Storage 8 G high-capacity data storage card,Storage up to more than 40000 Testing Data and Spectrogram.May at any time through the instrument touch-screen computer or export to personal PC.

Date Transfer

Testing Report

Bluetooth wireless, USD, and RS-232 serial communications interfaces are included in every analyzer. Advanced Data Transfer PC software lets you set user permissions, print certificates of analysis to document results, or operate the analyzer right from your PC.
21 The Convenience On-site No requirement for the shape of materials. Space measurement is available for the tested surface.
22 Safety A touch of "trigger" software automatic timing trigger lock or automatic stop testing protective function; Sample window without judgment test automatically closed X-ray after 2 seconds
23 Accessories Instrument, Two Rechargeable Batteries, Battery Charger, Data Download Cable, Wireless Bluetooth, User’s Guide in English Version, Two Window Prolenes, Application Software, Instrument Case, Lock Case, Standard Samples.

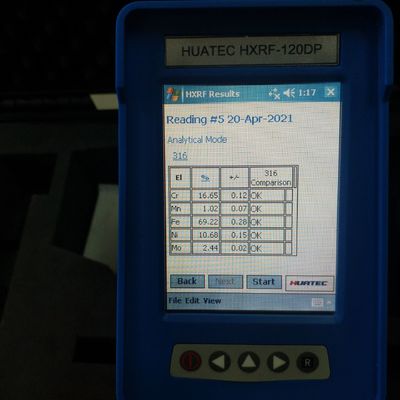

Real-test Values of 316 samples

Reading Mode Cr% Mn% Mo% Ni%
No1 ALLOYS 16.56 1.22 2.03 10.18
No2 ALLOYS 16.66 1.29 2.01 10.15
No3 ALLOYS 16.61 1.20 2.05 10.05
No4 ALLOYS 16.62 1.19 2.00 10.03
No5 ALLOYS 16.68 1.18 2.05 10.15
No6 ALLOYS 16.67 1.22 1.99 10.10
No7 ALLOYS 16.62 1.25 2.04 10.16
No8 ALLOYS 16.5 1.16 2.03 10.20
No9 ALLOYS 16.7 1.19 2.01 10.17
No1 ALLOYS 16.63 1.20 2.03 10.08
Standard value   16.68 1.22 2.03 10.11

After service

1. Quality warranty:

HUATEC commits that HXRF-120E handheld spectrometer is fabricated with fine grade materials and top notch workmanship. It is brand new, never used, and in full compliance with the quality provision of this Contract. HXRF-120E warranty is 12 months starting from the date of final acceptance of the goods/commissioning of machine.


2. Technical training:

Operating Manual of HXRF-120E Handheld Spectrometers

Maintenance Manual of HXRF-120E Handheld Spectrometers


3. After-sale service

Over the years, HUATEC has sold XRF instruments to many global users. In order to provide better technical support and service, it shall be committed to.

1. services including

  1. HUATEC shall provide after-sales service to all products it has sold worldwide.
  2. HUATEC shall provide a one-year warranty for the spectrometer it has sold worldwide.
  3. HUATEC shall provide one-year warranty for X-ray Tube (X-ray tube)and Detector (Detector).
  4. HUATEC shall provide one-year renewal warranty for the replaced components in case there is any replacement of them during repair of machine.

2. The following physical damage is not covered by warranty.

  1. instrument is impacted by great force that the internal impact sensor changes from white to red;
  2. Detector is broken
  3. PDA is broken;
  4. Instrument body is broken;
  5. Loss of accessories
  6. Loss of components
  7. Water coming into instrument

3. In case the instrument is not able to operate, the customer can call after-sales service for help; we offer 3 types of repairs:

  1. Internet repair: if the customers are in foreign countries or remote areas, we can offer them first the INTERNET repair service.


  1. Phone repair: customers called over the phone to explain explicitly the problem and our technical staff will instruct them to solve the problem.
  2. On-site repair: in case the phone repair fails, our technical personnel will go to the site to repair the instrument within 72 hours after the problem is reported; for aboard customer, on-site repair need to be talked in details.

4. Out-of-warranty service: upon expiry of the warranty period, all customers are still entitled to out-of-warranty service during the working life of the instrument.

5. Privilege in out-of-warranty service: customers shall have the privilege to get preferential prices on the components when they maintain their instrument during the out-of-warranty period as long as they maintained it beforehand.
