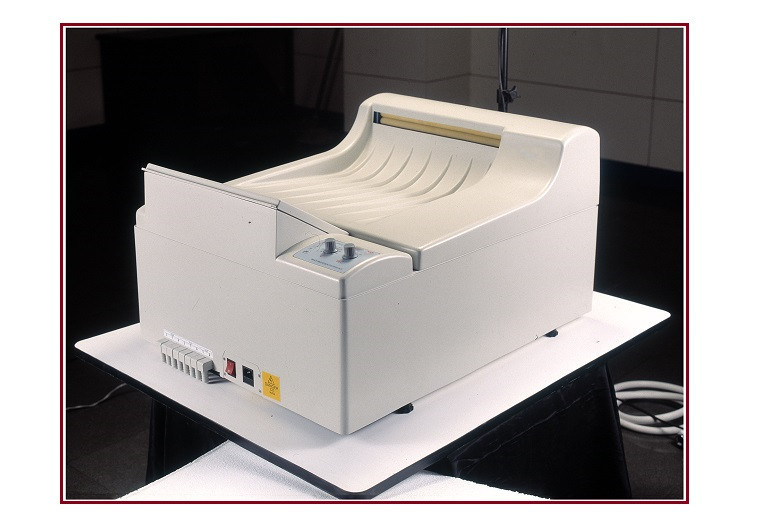

HUATEC HDL-P14/P17 Medical tablet X Ray film processor
Standard equipment
1. development synchronous heating system
2. development of independent circulation system
3. development synchronous supplementary system
4. water controlled water saving system of solenoid valve
5. professional conical air duct drying system
6. mechanical sensing feeding system
7. DKM electronic speed control energy saving system
| Model | HDL-P14 | HDL-P14A | HDL-P17 | HDL-P17A |
| Film specification |
Minimum 10*10cm maximum 35*∞cm |
Minimum 10*10cm maximum 45*∞cm |
||
| Flushing time | 105,135,165sec | 90-360sec | 105,135,165sec | 90-360sec |
| Developing time | 28,36,44sec | 20-60sec | 28,36,44sec | 20-60sec |
| Flushing volume | 80 pieces / hours(14"*17")120 pieces / hours(11"*14") | 110 pieces / hours(14"*17")160 pieces / hours(11"*14") | 100pieces / hours(14"*17")155 pieces / hours(11"*14") | 140 pieces / hours(14"*17")210 pieces / hours(11"*14") |
| Drug tank capacity | Developing, fixing, and washing each 5.2L | Developing, fixing, and washing each 5.2L | Developing, fixing, and washing each 8L | Developing, fixing, and washing each 8L |
| Developer temperature | 28℃-37 ℃adjustable (interval 1℃) | 20℃-40 ℃adjustable (interval 0.1℃) | 28℃-37 ℃adjustable (interval 1℃) | 20℃-40 ℃adjustable (interval 0.1℃) |
| Drying temperature | 40℃-65 ℃(automatic regulation) | 40℃-65 ℃(automatic regulation) | 40℃-65 ℃(automatic regulation) | 40℃-65 ℃(automatic regulation) |
| Film induction | Imported microswitch | Imported microswitch | Imported microswitch | Imported microswitch |
| Volume ㎝³ | 79*59*42 | 79*59*42 | 79*69*42 | 79*69*42 |
| weight | Gross weight 50kg (net weight 45kg) | Gross weight 60kg (net weight 55kg) | ||
| Anti crystallization and anti oxidation | 45 minutes / times | |||
| Flushing process | Development→Fixed shadow→washing→Dry | |||
| Supplement | According to the area of film flushing, automatic water replenishment is provided, and manual replenishment is also provided. The amount of water replenishment is 20-200ml/0.3㎡ | |||
| Water washing control | When the film is flush, it will automatically water for 2-8L/ minutes, and automatically shut down when standby. | |||
| Power consumption | 220V 50/60Hz 8.8A (flushing 2KW, standby 120W) | |||
