HUATEC HDL-500DY medical image film printer
(1) product profile
The HDL series medical image printer is a kind of thermal imaging film printing used to copy the number of images sent through the network in DCOM format.
The medical dry thermosensitive film is an imaging medium with the latest technical wood level. These imaging media can perfectly match CT (computed tomography), MRI (magnetic resonance imaging), digital X ray imaging (DR, CR), digital four intestines, milk removal, nuclear medicine, mobile X line imaging, dentistry and other imaging applications.
The imaging medium can generate high quality grayscale film through medical dry imaging (direct thermal sensing) technology.

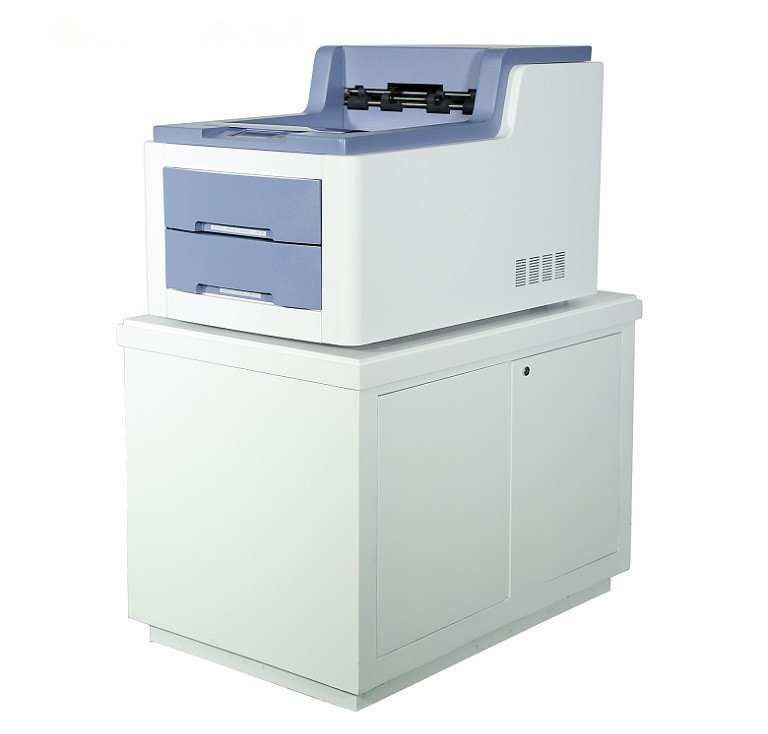

(2)physical map
(3)technical parameters
| Printing method | Direct thermosensitive imaging |
| Resolving power | 600dpi |
| Gamma resolution | 12bit |
| Printing speed | 14*17≧60pics 8*10≧80pics |
| Shape size | 53*47*55cm |
| Film input | Each of the 2 cassette boxes can hold 100 sheets of film and print two specifications simultaneously. |
| Film output | 1 film boxes can hold 100 pieces of film |
| Film Size | 8*10 10*12 11*14 14*17 |
| Film type | Medical dry heat sensitive film (blue and transparent) |
| Network / image protocol | TCP/IP DICOM3.0 |
| Image quality | Automatic calibration with a built-in densimeter |
| Image control | Contrast, grayscale, polarity, rotation, saturation, scaling |
| Control panel | Large background light LCD display, display online, alarm, failure and status |
| Key switch | Power and menu navigation buttons |
| Power Supply | 110V-240V,50Hz/60Hz |
| Weight | 45kg |
| Fuselage base | Selection |
