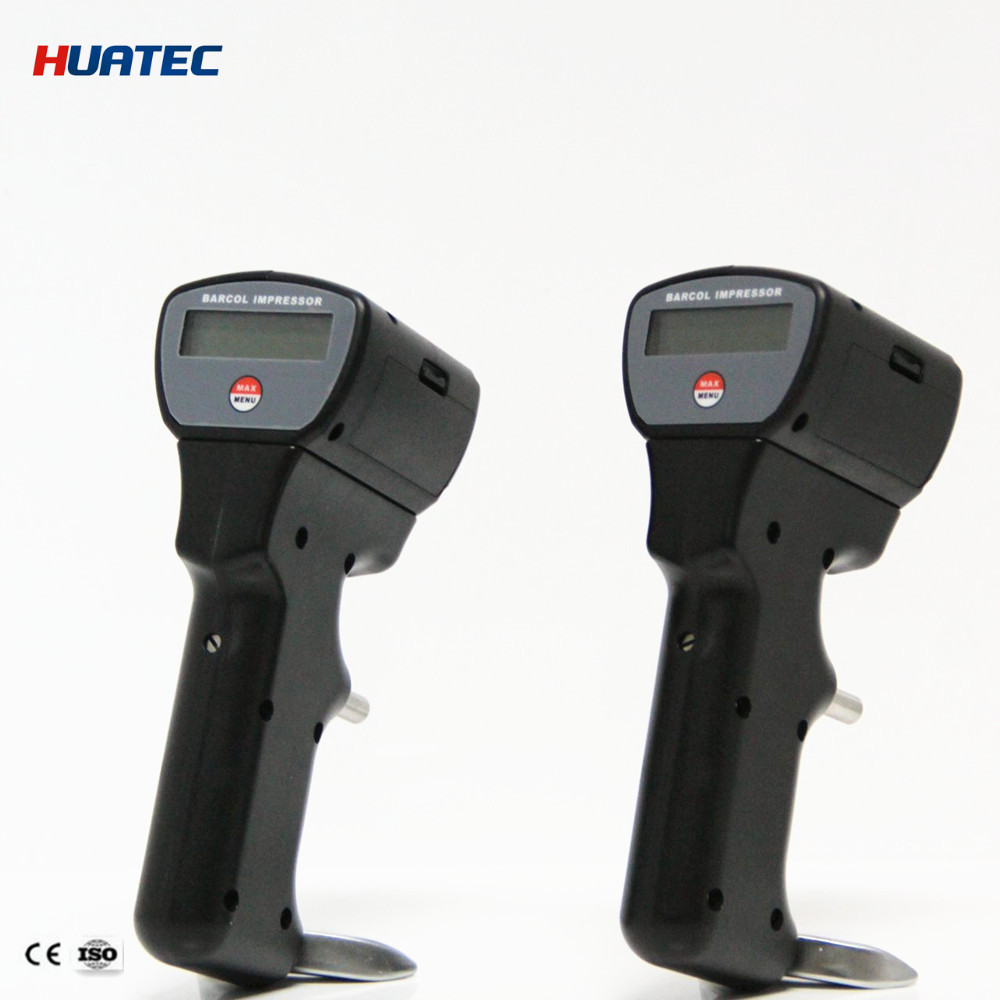

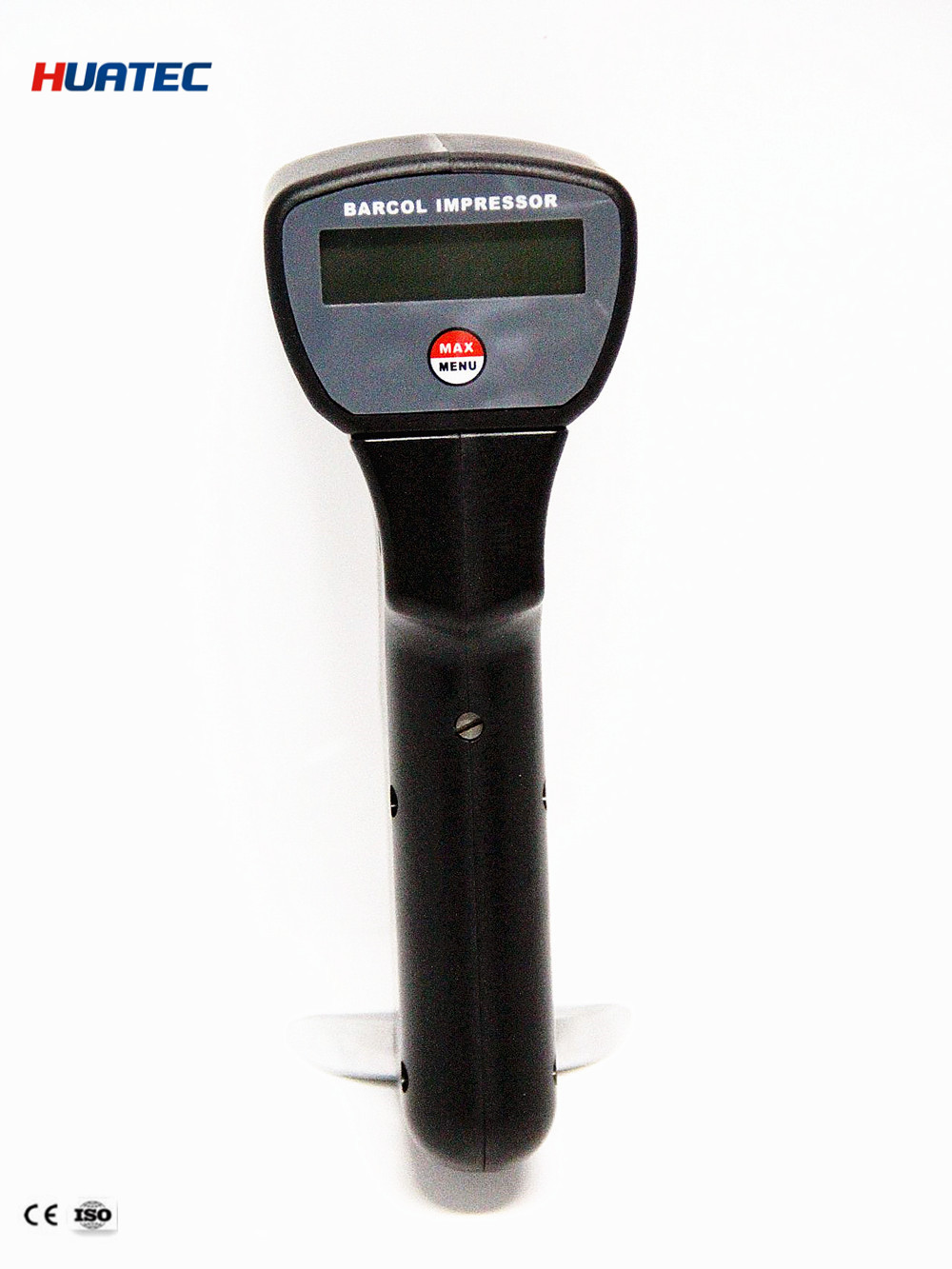

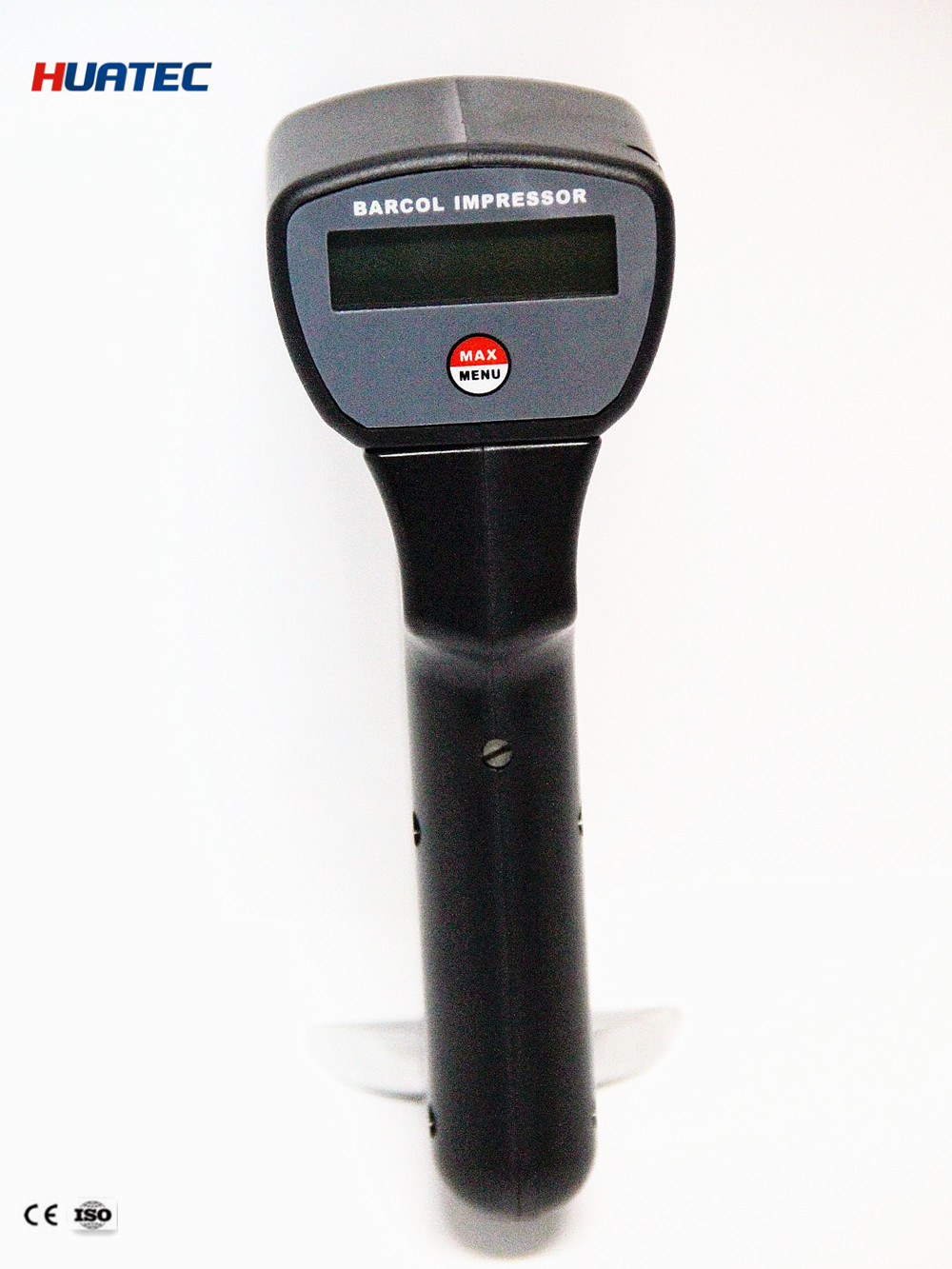

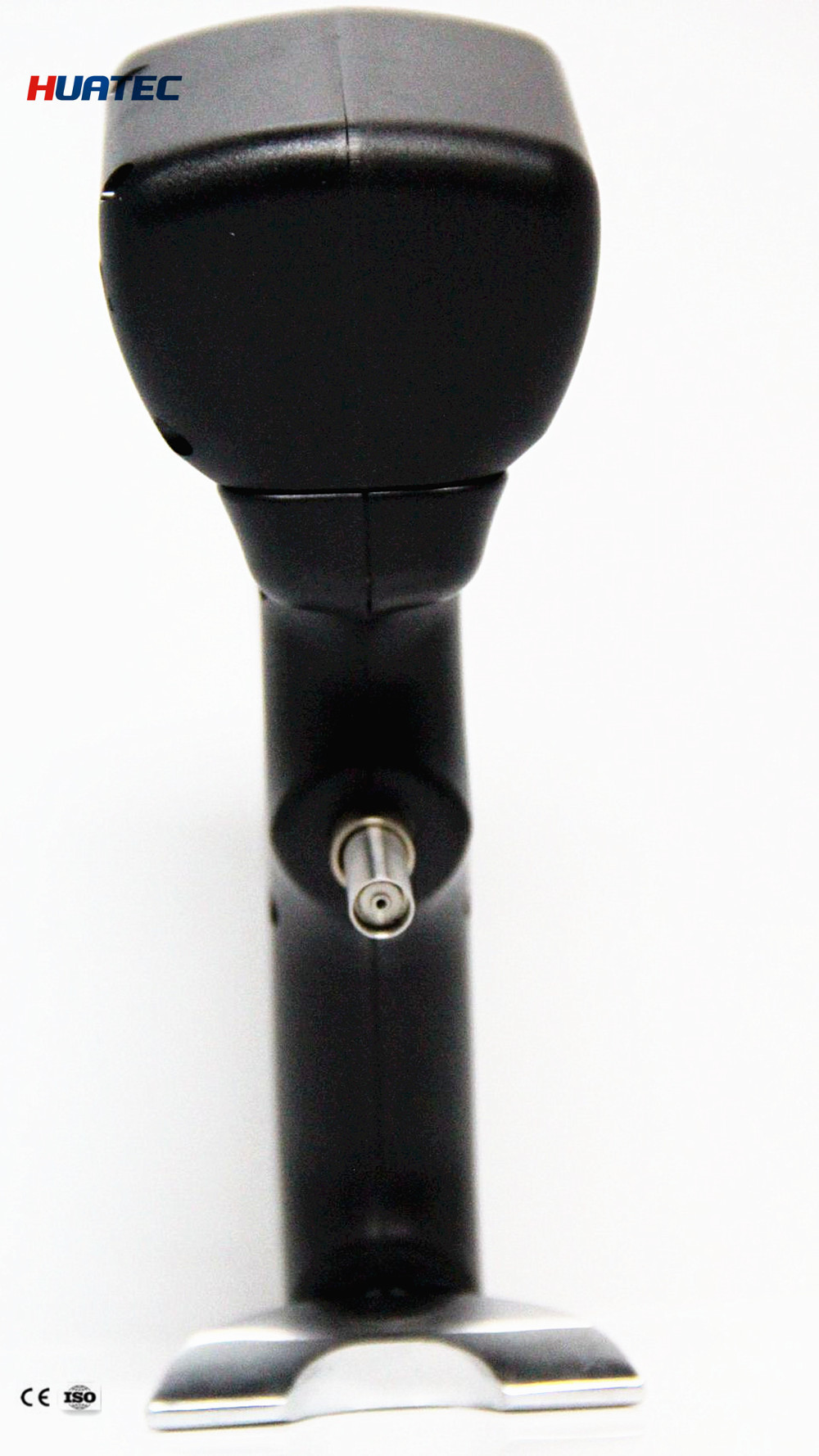

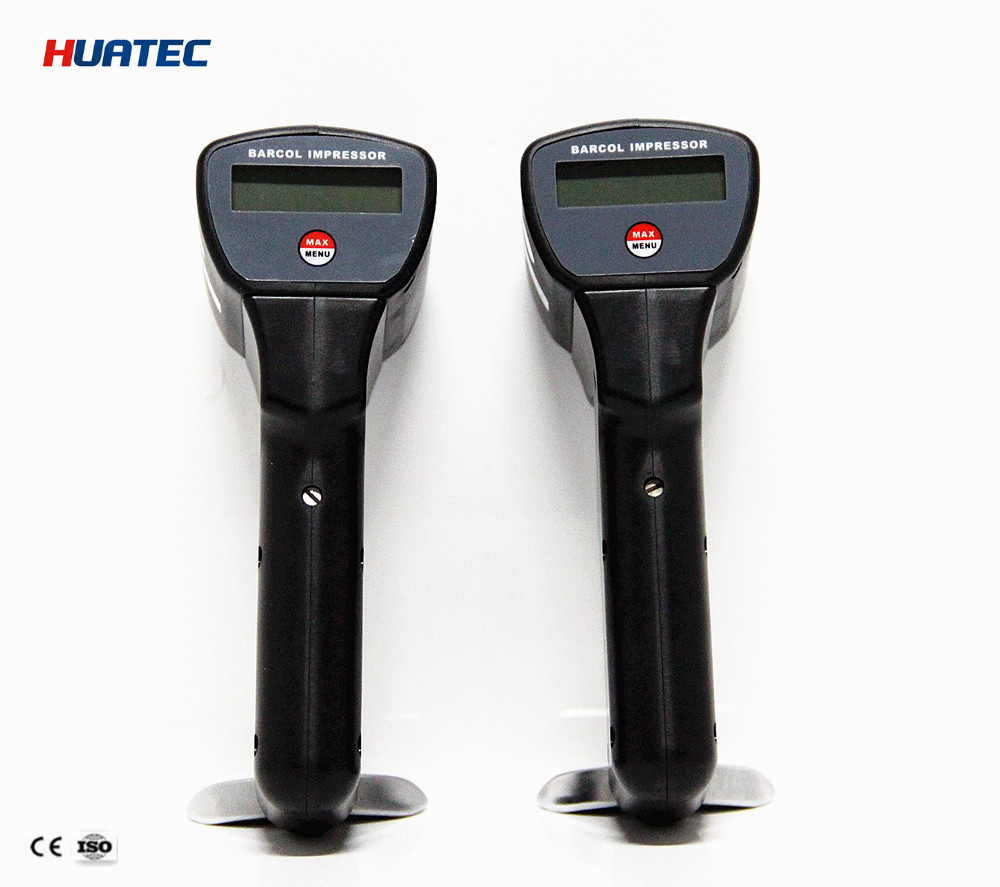

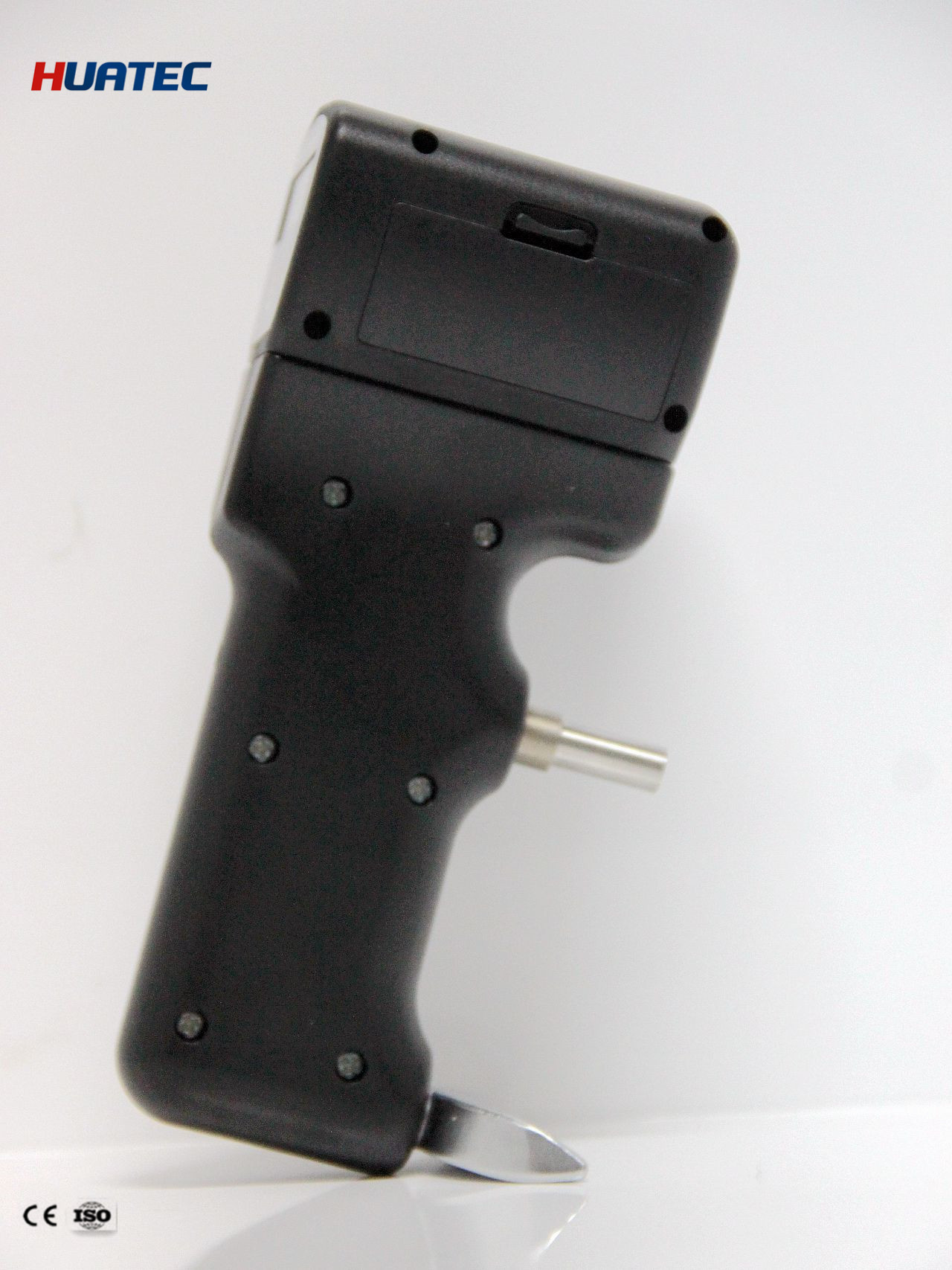

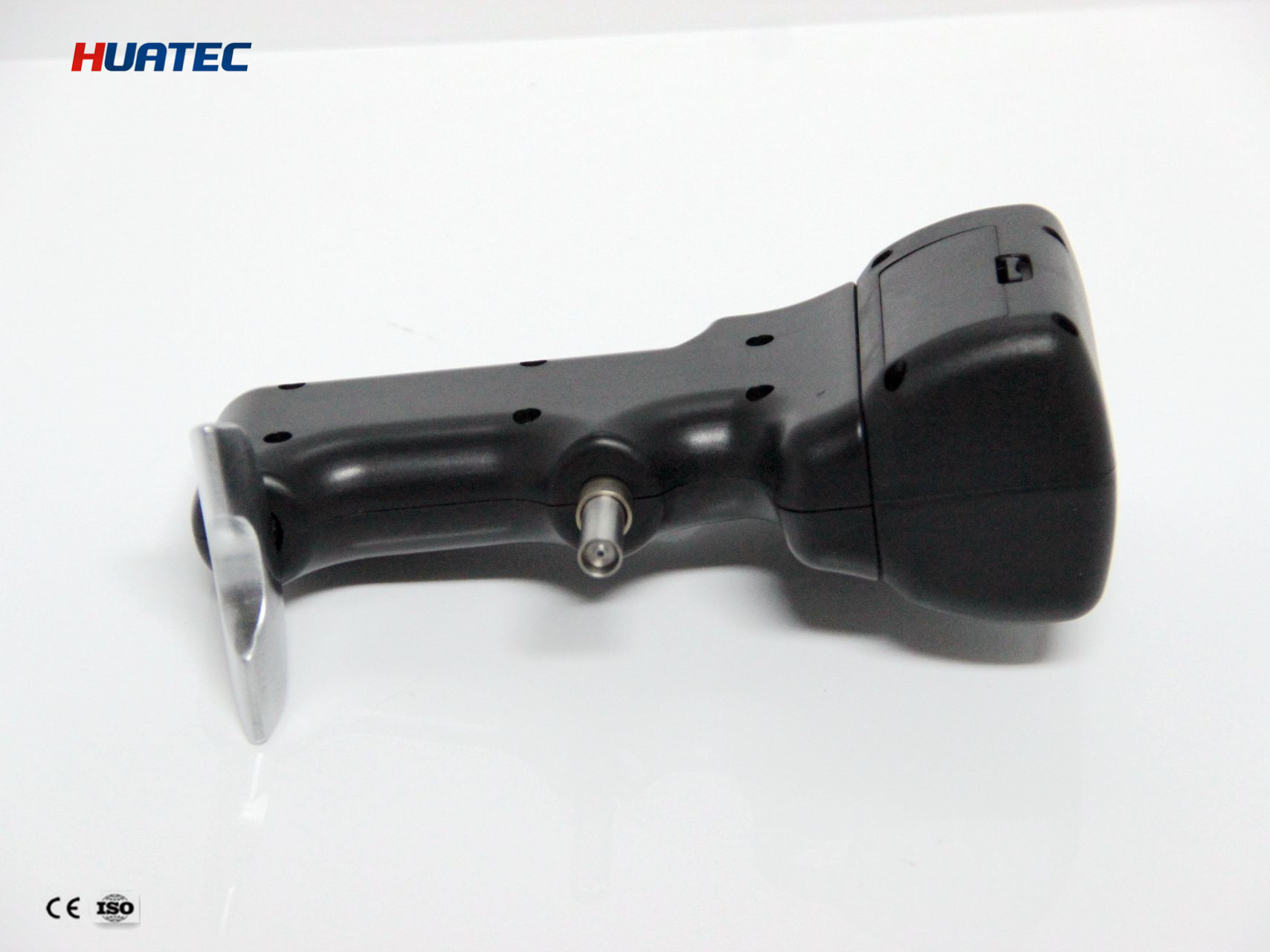

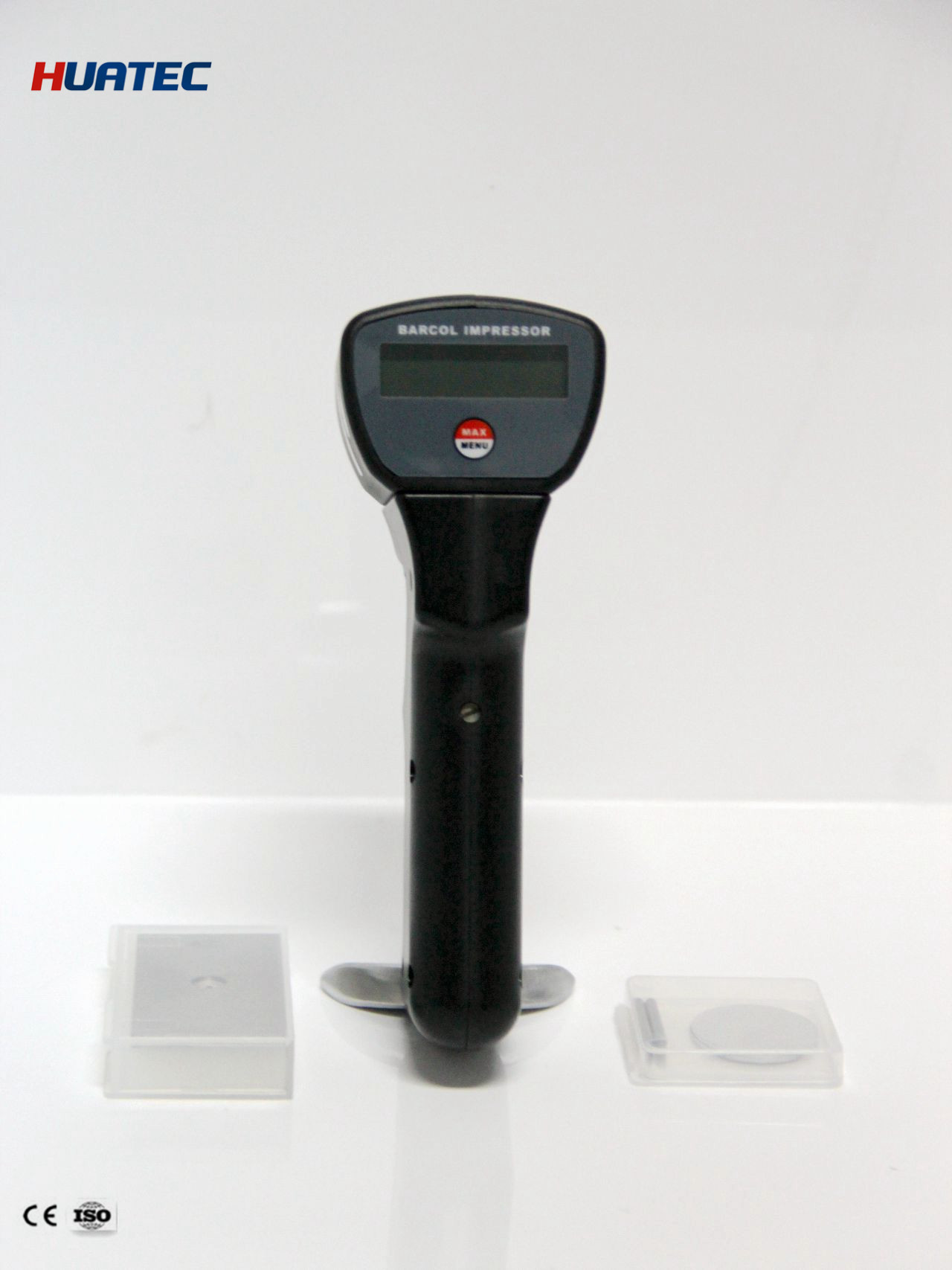

Aluminium Hardness Tester Barcol Hardness Tester Barcol Impressor HBA-100

Aluminium Hardness Tester Barcol Hardness Tester Barcol Impressor HBA-100
Features Gallery Product Description Request A Quote
Hardness Scale: HS,HV,HB
Warranty: 12 Months
Product Name: Hardness Tester
Key Words: Metal Hardness Tester
High Light:

metal hardness tester


handheld hardness tester

Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HBA-100
Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Product Description

Aluminium Hardness Tester Barcol Hardness Tester Barcol Impressor HBA-100


Main features
Portable indentation hardness tester.

Single hand operation; no operating experience required; can test any workpiece which is  reachable in any site.

Wide valid testing range equivalent to Brinell hardness 25-150HBW. Used to test the hardness of all kinds of aluminum, from very soft aluminum to very hard aluminum alloys.

1,High sensitivity. Featured with 100 scales, much more sensitive than Webster hardness testers applied in aluminum alloys industry.

2,No supporting required. Can test from only one side of the workpiece. No need to move or support the workpiece.
Used to test super large and thick worpieces and assembly parts.

3,Easy conversion. The test results can be converted to HB, HR, HV and HW easily through conversion table.

4,Comply to standard ASTM B648-2000.


Technical parameters

1,Indenter:              26°panhead cone, head face diameter 0.176mm
2,Testing Range:      0~100HBa,equivalent to 25~150HBW
3,Resolution:             0.5HBa
4,Indication error:     hardness range 42~52HBa, ±2HBa
                               hardness range 84~88HBa ±1HBa
5,Repeatability error: hardness range 42~52HBa, ±2HBa
                               hardness range 84~88HBa ±1HBa
6, Net weight:           0.5kg

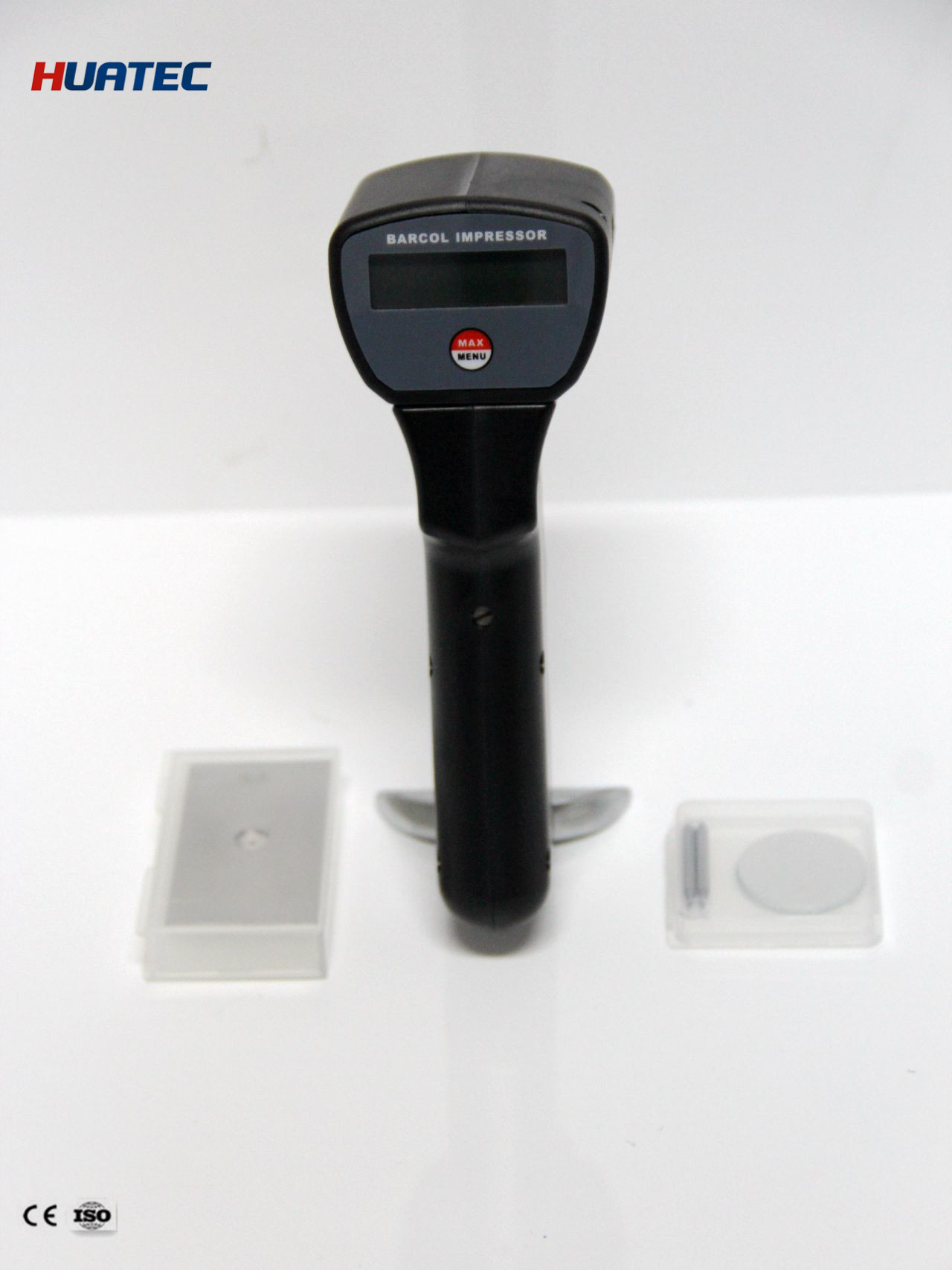

Standard accessories

Main unit          1 pc   Standard block       2pcs    Spanner          1pc

Manual            1pc    Cerficate            1pc
