Portable ultrasonic velocity gauge TG-1000

September 9, 2021

Portable ultrasonic velocity gauge TG-1000

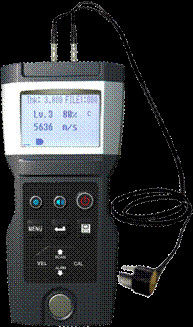

TG-1000 is a portable ultrasonic velocity gauge. Based on the same operating principles as SONAR it is capable of measuring the speed of sound (velocity) through the material. It is suitable for a variety of metallic and non-metallic materials such as casts, alloys or plastics, and can be used to indicate the consistency of the material.

latest company case about Portable ultrasonic velocity gauge TG-1000 0

Features:

High precision timing chip & V-Path model used for precision measurement
Real-time Temperature Compensation Technic supporting One-time probe calibration for long term usage.
Velocity can be directly measured and used in evaluation of spheroidization rate
Bluetooth & Mini-USB interface for printing & communication, host software upgradable

Main Functions:

Scan mode, min/max capture mode, and alarm mode support
Thickness can be measured by a known velocity
16 stages gain adjustable
Storage capacity of 1000 measurements with velocity, thickness, time, etc.
Communicate with PC or smart phones

Technical Parameters

Sound Velocity Range	1 ~ 19999 m/s	Thickness Range	See Probe Parameters
Resolution	1m/s, 0.001mm / 0.0001inches	Accuracy	See Probe Parameters
Measuring Period	4 times per second	Probe Frequency	2MHz，3MHz，5MHz，7.5MHz
Calibration Mode	Probe Calibration, Real-time Temperature Compensation	Data Storage	1000 measurements, including thickness, sound velocity, time, etc.
Calibration block	4.000mm（Steel）	Gain Adjustable	16 Stages
Measuring Mode	scan, min/max capture, alarm	Thickness measure	Support
Display	English FSTN LCD Display with backlight	Display Content	Thickness, Sound velocity, Stability, Battery, Measuring Mode, Time, etc.
Communication	Bluetooth & Mini-USB interface, virtual serial port protocol	Print	Optional portable Bluetooth thermal printers
Power Supply	3.7V Li-Ion chargeable battery	Power off	Timeout power off, low battery power off
Usage Temperature	-10 ~ 50 °C	Storage Temperature	-30 ~ 60 °C
Size	157mm78mm37mm	Weight	About 260g
Shell Material	ABS & PC alloy	Box Material	ABS (IK08 / IP67)

Probe parameters

Label	5M Φ10	5M PT-08	7.5M PT-06	2M ZT-12	3M GT-12
Measure Range (Steel)	0.75~300 mm	0.8~225 mm	0.8~50 mm	3.0~400 mm	2.0~200 mm
Min. Measure Diameter	Ø25 x 3 mm	Ø20 x 1.2 mm	Ø15 x 1.2 mm	Ø30 x 4 mm	Ø25 x 3 mm
Probe Diameter	13mm	11mm	9mm	17mm	15mm
Probe Frequency	5MHz	5MHz	7.5MHz	2MHz	3MHz
Contact Temperature	-10~60°C	-10~60°C	-10~60°C	-10~60°C	-10~310°C

Version Comparison

Version	Online measurement	Command control
TG-1000	x	x
TG-1000C	√	√
