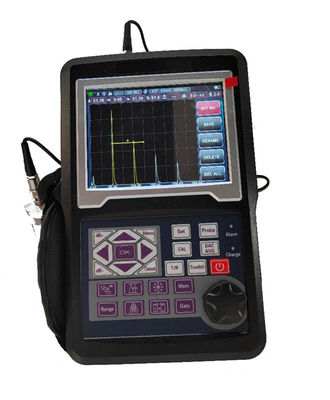

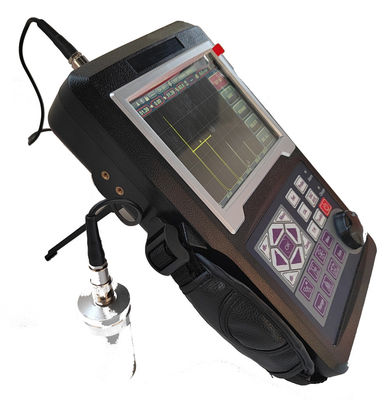

IP67 0.001mm high resolution B Scan big range 15000 mm ultrasonic thickness gauge

IP67 0.001mm high resolution B Scan big range 15000 mm ultrasonic thickness gauge

Main features:

★ User friendly dialog interactive helps operations like Calibration, making curves, etc.

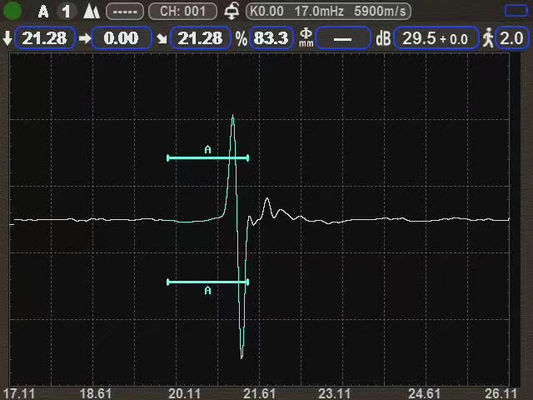

★ color Bscan

★ Pulse Repeatition Frequency: 10-10000Hz precise adjust, high speed scan, no miss out.

★ High Signal to noise ratio, clear and stable echo, anti-noise design, perfect for tough working conditions.

★ 12-digit AD, high speed sampling leads to better echo diagram with all details. Sensitive and can detect even tiny flaws.

★ Thickness test,Measuring range: 0.15mm – 15000mm(5920m/s), Measurement resolution: 0.001mm.

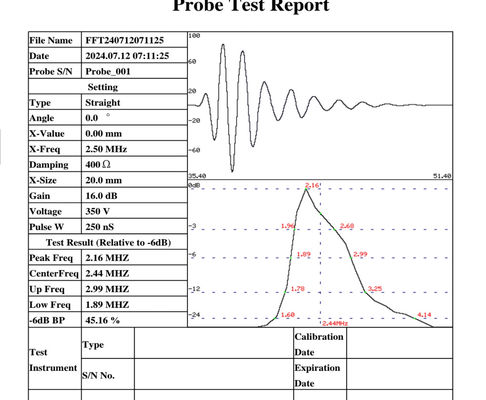

★ Automatically generated probe analysis reports.

★ Blue tooth connection to mobile device to generate and print detection reports on-site.

★ IP67 standard. Silica gel case, water and dust proof, solid and lasts forever.

★ Battery lasts 15 hours for one charge. Each battery has own charging control so with two batteries it can work around the clock.

Specifications:

Range:0-15000 mm ,at steel velocity

Material Velocity:100～20000 m/s

Pulse Repetition Frequency:10-10000Hz

Dynamic range:≥38dB

Resolving Power:>40dB (5P14)

Sensitivity Leavings:>66dB

Reject (suppression): 0 to 80% full screen height

500 independence setup, any criterion can be input freely, we can work in the scene without test block；

Big memory of 1000 A graph and thickness report.

Test Modes: Pulse echo, dual element and thru-transmission

Probe Types: Single Straight, Single Angle,Daul Straight, Daul Anlge

Gate Monitors: Two independent gates controllable over entire sweep range

Units: Inch or millimeter

Power Requirements: AC Mains 100-240 VAC, 50-60 Hz

Display Delay: -20 to 3400 µs

Probe Delay/Zero Offset : 0 to 99.99µs

Internal rechargeable Li-ion battery pack rated 7.2V at 7800 mAh

15 hours nominal operating time depending on display brightness

4 hours typical recharge time

H×W×D(mm):260×175×60 (mm)

Weight :1.4kg

Operating Temperature: -10℃ to 50℃

Storage Temperature: -30℃ to 50℃

Pulse Energy: 50V,100V,200V, 300V, 400V, 500V selectable

Rectification: Positive half wave, negative half wave, full wave, RF System

Probe freq: 0.2 to 25 MHz

Gate Monitors: Two independent gates controllable over entire sweep range

Sensitivity: 120 dB max in selectable resolution 0.1, 1.0, 2.0, 6.0 dB.

Transducer Connections: BNC

Functions

Automated display precise thickness value.

Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity .

Connectting U-disk,the unit can get unlimited memory,PDF reports out put and Upadte system.

Blue tooth connection to mobile device to generate and print detection reports on-site.　AWS D1.1.

Auto-gain function.

Scan Freeze:Display freeze holds waveform and sound path data.

Alarm:Beep and LED.

Real Time Clock.

Fill echo.

Capture mark.

Two gates:A and B.

Echo color within the Gate.

Base Instrument Package

Portable unit

Rechargeable Li-Ion Battery Package, 7.8 amp hour

Power supply/charger unit

Operating Manual in English

App Software

Silicone Case
