The Ultrasonic Thickness Gauge is a professional wall thickness measurement tool designed for highly accurate wall thickness measurement. It is equipped with a LEMO connector and offers a wide measurement range from 0.15mm to 1800mm. The measurement frequency can be set to 4Hz, 8Hz or 16Hz, and the resolution can be set to 0.1mm, 0.01mm or 0.001mm. Moreover, the probe frequency is 5MHz.
This Ultrasonic Thickness Gauge is an ideal choice for measuring the wall thickness of a variety of materials such as steel, aluminum, copper, rubber and plastic. It is also suitable for non-destructive testing of multiple components, and can be used to detect the wall thickness of pipes, tanks, pressure vessels and other metallic structures.
This Ultrasonic Thickness Gauge is an essential tool for any professional in the field of wall thickness measurement. Its accuracy and wide range of features make it an essential tool for precise thickness measurements.

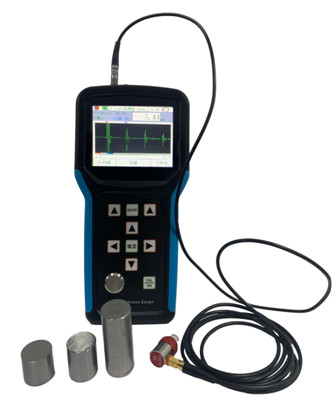

The HUATEC TG-5700 Ultrasonic Thickness Gauge is a wall thickness gauge and ultrasonic thickness tester from China, designed for measuring the thickness of metal and non-metal materials. It has a sound velocity range of 400-19999m/s and features an USB interface and rechargeable lithium battery. It is capable of four different measurement modes, including MB-E (the measurement mode based on the transit time from the initial echo to the first bottom echo), E-E (penetration coating measurement mode, the arbitrary em–en echo is optional), ME-E (multiple echo measurement mode) and THIN (thin wall measurement mode). It also offers three different measurement frequencies, namely 4Hz, 8Hz, and 16Hz.
| Property | Parameters |
|---|---|
| Probe type | Single Crystal Probe / Double Crystal Probe |
| Accuracy | ±0.001mm |
| Power Supply | 4*1.5V AA Battery |
| Measurement mode | (1) MB-E: The Measurement Mode Based On The Transit Time From The Initial Echo To The First Bottom Echo; (2) E-E: Penetration Coating Measurement Mode, The Arbitrary Em–En Echo Is Optional; (3) ME-E: Multiple Echo Measurement Mode; (4) THIN: Thin Wall Measurement Mode; |
| Sound velocity range | 400-19999m/s |
| Probe Connector | LEMO |
| Detection mode | Radio Frequency (RF), Positive Half Wave (POS), Negative Half Wave (NEG), Full Wave (FULL) |
| Size | 204 X 100 X 36 (mm) |
| Certification | CE |
| Scan mode | A Scan And B Scan |
Are you looking for a reliable Ultrasonic Thickness Gauge? Look no further, HUATEC TG-5700 Ultrasonic Thickness Gauge is the perfect choice for you!
This Ultrasonic Thickness Gauge features a data storage capacity of 100,000 thicknesses (100 groups, 1000 in each group), 500 groups of A-Scan waveforms and 500 groups of B-Scan waveforms. It is powered by 4*1.5V AA batteries and offers excellent accuracy of +/-0.001mm. It also offers two probe types – single crystal probe and double crystal probe, with resolutions of 0.1mm, 0.01mm and 0.001mm.
HUATEC TG-5700 Ultrasonic Thickness Gauge is ideal for precise measurements of corrosion thickness and is suitable for a wide range of applications. So, if you are looking for an ultrasonic thickness tester or corrosion thickness gauge, the HUATEC TG-5700 Ultrasonic Thickness Gauge is the perfect choice!
We provide technical support and service for the Ultrasonic Thickness Gauge. In order to ensure maximum reliability and accuracy of the product, we have a team of experienced professionals who are available to offer technical assistance, advice, and guidance.
We provide 24/7 customer service and technical support for the Ultrasonic Thickness Gauge. Our technical support team can provide assistance with troubleshooting, installation, maintenance, repairs, and more. We also offer regular product updates, firmware upgrades, and access to our knowledge base.
We offer comprehensive warranty coverage for the Ultrasonic Thickness Gauge. Our warranty covers any defects in material or workmanship for a period of one year from the date of purchase. We also provide a limited lifetime warranty for parts and labor.
We also offer a range of additional services for the Ultrasonic Thickness Gauge, including calibrations, certifications, and custom configurations. All of our services are performed by highly trained and experienced technicians.
Packaging and Shipping for Ultrasonic Thickness Gauge:
The Ultrasonic Thickness Gauge will be securely packaged and shipped in a shockproof container. It will include all of the necessary accessories and instructions for safely using and maintaining the product. The container will be carefully labeled with the product name, and the contents of the package will be clearly listed on the outside of the box. The package will be shipped via a reliable courier service to ensure it arrives in perfect condition.
