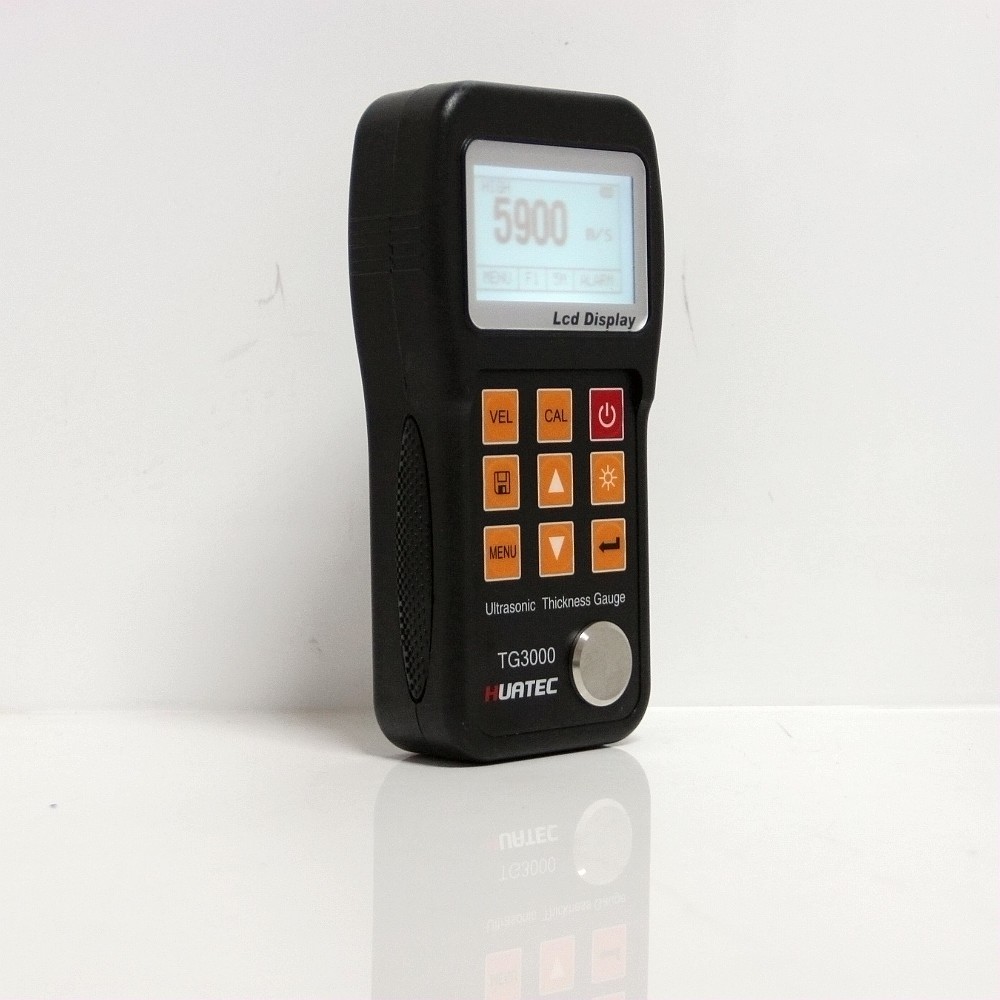

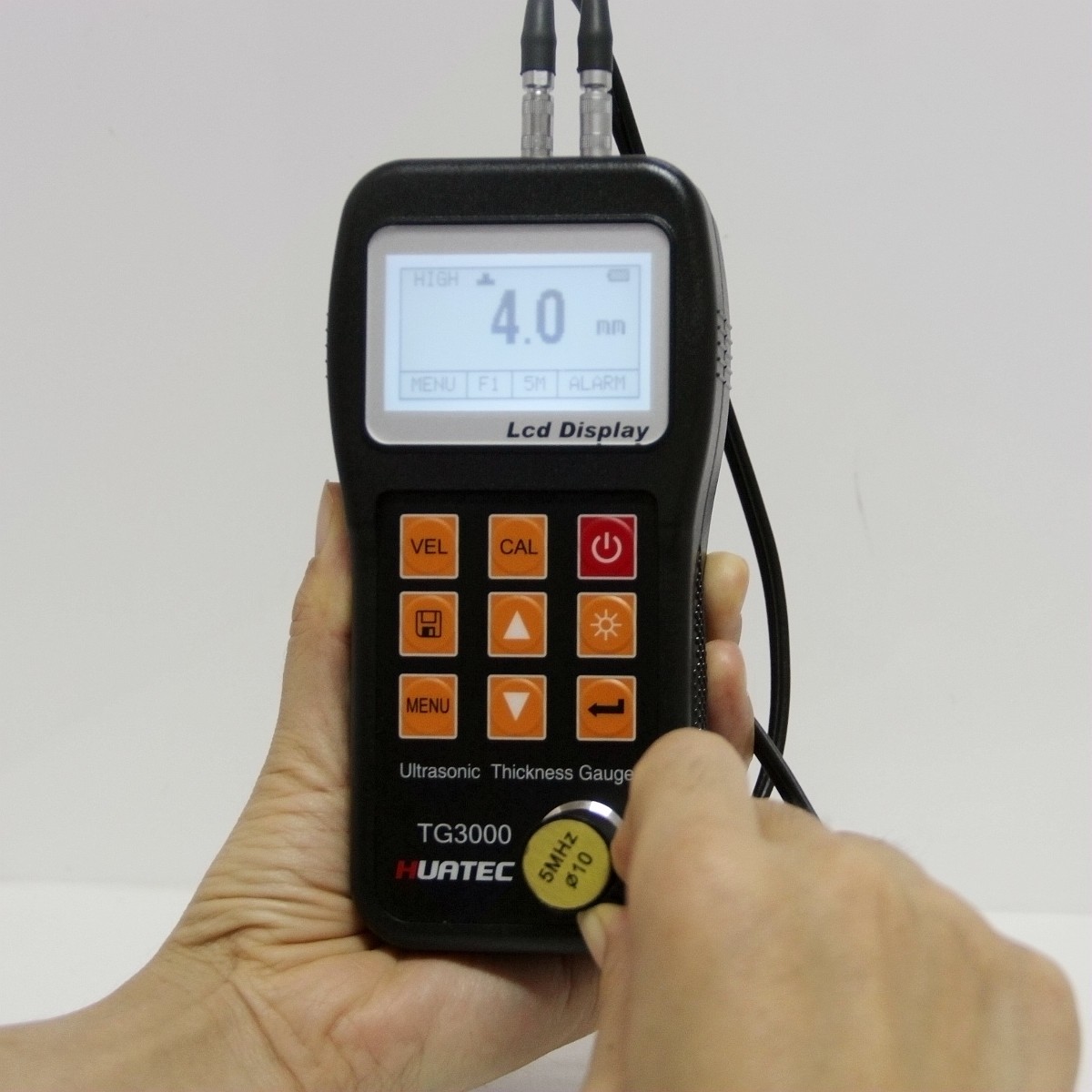

0.75-300mm NDT Equipment Ultrasonic Wall Plastic Metal Thickness Measuring Machine

0.75-300mm NDT Equipment Ultrasonic Wall Plastic Metal Thickness Measuring Machine
0.75-300mm NDT Equipment Ultrasonic Wall Plastic Metal Thickness Measuring Machine

Large Image :  0.75-300mm NDT Equipment Ultrasonic Wall Plastic Metal Thickness Measuring Machine Get Best Price

Product Details:

Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: TG-3300
Resolution: 0.01mm
Data software: English language
Min diameter pipe: 15mm
Display: 136*64 LCD led backlight
Testing range: 0.75-300mm
Unit: Metric/imperial
Continuous working time: 100 hours

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Detailed Product Description
Data Software: English Language Calibration: Two-Point Calibration Function.
Display: 128×64 LCD With LED Backlight. Accuracy: ±(0.5%Thickness +0.02)mm
Units: Metric/Imperial Unit Seletable. Measuring Range: 0.75mm~300.0mm (0.03inch~11.8 Inch)
High Light:

digital ultrasonic thickness gauge

,

through coating thickness gauge

Ultrasonic wall thickness gauge TG-3300, metal thickness gauge,Ultrasonic Thickness Tester, Plastic thickness gauge

Features

0.75-300mm NDT Equipment Ultrasonic Wall Plastic Metal Thickness Measuring Machine 0

1.Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials.

2.Transducer models are available for special application, including for coarse grain material and high temperature applications.

3.Probe-Zero function, Sound-Veloctiy-Calibration function.

4.Two-Point Calibration function.

5.Coupling status Indicator showing the coupling status.

6.Battery information indicates the rest capacity of the battery.

7.Auto sleep and auto power off function to conserve battery life.

8.Optional software to process the memory data on the PC.

9.Optional thermal mini-printer to print the measured data via RS232 port.

Specifications

Display:    128×64 LCD with LED backlight.

Measuring range:  0.75mm~300.0mm (0.03inch~11.8 inch)

Sound velocity:   1000m/s~9999m/s (0.039~0.394in/µs

Display resolution:0.01mm or 0.1mm (lower than 100.0mm)

0.1mm (more than 99.99mm)

Accuracy:         ±(0.5%Thickness +0.02)mm, depends on Materials and conditions

Units:   Metric/Imperial unit seletable.

Lower limit for steel pipes:

5MHz probe: F20mm´3.0mm(F0.8´0.12 inch)

10MHz probe: F20mm´3.0mm(F0.6´0.08 inch)

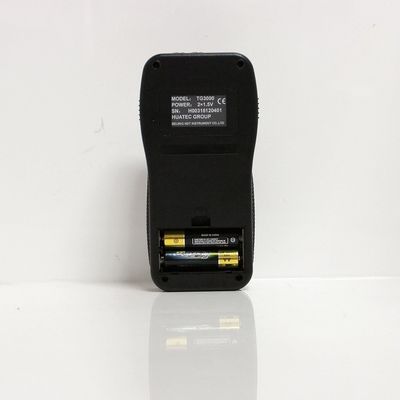

Power Source:   2pcs 1.5V AA size, batteries.100 hours typical operating time(LED backlight off).

Communication:   RS232 serial port

Outline Dimensions:   150mm×74mm×32mm

Weight:   238 g

Four measurements readings per second for single point measurement,

Memory for up to 5 files(up to 100 values for each file) of stored values

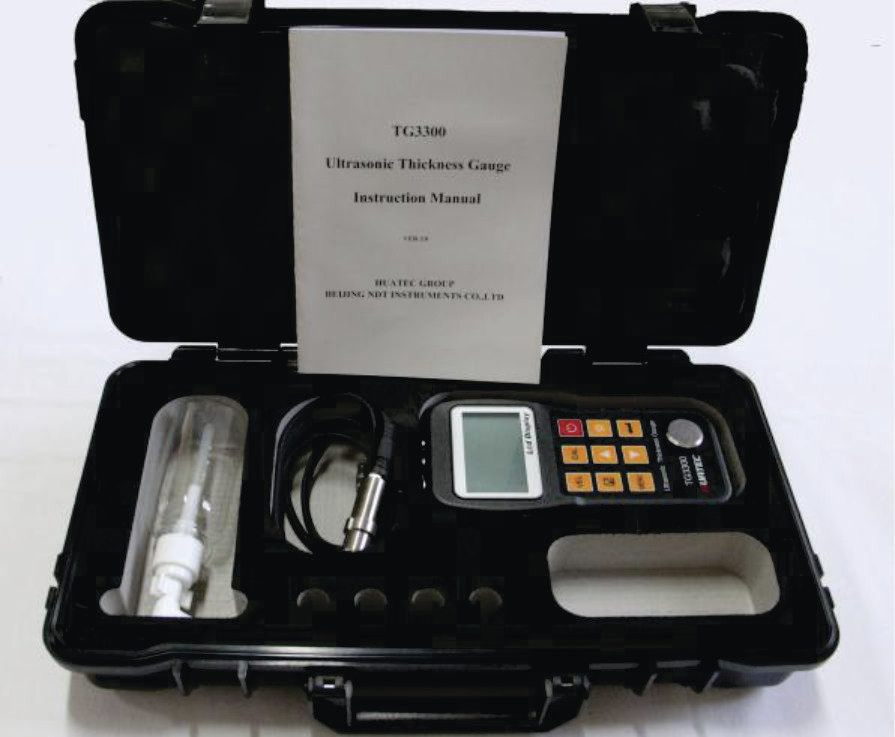

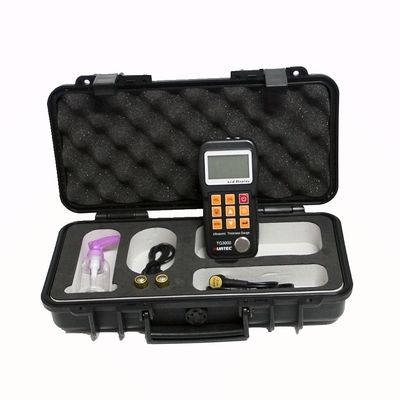

Configuration for ultrasonic thickness gauge/tester TG-3300



No

Item

Quantity

Note





Standard Configuration

1

Main body

1



2

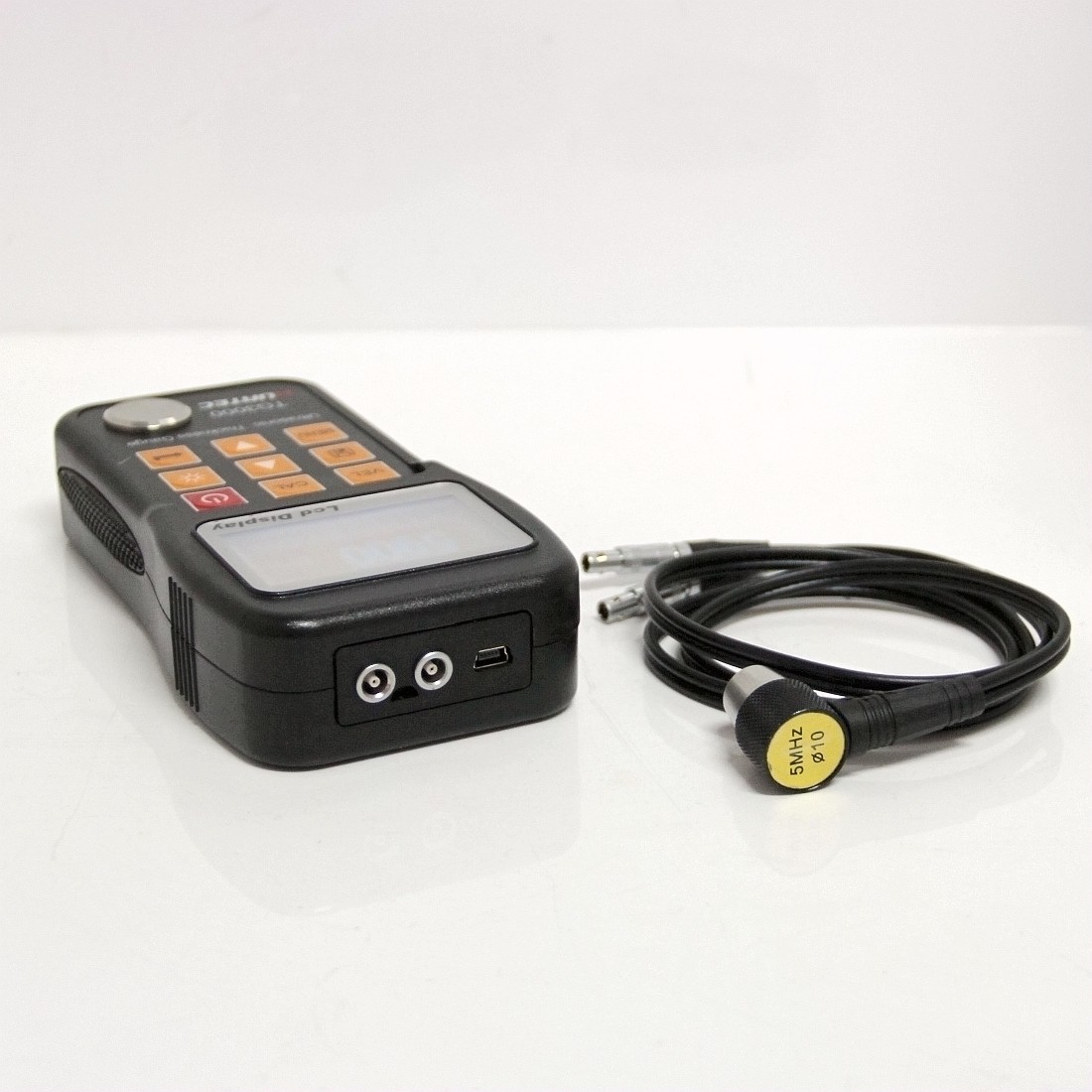

Transducer

1

Model: N05

3

Couplant

1



4

Instrument Case

1



5

Operating Manual

1



6

Alkaline battery

2

AA size





Optional

Configuration

7

Transducer: N02



Appendix A

8

Transducer: N07



9

Transducer: HT5



10

Mini thermal printer

1



11

Print cable

1

12

DataPro Software

1

13

Communication Cable

1



Probe optional for ultrasonic thickness gauge/tester TG-3300(Appendix A):

 Model

Freq. MHz

Diam. Min.

Measuring range

Lower limit

Description

N02

2

14

3.0mm-300.0mm (in steel)

20

For thick, highly attenuating, or highly scattering materials

N05

5

10

1.2mm-230.0mm (in steel)

¢20mm×3.0mm

Normal measurement

N05/90°

5

10

1.2mm-230.0mm (in steel)

¢20mm×3.0mm

Normal measurement

N07

7

6

0.75mm-80.0mm (in steel)

¢15mm×2.0mm

For thin pipe or small curvature pipe wall thickness measurement

HT5

5

2

3mm-200mm (in steel)

30

For high temperature measurement (up to 300℃)
