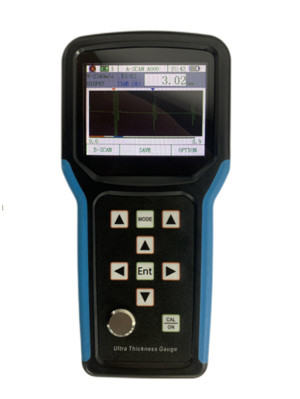

The Ultrasonic Thickness Gauge is a wall thickness measuring device that is used to accurately measure various materials. It uses ultrasonic waves to measure the thickness of walls and other materials with precision. This thickness tester has a sleek design with a size of 204 X 100 X 36 (mm). It is powered by 4*1.5V AA batteries. The probe types available are single crystal and double crystal probes. The accuracy of this thickness gauge is +/-0.001mm, providing highly accurate results. The weight of this product is 0.5kg, making it extremely portable and easy to use.
This thickness gauge can provide detailed information about any material, such as wall thickness, material composition, etc. It is widely used in various industries such as automotive, aerospace, manufacturing, etc. This device is an essential tool for ensuring accurate measurements and high-quality products. It is a reliable and efficient device that can provide consistently accurate results.
The Ultrasonic Thickness Gauge is a must-have device for any professional in the engineering and manufacturing industries. This wall thickness gauge is an invaluable tool for ensuring accurate and precise measurements, and high-quality products. It is the perfect tool for measuring and monitoring the thickness of walls and other materials. This ultrasonic thickness tester is an essential tool for any professional in the engineering and manufacturing industries.
HUATEC TG-5700 is an advanced ultrasonic thickness measuring device that can measure the thickness of various materials accurately and quickly. It is the ideal thickness measuring device for industrial and engineering applications. With its excellent performance, the HUATEC TG-5700 ultrasonic thickness gauge can be used to measure the thickness of various materials, including metal, plastic, glass, wood, etc.
The HUATEC TG-5700 ultrasonic thickness gauge is equipped with a variety of detection modes and measurement modes. The detection mode includes radio frequency (RF), positive half wave (POS), negative half wave (NEG) and full wave (FULL). The measurement mode includes MB-E, E-E, ME-E and THIN. MB-E is the measurement mode based on the transit time from the initial echo to the first bottom echo. E-E is penetration coating measurement mode, the arbitrary Em–En echo is optional. ME-E is multiple echo measurement mode and THIN is thin wall measurement mode.
The HUATEC TG-5700 ultrasonic thickness gauge is equipped with a data storage capacity of 100,000 thicknesses (100 groups, 1000 in each group), 500 groups of A-scan waveforms and 500 groups of B-scan waveforms at the same time. This makes it ideal for applications such as monitoring the thickness of pipes, tanks, vessels or any other materials. The size of the device is 204 X 100 X 36 (mm).
The HUATEC TG-5700 ultrasonic thickness gauge is the perfect choice for those looking for an accurate and reliable thickness measuring device. Its advanced features and high precision make it the ideal solution for industrial and engineering applications.
| Technical Parameters | Description |
|---|---|
| Probe type | Single Crystal Probe / Double Crystal Probe |
| Interface | USB |
| Measurement Range | 0.15mm – 1800mm |
| Working Temperature | -10°C To +50°C |
| Display | 3.5 "QVGA (320 × 240) Color TFT-LCD Screen |
| Probe Frequency | 5MHz |
| Probe Connector | LEMO |
| Detection mode | Radio Frequency (RF), Positive Half Wave (POS), Negative Half Wave (NEG), Full Wave (FULL) |
| Accuracy | +/-0.001mm |
| Measurement frequency | 4Hz,8Hz,16Hz |
HUATEC TG-5700 is a corrosion thickness gauge, an ultrasonic thickness tester used for measuring the thickness of materials. It uses a rechargeable lithium battery and features a USB interface. It is highly accurate and offers four measurement frequencies of 4Hz, 8Hz, 16Hz and a four measurement modes: MB-E, E-E, ME-E, and THIN. The size of the device is 204 X 100 X 36 (mm).
This thickness measuring device is ideal for measuring corrosion in industrial applications such as tanks, pipes, and pressure vessels. It is designed to provide accurate, repeatable measurements for corrosion and other metal loss inspections.
HUATEC TG-5700 is a perfect choice for industries that require reliable and accurate thickness measurement. Get the most accurate and repeatable results with HUATEC's Ultrasonic Thickness Gauge!
We are proud to offer technical support and service for the Ultrasonic Thickness Gauge. Our team of experienced technicians can provide you with the best service and advice to ensure that your Ultrasonic Thickness Gauge is working properly and efficiently.
We offer troubleshooting assistance, repairs, maintenance, and calibration services for the Ultrasonic Thickness Gauge. We can also provide you with software upgrades, updates, and modifications to ensure peak performance.
If you need assistance with the Ultrasonic Thickness Gauge, please contact us and we will be happy to help. We look forward to providing you with the best technical support and service.
Ultrasonic Thickness Gauge Packaging and Shipping:
The Ultrasonic Thickness Gauge is packaged and shipped in a cardboard box with protective internal foam.
The box is labeled with the product name, item number, and shipping address. The box is then sealed with tape to ensure that the product is held securely during transit.
The box is then placed in a larger box or container for secure shipping. The larger box or container is labeled with the product name, item number, and shipping address as well.
