Digital Portable Ultrasonic Flaw Detector UT Flaw Detector Auto Calibration

Digital Portable Ultrasonic Flaw Detector UT Flaw Detector Auto Calibration
Digital Portable Ultrasonic Flaw Detector UT Flaw Detector Auto Calibration

Large Image :  Digital Portable Ultrasonic Flaw Detector UT Flaw Detector Auto Calibration Get Best Price

Product Details:

Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: FD350

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Detailed Product Description
Frequency: 0.2 – 20 MHz Detection Range: 0 - 10000 Mm
Sound Velocity: 100 – 20000 M/s Working Methods: Pulse Echo, Dual, And Thru-transmission
Gain Adjustment: (0-110) DB, Step:0.2, 0.5, 1.0, 2.0, 6.0, 12.0, User Definable(0-24), And Locked Power: 220VAC, 110VDC 60/50Hz
Net Weight: 5.5 Lbs. (2.5 Kg) Li-Ion Battery; 4.8 Lbs. (2.2 Kg) Without B Size: 11.9”W X 9.9” H X 2” D (302 X 251 X 51 Mm)
High Light:

ultrasonic flaw detectors

,

ultrasonic flaw detection

,

digital ultrasonic flaw detector

Digital Portable DAC, AVG Curves Ultrasonic Flaw Detector / UT Flaw Detector FD350 USM60 USM35



Digital Portable Ultrasonic Flaw Detector, ultrasonic testing equopment, UT flaw detector, ultrasonic detector FD350



Specification:

Ranges:

0.5 to 10,000 mm (steel) range selectable in fixed steps or continuously variable

Material velocity:

1,000 to 15,000 m/s,continuously variable in steps of 1 m/s and 22 selectable material velocities

Display delay:

From -5 to 1,000μs

Probe delay:0 to 200 μs

Auto calibration

Measurement and setting of sound velocity and probe delay using two known calibration echoes (2-point calibration)

Pulse energy

(Spike mode)

Low energy (70V)

High energy(500V)

Square wave excitation pulse (option)

Pulse Voltage 20 to 500 V adjustable in 10 V increments

Pulse Width Tunable from 20 to 1000 ns in 10 ns increments

Damping:

Low(50 ohms),:High(500 ohms),(1,000 ohms in TR mode)

Pulse repetition frequency:20 to 1K Hz

Frequency ranges (-3 dB):0.2 to 1 MHz,0.5 to 4 MHz,2 to 20 MHz

Gain: 0 to 110 dB adjustable in selectable steps 0.5, 1.0, 2.0, 6.0, 12.0, user definable, and locked (step 0).

Rectification

Full-wave, negative half-wave, positive half-wave and RF mode

Reject

Linear, 0 to 90 % screen height Variable in steps of 1 %

Monitor gates

2 independent gates in color bar mode, start and width variable over the entire calibration range, response threshold of 5 to 95 % screen height variable in steps of 1 %,

Alarm

Alarm signal via LED and connectable internal horn. Alarm mode of positive logic, negative logic or DAC

Zoom

Expands A-scan display area for increased screen resolution.

Magnify

Expands area within the selected gate over the entire display range for increased A-scan resolution.



Sound path measurement

Digital display of sound path (projection distance, depth) between initial pulse and the first echo in the gate, or between the echoes in the two gates, with selectable echo peak, echo flank or Japanese echo flank detection.

Amplitude display

In % screen height,

dB difference above gate height,

dB difference above DAC or TCG

dB difference above DGS curve (SDU 35X S) or ERS

Displayed reading

Sound path, (reduced) projection distance, depth, amplitude for every gate, user configurable at four positions of measurement line and of the zoomed display in the A-scan

Display

5.7 inch LED backlight TFT_LCD

Display resolution 320 x 240 pixels

A-scan resolution 200 x 220 pixels, 320 x 220 pixels (zoom)

A-scan functions

Manual or automatic A-scan freeze,

A-scan comparison, echo dynamics

(envelope), peak echo storage

Data memory

Minimum 900 datasets store instrument setups or reports including operation parameters plus A-scan, the stored datasets can be easily previewed, recalled and exported to a computer for edit and printing. Memory can be expanded up to 1900 datasets.

DAC / TCG

DAC (Distance Amplitude Curves) or TCG (Time Corrected Gain) with a maximum of 16 reference echoes, 4 other curves can be displayed with variable dB intervals. The dB difference between the echo and the recorded DAC curve is measured through gate A.

JIS DAC / TCG

JIS DAC (Distance Amplitude Curves) with a maximum of 16 reference echoes, 4 other curves can be displayed with variable dB intervals, and 2 other curves can be displayed with constant dB intervals. The dB difference between the echo and the selected DAC curve is measured through gate A. The flaw class is evaluated according to JIS Z3060-2002

AWS D1.1

Provides a dynamic reflector indication rating for various AWS weld inspection applications. This allows more efficient inspections by eliminating manual calculations.

DGS (Option)

DGS curves for single-element and dual-element probes and for all materials, sound attenuation and transfer loss correction, 4 other curves can be displayed with variable dB intervals. Backwall, side drilled hole, flat bottom hole type of the reference reflector are used. Equivalent reflector size, dB difference or height difference is evaluated simultaneously.

Units of measurement

mm, inch

Communication interface

RS232, bi-directional

An USB adaptor cable can be provided to connect the SDU 35X to a computer that does not have RS 232 port

Probe connections

2 x LEMO 01 big lemo

Dialog languages

Chinese, German, English, French, Italian, Portuguese, Spanish, Danish, Swedish, Norwegian, Finnish, Czech, Slovenian, Romanian, Dutch, Croatian, Hungarian, Russian, Polish, Slovakian, Japanese, Serb

Battery power

Li-ion battery pack (6.6 Ah)

Battery life

12 hours with Li-ion battery pack

Power pack charger operation

Via an external power supply (100 to 240 VAC);

Operating voltage

9 VDC

Weight

2 kg, including batteries

Size

177 mm x 255 mm x 51 mm (H x W x D)



Product Info:
· Automated calibration Automated gain
· Automated make video of test process and play
· AWS D1.1, DAC/TCG, JIS DAC/TCG, AVG, DGS, A scan & B scan
· High-speed capture and very low noise
· Solid metal housing (IP65)
· High contrast viewing of the waveform from bright
· Powerful pc software and reports can be export to excel
· Small size, light weigh model

Digital Portable Ultrasonic Flaw Detector UT Flaw Detector Auto Calibration 0  Digital Portable Ultrasonic Flaw Detector UT Flaw Detector Auto Calibration 1  Digital Portable Ultrasonic Flaw Detector UT Flaw Detector Auto Calibration 2
                          DAC                                                      DGS                                                              TGS

Digital Portable Ultrasonic Flaw Detector UT Flaw Detector Auto Calibration 3  Digital Portable Ultrasonic Flaw Detector UT Flaw Detector Auto Calibration 4  Digital Portable Ultrasonic Flaw Detector UT Flaw Detector Auto Calibration 5
                        B Scan                                              B Scan Thickness                                            LEG ECHO

Digital Portable Ultrasonic Flaw Detector UT Flaw Detector Auto Calibration 6  Digital Portable Ultrasonic Flaw Detector UT Flaw Detector Auto Calibration 7  Digital Portable Ultrasonic Flaw Detector UT Flaw Detector Auto Calibration 8
                  LEG GRID                                                           REF                                                            RF

Main Technical Index:


FUNCTIONS

PARAMETERS

Frequency

0.2 – 20 MHz

Detection range

0 - 10000 mm

Sound velocity

100 – 20000 m/s

Working methods

Pulse echo, dual, and thru-transmission

Pulse Shift

-5 to 3400 μs in steel (dependent on range)

Zero point of the probe

0 – 100 μs

Gain adjustment

(0-110) dB, Step:0.2, 0.5, 1.0, 2.0, 6.0, 12.0, user definable(0-24), and locked

Vertical linear error

≤3%

Horizontal linear error

≤0.1%

Dynamic range

≥40dB

Sensitivity surplus

≥60dB (200mmdepth , Ф2 flat- bottomed hole )

Communications

Connect with computer through RS232 or USB

The average electric yawp

≤20%

Color TFT LCD

5.25”x 3.875” (133 x 98 mm), 640 x 480 pixels VGA, color

Gate alarm

Wave-entering gate / wave-losing gate sound alarm, width, height, location, continuous-tuning

Time of battery working

7 hours

Temperature of working

-10°C-60°C

Power

220VAC, 110VDC

Appearance size

11.9”W x 9.9” H x 2” D (302 x 251 x 51 mm)

Net weight

5.5 lbs. (2.5 kg) Li-Ion Battery; 4.8 lbs. (2.2 kg) without battery

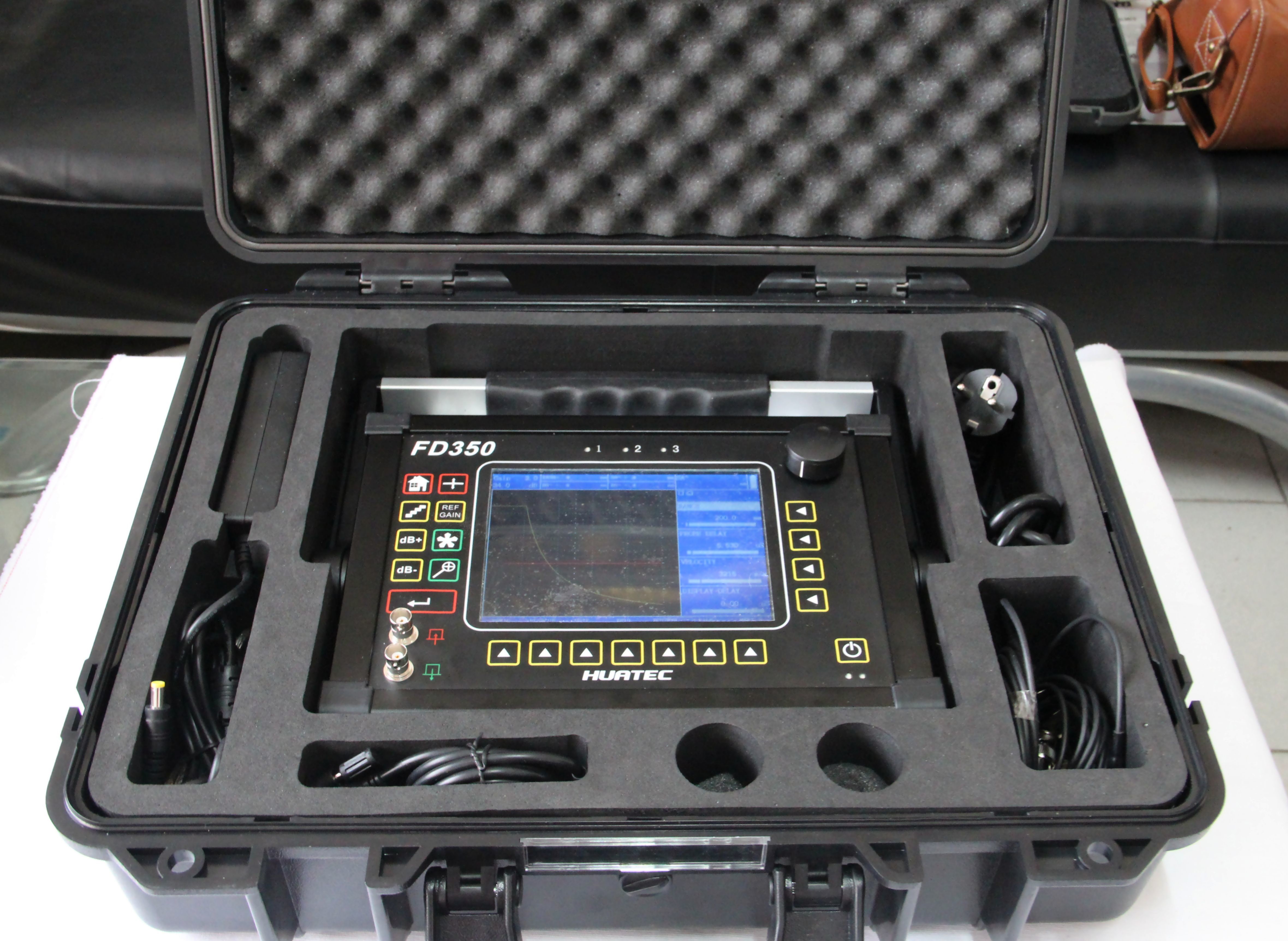

Standard Delivery of Digital Portable Ultrasonic Flaw Detector FD350:
Portable ultrasonic flaw detector main unit
Operating manual
Straight Beam probe
Angle-beam probe(60 degree)
Probe cable
PC software CD
Serial PC cable
AC adapter/charger
Carrying case

Additional Accessories:
Straight probe (5MHZ-ф20)
Straight probe (2.5MHZ-ф20)
Straight probe (2.25MHZ-ф20)
Straight probe (1MHZ-ф20)
Angle probe (4MHZ-45degree, 8*9mm)
Angle probe (4MHZ-60degree, 8*9mm)
Angle probe (4MHZ-70degree, 8*9mm)
Angle probe (4MHZ-80degree, 8*9mm)
Angle probe (2MHZ-45degree, 8*9mm)
Angle probe (2MHZ-60degree, 8*9mm)
Angle probe (2MHZ-70degree, 8*9mm)
Angle probe (2MHZ-80degree, 8*9mm)

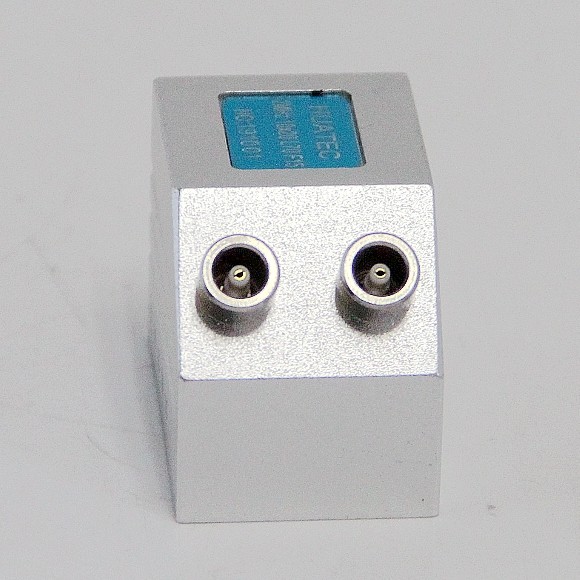

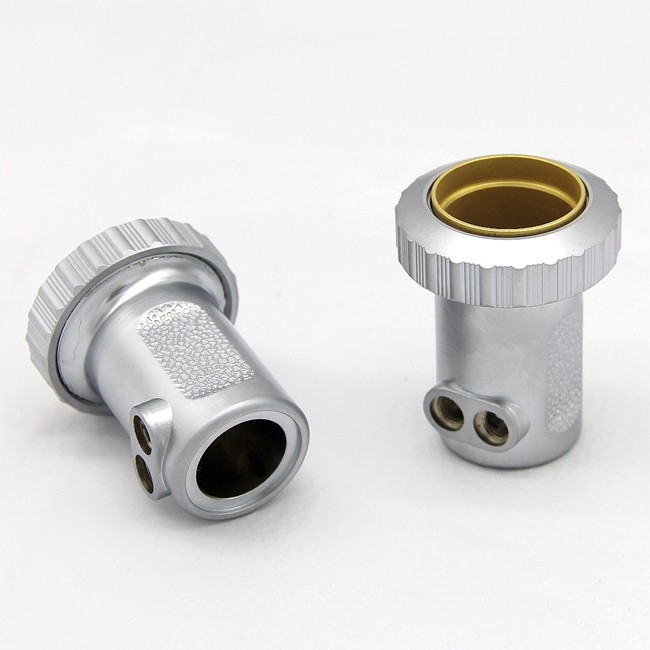

Probe T/R (5MHz-ф20mm, focus 15mm)
Probe T/R (2.5MHz-ф20mm, focus 15mm)
Connection cable to probe (BNC-BNC)
Connection cable to probe (BNC-Lemo 00)
Connection cable to probe (Lemo 01-BNC)
Connection cable to probe (Lemo 01-Lemo 00)
Lithium ion battery
Power adapter (4A/9V)
Power Cable
Leather case
Test block V1
Test block V2
Test blocks DAC, ASME etc.
