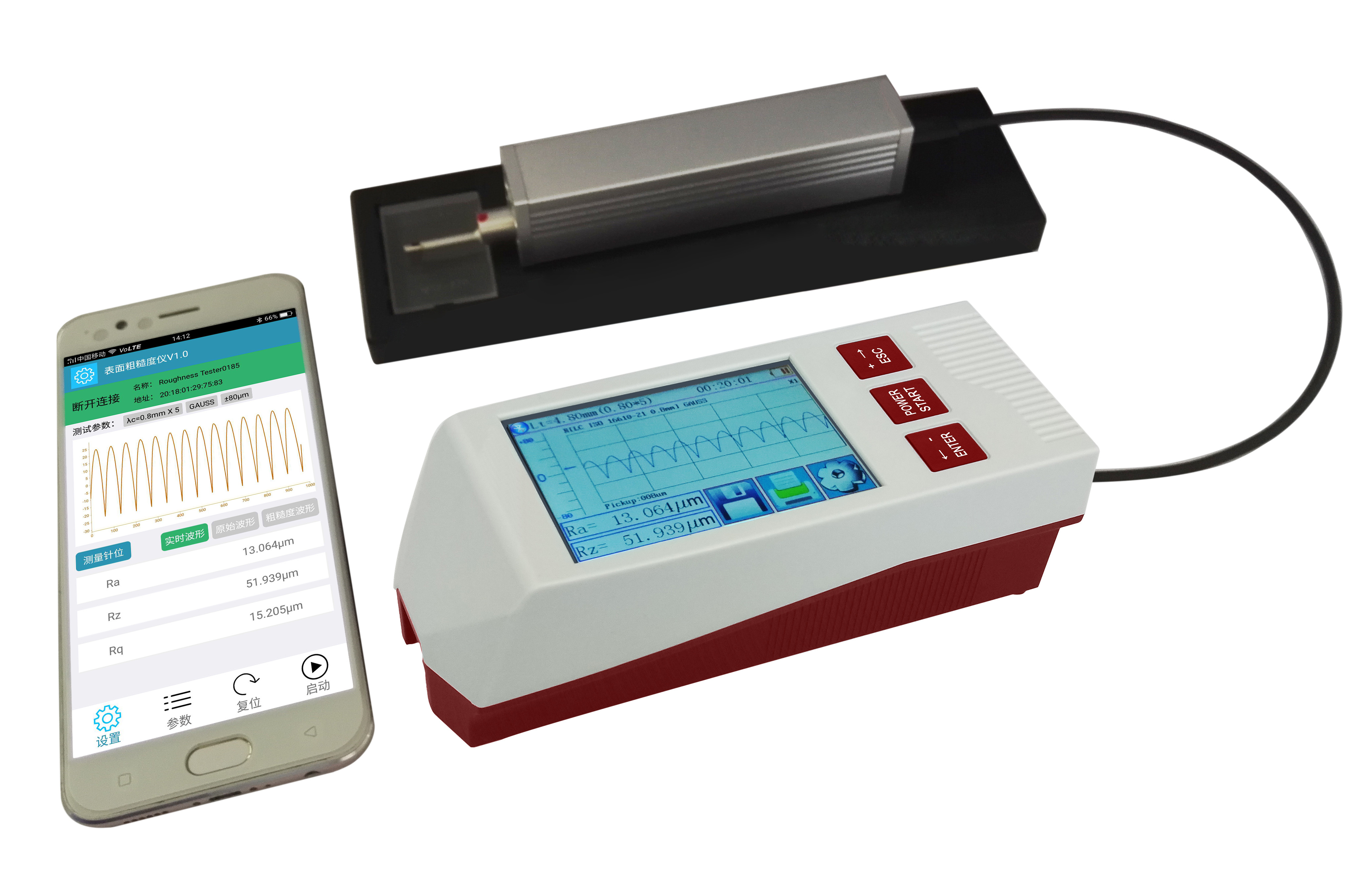

SRT-6680 TFT Touch Screen Surface Roughness Measuring Instrument Surface Roughness Gage


Roughness instrument is also called surface roughness instrument, surface finish instrument, surface roughness detector, roughness measuring instrument, roughness meter, roughness tester and other names. It has the characteristics of high measurement accuracy, wide measurement range, simple operation, easy to carry, stable work and so on, can be widely used in all kinds of metal and non-metal processing surface detection, the instrument is a sensor host integration of pocket instrument, with handheld characteristics, more suitable in the production site use. The appearance design, strong and durable, anti-electromagnetic interference ability is remarkable, in line with the new trend of today's design.


The application fields of roughness meter


First, machine processing manufacturing industry, mainly metal processing manufacturing. Roughness meter was originally produced for testing the surface roughness of machined parts. In particular, the stylus roughness measuring instrument is more suitable for the detection of hard metal surface. Such as: auto parts processing manufacturing, machinery parts processing manufacturing and so on. As long as the surface quality of the workpiece is involved in these processing and manufacturing industries, it is essential for the detection and application of the roughness meter.

Second, non-metal processing manufacturing industry, with the progress and development of science and technology, more and more new materials are applied to the processing technology, such as ceramics, plastics, polyethylene, and so on. Now some bearings are processed with special ceramic materials, and pumps and valves are processed with polyethylene materials. These materials are hard and can be used in some applications as a substitute for metal materials to make workpieces, and their surface roughness needs to be measured during production and processing.

Three, as the roughness instrument technology, and continuously strengthen and improve the function, as well as the further promotion and application, was found to be more and more industry demand roughness detection, in addition to the mechanical processing and manufacturing, electric power, communications, electronics, such as switches on the coupling, integrated circuits, semiconductor, etc in the process of production and processing of roughness is also need to assess, Even stationery, tableware and human teeth used in daily life should be tested for surface roughness


Main Features

  1. ● Composite structure of main display unit ,driver unit and Sensor. Electromechanical integration design, small size, light weight, easy to operation;
  2. ● Support Bluetooth printing and mobile APP wireless operation.
  3. ● Multi parameters:Ra,Rz,Rq,Rt,Rp,Rv,R3z,R3y,Rz(JIS),Rs,Rsk,Rsm,Rku,Rc,Ry,Rmax,Rmr; RPc,Rk,Rpk,Rvk,Mr1,Mr2
  4. ● In addition to calculation results, the tester can display primary profiles and assessed roughness profiles and load curves.
  5. ● 320μm Large measurement range;

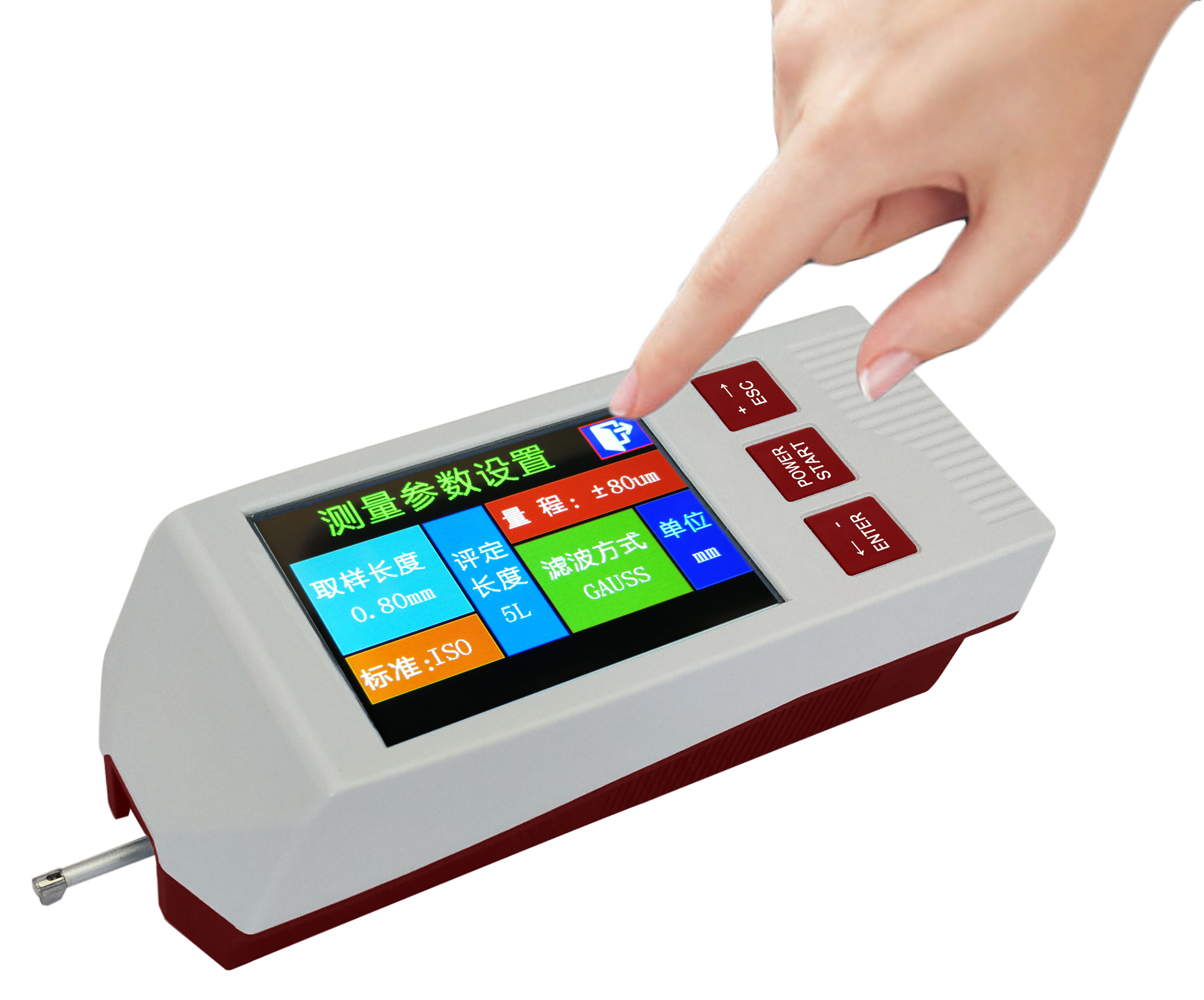

  6. ● The 3.5-inch color graphic LCD provides excellent readability and an intuitive display that is easy to negotiate. The LCD of 480*320 dot matrix includes a adjustable backlight for improved visibility in dark environments. Wide angle of view;
  7. ● DSP chip control and data processing, high speed, low power consumption;
  8. ● Display full information, intuitive and graphical displays all parameters;
  9. ● The tester Complies with the following standards:ISO-1997, DIN, ANSI, JIS2001
  10. ● 4 Profile Filter: Gauss RC PC-RC D-P
  11. ● Built-in 3200mAh lithium-ion rechargeable battery and control circuit, high capacity, no memory effect;
  12. ● The tester can graphically display the remaining battery power.
  13. ● The tester can be animated to show that it is charging and filling., the operator can readily understand the level of charge
  14. ● Can work more than 50 hours while the power is enough;
  15. ● Large capacity data storage, can store 100 item of raw data and measured profile;
  16. ● Real-time clock setting and display for easy data recording and storage;
  17. ● With automatic sleep, automatic shutdown power-saving features;
  18. ● Reliable circuit and software design of prevent the motor stuck;
  19. ● Instrument can display a variety of information tips and instructions. For example Measurement result display, the menu prompts and error messages;
  20. ● Metal case design for driver unit, rugged, compact, portable, high reliability;
  21. ● Can connected to the computer and printer;
  22. ● All parameters can be printed or print any of the parameters which set by the user;
  23. ● Optional curved surface pickup sensor, holes sensor, minuteness holes sensor, measurement stand, Sheath of sensor, extension rod, printer and analysis software;



Technical parameters

Measuring Range The Z axis (vertical) ±80μm/±160 µm(enhanced model)
The X axis (Transverse) 20mm
Resolution The Z axis (vertical) 0.01μm/±20μm

22 Parameters


Ra,Rz,Rq,Rt,Rp,Rv,R3z,R3y,Rz(JIS),Rs,Rsk,Rsm,Rku,Rmr,Ry(JIS), Rmax, RPc, Rk, Rpk, Rvk, Mr1, Mr2)
Graphic Bearing area curve, Roughness profile, Primary profile
Filter RC,PC-RC,Gauss,D-P
The sampling length(lr) 0.25, 0.8, 2.5mm
Assessment length(ln) Ln= lr×n n=1~5
Sensor Measuring method skidded
Stylus tip Diamond, 90 cone angle, 5μmR
Force <4mN
Skid part hard alloy, skid radius of curvature: 40mm
Traversing speed lr=0.25, Vt=0.135mm/s
lr=0.8, Vt=0. 5mm/s
lr=2. 5, Vt=1mm/s
Return Vt=1mm/s
Accuracy Less than ±10%
Repeatability Less than 6%
Power supply Built-in Lithium ion battery, Charger :DC5V,800mA
Outline dimension Main unit: 64*53*160mm drive: 23*27*115mm
Weight(main unit) Around 380g
Working Environment

Temperature: - 20℃ ~ 40℃

Humidity: < 90% RH

Store and Transportation

Temperature: - 40℃ ~ 60℃

Humidity: < 90% RH


Standard Delivery

SRT6680 Host 1 PC
Sensor TS110 1 PC
Calibration block and bracket 1 PC
Bracket for Calibration Block 1 PC
Height adapter 1 PC
Power Charger & USB Cable 1 PC
PC Software 1 PC
User manual 1 PC
Instrument case 1 PC
Warranty 2 Years



Optional accessories:


Sensor for curve/concave/groove surface, hole sensor, measuring platform, extension rod, calibration plate.
