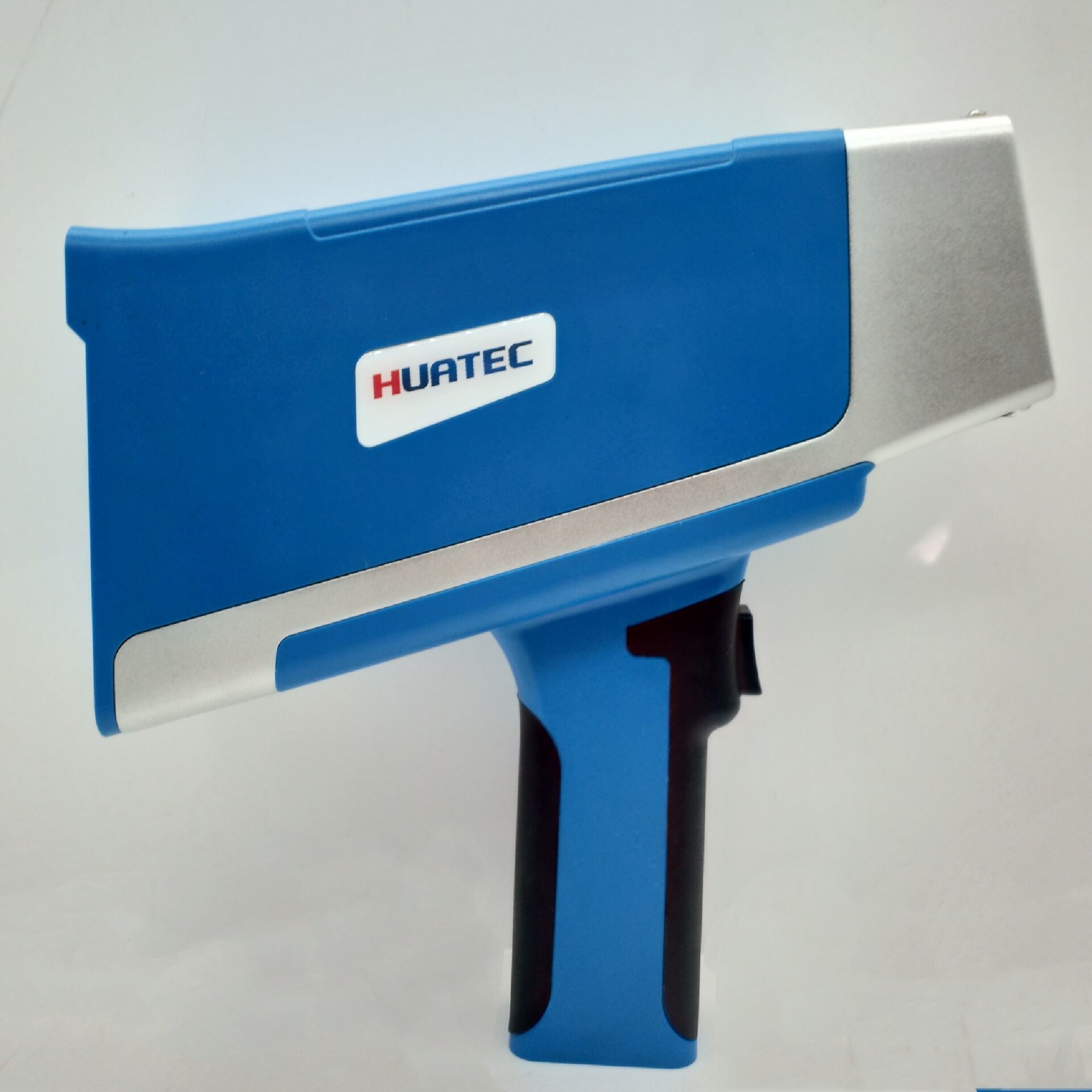

Gun Bluetooth Xrf Handheld Metal Alloy Analyzer

HUATEC Handheld Alloy Analyzer Alloy Material Identification (PMI) Si-PIN Detector HXRF-120DP

Main Application

1. Excellent Performance

HXRF-120DP shows element symbols in both English. With high precision, high testing speed and comparable results to even that of laboratory equipment, HXRF-120DP displays alloy grade and elements percentage content (up to three decimals) and ppm content in an apparent way.

1. One-touch operation

HXRF-120DP test lasts only a few seconds and identification of alloy grades takes only 1 or 2 seconds. This facilitates operation by non-technical users.

1. Nondestructive testing (NDT)

HXRF-120DP test does not damage or have any adverse effect on the use of samples. No damage is foreseen in the entire test process

Application fields

• Nondestructive, rapid and accurate analysis of alloy elements and alloy grade identification on the site
• Metal identification /scrap metal sorting
• QA/QC management in metal production, processing, casting, etc
• Medicine and biological medicine
• Identification of positive materials, oil refining and petrochemical industry
• Thermal power plant, hydroelectric power station, nuclear power plant
• Accurate element analysis of raw material and PMI identification so as to meet production needs and ensure security of equipment and materials used in the process.

Design features

1. The light weight, small size and pointed mouth are designed in accordance with human engineering

2. Excellent performance, on-site nondestructive testing, automatic compensation for irregular or small sample tests

3. One-key button design, simple operation

4. 1/3 body aluminum alloy structure, good heat dissipation effect, stable work

5. 10 seconds fast startup is better than similar instruments;The test is fast and can accurately analyze the metals involved in the RERA and the preferred control contaminating metals in seconds

6. Solid structure, sealed large screen color TFT display, no LCD plateau reaction, moisture and dust proof

7. Stable and advanced operating system, advanced I-Smart software, quick response

8. Massive storage and long standby time

9. Flexible and universal communication functions

Technical parameters

[Weight] Basic weight: 1.4kg, 1.5kg after loading the battery

[Dimension (height x width x length)] 300mm x 90mm x 220mm

[Excitation source] Five kinds of target materials can be selected: gold (Au), silver (Ag), tungsten (W), tantalum (Ta), palladium (Pb).

[Voltage, current and power] High-power micro X-ray tube 50KV, 100MA, 5W

[Filter] Six optional filters are automatically adjusted according to different physical objects

[Detector] High-performance high-resolution SI-PIN X-ray detector

[Refrigeration temperature of detector] Peltier effect semiconductor refrigeration, refrigeration temperature -35

[Standard sheet] External 316 standard sheet;

[Resolution] & LT;180

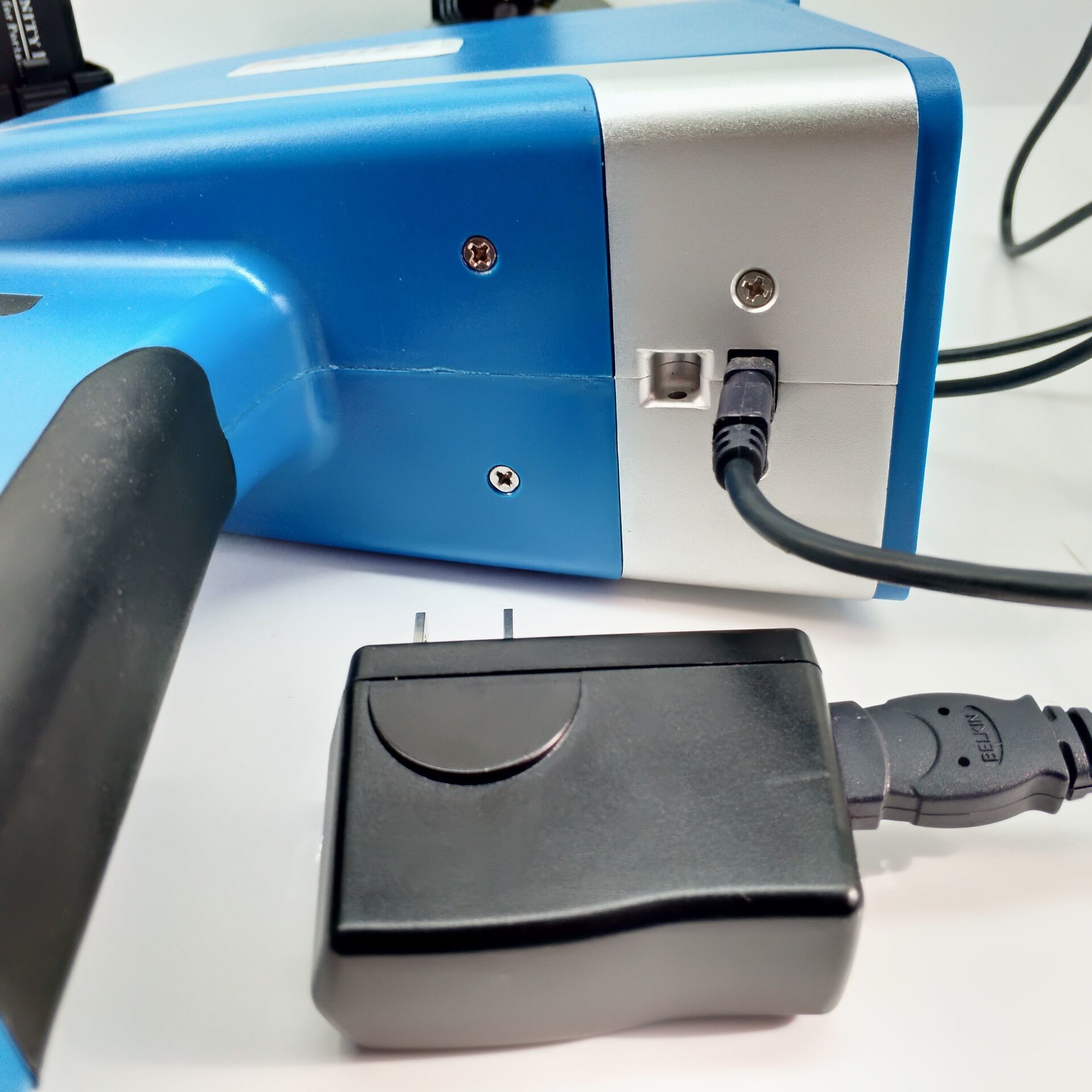

[Power supply] 8 hours /2 blocks of lithium power supply and AC power supply

[Processor] Intel 400MHz Strong-arm processor

[Operating system] Mobile Windows CE system

[Software Standard Mode] Alloy

[Data processing] 8G large-capacity data memory card: ≥40, 000 groups of data and spectrograms, which can be viewed at any time through the instrument's touch screen computer or exported to personal PC.

[Data analysis] Multiple analysis modes, including basic parameters, Compton normalization, empirical calibration mode, spectral color matching

[Data display] focuses on PPM with percentage (%) display, spectral or peak intensity (counting rate) or user-defined units

[Data transmission] RS232 serial cable, Bluetooth, TXT file, EXCEL grid output.

[Display screen] Color, high resolution 3.5-inch TFT industrial-grade touch screen, large icon graphical interface, clearly visible under any light conditions;

[Appearance design] Integrated fuselage design, solid, waterproof, dustproof, anti-freeze, effective anti-vibration, suitable for outdoor, wet or low temperature environment.

[Safety operation] One-touch "trigger", the software automatically timing lock the trigger or automatically stop the test protection function;Determine that there is no sample in the test window and the X - ray will be automatically turned off within 2 seconds

[Analysis elements] Cr, Mn, Fe, Ni, Cu, Zn, Hg, As, Pb, Se, Rb, Sr, Zr,Co, V, Mo, Ag, Cd, Sn, Sb, Ba,K, Ca, Ti and Th have no less than 25 elements;

[Test environmental conditions] Temperature -20 ~ +50℃, humidity < 80%RH.

[Boot time] The device will not be powered on for more than 15 seconds before entering the test interface

[Calibration] The instrument has been calibrated before leaving the factory; However, the instrument still has the function of establishing a targeted correction curve, which is suitable for the precise test of specific samples

[Result Report] Equipped with standard USB interface, Bluetooth wireless transmission and built-in WiFi, the instrument can directly transmit data to computers or network storage devices, and directly download measurement data and X-ray spectra in customized report format and EXCEL format.User permissions can be set, custom reports can be generated and analysis reports can be printed.

Technical parameters and specifications

After service

1． Quality warranty:

HUATEC commits that HXRF-120DP handheld spectrometer is fabricated with fine grade materials and top notch workmanship. It is brand new, never used, and in full compliance with the quality provision of this Contract. HXRF-120DP warranty is 12 months starting from the date of final acceptance of the goods/commissioning of machine.

2． Technical training:

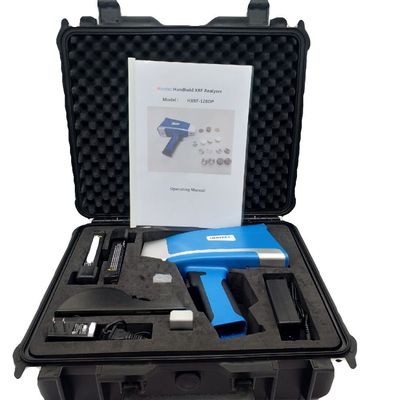

Operating Manual of HXRF-120DP Handheld Spectrometers

Maintenance Manual of HXRF-120DP Handheld Spectrometers

3． After-sale service

Over the years, HUATEC has sold XRF instruments to many global users. In order to provide better technical support and service, it shall be committed to.

1)． services including

1. HUATEC shall provide after-sales service to all products it has sold worldwide.
2. HUATEC shall provide a one-year warranty for the spectrometer it has sold worldwide.
3. HUATEC shall provide one-year warranty for X-ray Tube (X-ray tube) and Detector (Detector).
4. HUATEC shall provide one-year renewal warranty for the replaced components in case there is any replacement of them during repair of machine.

2)． The following physical damage is not covered by warranty.

1. instrument is impacted by great force that the internal impact sensor changes from white to red;
2. Detector is broken
3. PDA is broken;
4. Instrument body is broken;
5. Loss of accessories
6. Loss of components
7. Water coming into instrument

3)． In case the instrument is not able to operate, the customer can call after-sales service for help; we offer 3 types of repairs:

1. Internet repair: if the customers are in foreign countries or remote areas, we can offer them first the INTERNET repair service.

Website: www.huatecgroup.com Email:export@huatecgroup.com

2. Phone repair: customers called over the phone to explain explicitly the problem and our technical staff will instruct them to solve the problem.
3. On-site repair: in case the phone repair fails, our technical personnel will go to the site to repair the instrument within 72 hours after the problem is reported; for aboard customer, on-site repair need to be talked in details.

4)． Out-of-warranty service: upon expiry of the warranty period, all customers are still entitled to out-of-warranty service during the working life of the instrument.

5)． Privilege in out-of-warranty service: customers shall have the privilege to get preferential prices on the components when they maintain their instrument during the out-of-warranty period as long as they maintained it beforehand.
