Easy to use portable RS232 3.7V hardness tester ndt testing RHL80

China Easy to use portable RS232 3.7V hardness tester ndt testing RHL80 supplier

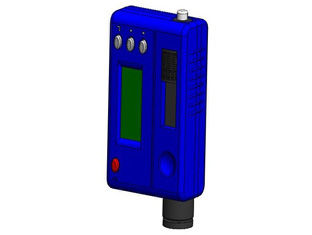

Large Image :  Easy to use portable RS232 3.7V hardness tester ndt testing RHL80

Product Details:

Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: RHL80

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Carton
Delivery Time: 3-7 days
Payment Terms: TT
Supply Ability: 500 per month
Detailed Product Description

Portable Hand Held Leebs Metal Hardness Testers, portable hardness tester time th130, RHL80

The Unigue designportable metal hardness test of the portable hardness tester RHL80 convinces with precise measurements on most metals. It offers the same features as the common hardness test but also allows user defined hardness conversions.

Customaries curve for a specific testing material

  • Can test multi-metal material, high accurate and stable.
  • Easy converts to all common hardness scales (HV, HB, HRC HRB, HRA, HS).
  • Upper and lower limit of hardness can be preset;
  • When the tested value exceeds the limits, alarm will send out automatically to make convenient for the requirements of batch measurements.
  • Equipped with 7 types of impact devices which need not to be recalibrated when changing them, the system can identify the type of impact device automatically.
  • LCD display of 128×32matrix is used. menu operating is easy and convenient.
  • Back light display has been used to make convenient for the use in poor light.
  • Large memory of up to 1000 sets of data and time
  • Rechargeable Li-Ion battery with no memorability
  • With RS232 interface, multiple communication modes are adopted to meet customized
  • requirements of various users.
  • Power continuous working period: Approx 100 h (no back light on).
  • Software of PC can be installed according to the requirements of user, the function will

be more powerful to satisfy the more strict demands of quality control and management.

 Technical capabilities

  • Measuring range: HLD(170~960)HRC(17.9~68.5)HV(80~976)HS(30~100)

HRA(59~85)HRB(59.6~100)HB(80~651)

  • Measuring direction: 360°
  • Hardness scale: HL, HB, HRB, HRC, HRA, HV, HS
  • Display: LCD, 128×32 matrixLCD
  • Data memory: 1000 groups (impact times: 10~1)
  • Range of upper and lower limit: the same as measuring rang
  • Working voltage: 3.7V Rechargeable Li-Ion battery
  • Continuous working period: approx. 100 h (no back light on)
  • Communication interface: RS232
  • Dimension:145X62X30mm
  • Weightapprox: 0.5kg

Testing Range of portable leeb hardness tester RHL80:

Material

Hardness method

Impact device

D/DC

D+15

C

G

E

DL

Steel and cast steel

HRC

17.9~68.5

19.3~67.9

20.0~69.5



22.4~70.7

20.6~68.2

HRB

59.6~99.6





47.7~99.9



37.0~99.9

HRA

59.1~85.8







61.7~88.0



HB

80~651

80~638

80~683

90~646

83~663

81~646

HV

80~976

80~937

80~996



84~1042

80~950

HS

30.0~99.5

33.3~99.3

31.8~102.1



35.8~102.6

30.6~96.8

Hammered steel

HB

143~650











Cold work tool steel

HRC

20.4~67.1

19.8~68.2

20.7~68.2



22.6~70.2



HV

80~898

80~935

100~941



82~1009



Stainless steel

HRB

46.5~101.7











HB

85~655











HV

85~802











Gray cast iron

HRC













HB

93~334





92~326





HV













Nodular cast  iron

HRC













HB

131~387





127~364





HV













Cast aluminum

alloys

HB

19~164



23~210

32~168





HRB

23.8~84.6



22.7~85.0

23.8~85.5





Brass(copper-zinc alloys)

HB

40~173











HRB

13.5~95.3











Bronze (copper-aluminum/copper-tin alloys)

HB

60~290











Wrought copper

alloys

HB

45~315











 Application Ranges:

  • Ideal for production level testing.
  • Ideal for tooling cores and cavity.
  • Best suited for on-site testing for heavy big or already installed parts.
  • Handy for difficult to access or confined test locations
  • Easy to use and accurate on curved test surfaces(R>10mm)
  • Good for all metal.

Application areas:

  • Automotive and transportation
  • Machinery and power plants
  • Petrochemical and refineries
  • Aerospace and shipyard
  • Metal constructions
  • Testing services and laboratories

Ordering information:

No

Item

Num



1

RHL80 Main unit

1



2

Small supporting ring

1



3

Nylon brush (A)

1



4

High value Leeb test block

1



5

Communication cable

1



6

Instruction Manual

1



7

Instrument Case

1



8







9







10







11

Box Of instrument

1



12

Printer



Optional

13

Printer cable



Optional

Key words:Hardness Tester, Leeb Hardness Tester, Portable Hardness Tester, Portable Hand Held Leebs Metal Hardness Testers, Portable, Hardness Testers, hardness testing equipment, hardness testing machine, ndt, non destructive testing, ndt testing, impact device, Leebs, ASTM Standards, HRC, HRB, HRA, HB, HV, HS, HLD, hardness values, DIN 53505, ASTM D2240, ISO 7619
