Echo-echo Wall Ultrasonic Thickness Gauge Ultrasonic Coating Thickness Gauge

1pcs
MOQ
Echo-echo Wall Ultrasonic Thickness Gauge Ultrasonic Coating Thickness Gauge
Features Gallery Product Description Request A Quote
Features
Specifications
Display: Color 320x240 Pixels Display
Scan Mode: A-Scan Snapshot
Echo-Echo: Through Painting
Memory: 100,000 Readings
Gain: Low, Medium Or High For Varying Test Conditions
Measuring Range: 0.60mmto 508mm(0.025" To 20.00"), Depending On Material, Probe And Surface Condition
High Light:

portable ultrasonic thickness gauge

,

through coating thickness gauge

Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: TG-4500 series
Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Product Description

Echo-echo TG4500 Series Ultrasonic Coating Thickness Gauge A-Scan Snapshot / Thru-painting

 Features:
Color 320x240 Pixels Display
A-Scan Snapshot
Echo-Echo Mode(Thru Paint & Coatings)
Stores 100,000 Readings
Gain: Low, Medium or High for varying test conditions


Specifications

Feature

TG-4500

TG-4500D

TG-4500DL

Data Logger Option

Color Display

  •
  •
  •



A-Scan Snapshot

  •
  •
  •



Gain: Low, Medium, High

  •
  •
  •



Min/Max Capture

  •
  •
  •



DIFF/RR%

  •
  •
  •



Thru-paint

  •
  •



Data Logger

  •
  •

Data View Software

  •
  •




Instrument Specifications

Display Type

2.4" color OLED, 320X240 pixels, contrast 10,000:1

Operating Principle

Pulse echo with dual element transducers

Measuring Range

0.60mmto 508mm(0.025" to 20.00"), depending on material, probe  and surface condition

Through Coating FunctionCoating thickness:0-2mm;Measuring range:3-25mm

MeasuringResolution

Selectable 0.01mm, 0.1mm(selectable 0.001", 0.01")

Units

Inch or Millimeter

Gain

Low, Medium or High for varying test conditions

Display Mode

Normal, Minimum / Maximum capture, DIFF/RR%

V-Path Correction

Automatic

Update Rate

Selectable 4Hz, 8Hz, 16Hz

MaterialVelocity Range

500 to 9999m/s (0.0197 to 0.3937in/us)

Languages

Selectable Chinese, English, Japanese

Alarm Settings

Minimum and Maximum alarms. Range of 0.25 mm to 508 mm (0.010" to 20.00"). Dynamic waveform color change on alarm

Power Requirements

2 AA size batteries

Operating Time

Approximately 40 hours

Instrument Shut-off

Selectable ALWAYS ON or AUTO OFFafter 5, 10, 20 minutes of inactivity

Operating Temperature

-10°Cto +50°C (+10°F to +120°F)

Size

153mmX 76mm X 37mm(H X W X D)

Weight

280gincluding batteries



Data Logger Option Features

Capacity

400 files, 100,000 readings

File Structure

Grid file

Rows X Columns

21 X 12

CommunicationPort

USB 2.0 (Full Speed ) port

Software

Data View PC software



Standard Configurations

Thickness Gauge

1

Probe

1

Alkaline Battery

2

Couplant

1

Carrying Case

1

Operation Manual

1

USB Cable

1(Only TG-4500DL)

Software CD

1(Only TG-4500DL)

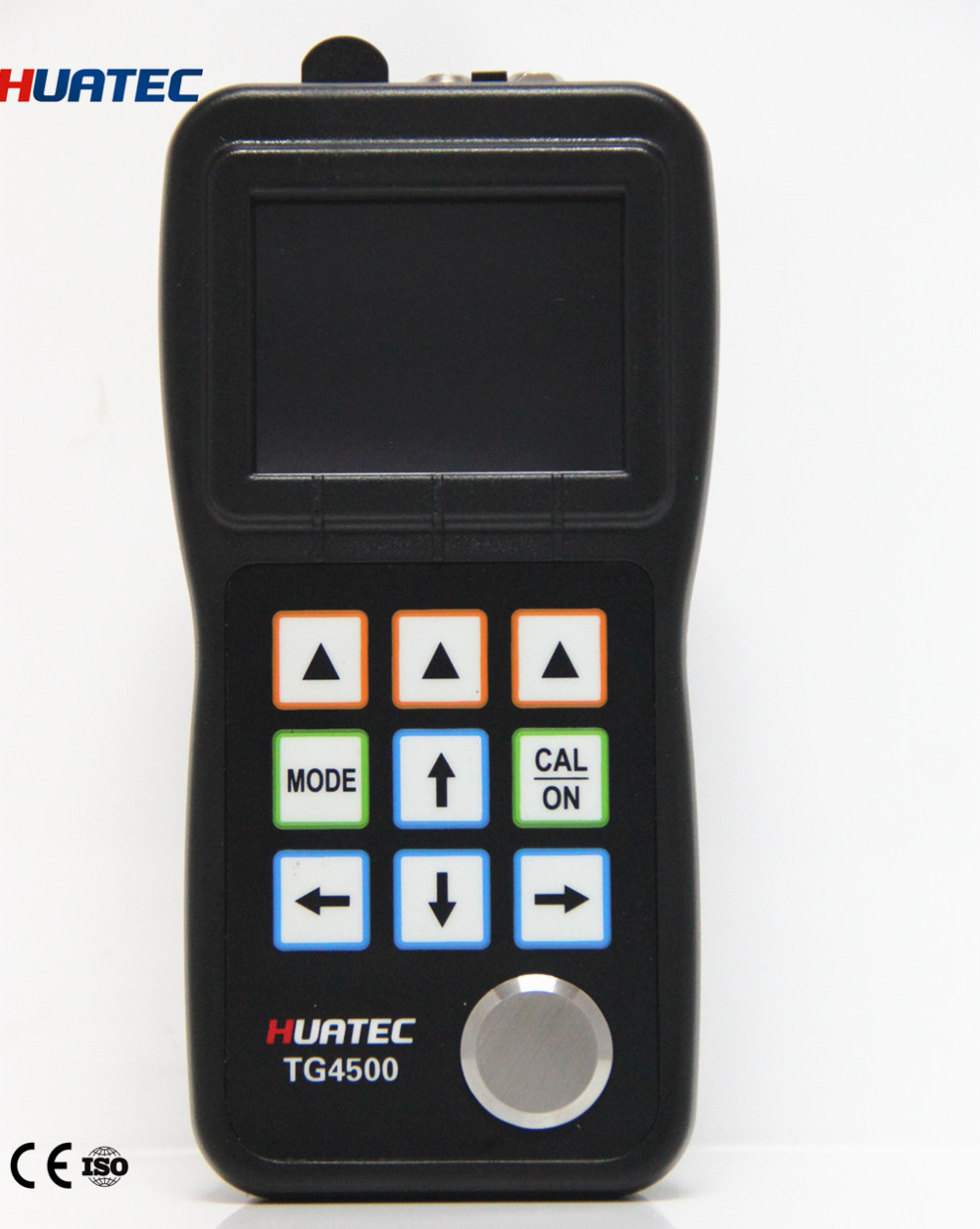

Echo-echo Wall Ultrasonic Thickness Gauge Ultrasonic Coating Thickness Gauge 0Echo-echo Wall Ultrasonic Thickness Gauge Ultrasonic Coating Thickness Gauge 1


Optional Configurations

High-temperature Probe

Cast Iron Probe

Small Probe

Mini Probe

Probe Cable

Stepped Calibration Block

Rubber Sheath

Storage Option(Only TG-4500DL)
