Portable Handheld Shaker Vibration Calibrator Sine Signal Generator Power Amplifier

1pcs
MOQ
Portable Handheld Shaker Vibration Calibrator Sine Signal Generator Power Amplifier
Features Gallery Product Description Request A Quote
Features
Specifications
Color: Black
Standard: ISO10816
Amplitude Accuracy: Acceleration (@10m/s2 Pk) 40Hz To 320Hz + 0.3dB + 1digit 20Hz To 640Hz + 0.5dB +1digit Velocity (@20mm/sec Rms) 40Hz To 320Hz +0.5dB +1digit Displacement (@50μm Pk-pk) 40Hz To 320Hz + 0.5dB + 1digit
Size: 300 X250 X210(mm)
Net Weight: 6kgs
Operation Temperature: 0 To 50 Dec
Power: 220Vac (optional 110Vac)
Product Name: Vibration Calibrator
High Light:

sine signal handheld shaker vibration calibrator

,

portable handheld shaker vibration calibrator

,

sine signal portable shaker vibration calibrator

Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HG5026
Frequency: from 1 to 1280 Hz
Display: 3 1/2 digit display for vibration and frequency
Calibrator combines: sine signal generator, power amplifier, standard transducer and a shaker
Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Product Description

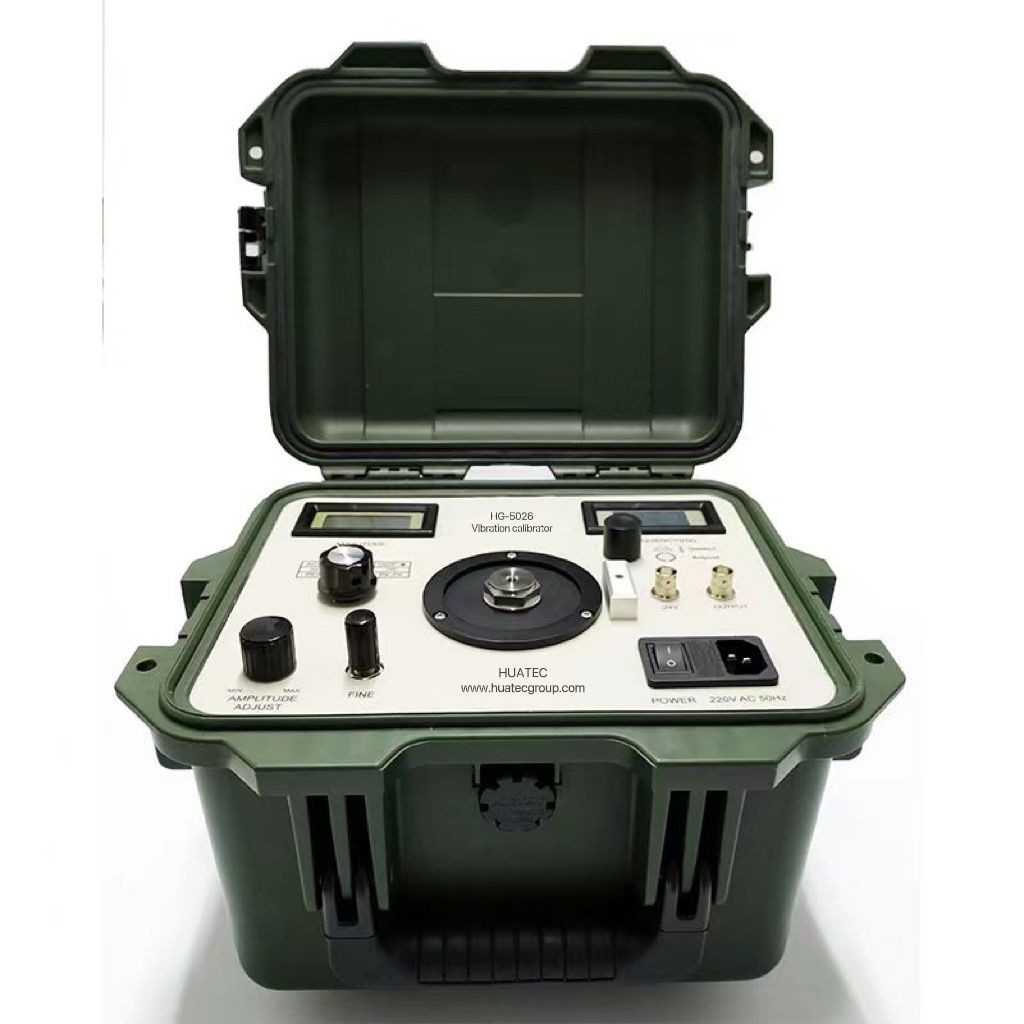

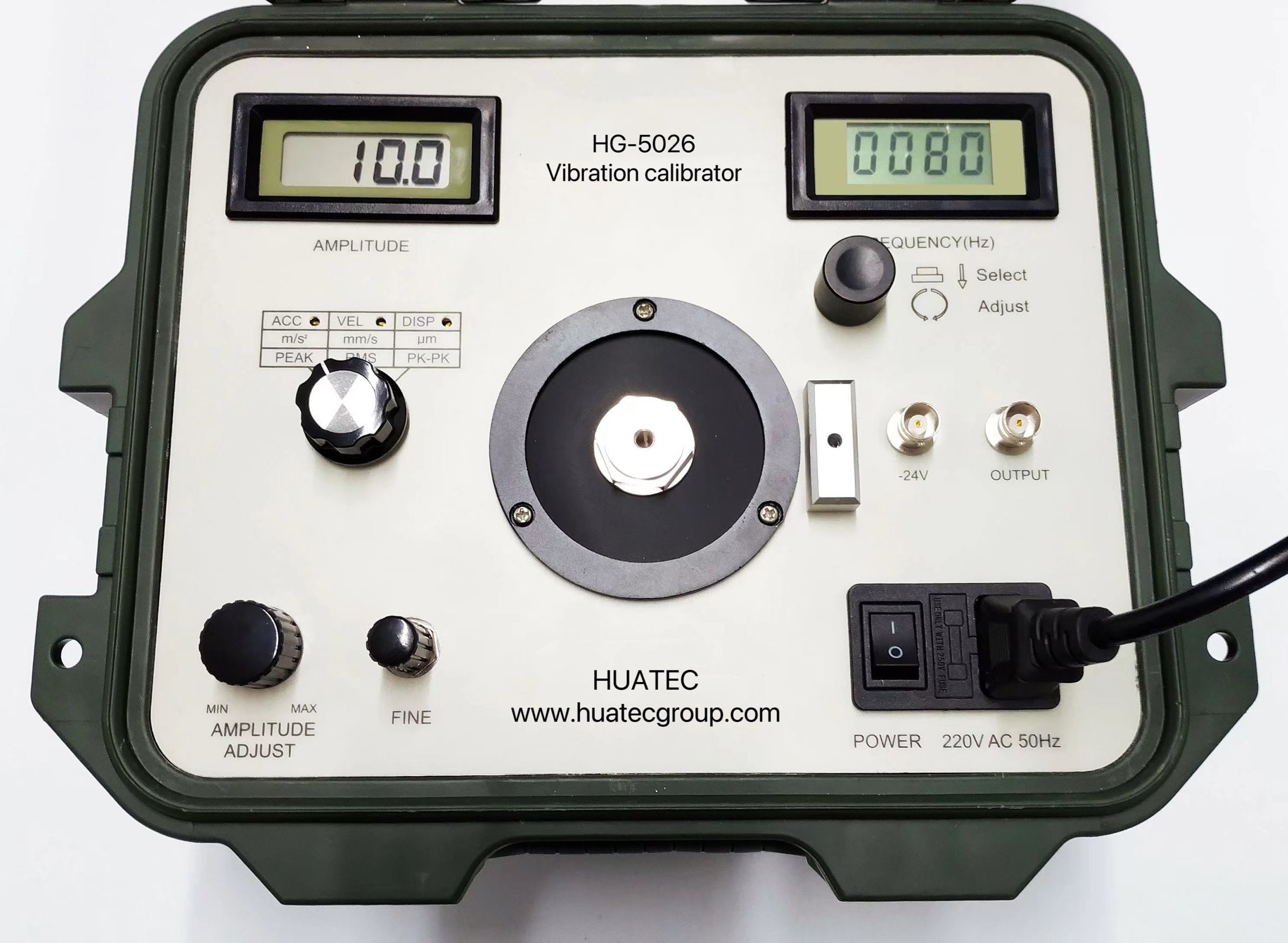

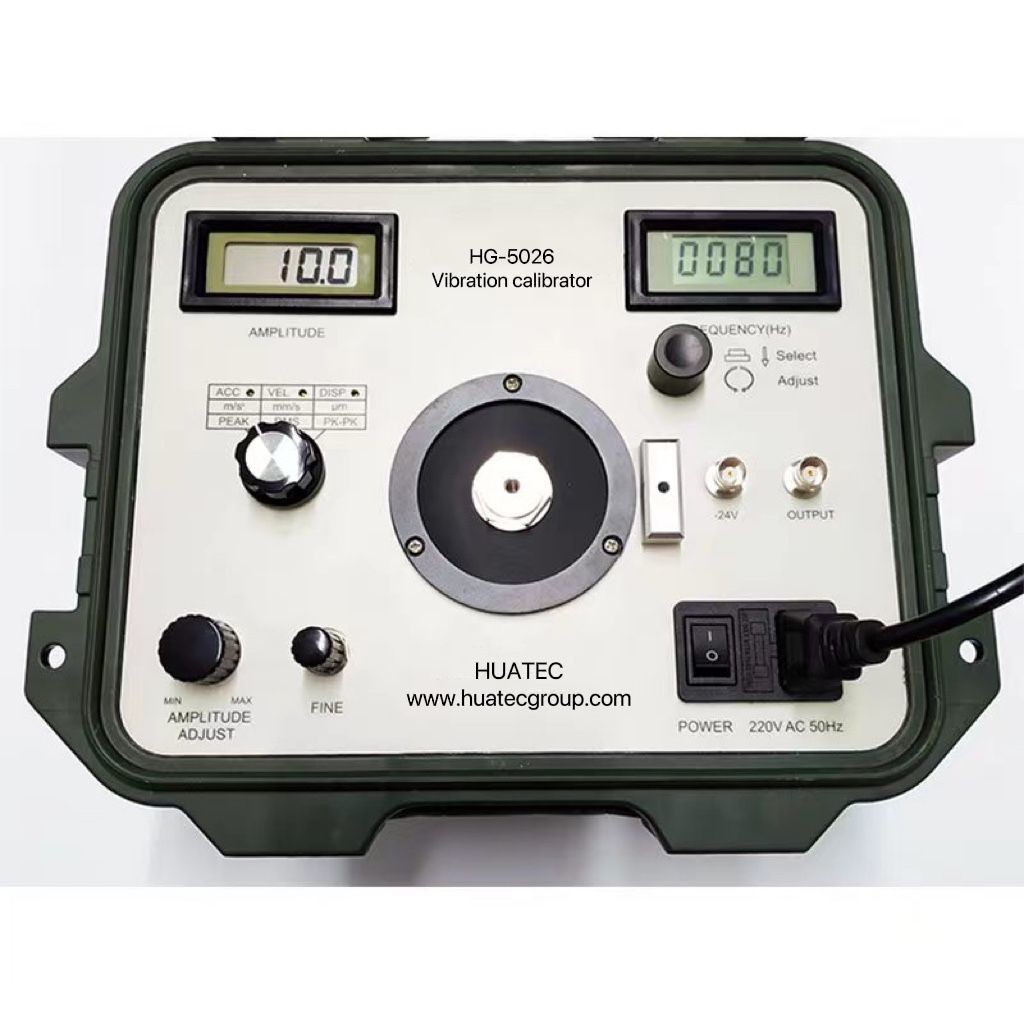

Sine Signal Generator Power Amplifier Vibra Digital Vibration Shaker For Vibration Meters Handheld





HG-5026 vibration calibrator can be used to calibrate vibration accelerometer, velocity and proximity transducer and also a vibration measuring instrument.

Standard sine signal vibration at any frequency from 1 to 1280 Hz can be defined in the calibrator.

The amplitude of the acceleration, velocity and displacement, can be defined through potentiometers and shown on digital displays.

Either horizontal or vertical vibration can be generated.

HG-5026 combines sine signal generator, power amplifier, standard transducer, vibration meter and a shaker in one and features a small volume, high accuracy and easy operation.

It can be used either in laboratory or on site.



Specifications

Frequency: from 1 to 1280 Hz,adjustable

Amplitude accuracy:

Acceleration (@10m/s2 pk) 40Hz to 320Hz + 0.3dB + 1digit

20Hz to 640Hz + 0.5dB +1digit

Velocity (@20mm/sec rms) 40Hz to 320Hz +0.5dB +1digit

Displacement (@50μm pk-pk) 40Hz to 320Hz + 0.5dB + 1digit

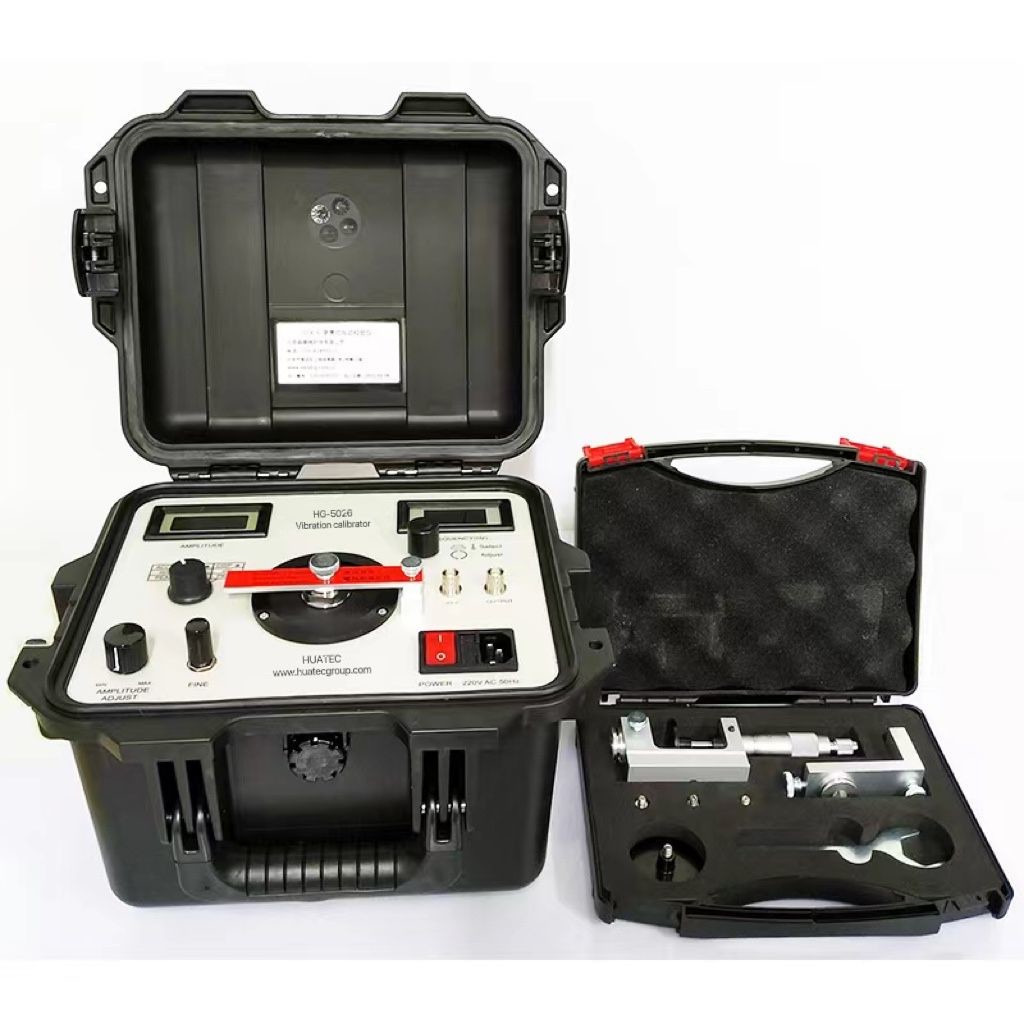

Proximity probe linearity calibration kits

Probe: 5mm and 8mm probes Range: 0~2.0mm

Display: 3 1/2 digit display for vibration and frequency

Size: 300 x250 x210(mm)

Weight: 6kgs

Temperature: Operation: 0oC to 50 oC

Storage: -20 oC to 70 oC

Humidity: 90% non -condensing



Maximum vibration amplitude & transducer weight

Wt



Freq

<100g <250g <500g
a(m/S2) v(mm/S) d(μm) a(m/S2) v(mm/S) d(μm) a(m/S2) v(mm/S) d(μm)
10Hz 2.5 28 1300 3.5 40 1800 4 45 2000
20Hz 15 85 1900 10 60 1300 5 28 640
40Hz 60 170 2000 35 100 1100 12 35 380
80Hz 100 141 800 40 60 320 14 20 110
160Hz 75 53 150 35 25 70 12 8.5 24
320Hz 50 18 25 30 10 15 10 3.5 5
640Hz 30 5 3 20 3.5 2 6 1 *
1280Hz 23 2 * 10 0.9 * 5 0.4 *

Note: With higher frequency the value of the displacement of vibration is very small so there will be no vibration signal output from the calibrator.



We also offer vibration calibration system for more high accuracy as below photo:

Portable Handheld Shaker Vibration Calibrator Sine Signal Generator Power Amplifier 0





Portable Handheld Shaker Vibration Calibrator Sine Signal Generator Power Amplifier 1
