Digital Coating Thickness Gauge,Painting Thickness Meter, Coating Thickness Measurement Instruments
1pcs
MOQ
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: TG 2100 Series
High Light:

digital thickness gauge

,

coating thickness meter

Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Specifications
Material: ABS
Color: Orange
Product Description

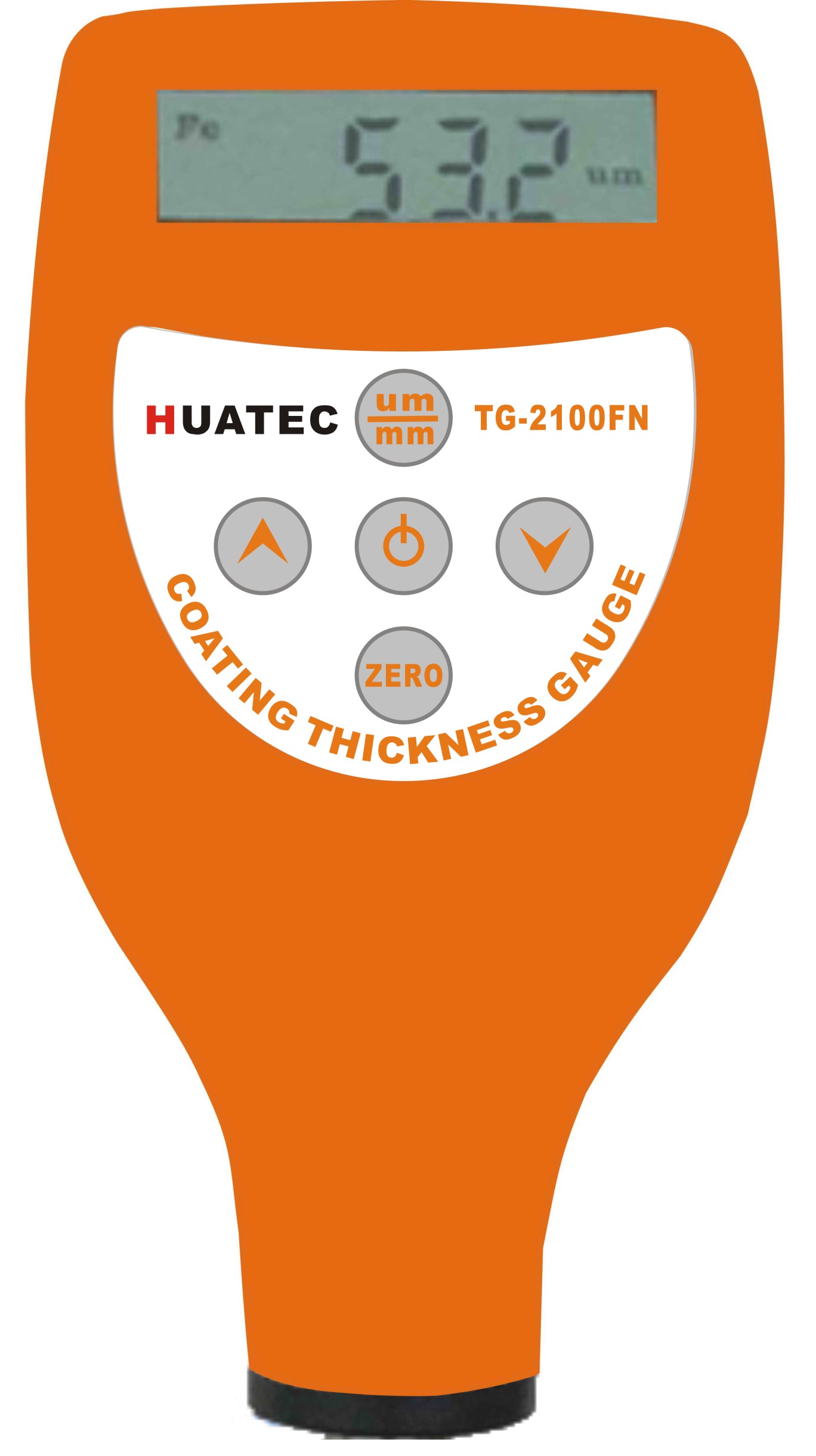

Digital Coating Thickness Gauge,Painting Thickness Meter, Coating Thickness Measurement Instruments



Description:

With separate probe(s)
Function: TG-2100F (ferrous substrate) TG-2100NF (non ferrous substrate) TG-2100FN (2 in 1, F & NF type)

Operating principle: magnetic induction/eddy current (F/NF)

Measuring range:ferrous (F): 0-2000um, nonferrous (NF): : 0-2000um

Resolution; 0.1/1

Accuracy: ±1-3%n or ±2.5um

Min. measuring area: 6mm

Min. sample thickness: 0.3mm

Battery indicator: low battery indicator

Metric/ imperial: convertible

Power supply: 4x1.5V AAA(UM-4)battery

Auto power off

Operating conditions:0-+45℃(32℉-104℉), ≤90%RH

Dimensions: 126x65x27mm

weight: 81g(not including battery)
Optional accessories: other range 0-2000um to 18000um

Application:
1. Coating thickness gauge TG-2100F can measure the thickness of non-magnetic coating layers (aluminum, chrome, copper, ename1, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)
2. Coating thickness gauge TG-2100NF can measure the thickness of non-conductive coating layers (ename1, rubber, paint, vanish, plastic anodic oxide layer) covered on non-ferrous substrate (aluminum, brass, zinc, tin and non-magnetic stainless steel)

Standard Delivery of coating thickness gauge TG2100FN:
Main unit (2000um)                       1
F type probe                                 1
N type probe                                 1
F calibration base set                   1
N calibration base set                   1
Calibration foil set                         1set (4 foils)
Carrying case                               1
Instruction manual                        1

Calibration certificate                    1

Optional Accessories of coating thickness gauge TG2100FN:
Cable and software for RS-232C
Customized testing range
