Universal Ultrasonic Flaw Detector With LED Backlight Bright Color Display USMFD34035X

China Universal Ultrasonic Flaw Detector With LED Backlight Bright Color Display USMFD34035X supplier

Large Image :  Universal Ultrasonic Flaw Detector With LED Backlight Bright Color Display USMFD34035X

Product Details:

Place of Origin: Beijing,China
Brand Name: HUATEC
Certification: ISO CE
Model Number: FD340

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Carton
Delivery Time: 5-7 work days
Payment Terms: TT, Western Union, L/C
Supply Ability: 300 sets per month
Detailed Product Description
Harsh Field And Industrial Environments: -10℃ To 60 ℃ Battery Working Time: Extended Battery Life To 12 Hours Under Real Test Conditions
Screen: Fast And Bright Color Screen Square Wave Pulser: Option
Auto Correction: Curved Surface Correction Dataview: Data Reporting Through USB
Testing Range: 0.5 To 10,000 Mm (steel) Material Velocity: 1,000 To 15,000 M/s

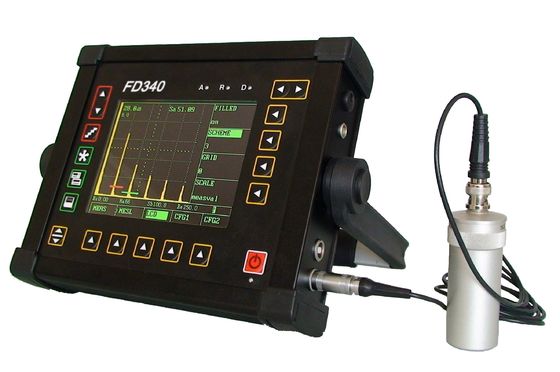

Universal Ultrasonic Flaw Detector With LED Backlight Bright Color Display FD340





The FD340 Digital Ultrasonic Flaw Detector combines HUATEC' industry leading conventional flaw detection capabilities with the efficiency of a highly portable, intuitive instrument. The FD340 flaw detector's blend of efficient menus and direct access keys allows you to take advantage of the highest quality flaw detection platform with exceptional ease of use.

• Simple to use, quick to operate, from basic to challenging inspection re­quirements.

• From high frequency inspections for thin materials up to low frequency for attenuative materials.

• From automotive, power generation, oil and gas to aerospace applica­tions.



Specifications:

Ranges:0.5 to 10,000 mm (steel) range selectable in fixed steps or continuously variable

Material velocity:1,000 to 15,000 m/s,continuously variable in steps of 1 m/s and 22 selectable material velocities

Display delay:From -5 to 1,000μs

Probe delay:0 to 200 μs

Auto calibration:Measurement and setting of sound velocity and probe delay using two known calibration echoes (2-point calibration)

Pulse energy (Spike mode):Low energy (70V), High energy(500V)

Square wave excitation pulse (option)

Pulse Voltage 20 to 500 V adjustable in 10 V increments

Pulse Width Tunable from 20 to 1000 ns in 10 ns increments

Damping:Low(50 ohms), High(500 ohms):(1,000 ohms in TR mode)

Pulse repetition frequency:20 to 1K Hz

Frequency ranges (-3 dB):0.2 to 1 MHz,0.5 to 4 MHz,2 to 20 MHz

Gain:0 to 110 dB adjustable in selectable steps 0.5, 1.0, 2.0, 6.0, 12.0, user definable, and locked (step 0).

Rectification:Full-wave, negative half-wave, positive half-wave and RF mode

Reject:Linear, 0 to 90 % screen height Variable in steps of 1 %

Monitor gates:2 independent gates in color bar mode, start and width variable over the entire calibration range, response threshold of 5 to 95 % screen height variable in steps of 1 %,

Alarm:Alarm signal via LED and connectable internal horn. Alarm mode of positive logic, negative logic or DAC

Zoom Expands A-scan display area for increased screen resolution.

Magnify:Expands area within the selected gate over the entire display range for increased A-scan resolution.



Sound path measurement:

Digital display of sound path (projection distance, depth) between initial pulse and the first echo in the gate, or between the echoes in the two gates, with selectable echo peak, echo flank or Japanese echo flank detection.

Amplitude display:In % screen height:

dB difference above gate height,

dB difference above DAC or TCG

dB difference above DGS curve (FD350)

Displayed reading:

Sound path, (reduced) projection distance, depth, amplitude for every gate, user configurable at four positions of measurement line and of the zoomed display in the A-scan

Display:

5.7 inch LED backlight TFT_LCD

Display resolution 320 x 240 pixels

A-scan resolution 200 x 220 pixels, 320 x 220 pixels (zoom)

A-scan functions:

Manual or automatic A-scan freeze,

A-scan comparison, echo dynamics

(envelope), peak echo storage



Harsh field and industrial environments

• Extended temperature range from -10℃ to 60 ℃.

• Weighs only 2.0 kg.

• Extended battery life to 12 hours under real test conditions.

Fast and bright color screen

Color brings you many additional ben­efits in your daily inspection job:

• Color display of monitor gates and curves (DAC, TCG, DGS) for direct recognition

• Color coded display of legs for angle beam inspection of welds

• Use of color to display references (A-scan) to make comparisions easy



Square Wave Pulser (option)

Universal Ultrasonic Flaw Detector With LED Backlight Bright Color Display USMFD34035X



Universal Ultrasonic Flaw Detector With LED Backlight Bright Color Display USMFD34035X



Examples for the various applications of the high performance and light FD340:



Universal Ultrasonic Flaw Detector With LED Backlight Bright Color Display USMFD34035X



Standard Delivery of Digital Portable Ultrasonic Flaw Detector FD340:
Portable ultrasonic flaw detector main unit
Operating manual
Straight Beam probe
Angle-beam probe(60 degree)
Probe cable
PC software CD
Serial PC cable
AC adapter/charger
Carrying case

Additional Accessories:
Straight probe (5MHZ-ф20)
Straight probe (2.5MHZ-ф20)
Straight probe (2.25MHZ-ф20)
Straight probe (1MHZ-ф20)
Angle probe (4MHZ-45degree, 8*9mm)
Angle probe (4MHZ-60degree, 8*9mm)
Angle probe (4MHZ-70degree, 8*9mm)
Angle probe (4MHZ-80degree, 8*9mm)
Angle probe (2MHZ-45degree, 8*9mm)
Angle probe (2MHZ-60degree, 8*9mm)
Angle probe (2MHZ-70degree, 8*9mm)
Angle probe (2MHZ-80degree, 8*9mm)
Probe T/R (5MHz-ф20mm, focus 15mm)
Probe T/R (2.5MHz-ф20mm, focus 15mm)
Connection cable to probe (BNC-BNC)
Connection cable to probe (BNC-Lemo 00)
Connection cable to probe (Lemo 01-BNC)
Connection cable to probe (Lemo 01-Lemo 00)
Lithium ion battery
Power adapter (4A/9V)
Power Cable
Leather case
Test block V1
Test block V2
Test blocks DAC, ASME etc.
