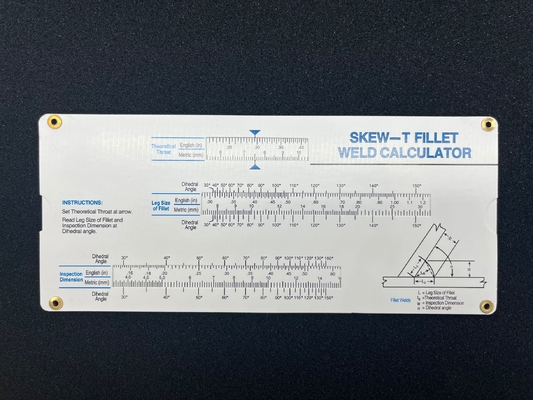

Fillet Weld Cam Type Weld Gauge Welding Gauge Series Taper Gauge
HUATEC KIT-3, 16pcs per kit as photo below:
Including: HJC-60 HJC-40A HJC-40 MG-8 MG-11(Metric) MG-11(mm/inch) Pipe pit gage Fillet welding gage 1-15mm Taper gage 15-30MM Taper gage 30-45mm Taper gage Fan-shape gage Hi-Lo gage 2 types V-WAC edge biting gage AWS gage
HUATEC KIT-4, 13pcs per kit as photo below:
Including:V-WAC edge biting gage MG-11 MG-8 Hi-Lo gauge 2 types Inspection mirror Micrometer AWS gage Welding seam gauge HJC-45B Fillet welding gage Others
HUATEC KIT-1, 7pcs per kit as photo below:
Including:: 1-15mm taper gage: 0-150mm vernier caliper 0-15mm caliper 6X magnifier V-WAC edge biting gage AWS gage MG-11
HUATEC KIT-2, 5pcs per kit as photo below:
Including: Light torch V-WAC edge biting gage 15-30mm taper gage Inspection mirror Hi-Lo gage
WELDING GAUGE SERIES
Wide-seat square Taper gauge
spec:63*40-630*400mm
180°malleable iron square MG-11(metric system)
G.A.L. HI-LO Welding Gauge Measures internal Alignments G.A.L ECONOMY Single Purpose HI-LO Welding Gauge

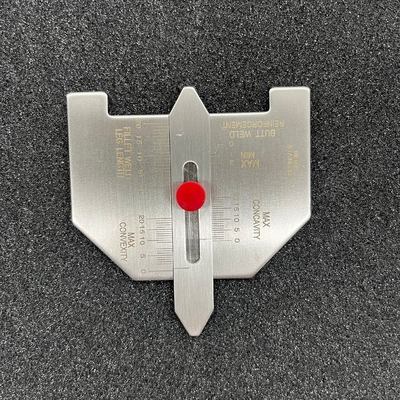

Automatic Weld Size Weld Gauge FAN-SHAPED Gauge

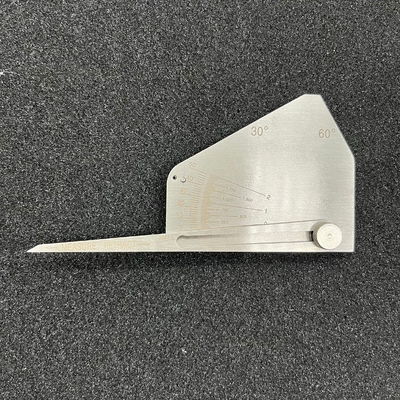

BITING EDGE GAUGE
MG-8 Cam Type Weld Gauge MG-11 Cam Type Weld Gauge
|
Measurement Items |
Range |
Parameters |
Tools |
|
Width |
0—20mm |
0.2 |
0.02 vernier caliper |
|
Height |
0—12mm |
Plug gauge, tabulate gauge |
|
|
Width of Fillet Weld |
0—20mm |
||
|
Movable Bevel Angle |
20°, 30°, |
±2° |
±30' angle gauge |
|
Single-side Bevel Angle |
117.5—122.5 |
±30' |
±10″universal gauge |
|
Bevel Angle |
45°, 55°, |
±30' |
±10″universal gauge |
|
Gap Size |
0.5-3.5mm |
0.1 |
0.02 vernier caliper |
Welding Gauge Model HJ30
The gauge consists of main scale, slide gauge and bevel gauge and is specially used for the measurement of the bevel angle of welding, the width and height of weld seam, and the weld gap.
It is made of stainless steel and is characterized by portable and compact structure, easy operation, wide application and accurate measurement
Welding Gauge ModelHJC60/40
The gauge consists of main scale, height gauge, undercut depthgauge and multiple-purpose gauge and is specially used for the measurement of the bevel angle, height, width, gap and undercut depth of weldment, suitable for the detection of boilers, bridges, ships, pressure vessels and oil pipes.
It is made of stainless steel and is characterized by portable and compact structure, easy operation, wide application.
Welding Gauge ModelHJC60
|
Measurement Items |
Range |
Tolerance of Indicating Value |
|
|
Height |
Surface Height |
0—15 |
0.2 |
|
Height of Fillet Weld |
0.2 |
||
|
Thickness of Fillet Weld |
0.2 |
||
|
Width |
0—60 |
0.3 |
|
|
Undercut Depth of Welding Seam |
0—5 |
0.1 |
|
|
Bevel Angle of Welding |
80—160 |
30 |
|
|
Gap Size |
0.5—6 |
0.1 |
|
Welding Gauge ModelHJC40
|
Measurement Items |
Range |
Tolerance of Indicating Value |
|
|
Height |
Surface Height |
|
0.2 |
|
Height of Fillet Weld |
0—12 |
0.2 |
|
|
Thickness of Fillet Weld |
0—15 |
0.2 |
|
|
Width |
0—40 |
0.3 |
|
|
Undercut Depth of Welding Seam |
0—5 |
0.1 |
|
|
Bevel Angle of Welding |
≤150 |
30 |
|
|
Gap Size |
0.5—5 |
0.1 |
|
Pipe pit gauge
Inspection mirror
