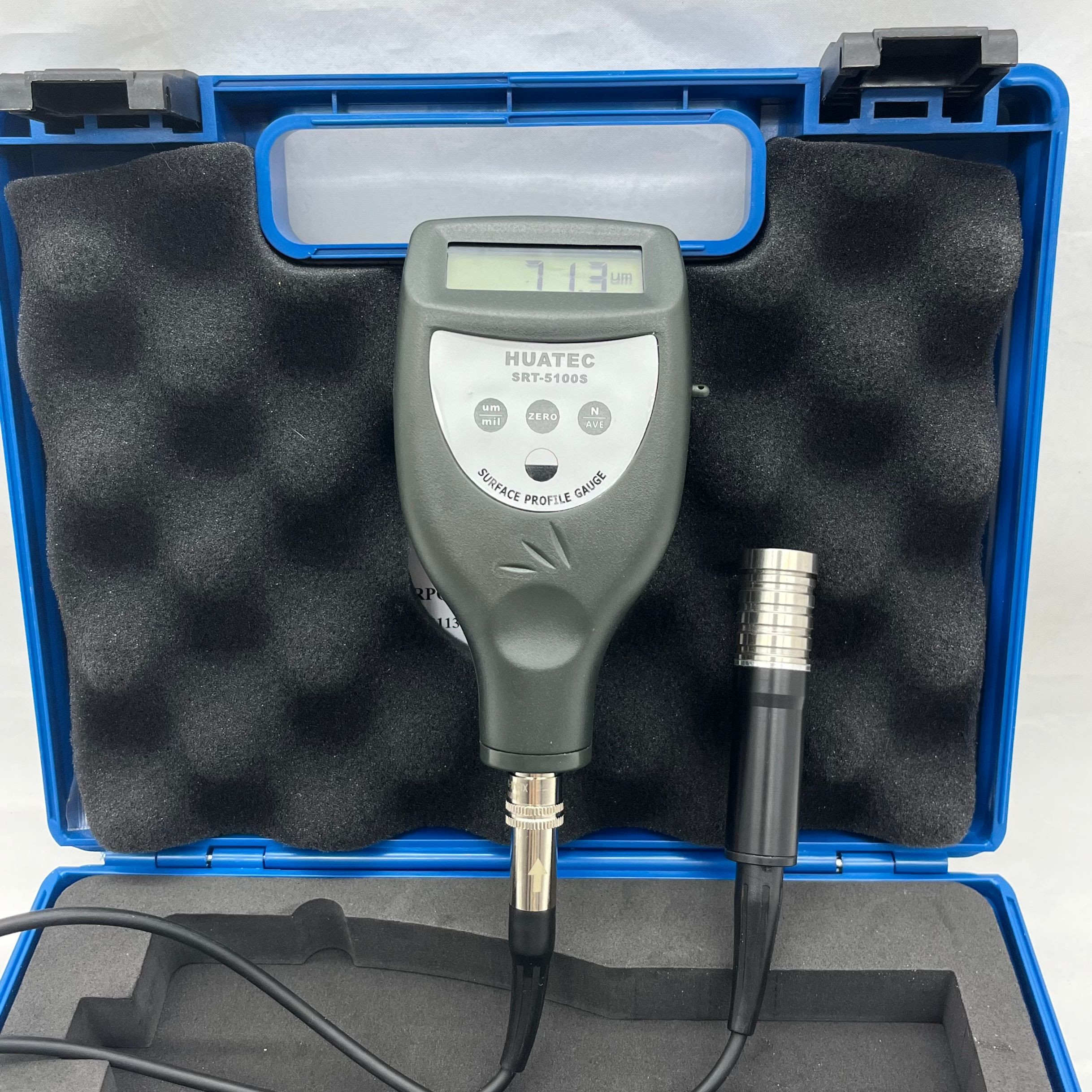

Metric/Imperial Inductance Type Surface Roughness Instrument Surface Finish Tester SRT-5100S
Main Application

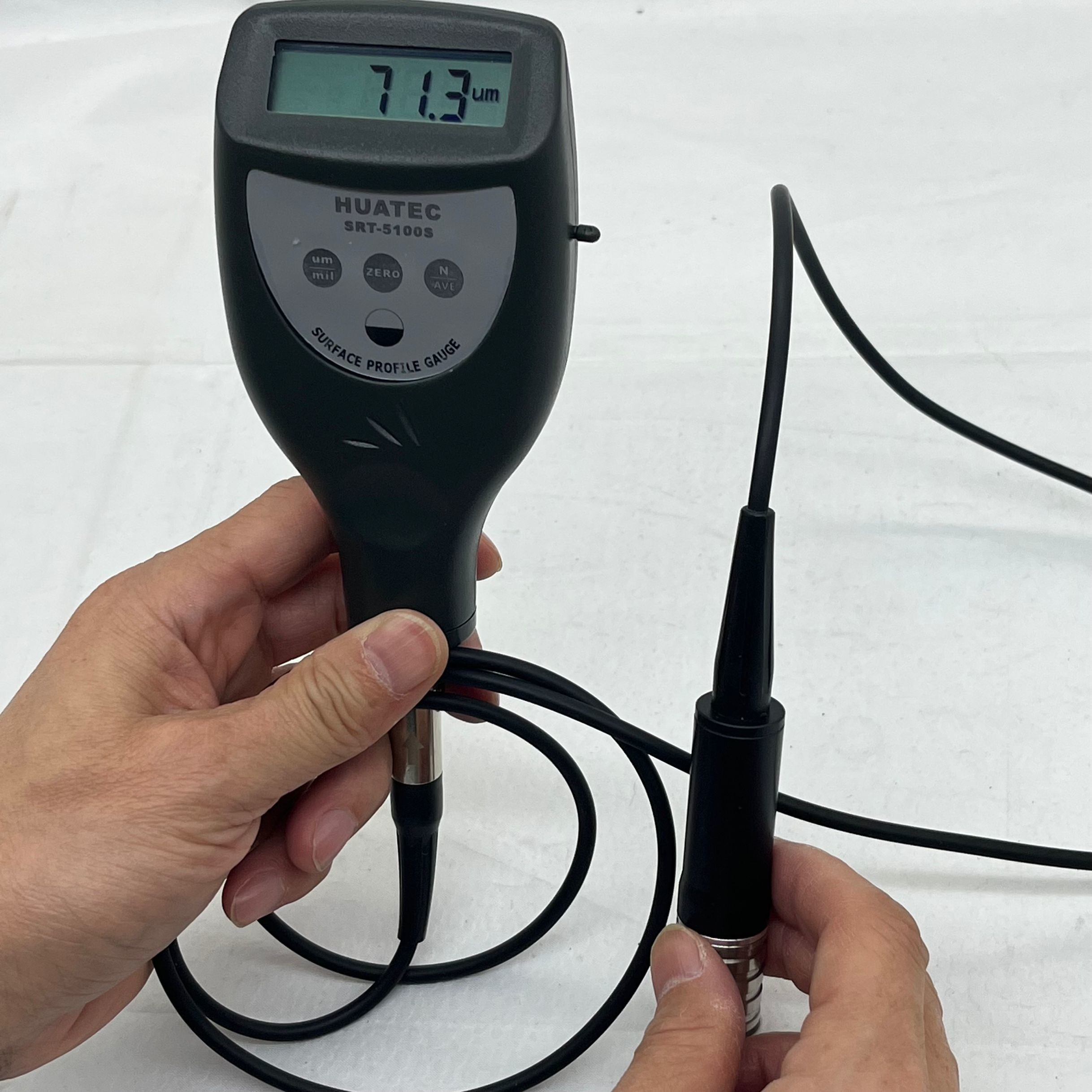

Digital Surface Profile Gauge SRT-5100S is a handheld separate probe gauge for fast and accurate checking of the peak-to-valley height of the surface profile of blast cleaned surfaces. SRT-5100S Surface Profile Gauge is widely used in field of blast cleaned surface measurement.
Feature
* SRT-5100S Surface Finish Tester meets the standards of ASTMD-4417-B, IMOMSC.215(82), SANS5772, US Navy NSI 009-32, US Navy PPI-63101-000.
* SRT-5100S Surface Finish Tester is suitable for the laboratory and for use in harsh field conditions.
* SRT-5100S Surface Finish Tester offer accurate, immediate and repeatable results.
* Long working life, the tungsten carbide tip will last for up to 20,000 readings and can then be easily replaced by the user in the field. Cost per test is significantly lower than other test methods.
* Small in size, light in weight and easy to use.
* Manual or automatic power off.
* Metric/Imperial conversion.
* Average calculation function.
* Separate Probe.
* Use USB data output to connect with PC.
* Provide Bluetooth data output choice.
Specification
| Display | LCD with backlight |
| Testing Range | 0 ~ 800 ɥm/29.5 mils |
| Accuracy | ±5%or±5ɥm,(whichever is the greater) |
| Resolution | 0.1ɥm/ 1ɥm |
| 0.1mils | |
| Working Principle | Inductance Type |
| Operating | Temperature : 0℃ ~ 50℃ |
| Conditions | Humidity : < 80% RH |
| Power Supply | 4x1.5V AAA(UM-4)Battery |
| Dimensions | 126x65x28 mm |
| Weight | 280 g |
|

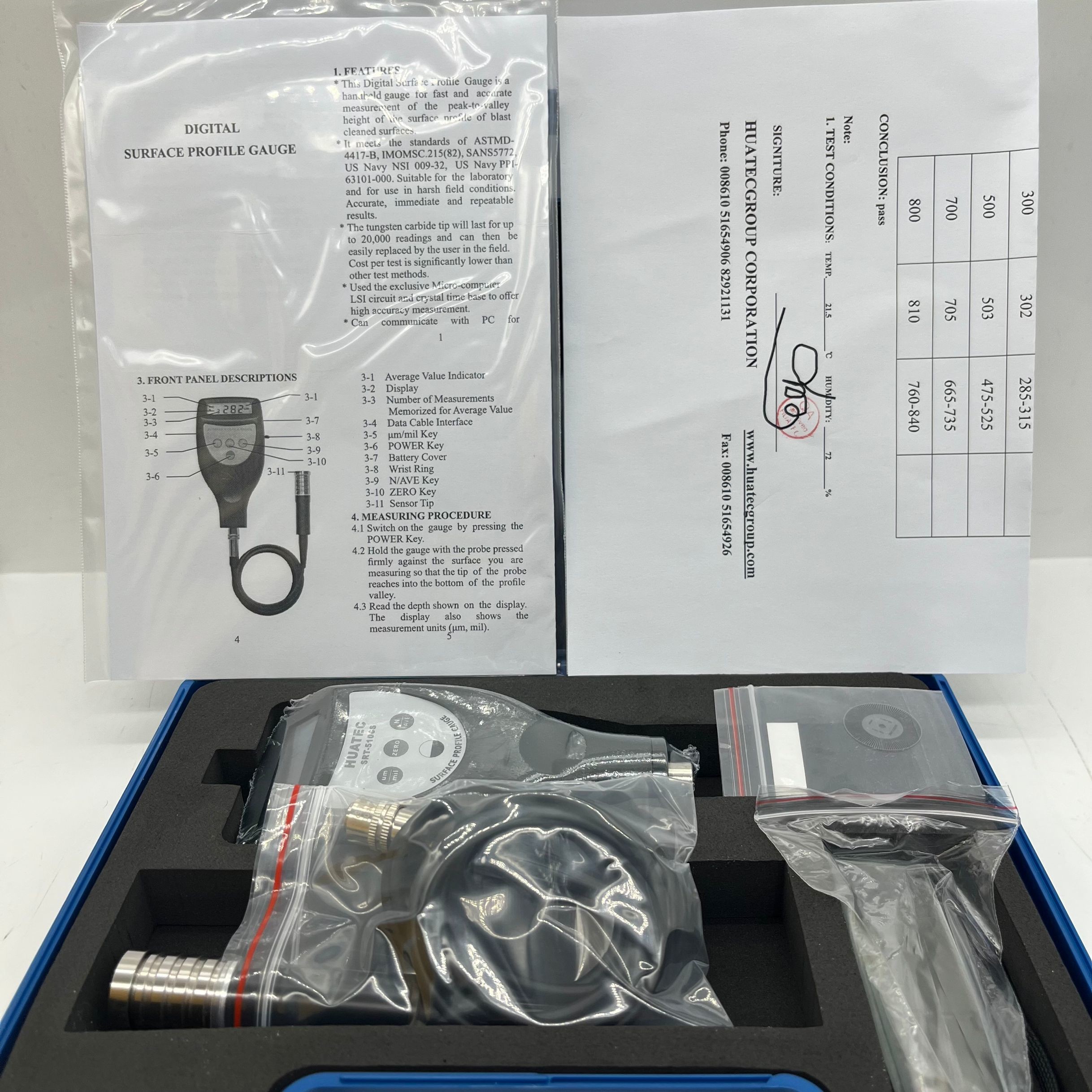

Standard Accessories |
Main Unit SRT-5100S |
| Sensor | |
| Standard Sample Plate | |
| Carrying Case | |
| Operation Manual | |
|
Optional Accessories |
USB Cable with Software |
| Bluetooth Adapter with Software |
