ASTMD-4417-B US Navy NSI 009-32 Metric/Imperial Inductance Type Surface Roughness Tester Portable
Application
This Digital Surface Profile Gauge is a handheld gauge for fast and accurate measurement of the peak-to-valley height of the surface profile of blast cleaned surfaces. It is widely used in field of blast cleaned surface measurement.
Feature
* It meets the standards of ASTMD-4417-B, IMOMSC.215(82), SANS5772, US Navy NSI 009-32, US Navy PPI-63101-000. Suitable for the laboratory and for use in harsh field conditions. Accurate, immediate and repeatable results.
* The tungsten carbide tip will last for up to 20,000 readings and can then be easily replaced by the user in the field. Cost per test is significantly lower than other test methods.
* Small in size, light in weight and easy to use.
* Manual or automatic power off.
* Metric/Imperial Conversion.
* With average calculation function.

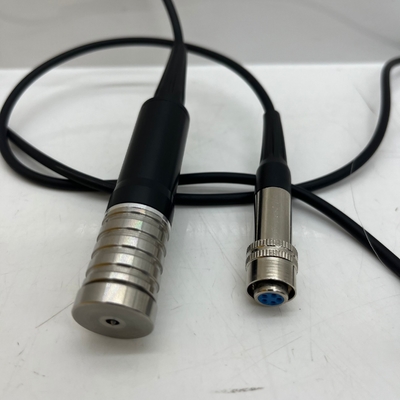

* Separate Probe.
* Use USB data output to connect with PC.
* Provide Bluetooth data output choice.
Specification
| Display | LCD |
| Range | 0 ~ 800 ɥm/29.5 mils |
| Accuracy | ±5%or±5ɥm,(whichever is the greater) |
| Resolution | 0.1ɥm/ 1ɥm |
| 0.1mils | |
| Principle | Inductance Type |
| Operating | Temperature : 0℃ ~ 50℃ |
| Conditions | Humidity : < 80% RH |
| Power Supply | 4x1.5V AAA(UM-4)Battery |
| Dimensions | 126x65x28 mm |
| Weight | 280 g |
|
Standard Accessories |
Main Unit |
| Sensor | |
| Standard Sample Plate | |

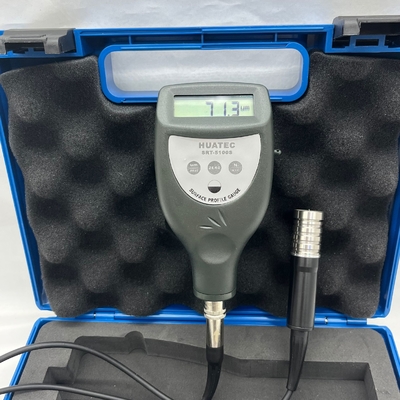

| Carrying Case | |
| Operation Manual | |
|
Optional Accessories |
USB Cable with Software |
| Bluetooth Adapter with Software |
