Backlit 3d Xyz 3 Axis Pocket Vibration Meter
1pcs
MOQ
200-350usd
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HG6380
High Light:

3d pocket vibration meter

,

3 axis pocket vibration meter

,

backlit pocket vibration meter

Payment & Shipping Terms
Packaging Details: Standard export package
Delivery Time: 1-4days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 500pcs per month
Specifications
Vibration Sensor: 3-Axis Piezoelectric Accelerometer
Display: 4 Digit LCD Backlit
Testing Range: Velocity : 0.01-400.0 Mm/s 0.000-16.00 Inch/s True RMS Acceleration : 0.1-400.0 M/s² 0.3-1312 Ft/s² 0.0-40g Equivalent Peak Displacement : 0.001-4.000mm 0.04-160.0 Mil Equivalent Peak-peak
Frequency Range For Measuring: 10Hz. To 10kHz
Accuracy: 5% Of Reading + 2 Digits
Name: Piezoelectric Accelerometer Pocket Vibration Meter Piezoelectric Vibration Sensor
Product Description

3D XYZ 3 Axis Piezoelectric Accelerometer Pocket Vibration Meter Piezoelectric Vibration Sensor





Main application:

The vibration meter HG-6380 used for measuring periodic motion, to check the imbalance and deflecting of moving machinery.

HG-6380 is specifically designed for present measuring various mechanical vibration. So as to provide the data for the quality control, run time and equipment upkeep.

HG-6380 uses the high-performance acceleration meter, can realize the repetitiveness and accurate measurement.

It has the function of testing axle bearing situation.



Specification of 3D HG-6380 vibration meter:
Vibration Sensor:3-Axis Piezoelectric accelerometer
Display Screen: 4 digit LCD backlit
Axial Vibration: any one axis of X ,Y,Z or 3 axes of XYZ
Measurement Range:
        Velocity : 0.01-400.0 mm/s 0.000-16.00 inch/s true RMS
        Acceleration : 0.1-400.0 m/s² 0.3-1312 ft/s² 0.0-40g equivalent peak
        Displacement : 0.001-4.000mm 0.04-160.0 mil equivalent peak-peak
Frequency Range for Measuring:10Hz. to 10kHz.
Accuracy: 5% of reading + 2 digits
Metric and Imperial conversion
Analogue Output: AC output 0~2.0V peak full scale (load resistance: above 10k)
With Max. value hold and low battery indication

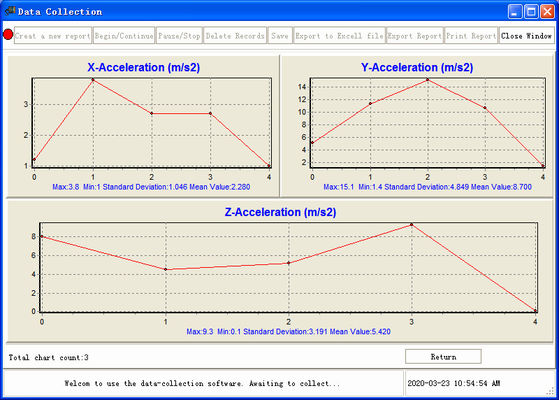

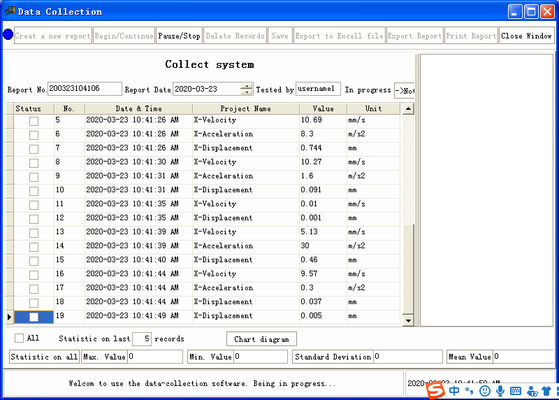

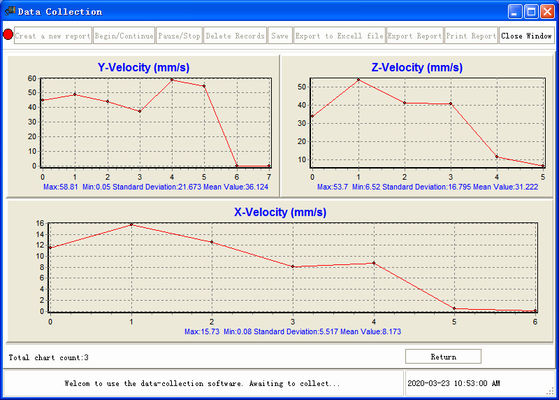

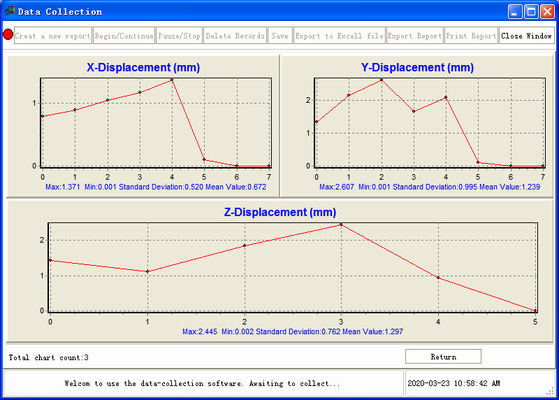

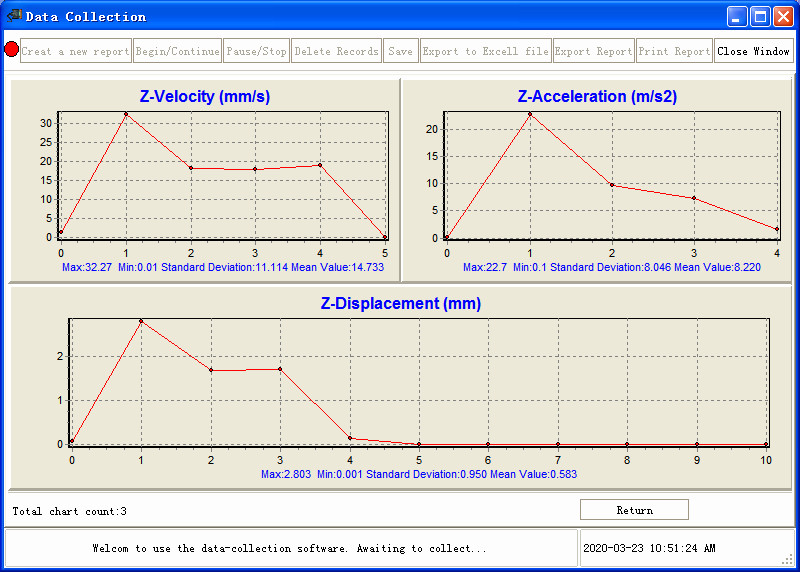

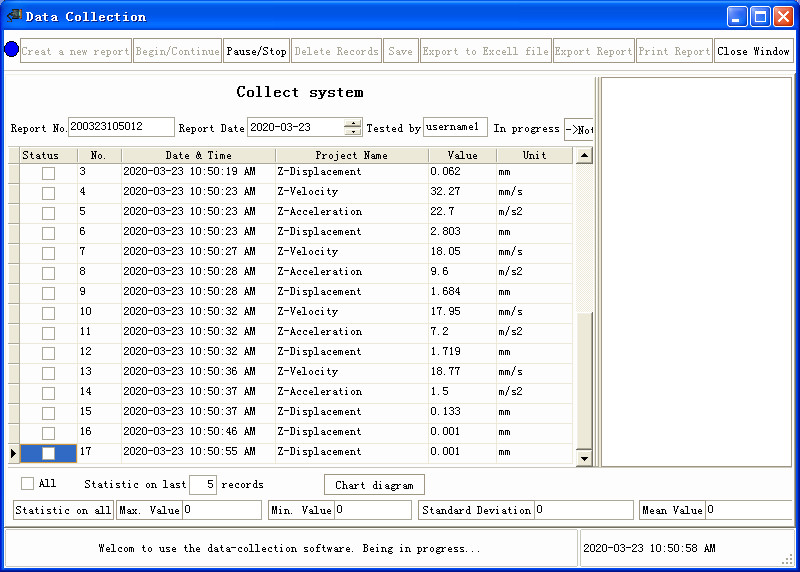

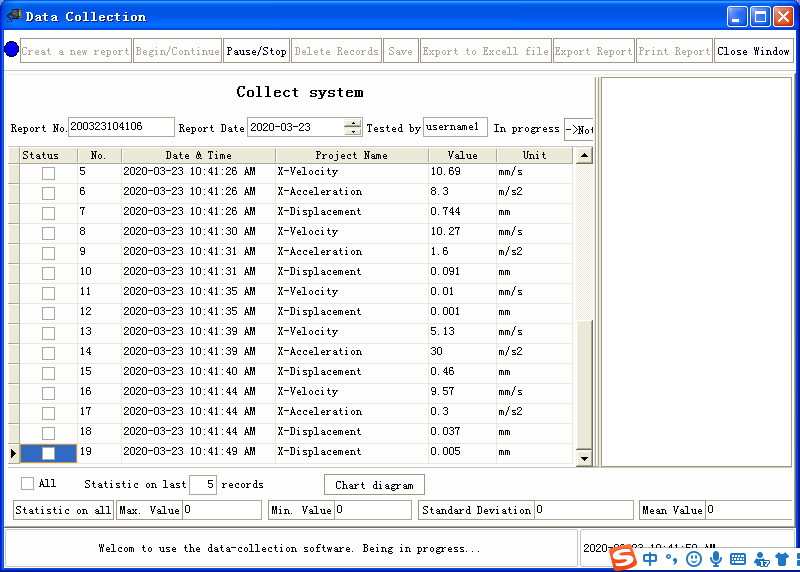

PC interface: RS232C or USB or Bluetooth interface (Cable and software are optional)
Power supply: 2x1.5v AA size (UM-3) batteries
Power off : Manual off at any time or auto power off is enabled by user
Operating conditions:
       Temperature : 0-50 ℃        Humidity : below 95% RH
Dimensions: 124x62x30mm/4.9x2.4x1.2 inch
Weight: 120g (not including batteries)

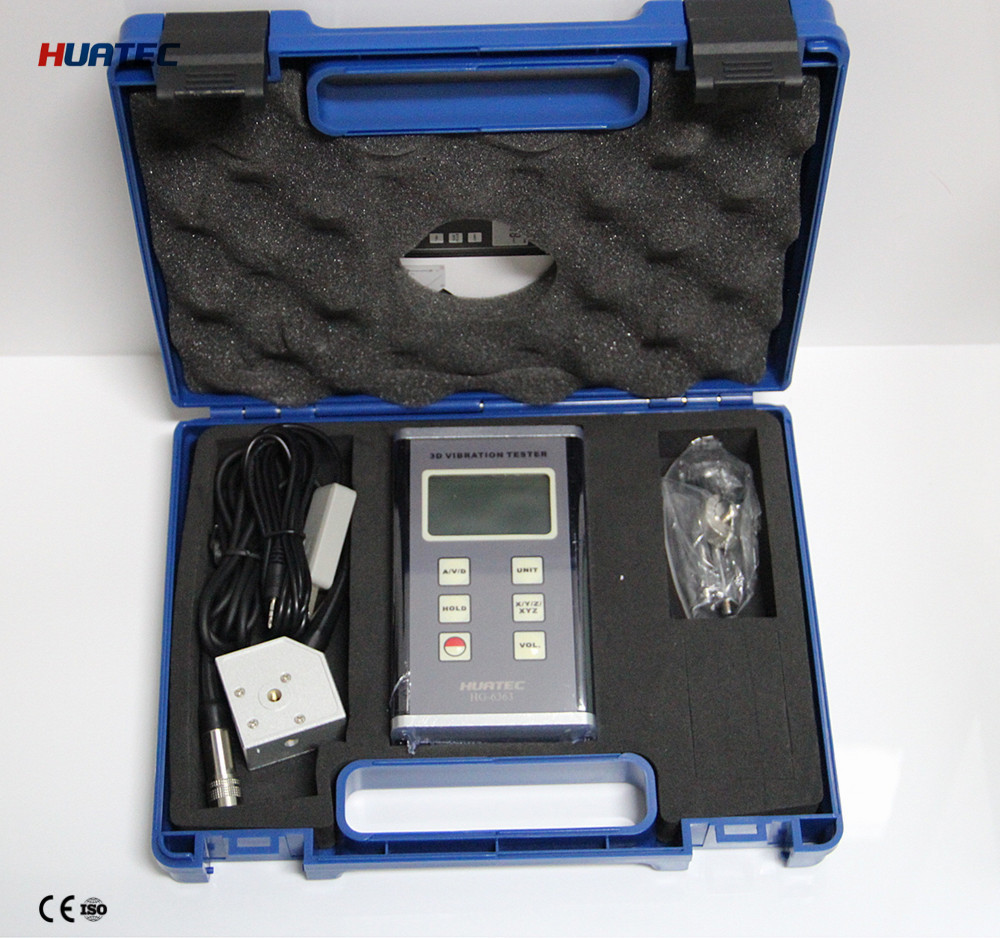

Standard delivery:
Powerful rare earth magnet 1 pc.
Accelerometer 1 pc.

Stinger probe (Cone) 1 pc.
Stinger probe (Ball) 1 pc.
Carrying case 1 pc.
Operation manual 1 pc.
Optional accessories: Headphones for use as electronic stethoscope

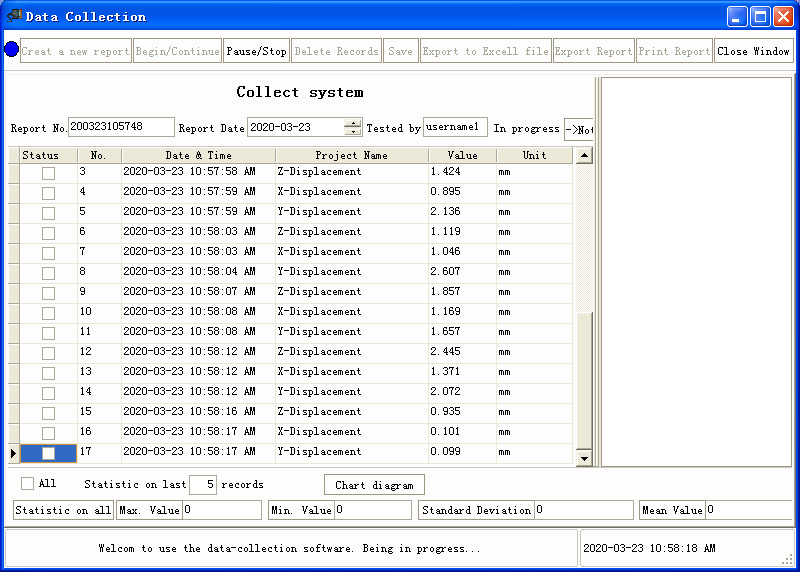

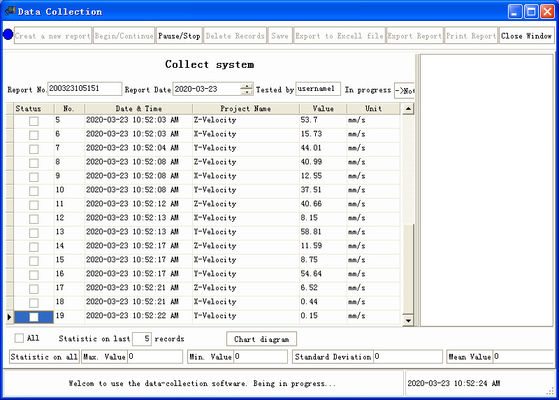

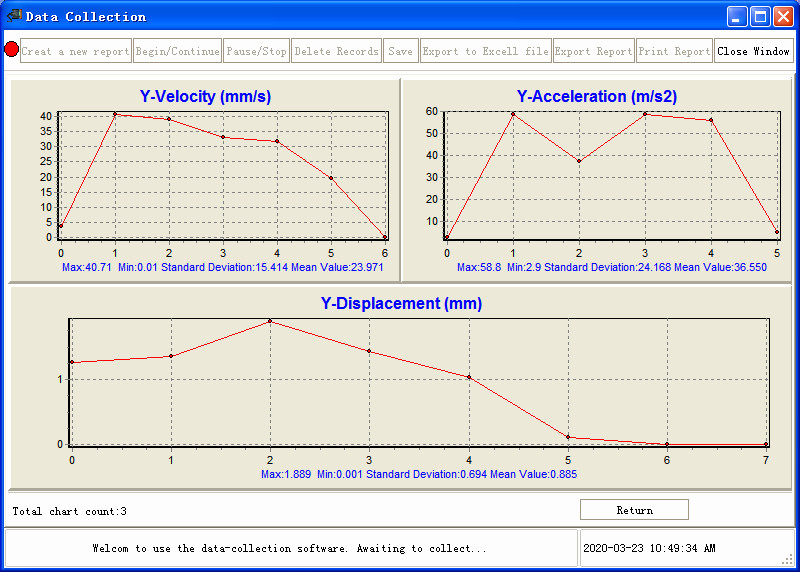

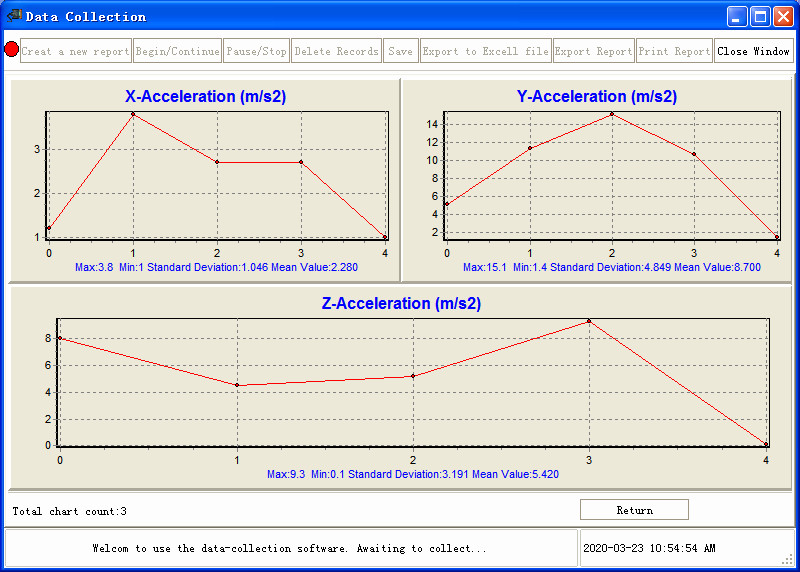

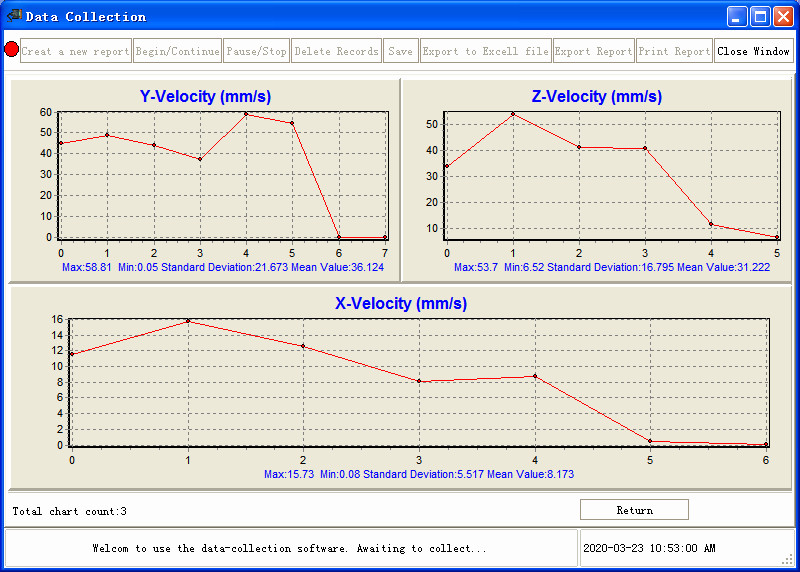

Cable and software for RS232C, USB cable with software, bluetooth with software

Backlit 3d Xyz 3 Axis Pocket Vibration Meter 0

3D vibration senson photos:



Backlit 3d Xyz 3 Axis Pocket Vibration Meter 1



Backlit 3d Xyz 3 Axis Pocket Vibration Meter 2Backlit 3d Xyz 3 Axis Pocket Vibration Meter 3
